In-Stock Factory Direct
Factory Direct Supply With Sufficient Ready Stock
I Preferential price
One unit is also at wholesale price
Stable qualityand protection for mining
Specifically conducted 10-point design
Cummins Engine
Cummins Tier 2 direct injection engine,suitable for harsh working conditions

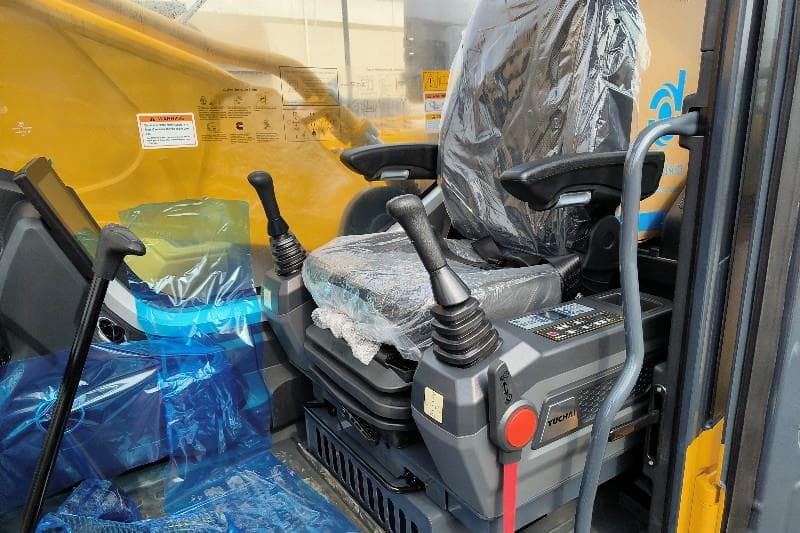

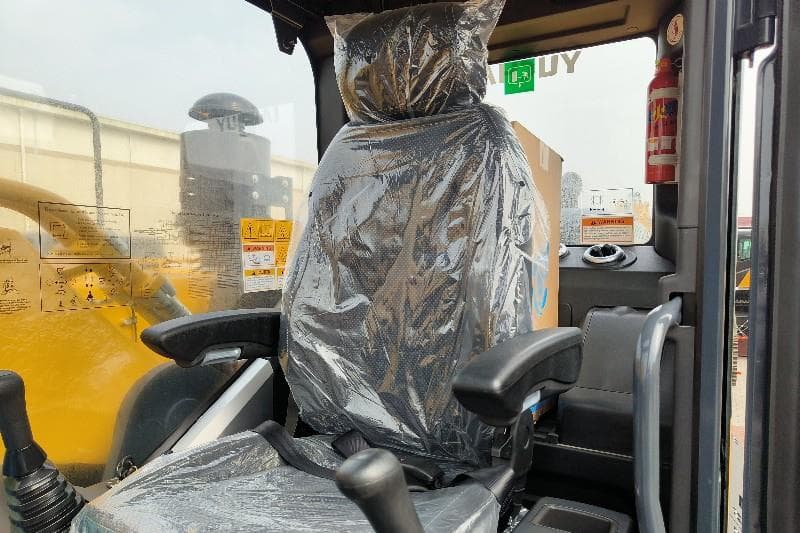

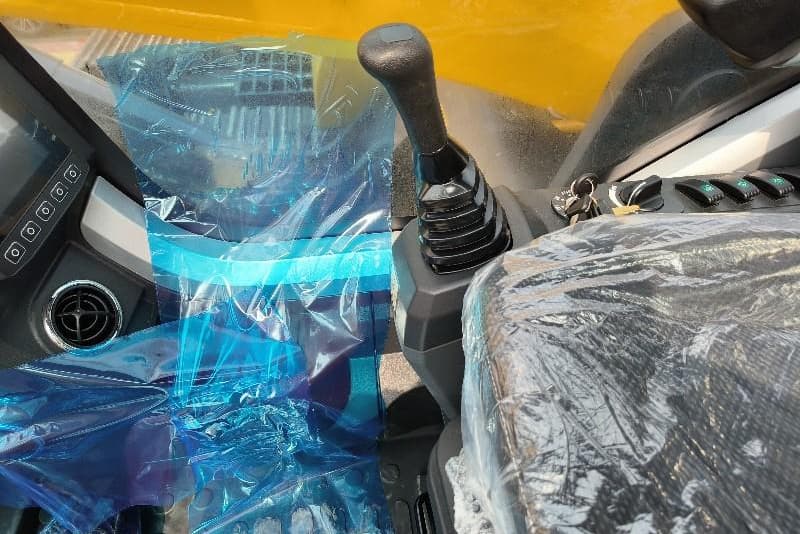

Comfortable Driving Environment
It includes fully automaticheating and cooling air conditioning for comfort.
5.7 Inches Screen
5.7 inches monitor spacious cabin.
Hydraulic Cylinder
Inverting the bucket hydraulic cylinder prolongs its lifespan.
Easy Maintenance
Maintenance points enable fast servicing, maximum uptime and lower maintenance costs.
Structural Reliability; Excellent Performance
Fuel saving and high efficiency
Brand new large cabin
Comfortable driving experience
Convenient maintenance
Fitted with a safe, updated cabin with new injection-molded interior parts for a spacious, appealing look. Fully automatic heating and cooling air conditioning delivers comfortable operation.
Equipped with an 8-inch color intelligent monitor.
The whole machine adopts anti-skid safety, overheat protection, moving part protection and cabin protection design to guarantee high safety.
Maintenance parts are easy to reach for convenient servicing.
Adopts a safe, reliable new cabin with injection-molded interior parts for a spacious, elegant layout. Fully automatic heating and cooling air conditioning ensures operator comfort.
New-generation control system intelligently adapts to working conditions to maximize overall machine performance.
High-resolution, high-brightness 5.7-inch color smart instrument panel supports maintenance reminders, fault self-diagnosis and alarm functions.
Specifications
| Basic Parameter | YC390 | |
| Operating Weight | Kg | 38700 |
| Bucket capacity | m³ | 1.8 |
| Engine power | KW/rpm | Cummins 233/1900 |
| Max. Traction Force | KN | 290 |
| Travel Speed (High/Low) | km/h | 5.5 / 3.8 |
| Swing Speed | r/min | 9.8 |
| Gradeability | % | 35 (70) |
| Ground Pressure | kPa | 59.7 |
| Fuel Tank | L | 590 |
| Hydraulic Tank | L | 345 |
| Overall Length | mm | 11280 |
| Overall Width | mm | 3490 |
| Overall Height | mm | 3560 |
| Upper Width | mm | 3150 |
| Cab Height | mm | 3172 |
| Counterweight Ground Clearance | mm | 1183 |
| Engine Height | mm | 2628 |
| Minimum Ground Clearance | mm | 471 |
| Rear Length | mm | 3451 |
| Rear Swing Radius | mm | 3900 |
| Track Length | mm | 5050 |
| Track Length (G) | mm | 4620 |
| Wheel base off track shoe | mm | 2980 |
| Track Gauge | mm | 2600 |
| Shoe Width | mm | 800 |
| Digging Reach | mm | 10546 |
| Ground Max. Digging Distance | mm | 10340 |
| Max. Vertical Digging Depth | mm | 11110 |
| Max. Digging Height | mm | 4700 |
| Dumping Height | mm | 3150 |
| Minimum Swing Radius | mm | 240 |
| Max. Digging Force (Bucket) | KN | 214 |

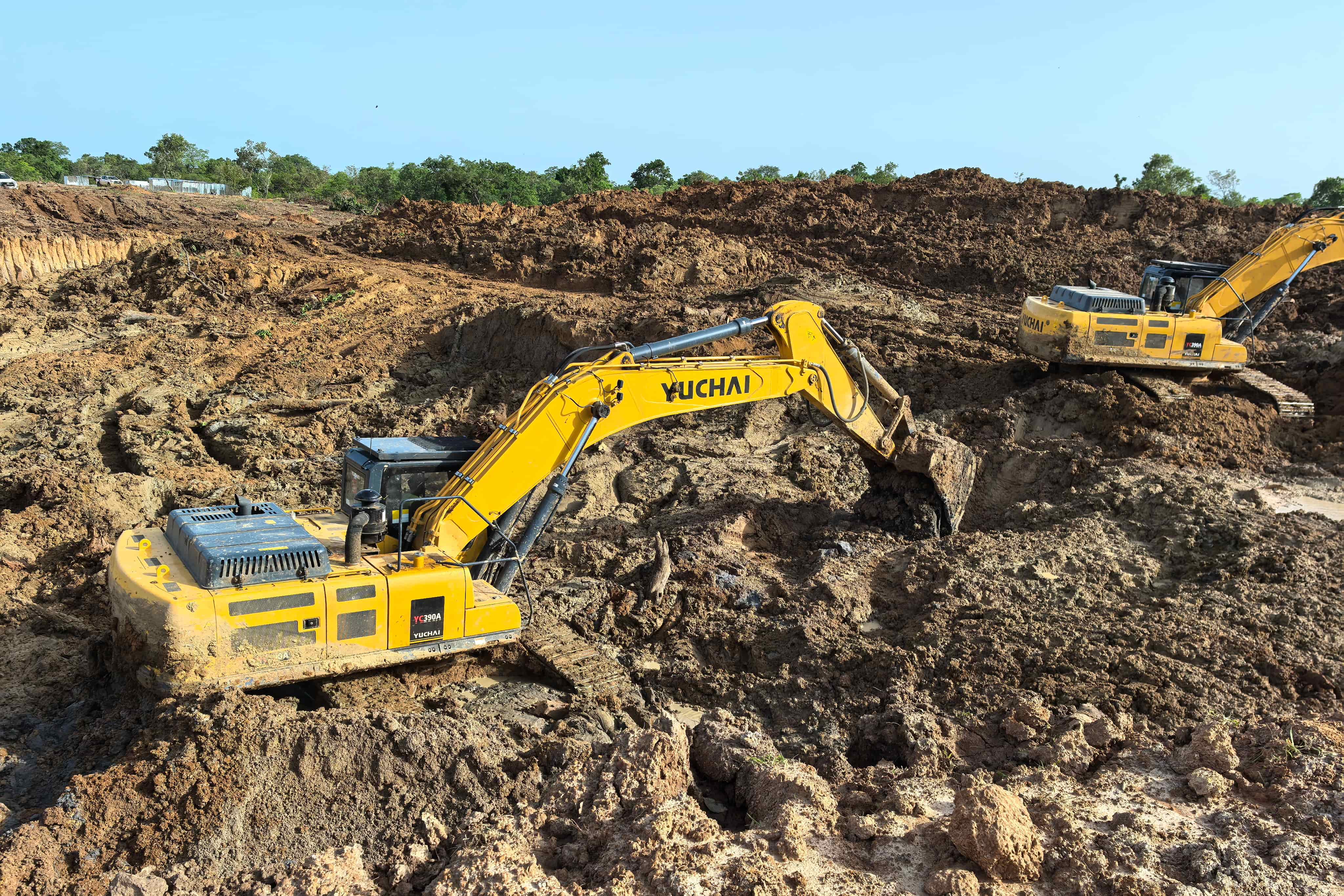

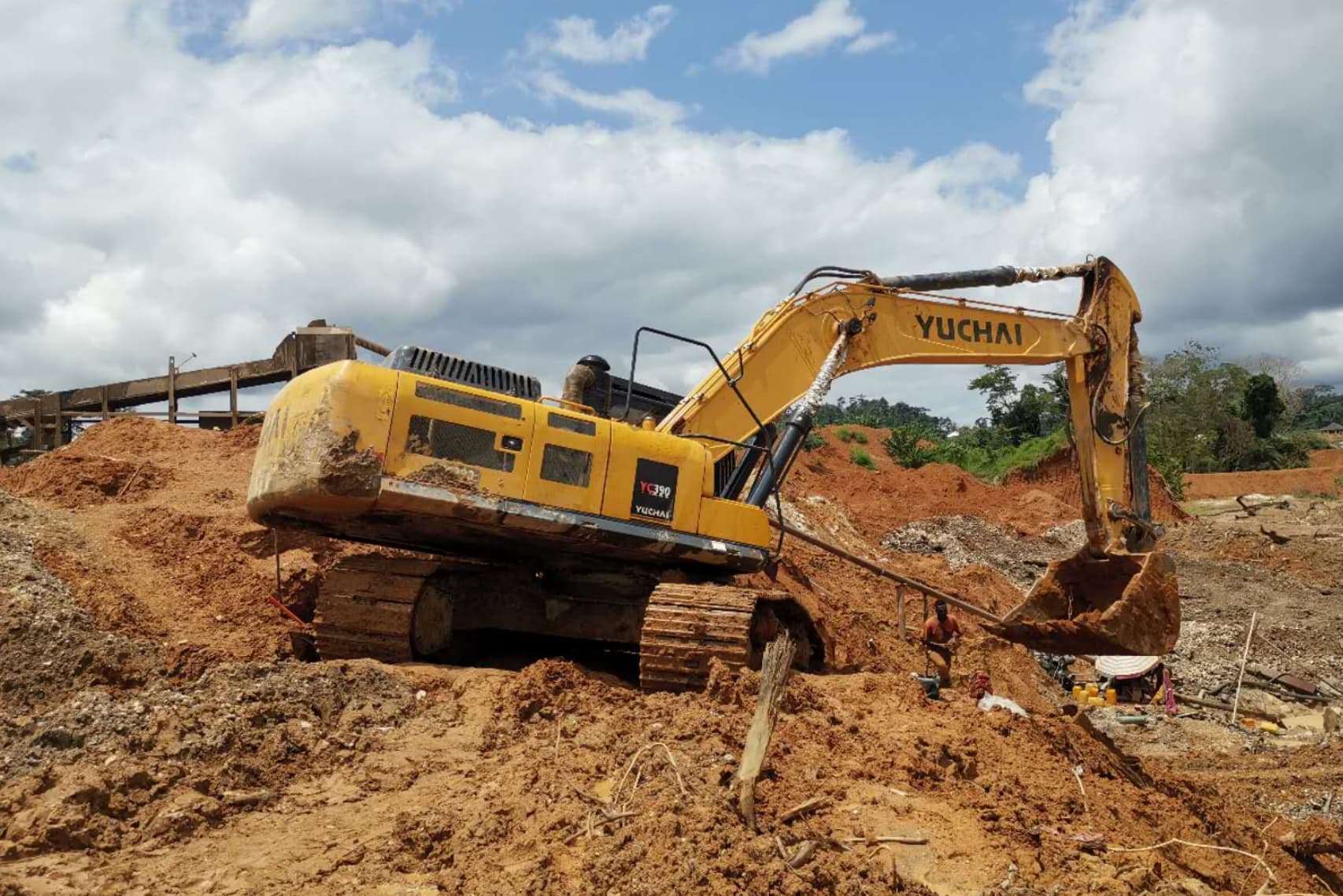

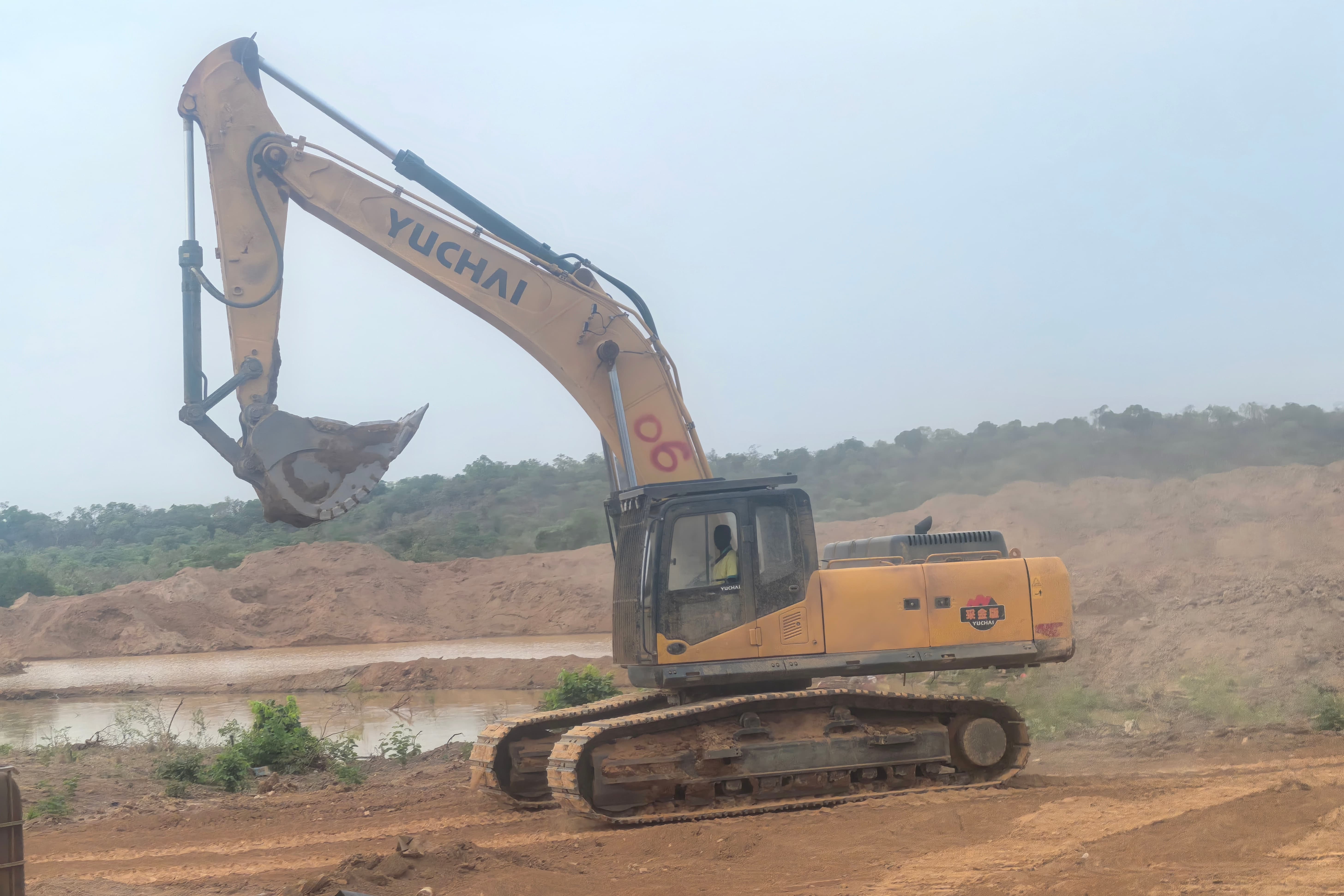

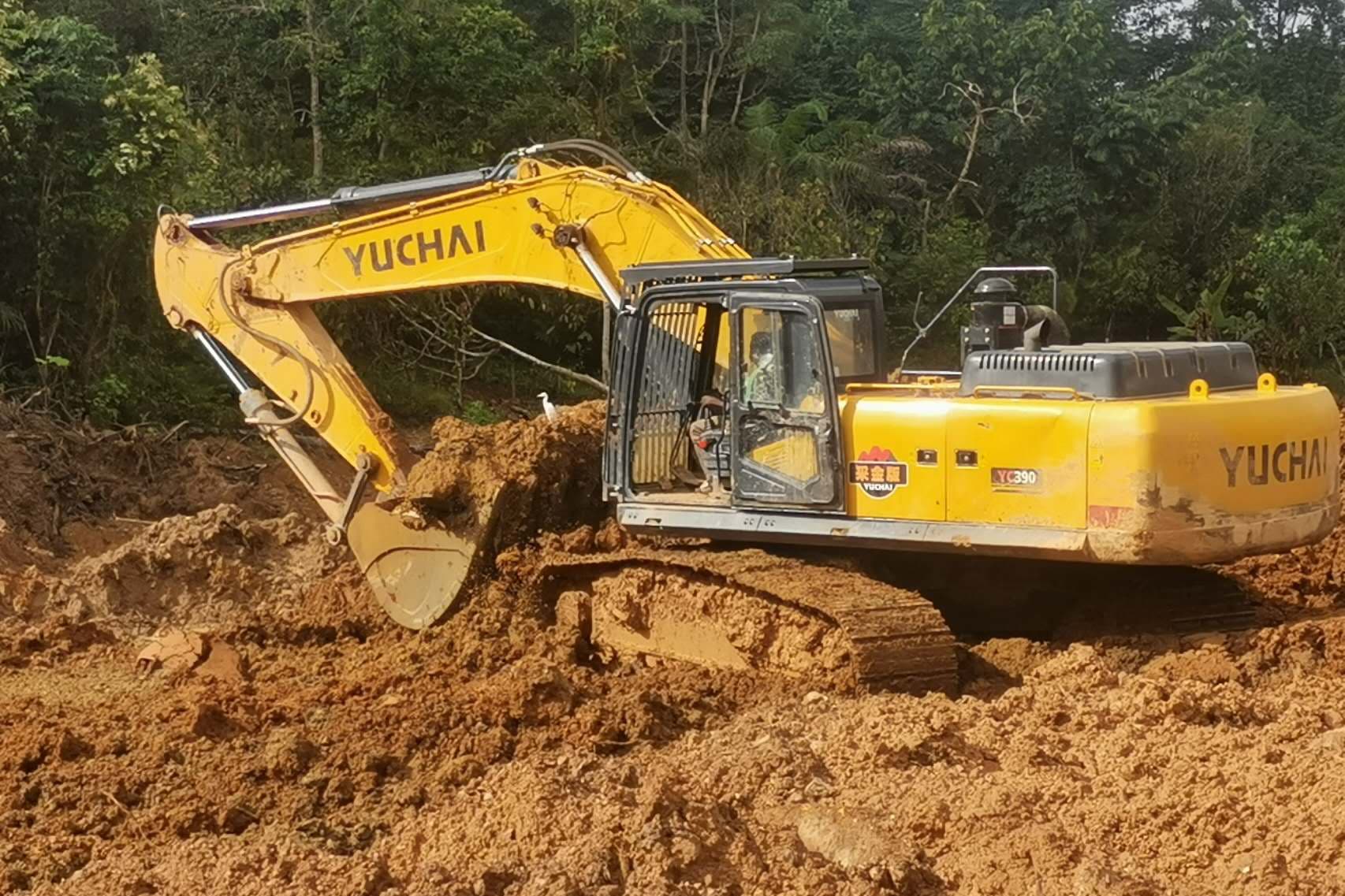

Gallery
