Mainly used in mines, open-pit coal mines, material yards, and large-scale earthwork construction projects, etc., to meet the requirements of operations such as rock crushing, excavation and loading, square excavation, and transportation.
1.Utilizes Isuzu engine, providing powerful performance, low fuel consumption, and high efficiency.
2.Features a well-known brand hydraulic system for better coordination and easier operation.
3.Equipped with large-diameter hydraulic cylinders for enhanced digging force.
4.Incorporates a high-displacement rotary motor for improved rotary braking effects.
5.Large fuel tank (700 L) for extended operating time.
6.Additional LED work lights ensure worry-free operation in all weather conditions.
7.Maintenance components are easily accessible, facilitating convenient upkeep.
Specifications
| Basic Parameter | ||
| Operating Weight | kg | 31380 |
| Standard Bucket Capacity (SAE) | m³ | 1.6 |
| Engine | ||
| Model | - | Cummins QSB7 |
| Rated Power | kW/rpm | 169/2050 |
| Max. Torque | N.m/rpm | 895/1300 |
| Hydraulic System | ||
| Operating Pressure | MPa | 34.3 |
| Max. Flow Rate | L/min | 2×266 |
| Working Performance | ||
| Slewing Speed | rpm | 10 |
| Travel Speed (High/Low) | km/h | 5.1/3.1 |
| Max. Digging Force(Bucket) | KN | 225 |
| Max. Digging Force (Arm) | KN | 182 |
| Gradeability | % | 70 |
| Max.Traction Force | KN | 273 |
| Travel Device | ||
| Track Length(K) | mm | 4950 |
| J Wheel base oftrack shoe | mm | 4030 |
| M Track Gauge | mm | 2680 |
| N Track Shoe Width | mm | 600 |
| Ground Pressure | kgf/cm² | 0.594 |
| H Minimum Ground Clearance (H) | mm | 471 |
| Tank Capacity | ||
| Fuel Tank | L | 520 |
| Hydraulic Tank | L | 210 |
| Dimensions | ||
| A Overall Length | mm | 10686 |
| B Overall Width | mm | 3280 |
| C Overall Height | mm | 3546 |
| F Counterweight Ground Clearance | mm | 1193 |
| Rear Length | mm | 3205 |
| D Upper Width | mm | 3060 |
| E Cab Height | mm | 3145 |
| Rear Swing Radius | mm | 3250 |
| Boom Length Standard | mm | 6200 |
| Arm Length Standard | mm | 2650 |
| Arm Length Option | mm | |
| A Max. Digging Reach | mm | 10233 |
| A' Ground Max. Digging Distance | mm | 10028 |
| B Max. Digging Depth | mm | 6536 |
| B' Max. Effective Digging Depth | mm | 6331 |
| C Max. Vertical Digging Depth | mm | 4758 |
| D Max. Digging Height | mm | 9617 |
| E Max. Dumping Height | mm | 6666 |
| F Minimum Swing Radius | mm | 4256 |

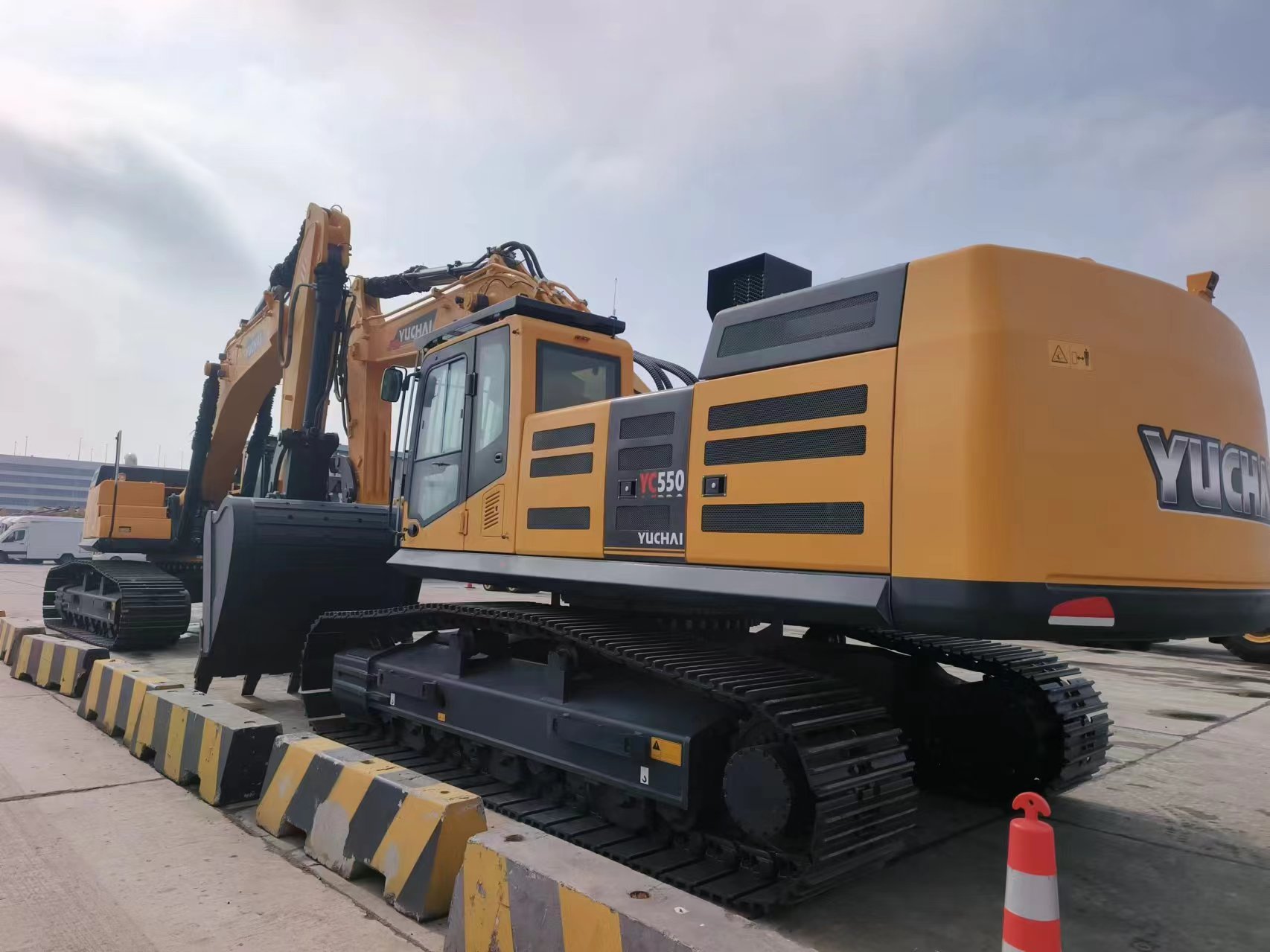

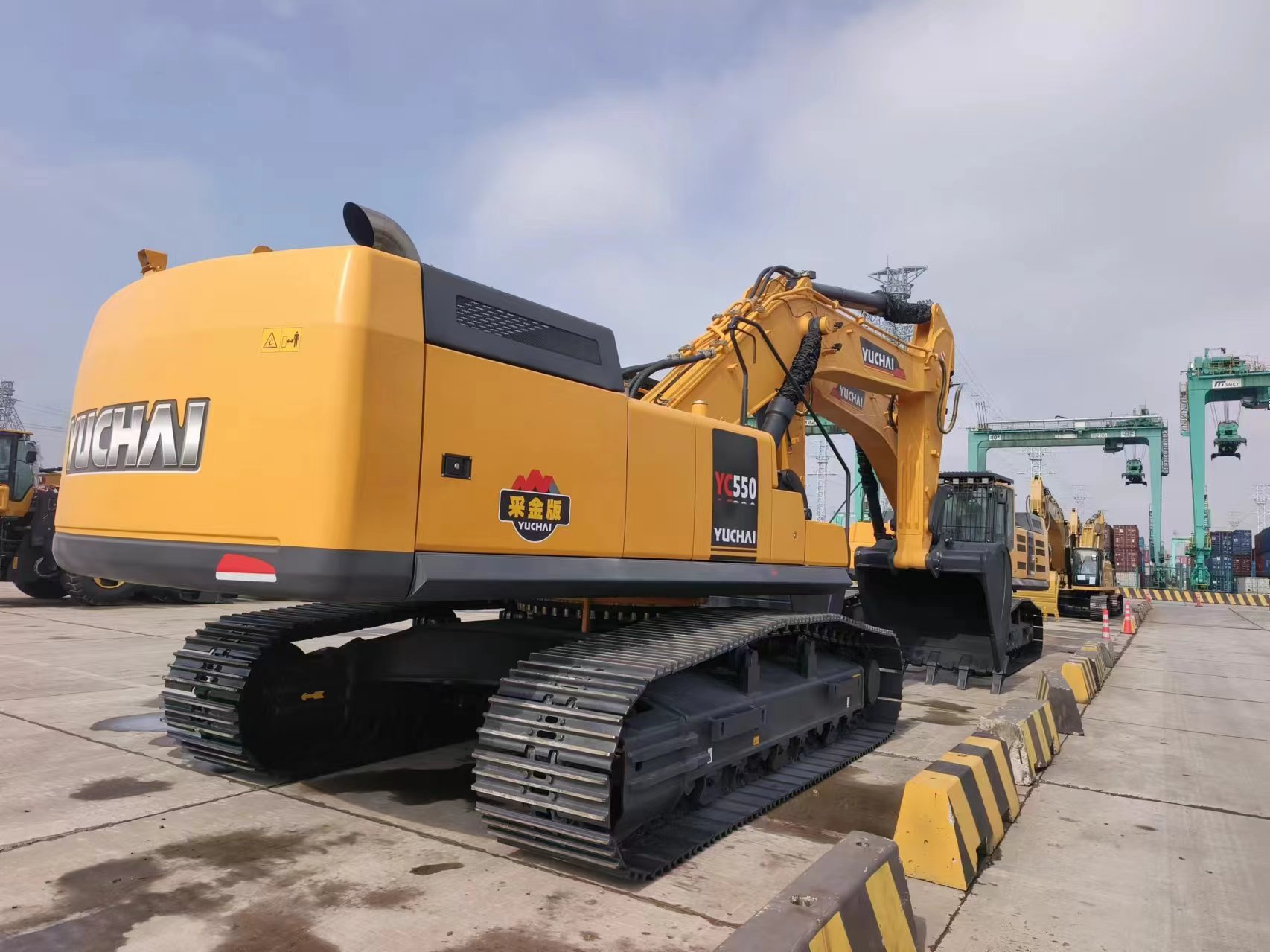

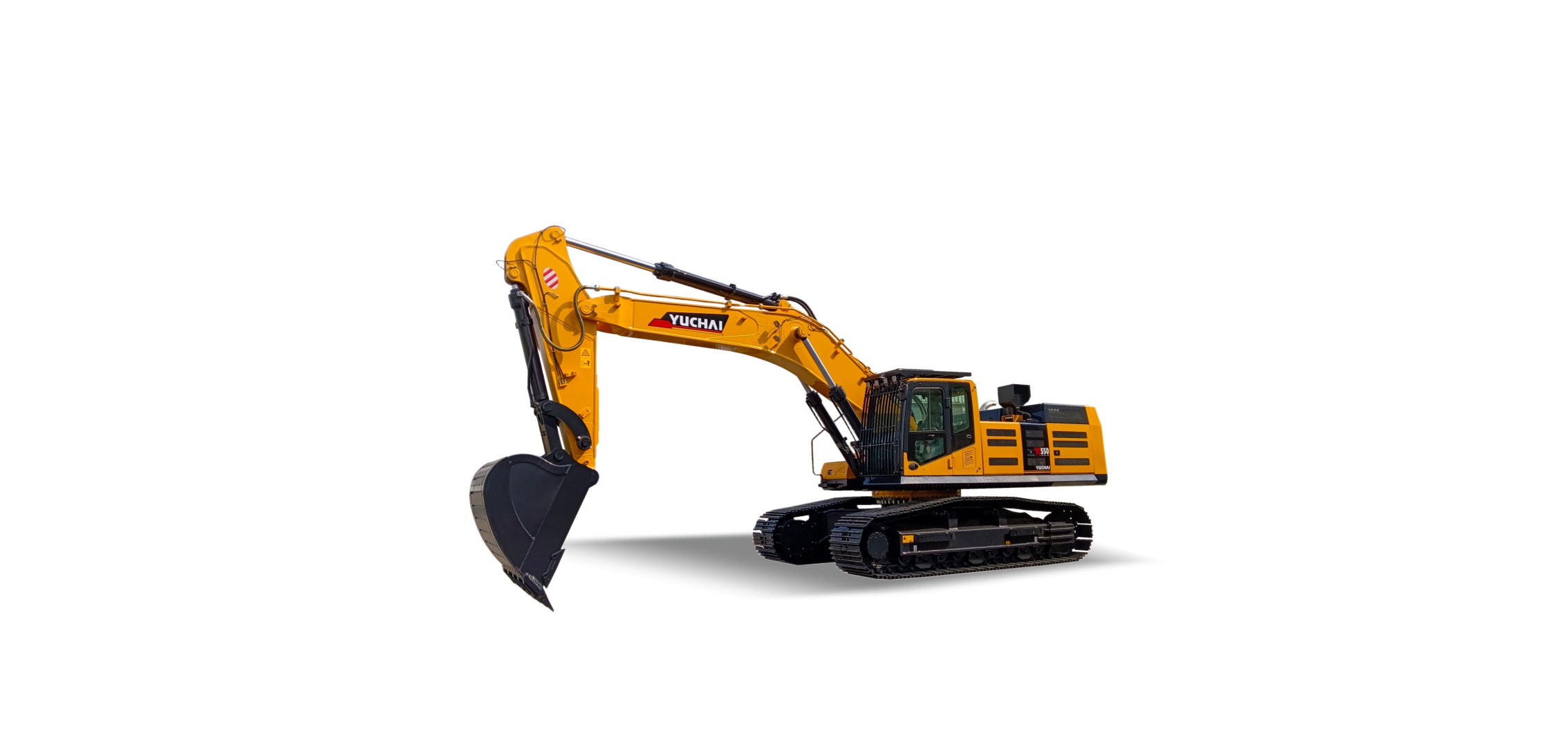

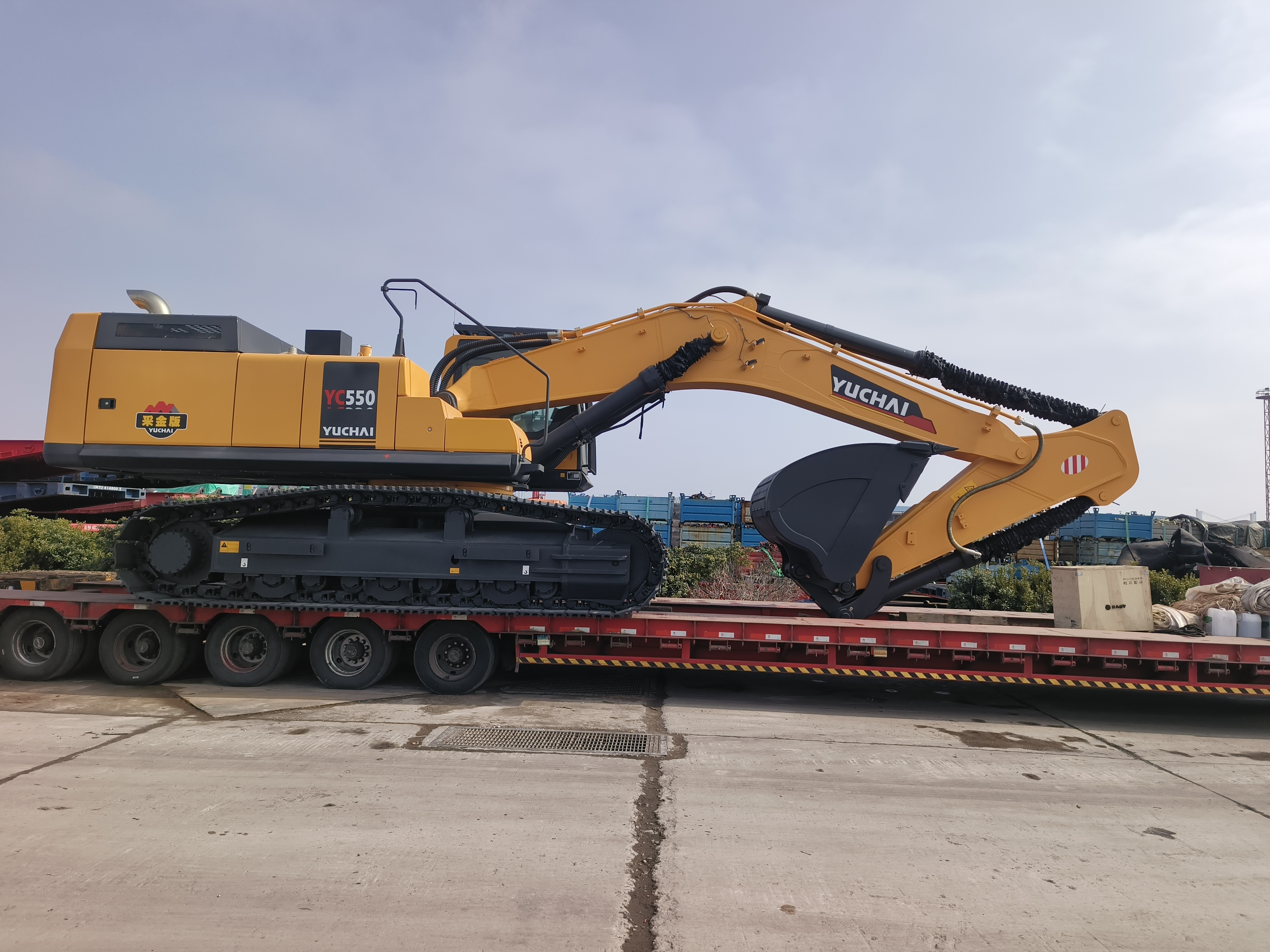

Gallery
