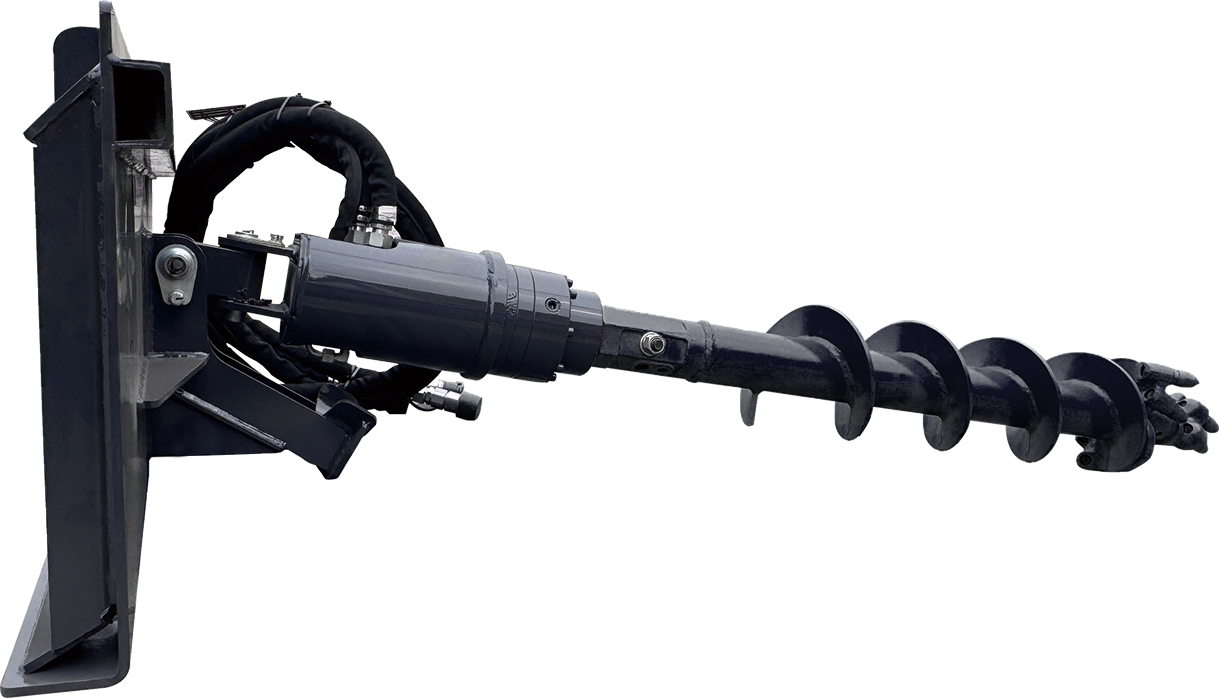

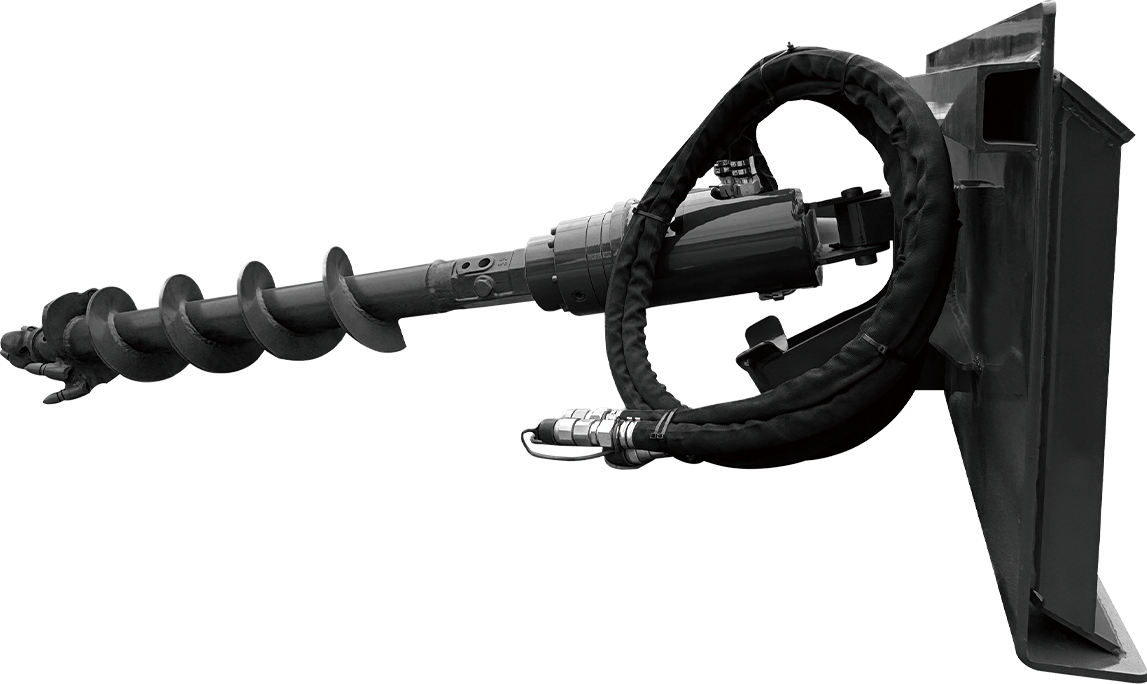

Spiral Drill

This attachment is compatible with skid-steer loaders, loaders, excavators, and mini skid-steer loaders. It is designed for digging tree holes during afforestation and pits for roadside utility poles, offering high operational efficiency and user-friendly operation.

Inquire Now Next Product

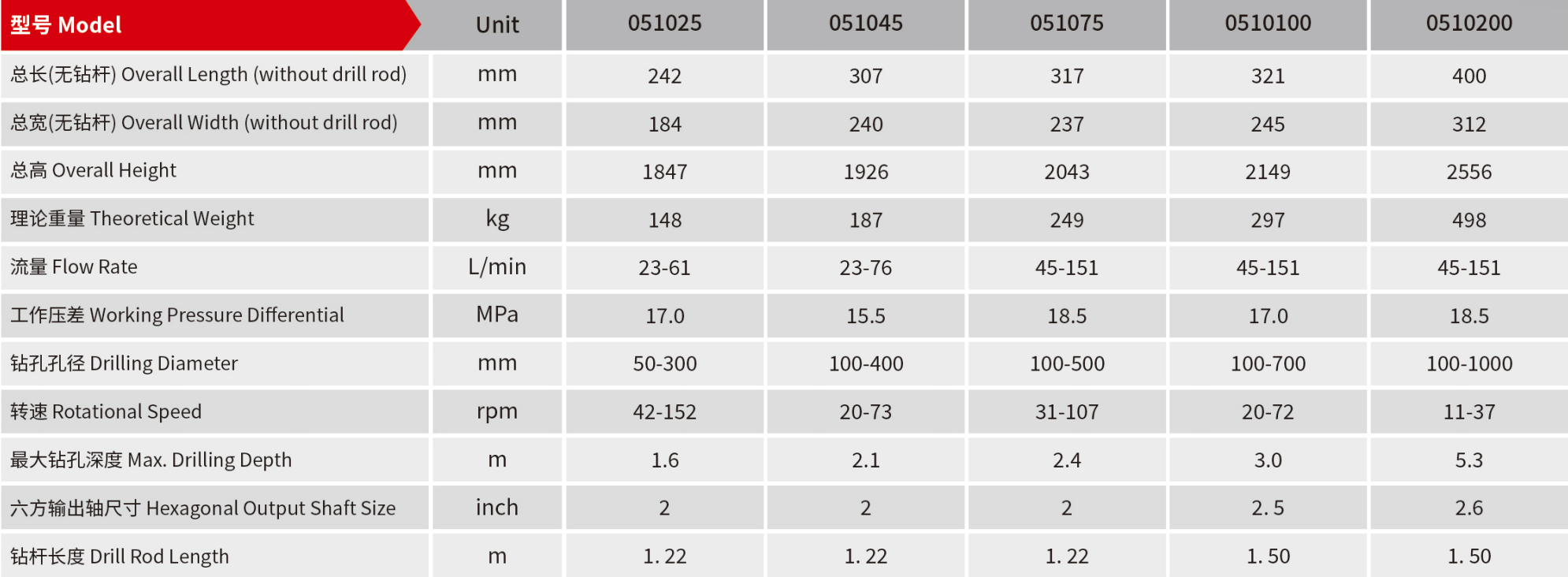

Specifications

Parameter	Unit	051025		051045		051075		0510100		0510200
Parameter	Unit	Imperial	Metric	Imperial	Metric	Imperial	Metric	Imperial	Metric	Imperial	Metric
Overall Length (without auger)	ft.in / mm	0'9.5"	242	1'0.1"	307	1'0.5"	317	1'0.6"	321	1'3.7"	400
Overall Width (without auger)	ft.in / mm	0'7.2"	184	0'9.4"	240	0'9.3"	237	0'9.6"	245	1'0.3"	312
Overall Height	ft.in / mm	6'0.7"	1847	6'3.8"	1926	6'8.4"	2043	7'0.6"	2149	8'4.6"	2556
Theoretical Weight	lbs / kg	326.3	148	412.3	187	549	249	654.8	297	1097.9	498
Flow	cfm / L/min	0.8-2.2	23-61	0.8-2.7	23-76	1.6-5.3	45-151	1.6-5.3	45-151	1.6-5.3	45-151
Working Pressure Differential	psi / MPa	2465.6	17	2248.1	15.5	2683.2	18.5	2465.6	17	2683.2	18.5
Drilling Diameter	in / mm	2.0-11.8	50-300	3.9-15.7	100-400	3.9-19.7	100-500	3.9-27.6	100-700	3.9-39.4	100-1000
Rotation Speed	rpm	42-152		20-73		31-107		20-72		11-37
Max Drilling Depth	ft / m	5.2	1.6	6.9	2.1	7.9	2.4	9.8	3	17.4	5.3
Hex Output Shaft Size	inch	2		2		2		2.5		2.6
Drill Pipe Length	ft / m	4	1.22	4	1.22	4	1.22	4.9	1.5	4.9	1.5
