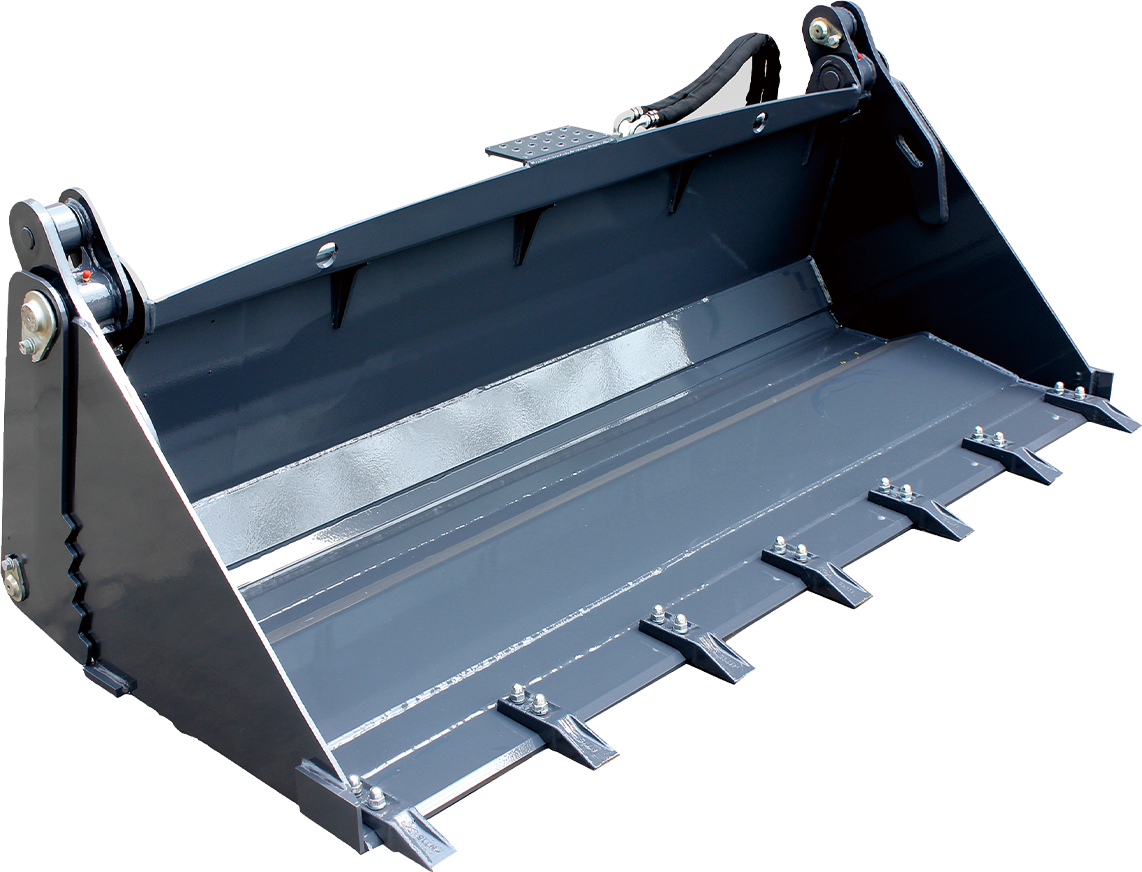

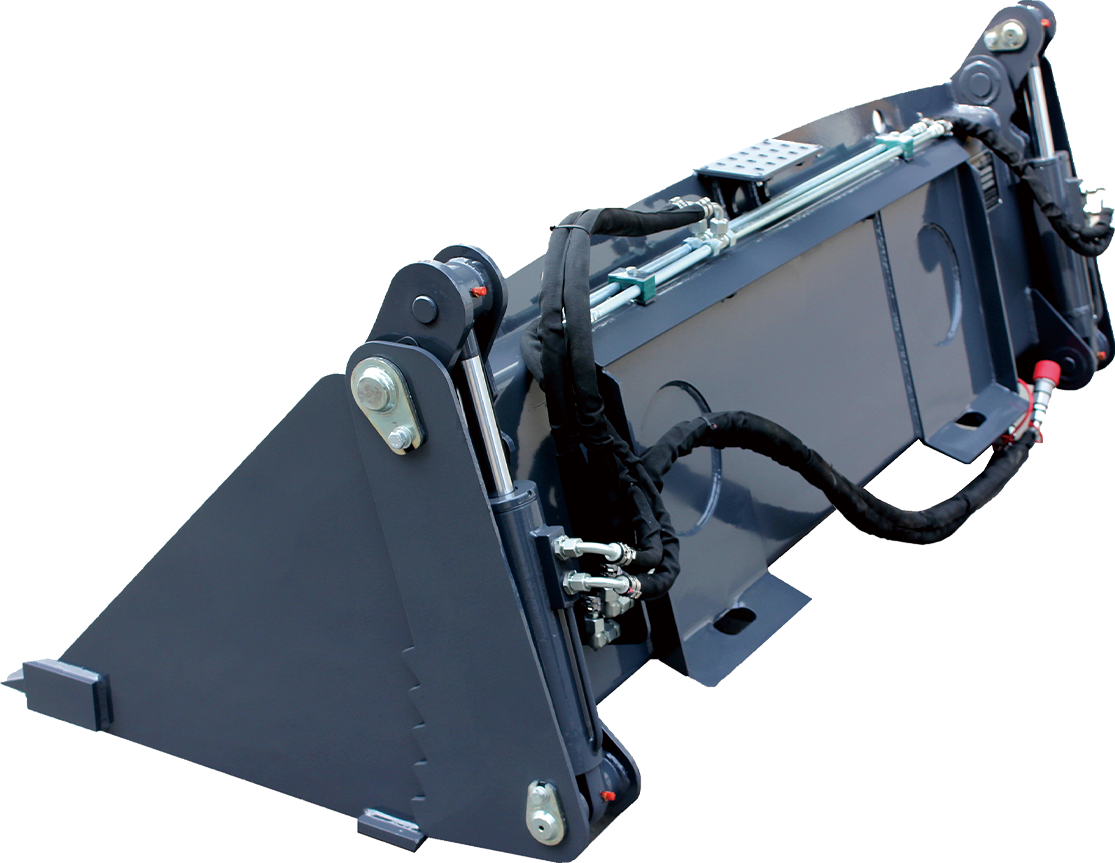

4-in-1 Bucket

This Multi-Purpose Bucket (4-in-1 Bucket) is designedfor use with Skid-Steer Loaders. It integrates four keyfunctions-loading, dozing, grading, and clamp-ing-into a single, highly versatile attachment. Char-acterized by a simple structure, flexible operation,and reliable performance, it is widely applicableacross construction projects, municipal engineering,urban and rural landscaping, road and transportation.

Inquire Now Next Product

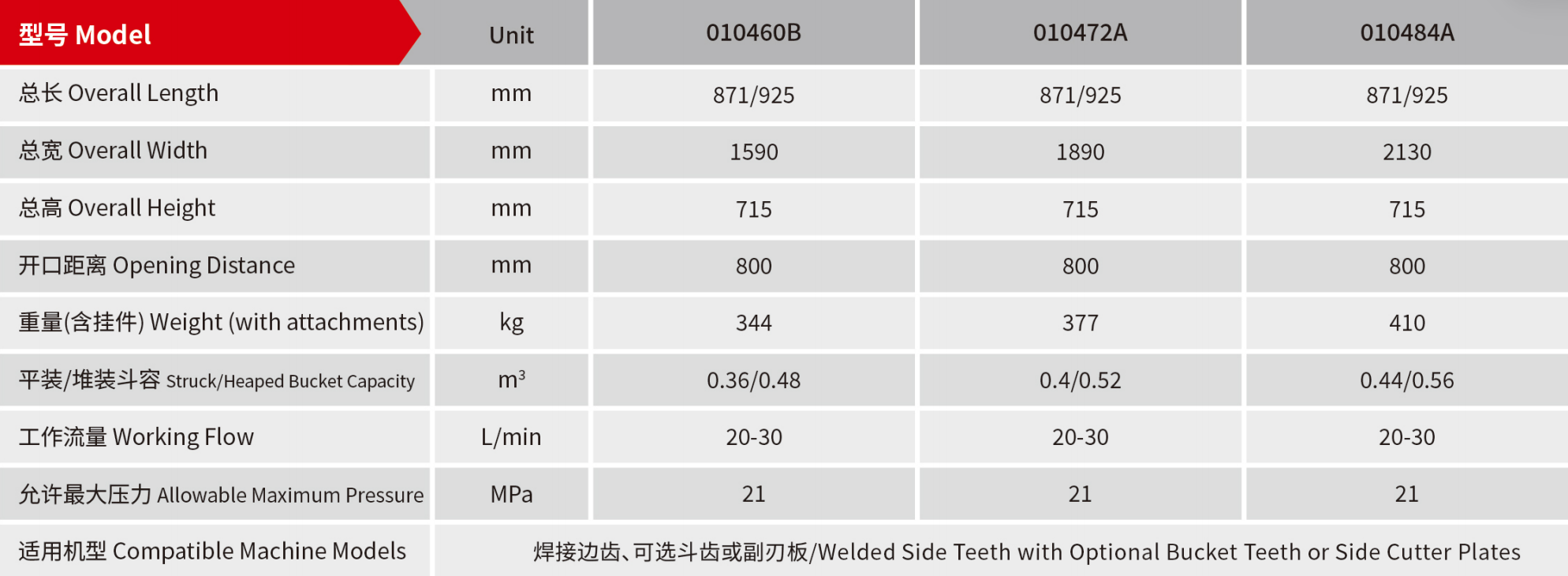

Specifications

Parameter	Imperial Unit	Metric Unit	Imperial 010460B	Metric 010460B	Imperial 010472A	Metric 010472A	Imperial 010484A	Metric 010472A
Overall Length	ft'in"	mm	2'10.3"	871	3'0.4"	925	3'0.4"	925
Overall Width	ft'in"	mm	5'2.6"	1590	6'2.4"	1890	6'11.9"	2130
Overall Height	ft'in"	mm	2'4.1"	715	2'4.1"	715	2'4.1"	715
Opening Distance	ft'in"	mm	2'7.5"	800	2'7.5"	800	2'7.5"	800
Weight (with attachment)	lb	kg	758.4	344	831.1	377	903.9	410
Struck Bucket Capacity	yd³	m³	0.47	0.36	0.59	0.45	0.73	0.56
Heaped Bucket Capacity	yd³	m³	0.63	0.48	0.78	0.6	0.95	0.73
Working Flow	gpm	L/min	5.3-7.9	20-30	5.3-7.9	20-30	5.3-7.9	20-30
Allowable Max Pressure	psi	MPa	3045.8	21	3045.8	21	3045.8	21
Remark	Welded side teeth; optional bucket teeth or side cutter plates
Applicable Models:	Skid-Steer Loader / Compact Loader
