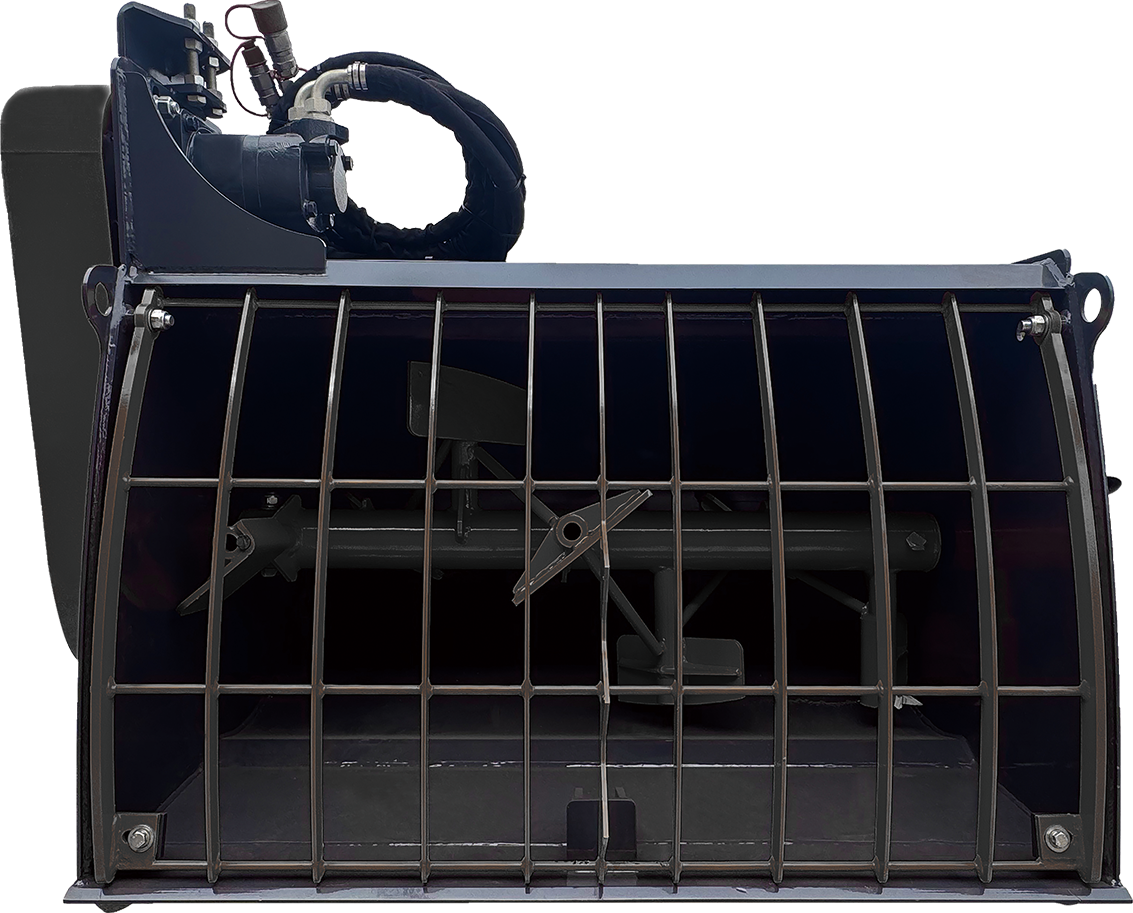

The Concrete Mixing Bucket combines mixing and loading functions into a single attachment, significantly improving the eficiency of sand/gravel handling and blending. Itefectively breaks up cement particle agglomeration and promotes uniform material dispersion.The hydraulically driven, reversible auger -paired with an adjustable paddle design that allows for gap adjustment -accelerates homogenization and ensures thorough mixing. During operation, an optional cover plate can be equipped to prevent concrete splashing. Compatible with a variety of host machines (installation of corresponding stop blocks based on the machine model is recommended), it is an efficient, flexible, and practical mixing solution.
Specifications
| Model | Unit | 031004 Imperial | 031004 Metric | 0310L04 Imperial | 0310L04 Metric | 031006 Imperial | 031006 Metric | 0310A04 Imperial | 0310A04 Metric | |
| Overall Length | ft'in." | mm | 3'7.3" | 1100 | 3'7.3" | 1100 | 3'7.3" | 1100 | 3'7.3" | 1100 |
| Overall Width | ft'in." | mm | 2'11.4" | 900 | 3'7.3" | 1100 | 4'3.2" | 1300 | 2'11.4" | 900 |
| Overall Height | ft'in." | mm | 2'1.6" | 650 | 2'1.6" | 650 | 2'1.6" | 650 | 2'1.6" | 650 |
| Bucket Capacity | ft³ | m³ | 6 | 0.17 | 7.8 | 0.22 | 9.2 | 0.26 | 6 | 0.17 |
| Flow Rate | gal/min | L/min | 15.9–29.1 | 60–110 | 15.9–29.1 | 60–110 | 15.9–29.1 | 60–110 | 15.9–29.1 | 60–110 |
| Max. Allowable Pressure | psi | Mpa | 3045.8 | 21 | 3045.8 | 21 | 3045.8 | 21 | 3045.8 | 21 |
| Theoretical Weight | lb | kg | 352.7 | 160 | 407.9 | 185 | 463 | 210 | 352.7 | 160 |
| Discharge Method | / | Front/Side | Front | |||||||
| Compatible Machine | Skid Steer Loader / Compact Wheel Loader | |||||||||
