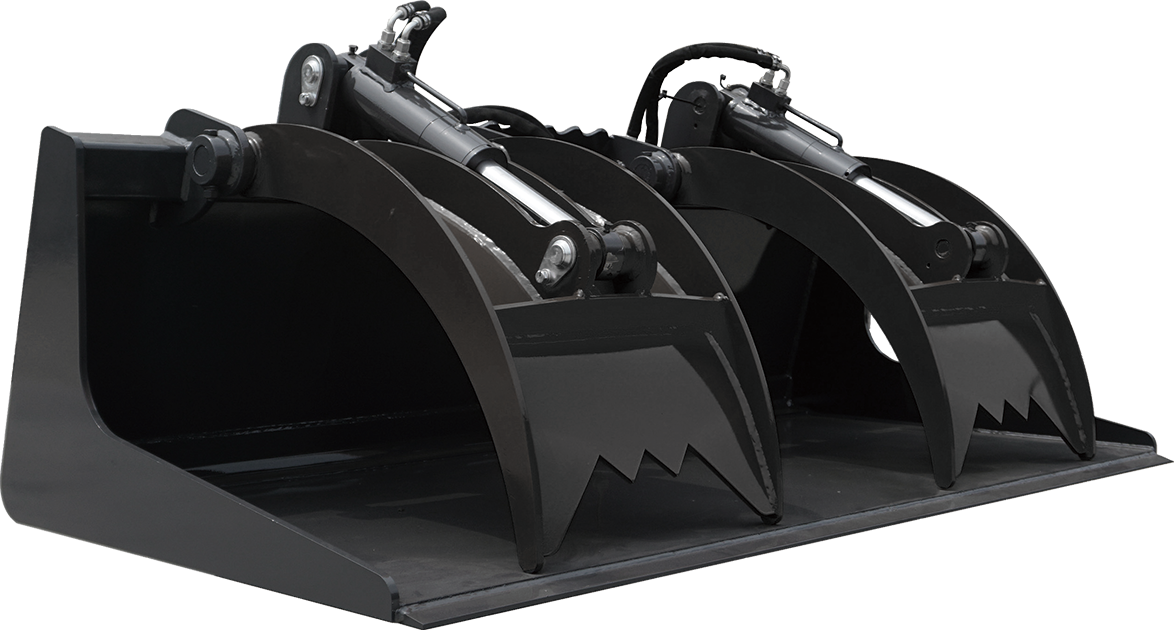

Skid Steer Grapple Bucket

This versatile attachment performs a range of ma-terial-handling operations-including scooping,transporting, loading, and grabbing-on loosebulk materials. It is suitable for handling construc-tion debris, recyclable cardboard, metal scrap, andsimilar materials. When paired with a compactloader, the customer is advised to install appropri-ate (bucket curl/dump) stop blocks based on thespecific host machine configuration.

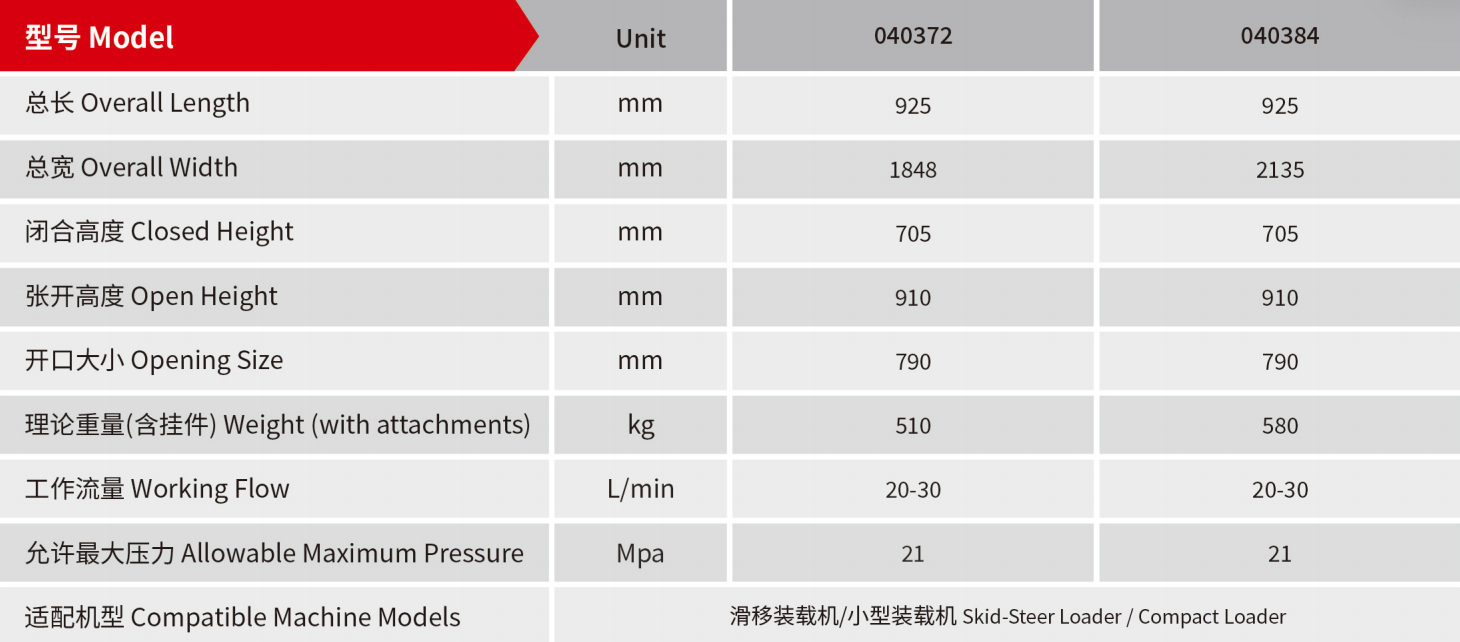

Specifications

ModelUnit40372 Imperial40372 Metric40384 Imperial40384 Metric
Overall Lengthft'in."mm3'0.4"9253'0.4"925
Overall Widthft'in."mm6'0.8"18487'0.1"2135
Closed Heightft'in."mm2'3.8"7052'3.8"705
Open Heightft'in."mm2'11.8"9102'11.8"910
Opening Sizeft'in."mm2'7.1"7902'7.1"790
Weight (with attachments)lbkg1124.45101278.7580
Working Flowgal/minL/min5.3–7.920-305.3–7.920-30
Allowable Maximum PressurepsiMpa3045.8213045.821
Compatible Machine ModelsSkid-Steer Loader / Compact Loader
