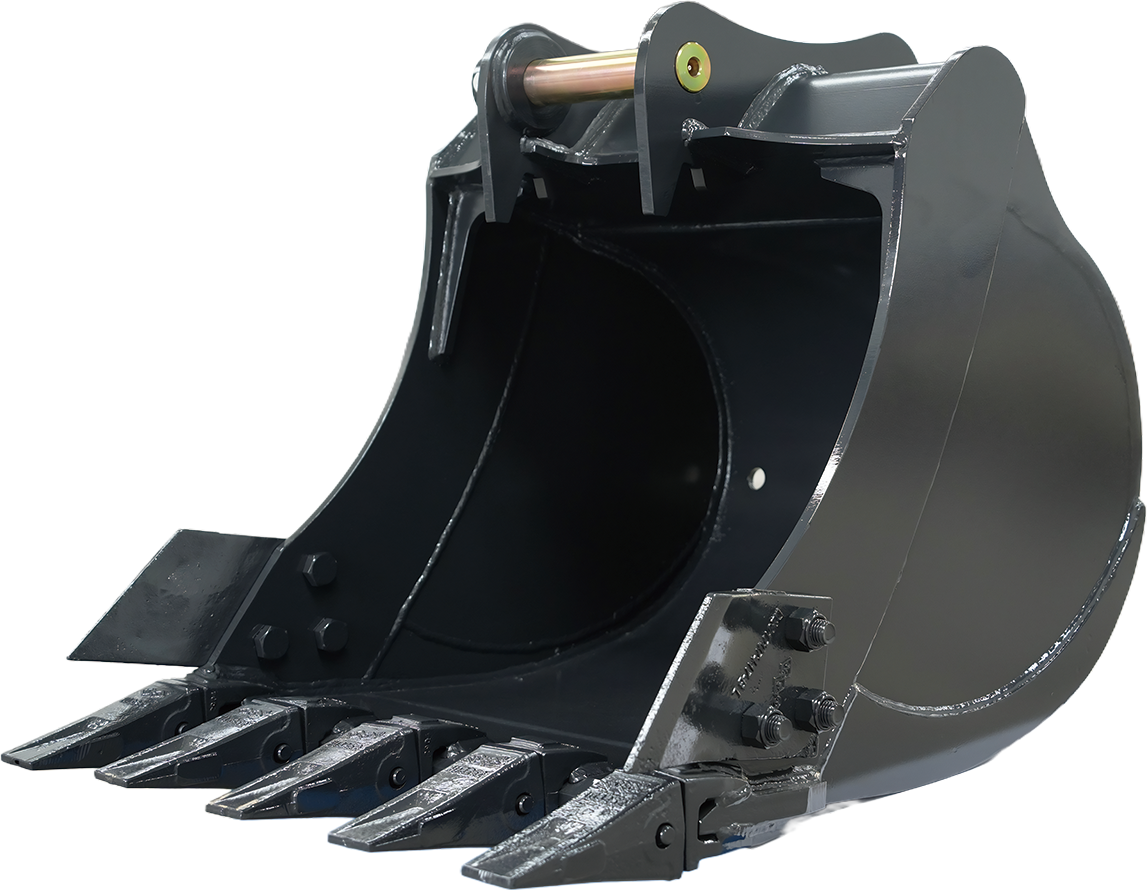

Yuchai Backhoe Bucket

Backhoe Bucket

Suitable for 1-6 ton hydraulic excavators, widely adaptable to various working condi-tions. Made of high-strength materials for du-rability, with a lightweight design to enhance operational efficiency and flexibility.
Inquire Now Next Product

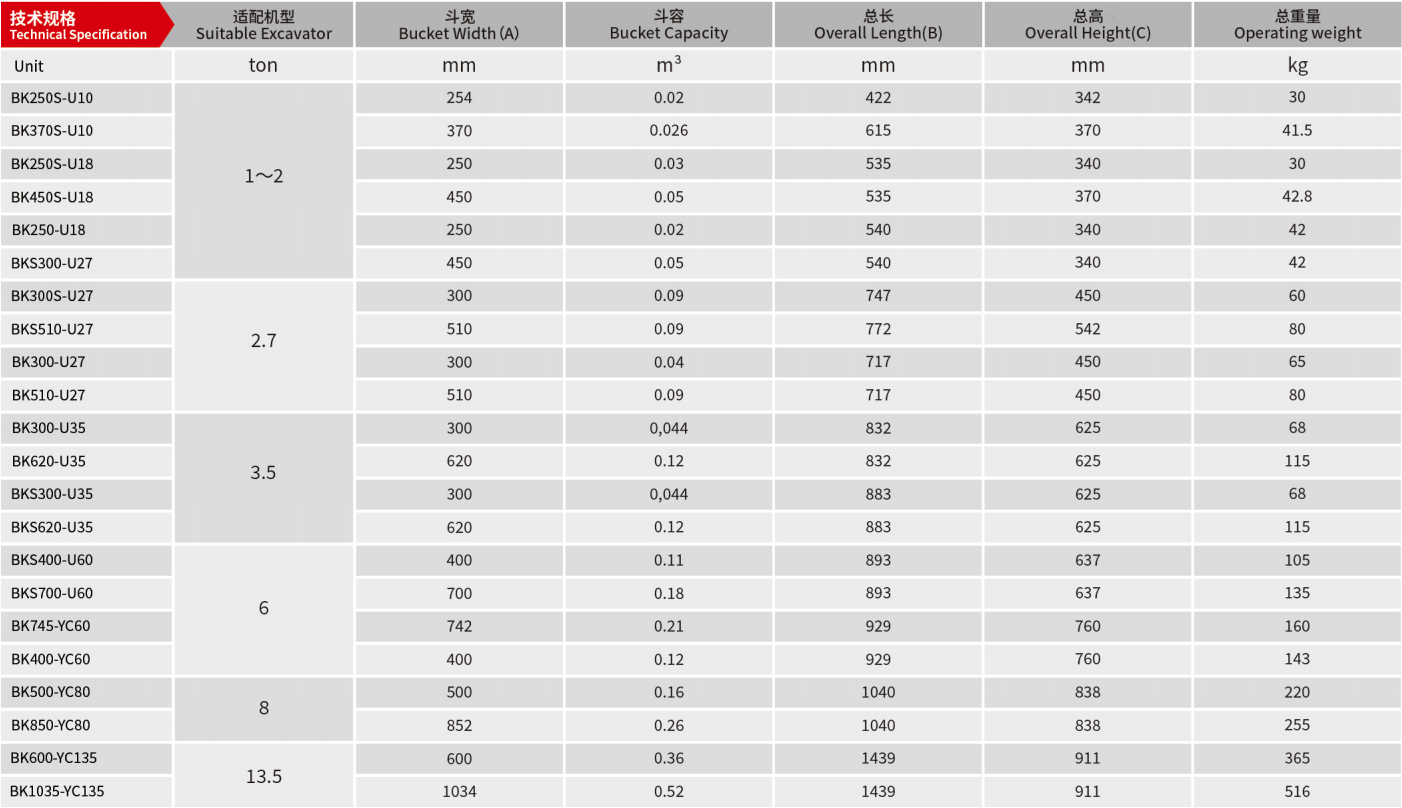

Specifications

Technical SpecificationSuitable ExcavatorBucket Width (A)Bucket CapacityOverall Length(B)Overall Height(C)Operating weight
Unittonmm / ft'in"m³ / cu ftmm / ft'in"mm / ft'in"kg / lb
BK250S-U101~2254 / 0'10.0"0.02 / 0.7422 / 1'4.6"342 / 1'1.5"30 / 66.1
BK370S-U101~2370 / 1'2.6"0.026 / 0.9615 / 2'0.2"370 / 1'2.6"41.5 / 91.5
BK250S-U181~2250 / 0'9.8"0.03 / 1.1535 / 1'9.1"340 / 1'1.4"30 / 66.1
BK450S-U181~2450 / 1'5.7"0.05 / 1.8535 / 1'9.1"370 / 1'2.6"42.8 / 94.4
BK250-U181~2250 / 0'9.8"0.02 / 0.7540 / 1'9.3"340 / 1'1.4"42 / 92.6
BKS300-U272.7450 / 1'5.7"0.05 / 1.8540 / 1'9.3"340 / 1'1.4"42 / 92.6
BK300S-U272.7300 / 0'11.8"0.09 / 3.2747 / 2'5.4"450 / 1'5.7"60 / 132.3
BKS510-U272.7510 / 1'8.1"0.09 / 3.2772 / 2'6.4"542 / 1'9.3"80 / 176.4
BK300-U272.7300 / 0'11.8"0.04 / 1.4717 / 2'4.2"450 / 1'5.7"65 / 143.3
BK510-U272.7510 / 1'8.1"0.09 / 3.2717 / 2'4.2"450 / 1'5.7"80 / 176.4
BK300-U353.5300 / 0'11.8"0.044 / 1.6832 / 2'8.8"625 / 2'0.6"68 / 149.9
BK620-U353.5620 / 2'0.4"0.12 / 4.2832 / 2'8.8"625 / 2'0.6"115 / 253.5
BKS300-U353.5300 / 0'11.8"0.044 / 1.6883 / 2'10.8"625 / 2'0.6"68 / 149.9
BKS620-U353.5620 / 2'0.4"0.12 / 4.2883 / 2'10.8"625 / 2'0.6"115 / 253.5
BKS400-U606400 / 1'3.7"0.11 / 3.9893 / 2'11.2"637 / 2'1.1"105 / 231.5
BKS700-U606700 / 2'3.6"0.18 / 6.4893 / 2'11.2"637 / 2'1.1"135 / 297.6
BK745-YC606742 / 2'5.2"0.21 / 7.4929 / 3'0.6"760 / 2'5.9"160 / 352.7
BK400-YC606400 / 1'3.7"0.12 / 4.2929 / 3'0.6"760 / 2'5.9"143 / 315.3
BK500-YC808500 / 1'7.7"0.16 / 5.71040 / 3'4.9"838 / 2'9.0"220 / 485.0
BK850-YC808852 / 2'9.5"0.26 / 9.21040 / 3'4.9"838 / 2'9.0"255 / 562.2
BK600-YC13513.5600 / 1'11.6"0.36 / 12.71439 / 4'8.7"911 / 2'11.9"365 / 804.7
BK1035-YC13513.51034 / 3'4.7"0.52 / 18.41439 / 4'8.7"911 / 2'11.9"516 / 1137.6


Related Products
Rotary Screening Bucket
Rotary Screening Bucket This bucket is compatible with small and medium excavators, featuring easy installation without complex modifications. Hydraulically driven, it offers bi-directional rotation for efficient material screening and quick reverse clearing to minimize blockage downtime. Its simple and robust design ensures low maintenance requirements, with most repairs manageable by in-house teams, deliver-ing significant long-term cost savings.
Narrow Bucket
Narrow Bucket It is mainly used for digging trenches and working in narrow and small spaces, effectively improving the working efficiency.
Width Bucket
Width Bucket Lightweight, available in a variety of sizes to increase capacity for trench cleaning, bulk loading of topsoil and other lightweight materials. Also known as trenching buckets, slurry buckets and trimming buckets.
Grid Bucket
Grid Bucket The Grill Low Bucket efficiently screens out rocks, brush or other large debris while leaving backfill where it belongs. Reduces load waste while increasing machine productivity and performance. NOTE:Grid Shed Bucket, Wide Bucket, and Narrow Bucket can be customized or OEM to meet job requirements.
Tilt Bucket
Tilt Bucket For normal land clearing of clay, sand or other loose material with little or no debrisor large rocks; land clearing. rock sorting or green waste disposal and loading. Light but strong with a large capacity. Tilt bucket can change the tilt angle of excavator bucket, don't need to change thelocation
Crushing Bucket
Crushing Bucket Utilizing direct-drive motor technology, it deliversgreater torque compared to belt-driven systems,making it suitable for crushing hard materials such asgranite and pebbles. The motor is an imported ItalianSAl model, which has a failure rate 10% lower than do-mestic motors. The crushed stone size is
