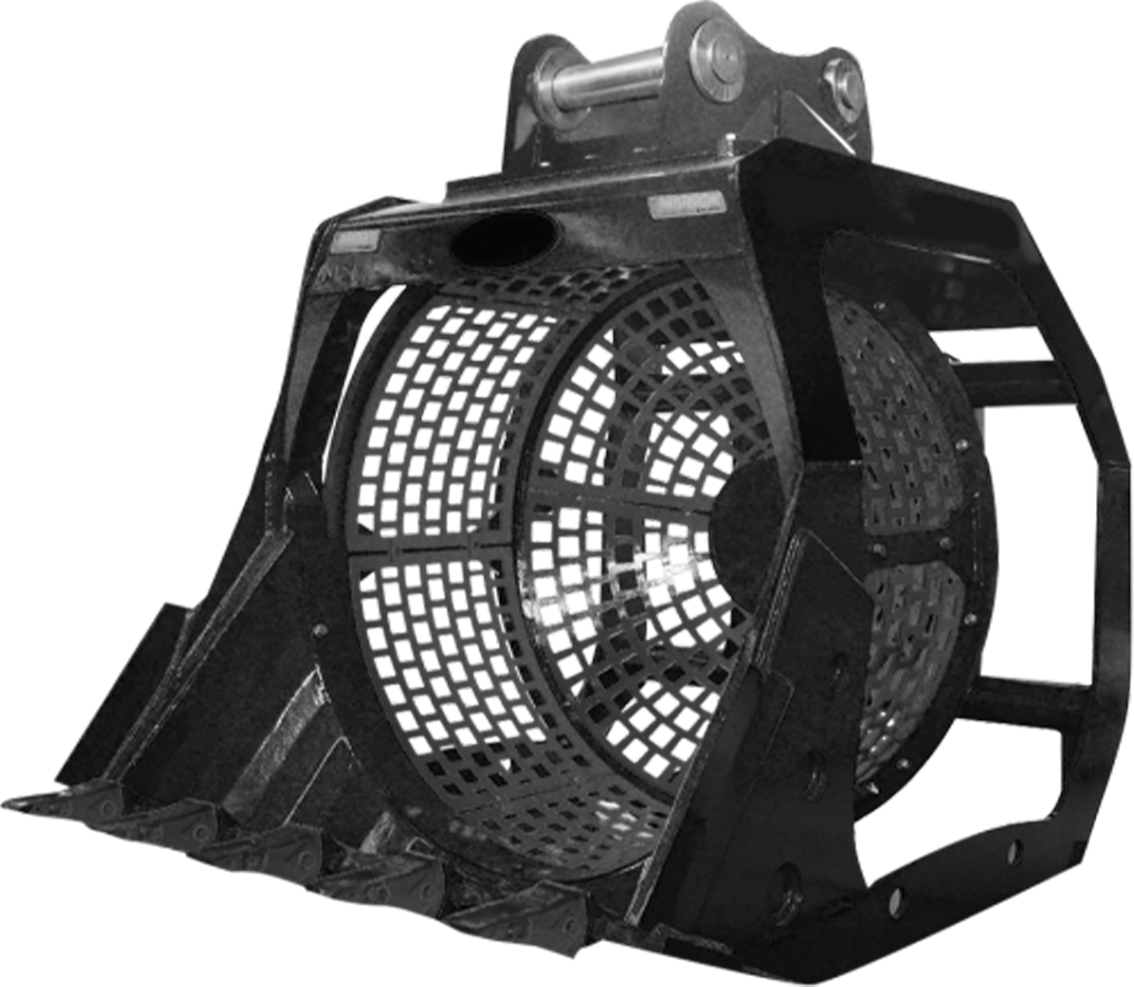

Rotary Screening Bucket

This bucket is compatible with small and medium excavators, featuring easy installation without complex modifications. Hydraulically driven, it offers bi-directional rotation for efficient material screening and quick reverse clearing to minimize blockage downtime. Its simple and robust design ensures low maintenance requirements, with most repairs manageable by in-house teams, deliver-ing significant long-term cost savings.

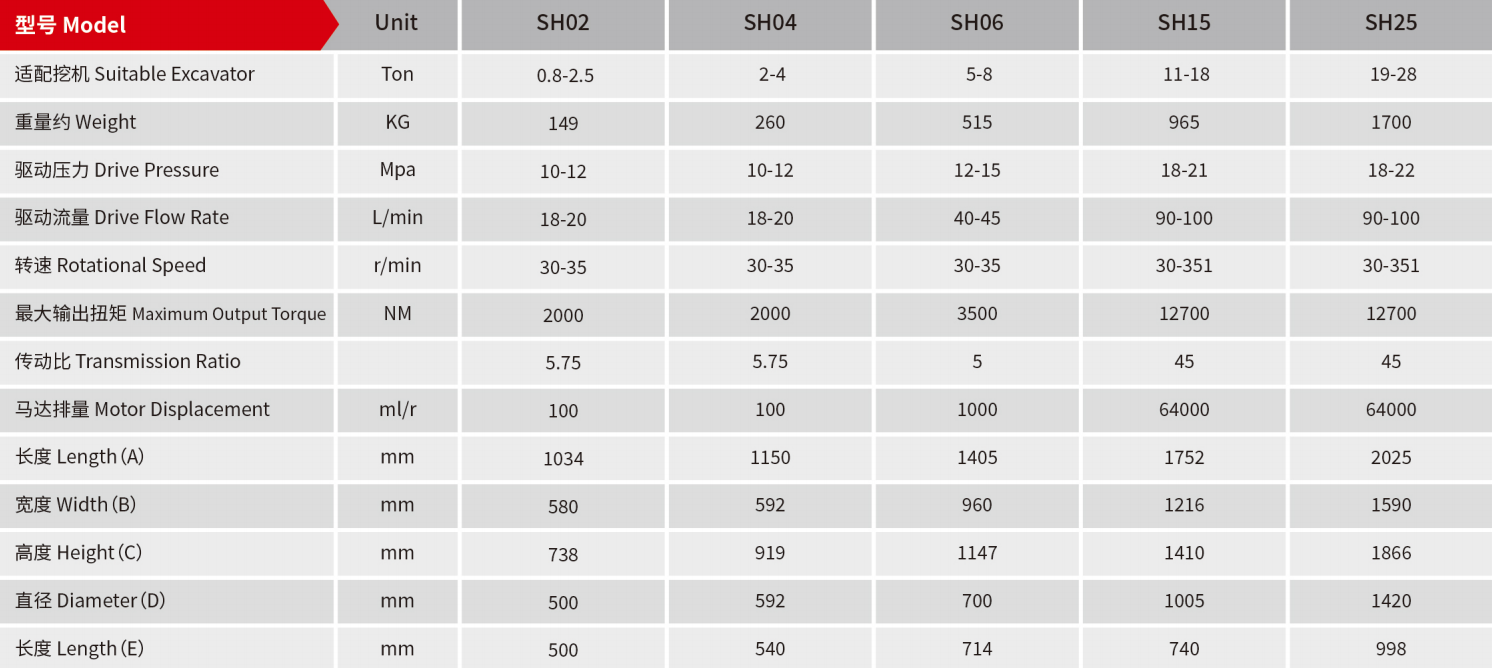

Specifications

Model

Unit

SH02

SH04

SH06

SH15

SH25

Suitable Excavator

Ton

0.8-2.5

2-4

5-8

11-18

19-28

Weight

KG / lb

149 / 328.5

260 / 573.2

515 / 1135.4

965 / 2127.5

1700 / 3747.9

Drive Pressure

Mpa / psi

10-12 /

 1450.4-1740.5

10-12 /

 1450.4-1740.5

12-15 /

1740.5-2175.6

18-21 /

2610.7-3045.8

18-22 /

2610.7-3190.8

Drive Flow Rate

L/min / gpm

18-20 / 4.8-5.3

18-20 / 4.8-5.3

40-45 / 10.6-11.9

90-100 / 23.8-26.4

90-100 / 23.8-26.4

Rotational Speed

r/min / rpm

30-35 / 30-35

30-35 / 30-35

30-35 / 30-35

30-351 / 30-351

30-351 / 30-351

Maximum

 Output Torque

Nm / lb-ft

2000 / 1475.1

2000 / 1475.1

3500 / 2581.5

12700 / 9367.0

12700 / 9367.0

Transmission Ratio


5.75

5.75

5

45

45

Motor Displacement

ml/r / cu in/r

100 / 6.1

100 / 6.1

1000 / 61.0

64000 / 3905.5

64000 / 3905.5

Length (A)

mm / ft'in"

1034 / 3'4.7"

1150 / 3'9.3"

1405 / 4'7.3"

1752 / 5'9.0"

2025 / 6'7.7"

Width (B)

mm / ft'in"

580 / 1'10.8"

592 / 1'11.3"

960 / 3'1.8"

1216 / 3'11.9"

1590 / 5'2.6"

Height (C)

mm / ft'in"

738 / 2'5.1"

919 / 3'0.2"

1147 / 3'9.2"

1410 / 4'7.5"

1866 / 6'1.5"

Diameter (D)

mm / ft'in"

500 / 1'7.7"

592 / 1'11.3"

700 / 2'3.6"

1005 / 3'3.6"

1420 / 4'7.9"

Length (E)

mm / ft'in"

500 / 1'7.7"

540 / 1'9.3"

714 / 2'4.1"

740 / 2'5.1"

998 / 3'3.3"
