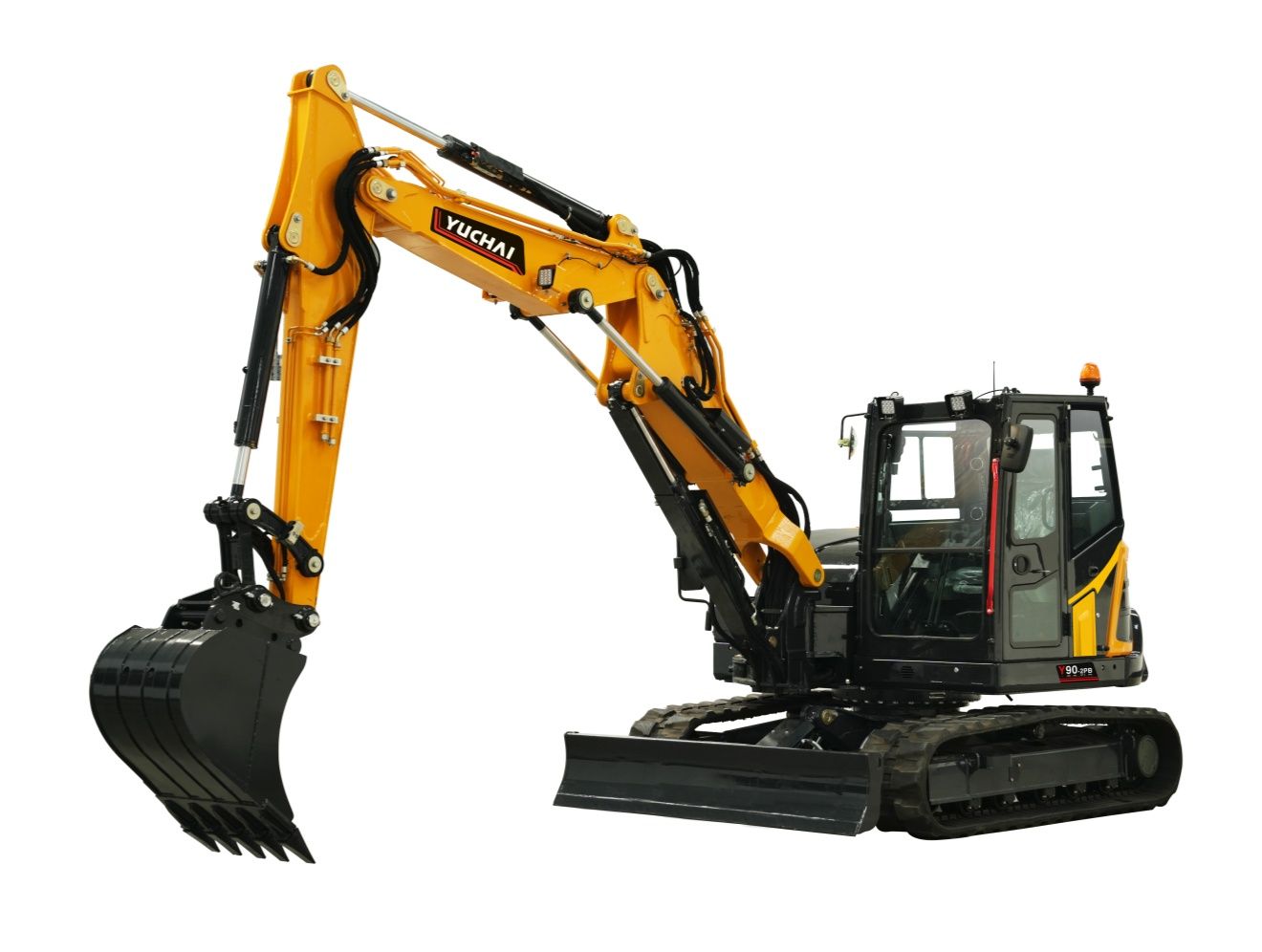

Core Strengths of Y90-2PB:
Global Adaptability Empowering Overseas Projects1. Scenario Adaptability: Full Coverage of Overseas Working ConditionsTailored to characteristics of the overseas construction market, the Y90-2PB Excavator offers exceptional versatility:
Urban precision construction:
Ideal for municipal upgrading and old community renovation in Europe, North America and other regions. With a body width of only 2,200 mm and precise 2Piece Boom adjustment, it performs digging and material handling in narrow streets and indoor spaces without disturbing surrounding environments.
Special engineering operations:
Suitable for slope protection in Southeast Asia, mining infrastructure in Africa, pipeline laying in Middle Eastern deserts and more. Paired with breakers, grapples and other attachments, it completes highaltitude crushing, material handling and complex tasks without additional large equipment.
Rental market compatibility:
Meets diverse demands in European and Southeast Asian rental markets. It supports fast attachment changes and has 20% lower maintenance costs, making it a top choice for overseas rental companies
Specifications
| Y90-2PB | Y86 Technical Specification | ||
| Parameters | Y90-2PB | Y86 |
| Basic parameters | ||
| Machine weight | 9200kg/9500kg (+extra counter weight) | Y90-2PB |
| Machine weight | 8900kg/9200kg (+extra counter weight) | Y86 |
| Bucket capacity | 0.28 m³ | |
| Width of bucket | 800mm | |
| Performance parameters | ||
| Engine model | Yanmar 4TNV98CT-VSY | |
| Emission Standard | Euro V | |
| Engine power | 53.7/2100 kW/rpm | |
| Max. Gradeability | 30° (58%) | |
| Max. digging force of arm | 41 kN | 46.4 kN |
| Max. digging force of bucket | 70 kN | |
| Traveling speed | 76 kN | |
| Max. hauling force | 2.7/4.8 km/h | |
| Slewing speed of platform | 10.5 rpm | |
| Operating parameters | ||
| Max. digging height | 8300 mm | 7085 mm |
| Max. digging depth | 4600mm | 4260 mm |
| Max. digging radius | 7870mm | 7050 mm |
| Max. digging radius on ground level | 7715mm | 6880 mm |
| Max. dumping height | 6155mm | 5030 mm |
| Min. slewing radius | 2450mm | 2415 mm |
| Max. vertical digging depth | 3880mm | 2955 mm |
| Transportation dimensions | ||
| Overall length | 6945kg/7000kg (+extra counter weight) | Y90-2PB |
| Overall length | 6440kg/6490kg (+extra counter weight) | Y86 |
| Overall width | 2200mm | |
| Overall height | 2540mm | |
| Other Parameters | ||
| Width of undercarriage | 2200mm | |
| Length of track | 2870mm | |
| Width of track | 450mm | |
| Minimum ground clearance | 370mm | |
| Height between platform and ground | 755mm | |
| Platform tail turning radius | 1510mm/1560mm | |
| Length to center of rollers | 1750mm | |
| Fuel tank capacity | 115L | |
| Hydraulic oil tank capacity | 90L | |
| Track gauge | 2280mm | |
| Working Pressure | 29.4MPa | |
| Flow rate | 230L/min | |
| AUX1 Pressure/ Flow rate | 24MPa/60L/min | |
| AUX2 Pressure/ Flow rate | 24MPa/130L/min | |
| Arm length | 2100mm (Y90-2PB) | 1750mm (Y86) |
| Boom length | Boom 1: 2183 + Boom 2: 2028 (Y90-2PB) | 3520mm (Y86) |
| Steering head angle | 70° (L) / 60° (R) | |
