Global first wheel side motor driving technology
Global first wheel side AUTO-HOLD technology
Integrated chassis
Power capacity increased by 25%
Improved job stability by 15%
Battery life increased by 40%
Specifications

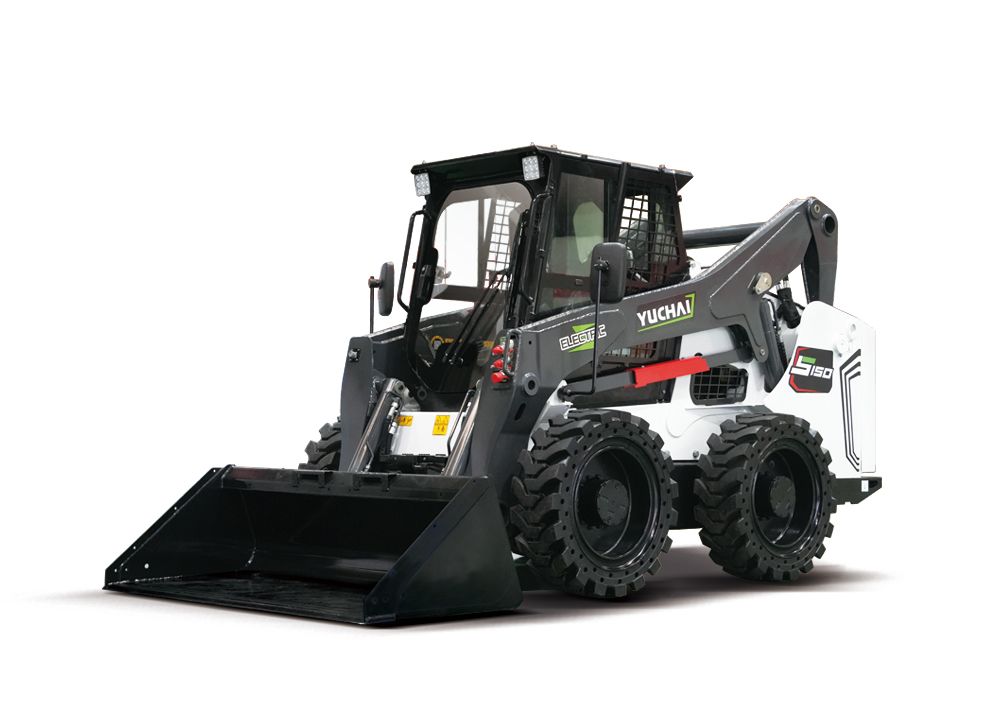

The Yuchai S150 electric skid steer loader adopts the global first wheel side motor driving，wheel side AUTO-HOLD technology and integrated chassis.It is together with features compact size,good trafficability, large operating range and comfortable driving experience, intelligent electronic control, green and environmentally friendly, low-failure rate and low-use cost.S150 supports fast charging function. By 1-hour fast charging, it can work for 8-9 hours. It can be used with a variety of attachments and widely used suitable for farms, forest farms, urban infrastructure, roads or construction sites, factories, and workshops, etc.
| Basic Parameter | S150 | |
| Machine Weight | 4850 | kg |
| Bucket capacity | 0.5 | m³ |
| Bucket width | 1880 | mm |
| Technical Specification | ||
| Battery | Lithium Iron Phosphate | - |
| Rated power | 32/3180+4×10/3410 | kW/rpm |
| Battery capacity | 105 | kW·h |
| Rated Operating Load | 1620 | kg |
| Tipping Load | 3250 | kg |
| System working pressure | 23 (0 ~+0.5) | Mpa |
| Flow Rate | 87.1+51.1 | L/min |
| Increase maximum digging force | 25 | kN |
| Tipping | 24.5 | kN |
| Max. travel speed(low gear/ high gear ) | 10/20 | km/h |
| Fast charge (Charging from 30% to 80%) | 1.3 hour charging from 30% to 80% | hour |
| Endurance* | 9~10 | h |
| Drive System | 4-Wheel independent direct driving by electric motor | - |
| A Overall operating height | 4280 | mm |
| B Height to top of cab | 2065 | mm |
| C Dumping angle at maximum height | 21.5 | ° |
| D Ground clearance | 207 | mm |
| E Wheelbase | 1227 | mm |
| F Overall length without standard bucket | 3066 | mm |
| G Overall length with standard bucket | 3830 | mm |
| H Maxium angle of flat ground | 31 | ° |
| I Unloading height | 2610 | mm |
| J Height to bucket hinge pin | 3335 | mm |
| K Loading distance at Max. unloading height | 845 | mm |
| L Dumping angle at maximum height | 41 | ° |
| M Rollback angle of bucket at full height | 98 | ° |
| N Bucket width | 1880 | mm |
| O Radius of gyration | 2179 | mm |
| P Track width | 1507 | mm |
| Q Machine width | 1832 | mm |
