Electric drive control intelligent mode
Global first wheel side motor driving technology
Global first wheel side AUTO-HOLD technology
Integrated chassis
Electric drive control intelligent mode
Battery life increased by 32%
Specifications

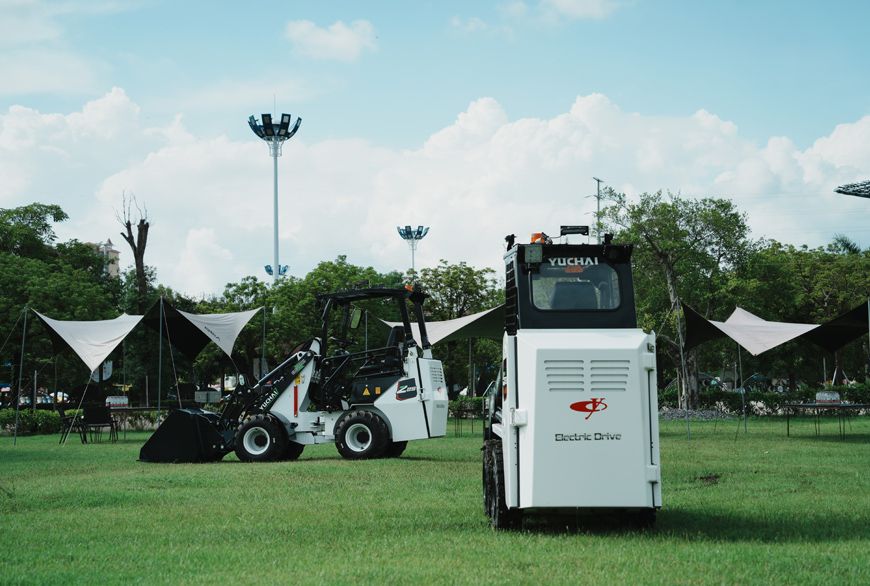

The Yuchai S35Max electric skid steer loader features with global firstwheel side motor driving and AUTo HOLD technology, ensuring stability, reliability,and safety. lts compact design and excellent maneuverability make it ideal forextremely narrow spaces, easily navigating corridors, aisles, alleys, and low-heightareas. lt can be equipped with various attachments for functions such as loading,sweeping, and crushing.The S35Max long-endurance version offers fast charging in just 1 hour, allowingfor 9-11 hours of continuous operation.
| Basic Parameter | Unit | |
| Machine Weight | S35Pro 1540 | S35Max 1620 | kg |
| Bucket capacity | 0.29 | m³ |
| Bucket width | 1126 | mm |
| Battery | Lithium Iron Phosphate | - |
| Rated power | 9/3150+4×2/3500 | kW/rpm |
| Max. torque/speed | 70N·m/1500+4x36.8N·m/995 | rpm |
| Battery capacity | S35Pro 21.29 | S35Max 29.1 | kW·h |
| Rated Operating Load | 350 | kg |
| Tipped Load | 690 | kg |
| Tipping Load | 690 | kg |
| System working pressure | 20.5 | Mpa |
| Flow Rate | 33.7 | L/min |
| Boom Breakout Force | 8 | kN |
| Bucket Breakout Force | 9 | kN |
| Max. travel speed(low gear ) | 0~10.5 | km/h |
| Fast charge (Charging from 10% to 90%) | 1.5 | hour |
| Endurance | S35Pro 6-8 | S35Max 9-11 | h |
| Drive System | Wheel side motor driving | - |
| Wheel side Auto Hold | - | |
| Operating parameters | ||
| A Overall operating height | 3245 | mm |
| B Height to top of cab | 1815 | mm |
| C Dumping angle at maximum height | 25/22 | ° |
| D Ground clearance | 141 | mm |
| E Wheelbase | 722 | mm |
| F Overall length without standard bucket | 1952 | mm |
| G Overall length with standard bucket | 2682 | mm |
| H Maxium angle of flat ground | 22 | ° |
| I Unloading height | 1850 | mm |
| J Height to bucket hinge pin | 2410 | mm |
| K Loading distance at Max. unloading height | 545 | mm |
| L Dumping angle at maximum height | 34 | ° |
| M Rollback of bucket at full height | 97 | ° |
| N Bucket width | 1126 | mm |
| O Radius of gyration | 1650 | mm |
| P Track width | 756 | mm |
| Q Machine width | 959 | mm |
