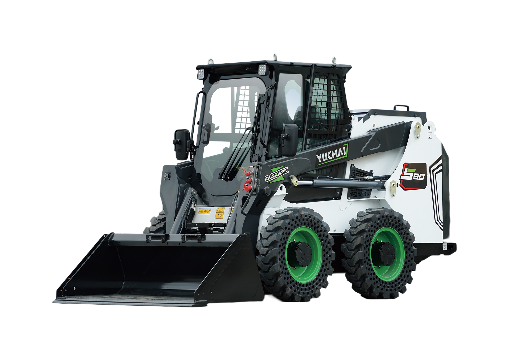

The Yuchai S90 electric skid steer loader adopts the global first wheel side motor driving， wheel side AUTO-HOLD technology and integrated chassis. It is together with features compact size, good trafficability, large operating range and comfortable driving experience, intelligent electronic control, green and environmentally friendly, low-failure rate and low-use cost. S90 supports fast charging function. By 1-hour fast charging, it can work for 8-9 hours. It can be used with a variety of attachments and can be widely used suitable for farms, forest farms, urban infrastructure, roads or construction sites, factories, and workshops, etc.
Specifications
| Basic parameter | |
| Machine Weight | 3800 kg |
| Bucket capacity | 0.2 m³ |
| Bucket width | 1727 mm |
| Technical Specification | |
| Battery | Lithium Iron Phosphate |
| Rated power | 32/3180 + 4×8/3500 kW/rpm |
| Battery capacity | 105 kWh |
| Rated Operating Load | 910 kg |
| Tipping Load | 1820 kg |
| System working pressure | 23 (0~+0.5) MPa |
| Flow Rate | 87.1 + 51.1 L/min |
| Increase maximum digging force | 19 kN |
| Tipping | 34.5 kN |
| Max. travel speed(low gear/ high gear) | 10/17.3 km/h |
| Fast charge | 1 Hour Charging from 30% to 80% |
| Endurance* | 9 - 10 h |
| Drive System | |
| 4 - Wheel independent direct driving by electric motor | - |
| Operating parameter | |
| A Overall operating height | 3920 mm |
| B Height to top of cab | 2030 mm |
| C Dumping angle at maximum height | 21 ° |
| D Ground clearance | 203 mm |
| E Wheelbase | 1082 mm |
| F Overall length without standard bucket | 2810 mm |
| G Overall length with standard bucket | 3590 mm |
| H Maximum angle of flat ground | 30 ° |
| I Unloading height | 2170 mm |
| J Height to bucket hinge pin | 2960 mm |
| K Loading distance at Max. unloading height | 400 mm |
| L Dumping angle at maximum height | 42 ° |
| M Rollback of bucket at full height | 98 ° |
| N Bucket width | 1727 mm |
| O Radius of gyration | 2100 mm |
| P Track width | 1455 mm |
| Q Machine width | 1685 mm |

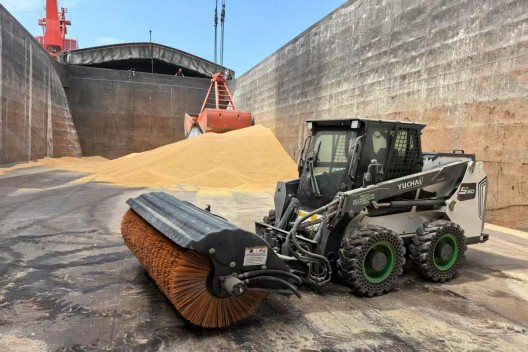

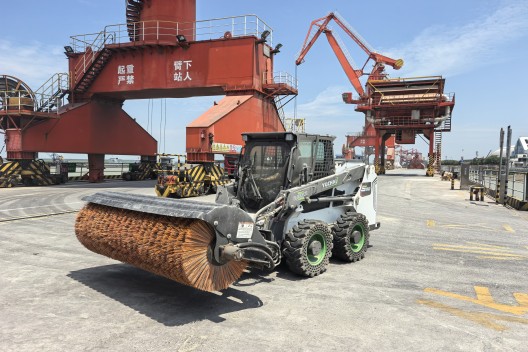

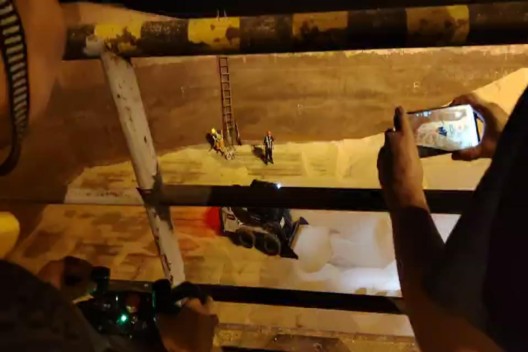

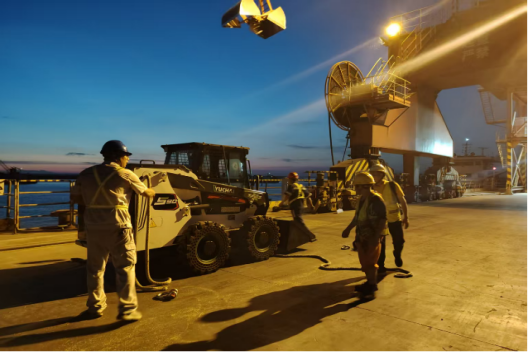

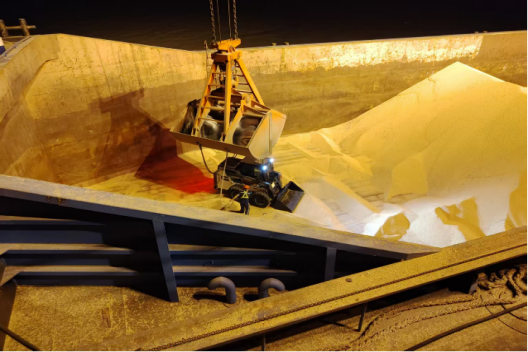

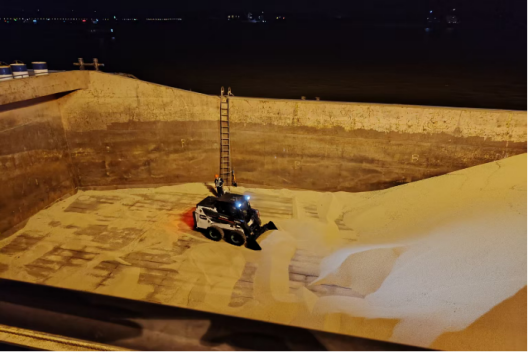

Gallery
