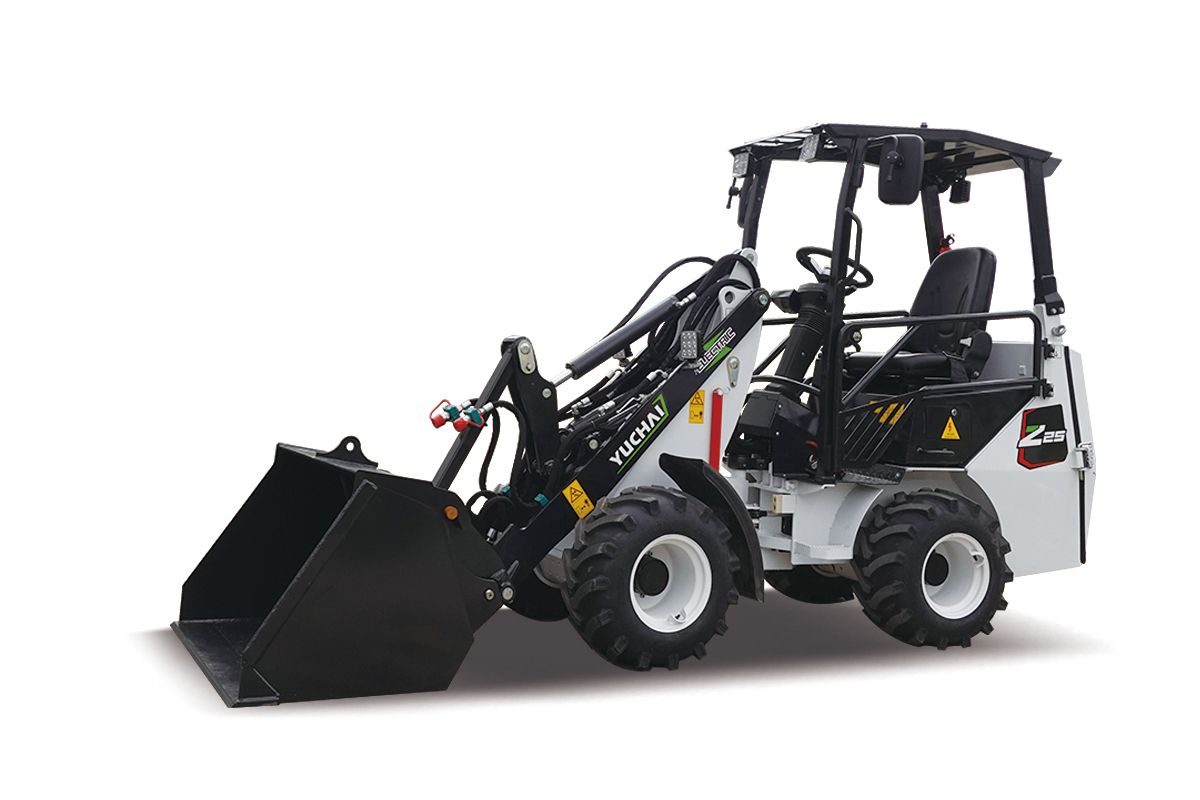

YC Z25 Electric Wheel Loaders

YC Z25 Electric Wheel Loaders

1. Energy cost decrased by 91%

2. 0 maintenance during2000 hours

3. Low failure rate

4. Battery capacity increased by 40%%

5. Wheel motor driving;

6. AUTO HOLDTraction force increased by 18.8%

7. Operation stability increased by 7.5%

8. Battery life increased by 50%

9. 360°rotation function in place

Download Brochure

YC Z25 Electric Wheel Loaders

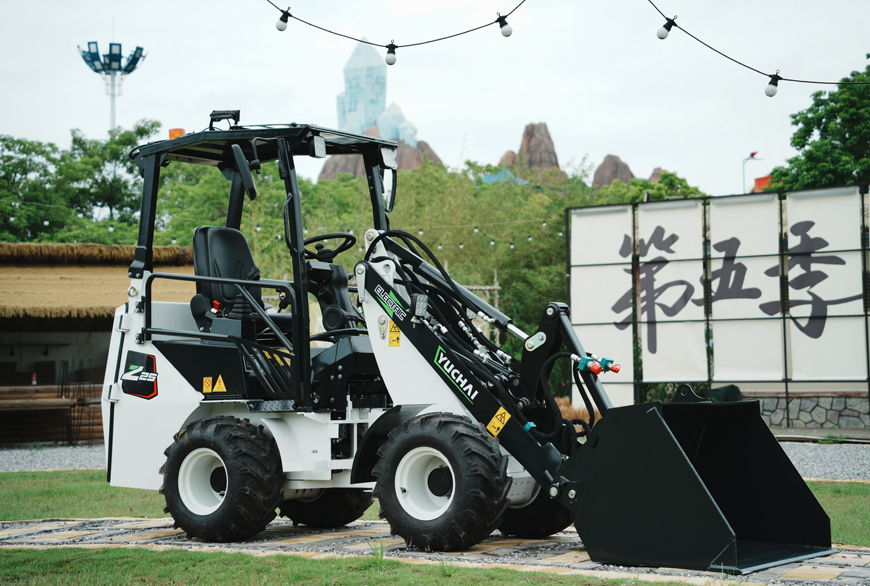

Z25 Electric Wheel Loader

Battery capacity increased by 40%. Wheel motor driving; AUTO HOLD Traction force increased by 18.8% Operation stability increased by 7.5% Battery life increased by 50% 360°rotation function in place

Wheel motor driving

Wheel motor driving

Empowered by 6 cutting-edge patents,less components, no axles, simple chassisinstallation, and easy maintenance.

Two separate electric motors are used inthe machine: one for the drive and one forthe drive system of the work hydraulics.This minimises the power consumption,because the performance is only drawnwhen it is really needed. The electric motorfor the drive also allows a dynamic andpowerful start-up of the machine. This canbe felt in every acceleration process.

Electrical hand brake

Electrical hand brake

The electrical hand brake provides both anauto-hold and hill-hold function. The brakeautomatically activates if the machine stands still, the direction of travel is set toneutral or the operator leaves their seat. Likewise, the electrical hand brake isautomatically released if the machine isput into gear using the accelerator. Naturally, the brake can likewise bemanually activated and deactivated byoperating a switch. Additionally, energy iswon back through the brake system via theso-called regeneration, which also extendsthe running time.

Multiple cab/canopy

Multiple cab/canopy

versions available.

Coordinated with differentapplication, we offer anappropriate selection ofdifferent operator cabs forthe 1190e. Fixed operator'scanopy, fold-down operator'scanopy eps (Easy ProtectionSystem) and cabin.

More efficient attachment application

More efficient attachment application

Ariable adjustment of the oil volume of the3rd control circuit enables the applicationof attachments that are operated withhydraulic continuous operation. With this, the oil volume can be individually adaptedto the relevant attachment. This enables theoperator to work both comfortably and efficiently with the machine and the attachment. In addition to this, the machinecan be operated in stationary mode. For this, the work hydraulics of the 3rd control circuitare used to drive an attachment, such as awood splitter. There is a multi-functional tailmounting bracket for the professional operation of rear attachments

YC Z25 Electric Wheel Loaders

Specifications

Z25 Performance Parameters

Basic parameter

Machine Weightkg1880
Rated Operating Loadkg800
Max.traveling speedkm/h0-12
Hydraulic System

Pure electric control

Working pressureMpa18
Battery System                                                                                                                           battery pack/secondary
battery pack/secondary
Battery                                                                                                                                                           Lithium-ron
Lithium-ron
Battery voltagev96
Battery capacity (gross)kWh21
Fastest charging time (from 20% to 80%, supported by fast charger)                                                           h1
Standard endurance *h≥ 6
Operating voltagev12
Kipplast mit Schaufel - Maschinegerade, Hubgerust horizontalkg800
Kipplast mit Schaufel - Maschinegeknickt,Hubgerust horizontalkg605
Kipplast mit Palettengabel -Maschine gerade, Hubgerusthorizontalkg520
Kipplast mit Palettengabel -Maschine geknickt, Hubgerusthorizontalkg395
Drive Syste

Wheel motor driving

AUTO HOLD

Tank capacity for hydraulic oilL8
Travel speeds increase/reduction
2
Travel speed Standardkm/h0-12
Max. hydraulic discharge volumeL/min36
Max. working pressurebar180 bar
Quick coupler type
hydraulic
Lifting cylinder
2
Tipping cylinder
1
Steering type                                                                                                        hydraulic articulated pendulum steering
hydraulic articulated pendulum steering
Steering cylinder
1
Oscillating angle                                                                                                                                          ±58 degree
±58 degree
Parking brake
disc brake
A Overall Lengthmm3850
B Overall Length(Without bucket)mm3000
C Bucket pivot point (to center of axle)mm461
D Wheel basemm1345
E Rear Overhangmm904
F Overall Heightmm2138
H Seat Heightmm1178
J Overall Operating Heightmm3547
K Height of Bucket Pivot (Max.)mm2781
L Loading-Over Heightmm2518
M Dumping Heightmm2007
N Bucket to Front Wheel Distance (Dumping)mm447
O Digging Depthmm55
P Overall Width (Wide Tire/Narrow Tire)mm1106/930
Q Track Width (Wide Tire/Narrow Tire)mm801/740
S Ground Clearancemm198
T Min. Radius Externalmm2268
U Radius at the Outer edgemm1796
V Inside Turning Radiusmm653
W Inclination Angle°58
X Rollback Angle at Max.Lifting Height°57
Y Dumping Angle (Max.)°35
Z Rollback Angle (on the ground)°38
