CATL battery
Zero emission
Low noise
Low operating cost
Telescopic chassis
Easy maintenance
Verstaile application
Specifications

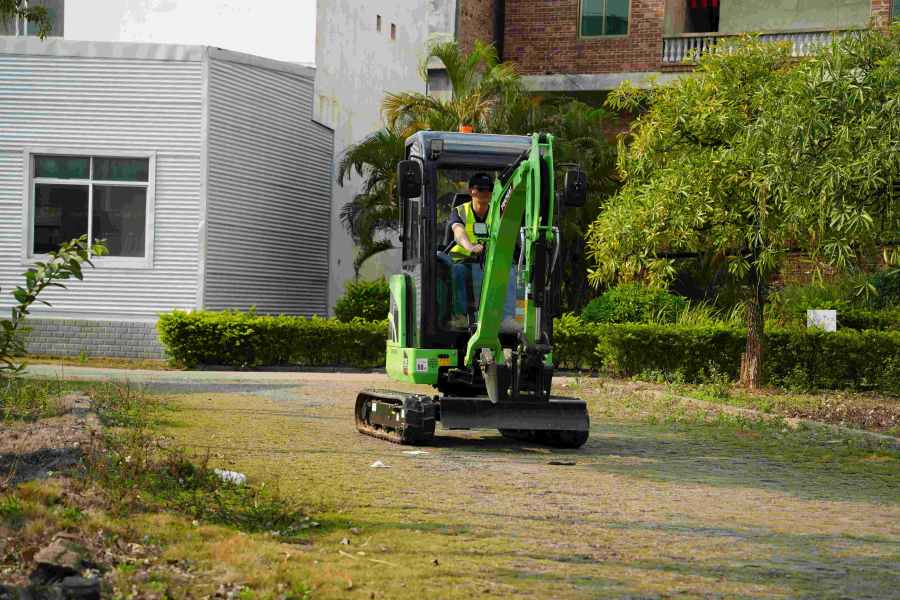

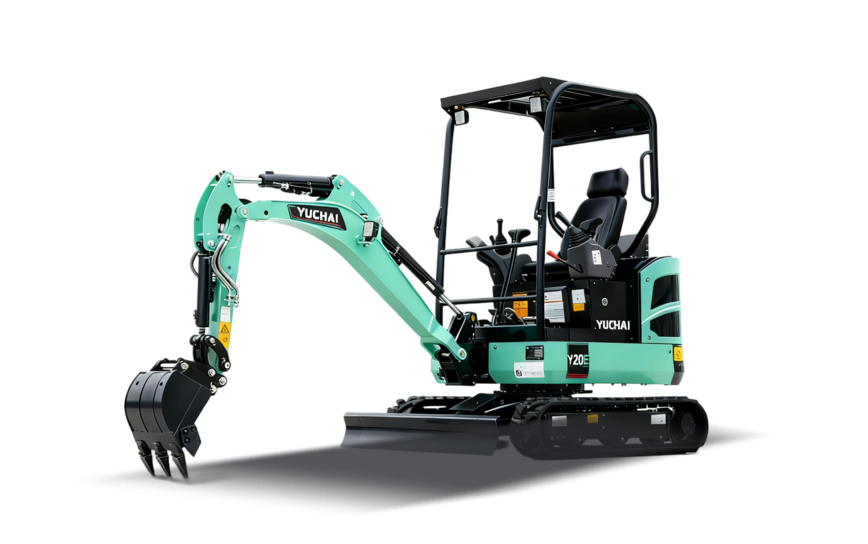

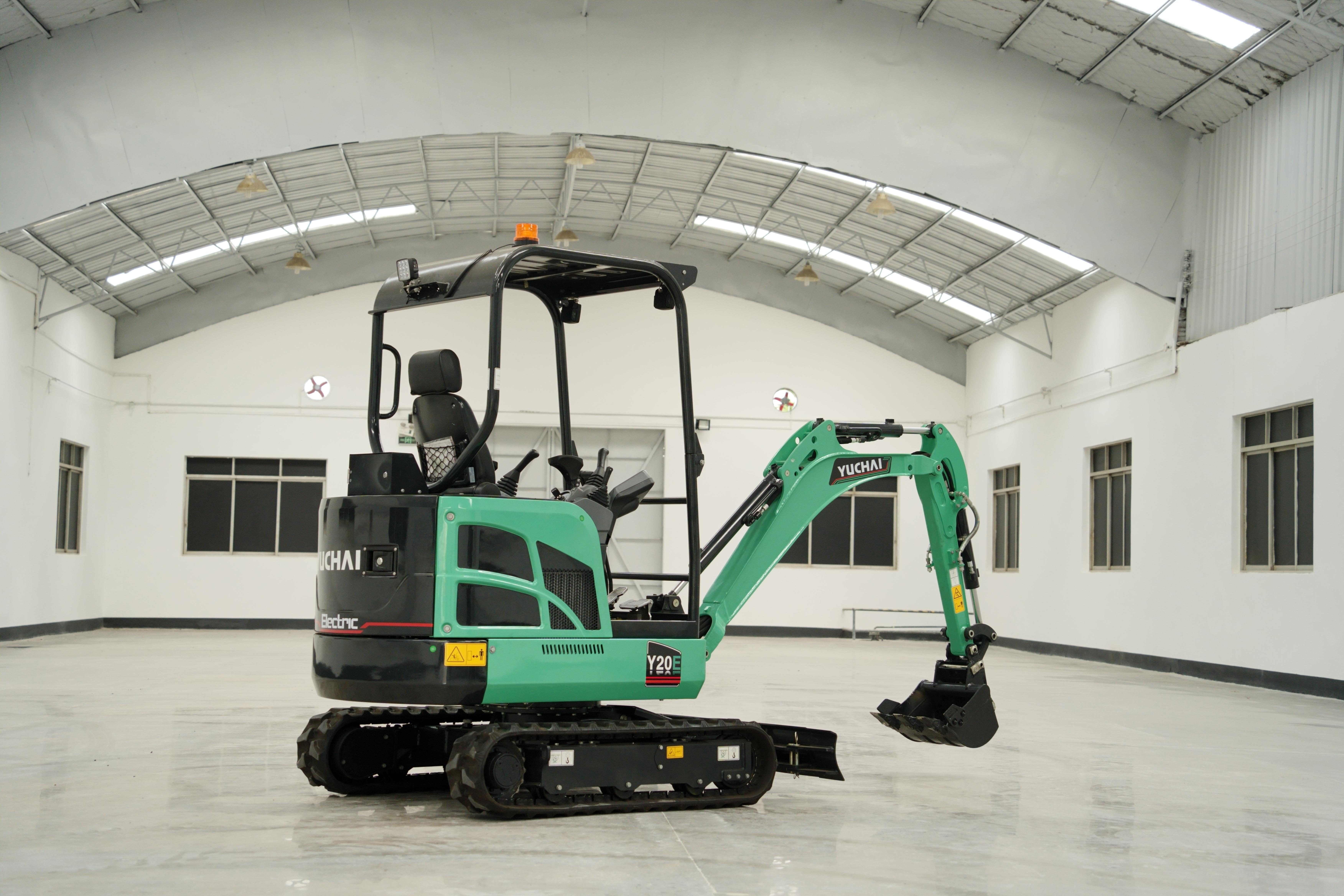

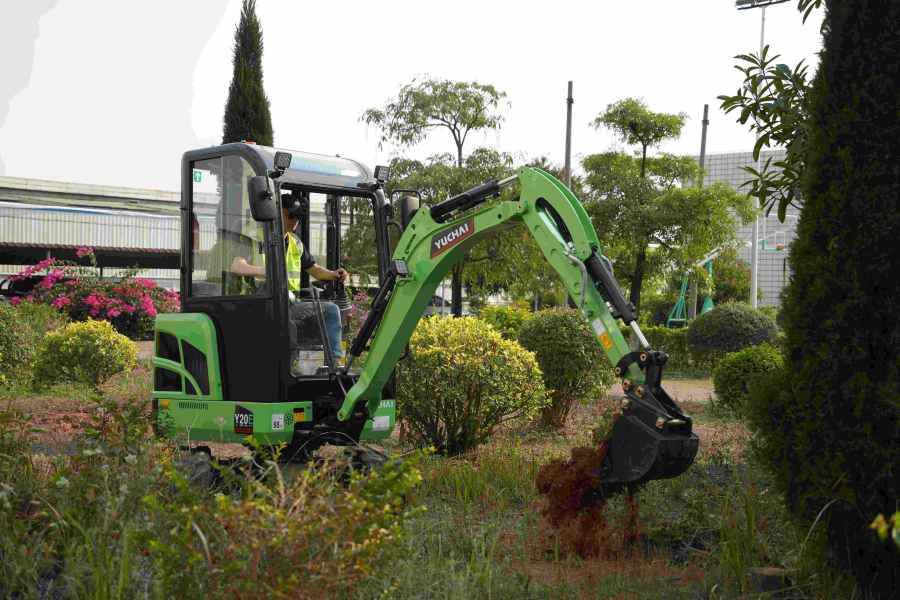

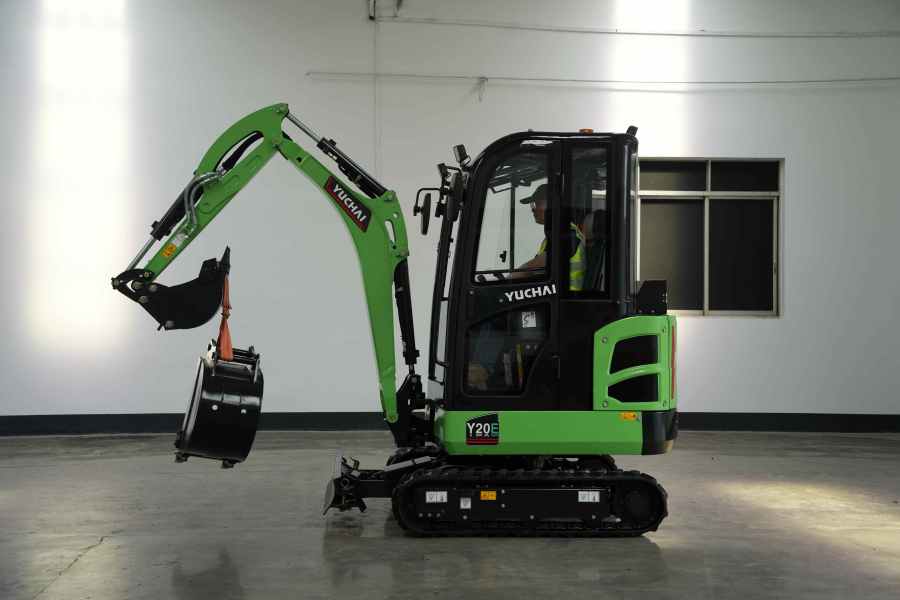

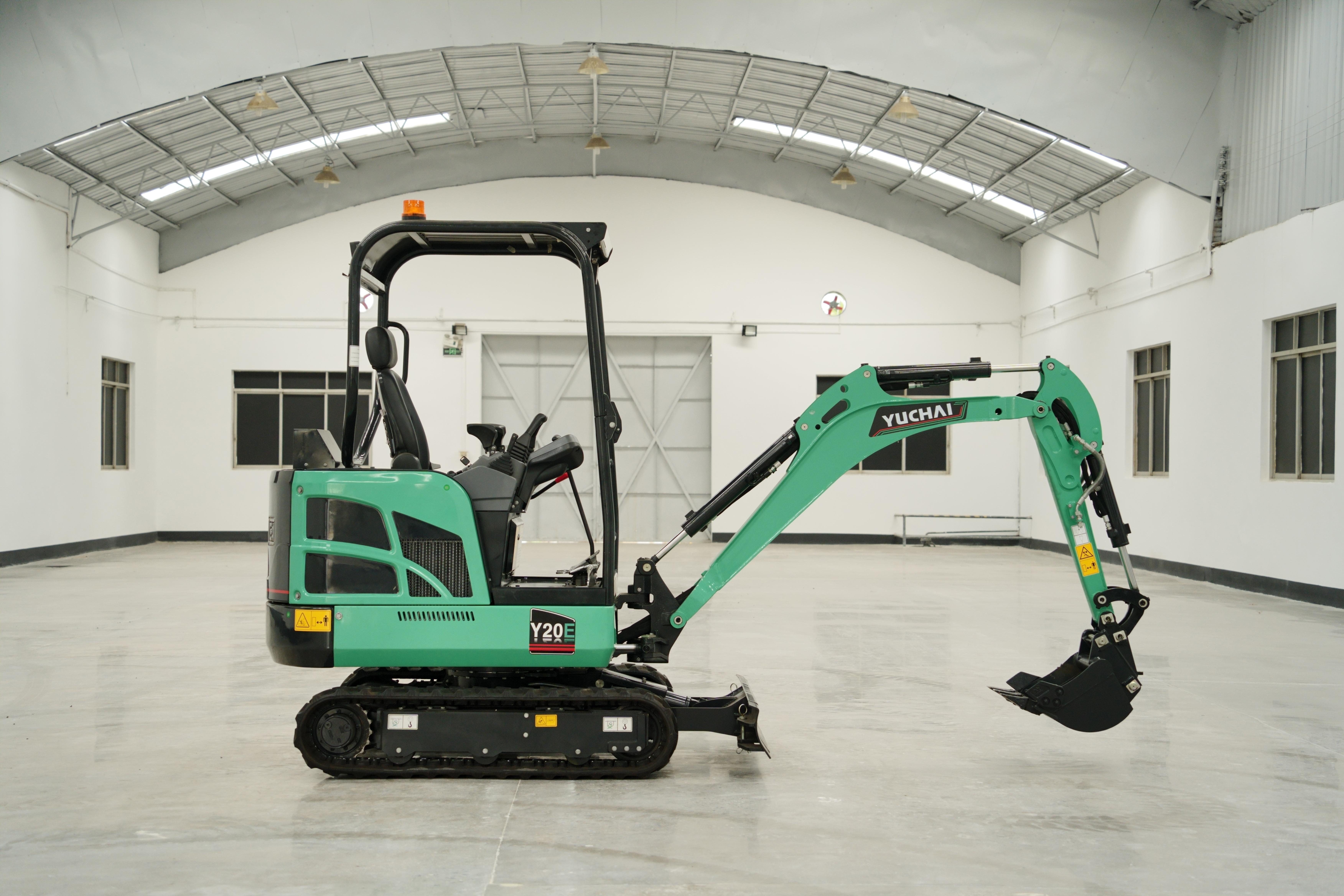

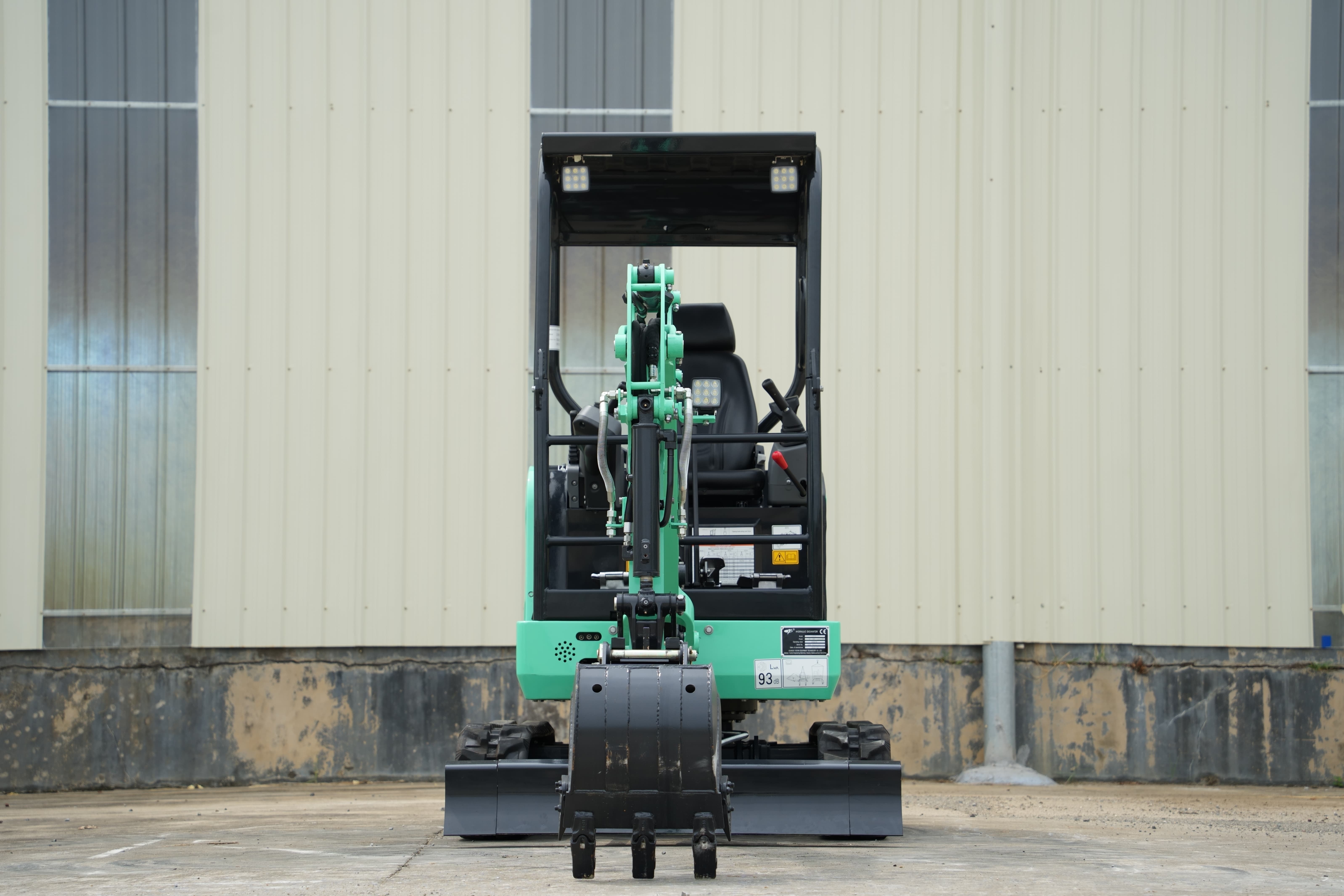

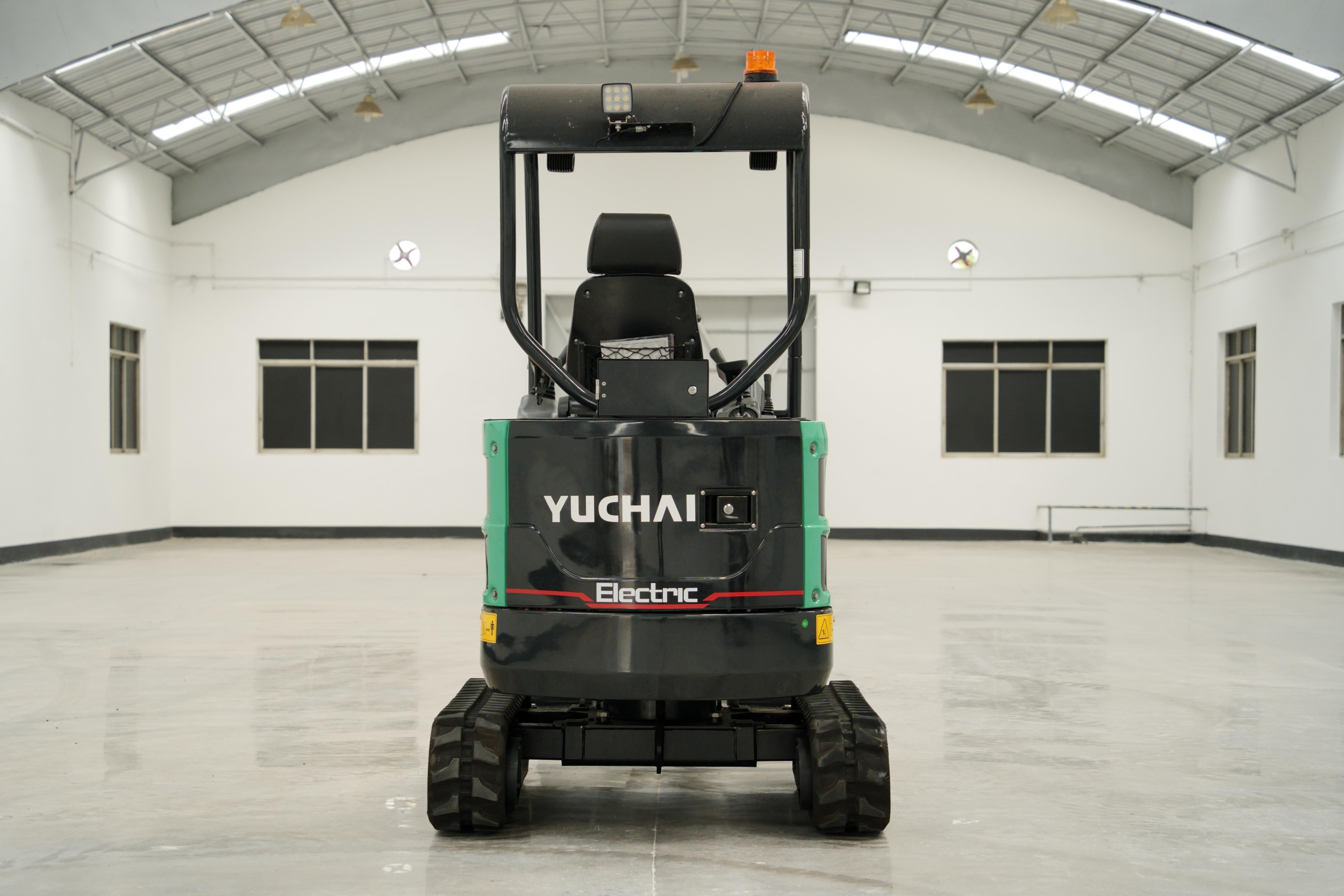

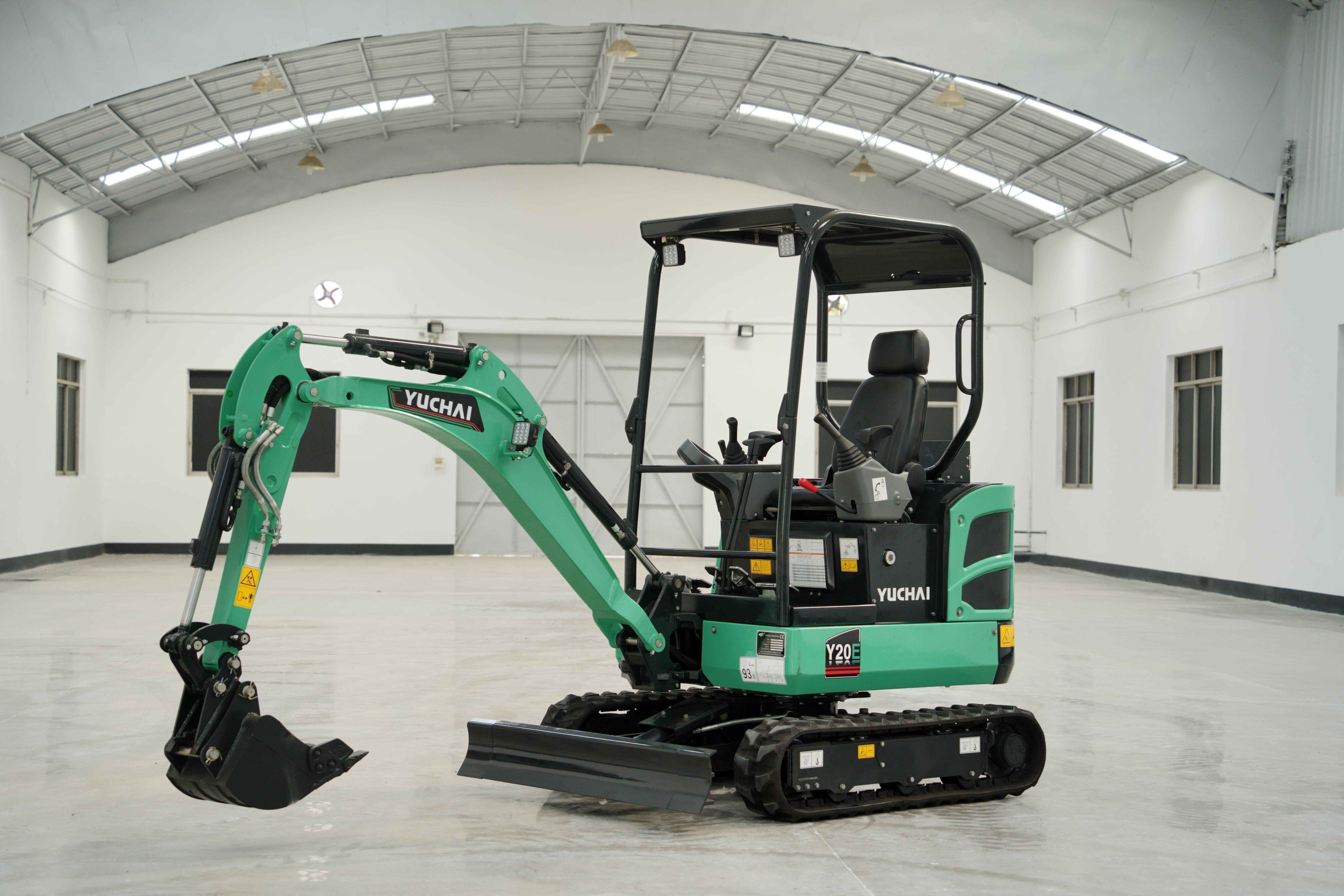

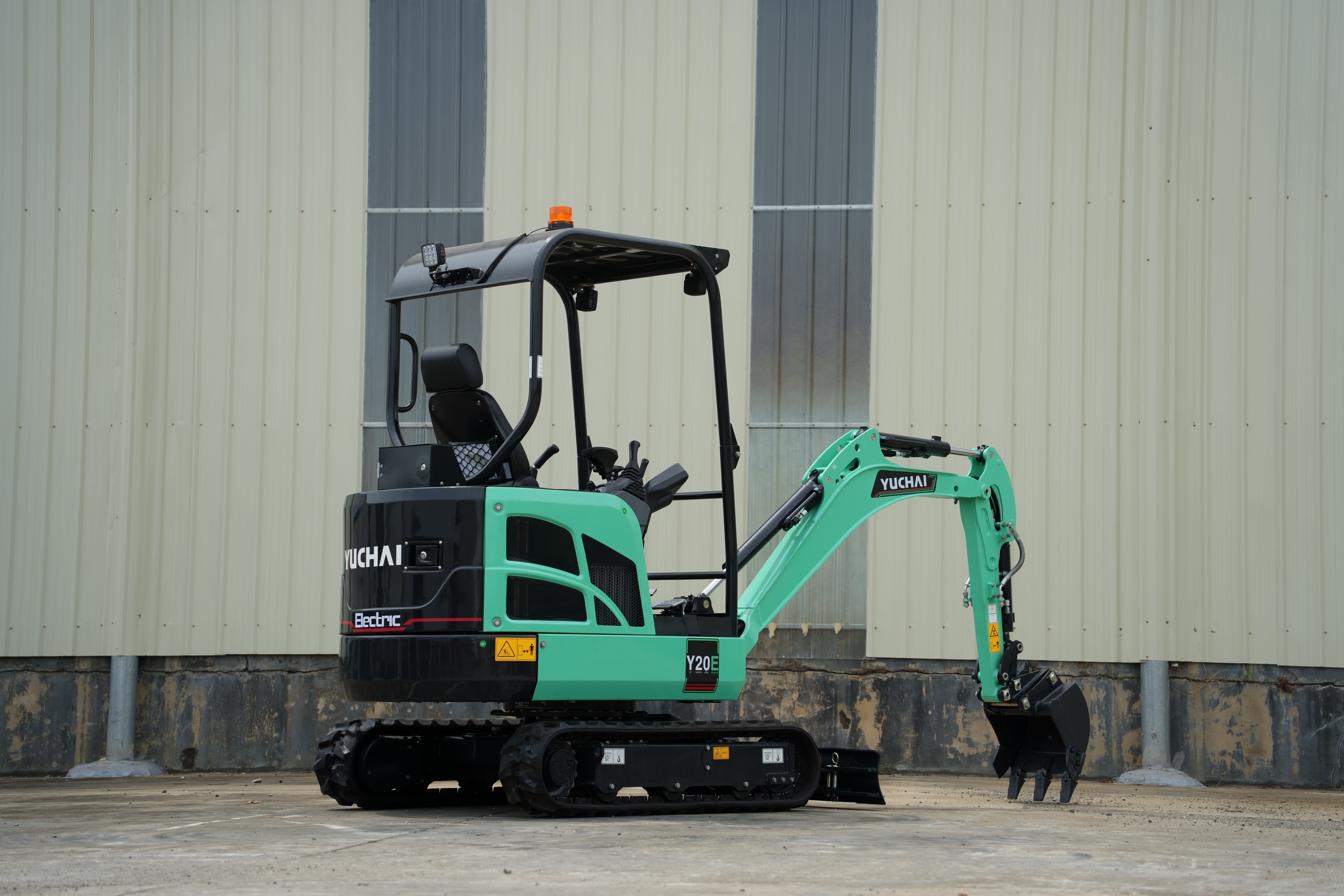

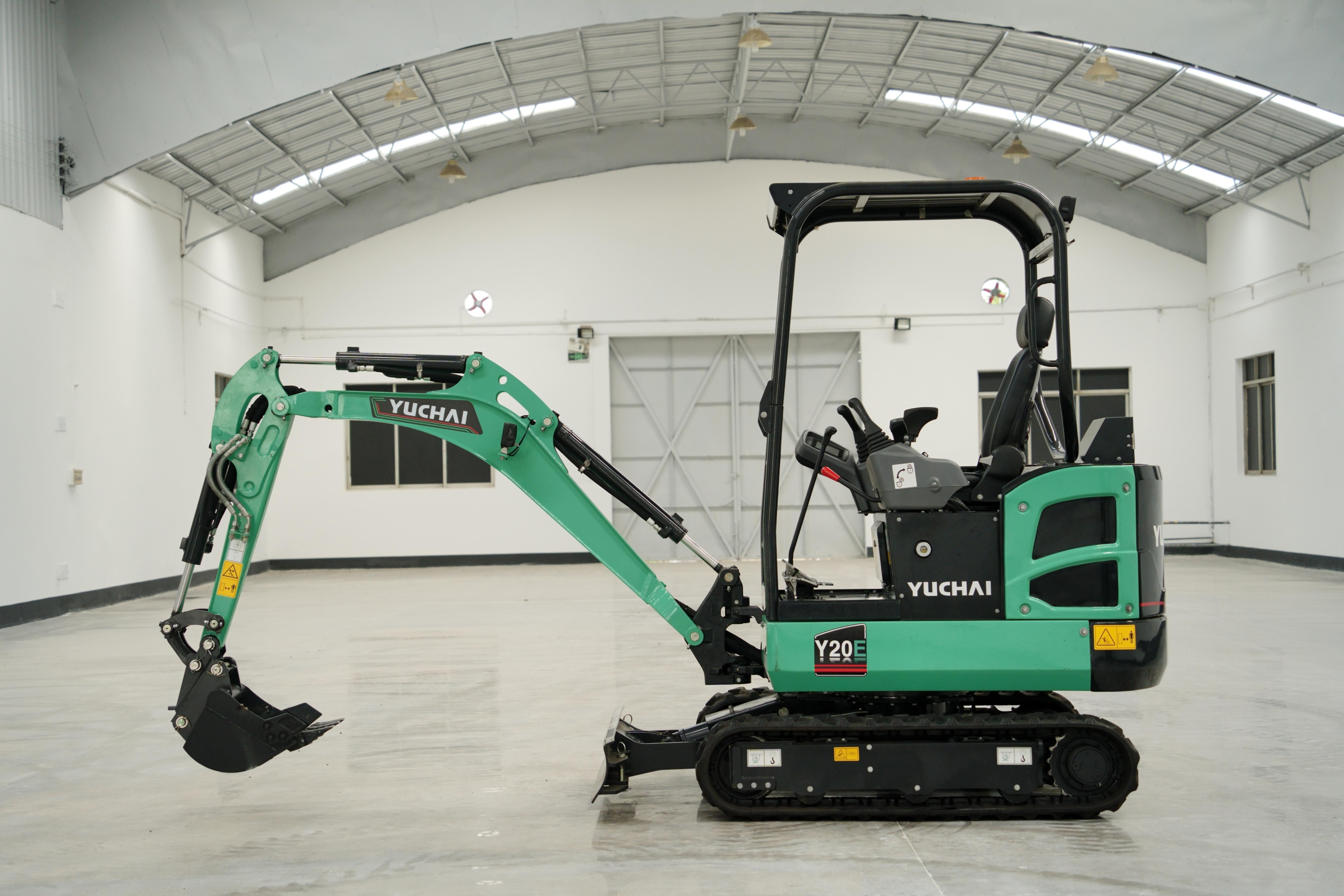

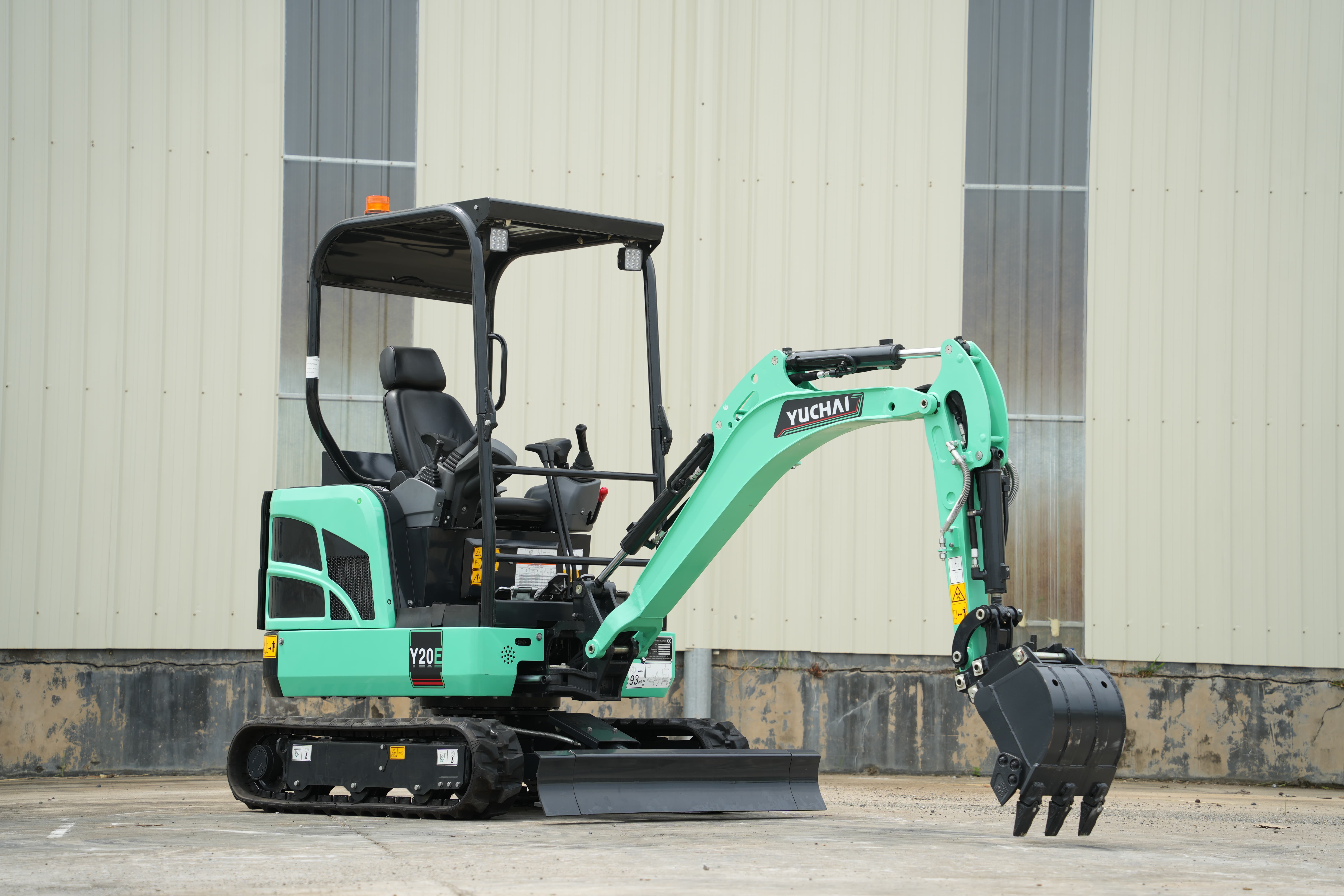

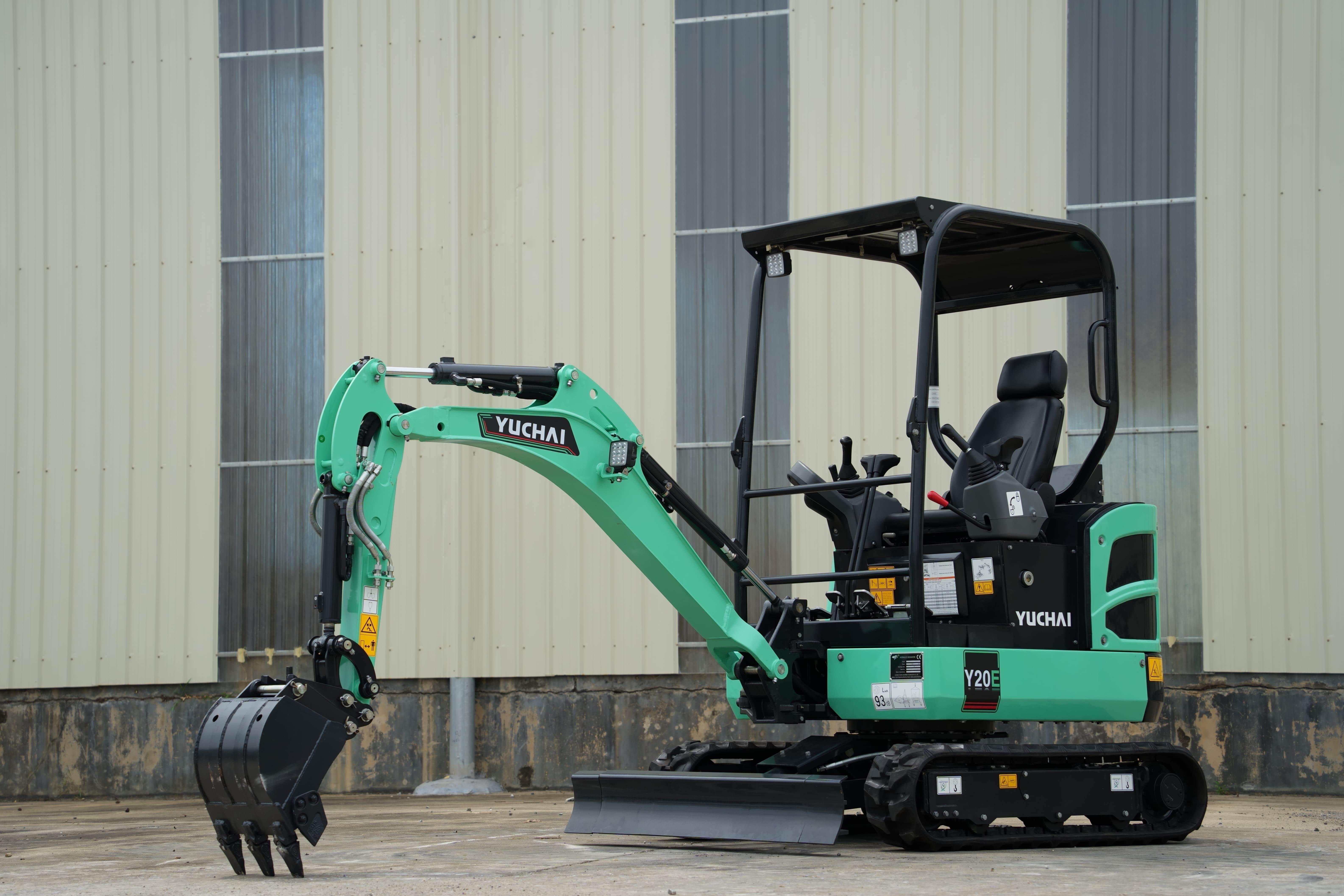

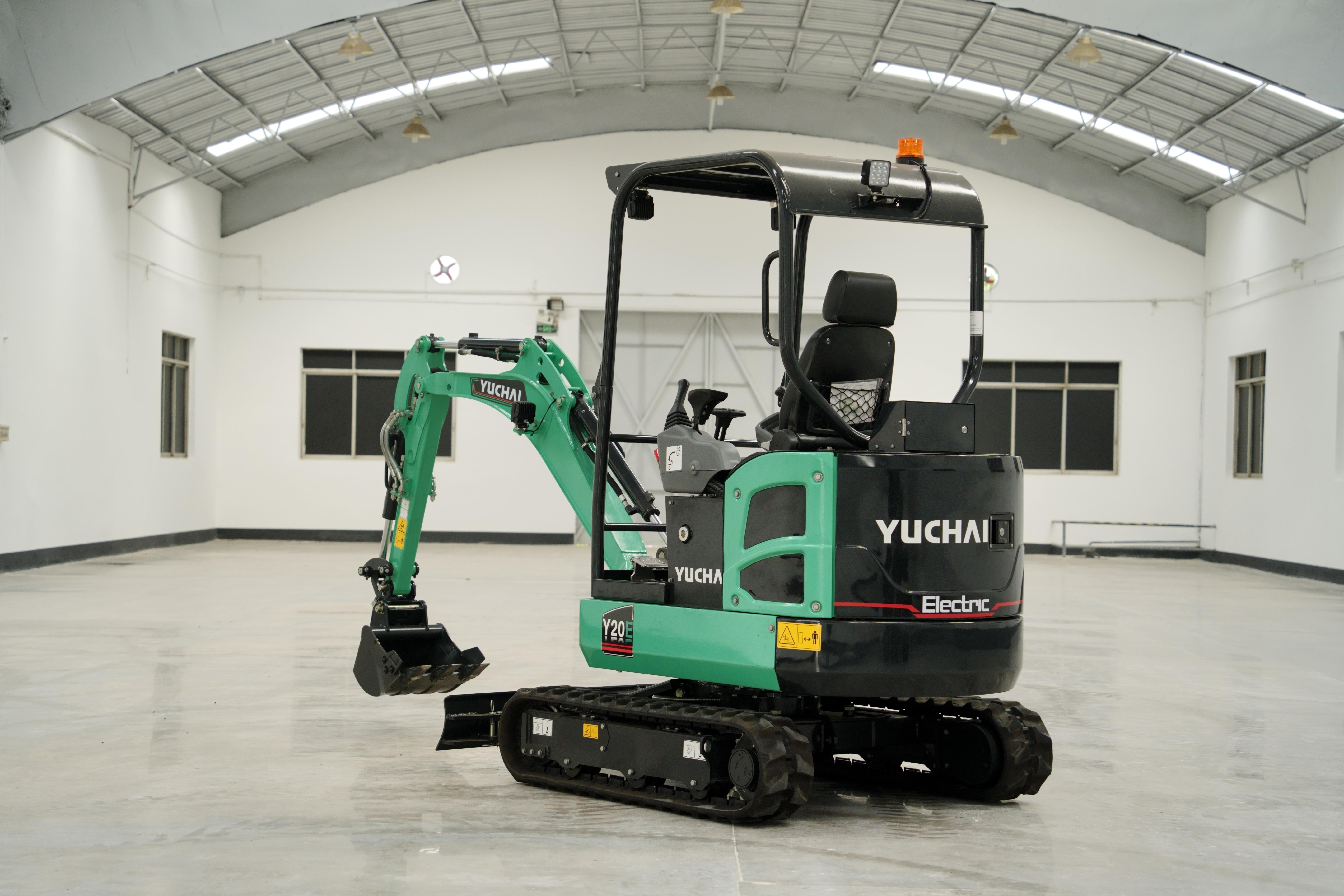

Yuchai Y20E Electric Excavator: Features fast charging and long endurance for continuous work, adapts to global job sites with robust construction, supports diverse attachments for versatile tasks, and ensures safety with protective structures. Compact design suits narrow spaces, with reliable performance for small-scale construction and industrial needs.
| Basic parameters | ||
| Machine weight | kg | 2080（canopy）/2200（cabin） |
| Bucket capacity | m³ | 0.05 |
| Width of bucket | mm | 450 |
| Performance parameters | ||
| Battery Lithium Iron | kWh | 33.38 |
| Battery voltage | V | 347.76 |
| Motor power | kW | 12/25 kW |
| Standard endurance | h | 6~8 h |
| Fast charging time | 1 hour | 30%→80% |
| Slow charging time | 4~5 hours | 30%→80% |
| Max. gradeability | ° | 30 |
| Max. digging force of bucket | kN | 17.2 |
| Max. digging force of arm | kN | 9.5 |
| Traveling speed | km/h | 2/4 |
| Max. hauling force | kN | 22 |
| Slewing speed of platform | rpm | 8~10 |
| Operating parameters | ||
| Max. digging height | mm | 3600 |
| Max. digging depth | mm | 2310 |
| Max. digging radius | mm | 4025 |
| Max. digging radius on ground level | mm | 3690 |
| Max. dumping height | mm | 2485 |
| Min. slewing radius | mm | 1920 |
| Max. vertical digging depth | mm | 1590 |
| Transportation dimension | ||
| Overall length | mm | 3845 |
| Overall width | mm | 1080 |
| Overall height | mm | 2335（canopy）/2345 （cabin） |
| Other parameters | ||
| Width of undercarriage | mm | 1080~1380 |
| Length of track | mm | 1600 |
| Width of track | mm | 230 |
| Minimum ground clearance | mm | 145 |
| Height between platform and ground | mm | 450 |
| Platform tail turning radius | mm | 1000 |
| Track gauge | mm | 850/1150 |
| Hydraulic oil tank capacity | L | 17 |
| working pressure | MPa | 24 |
| Flow rate | L/min | 61.6 |
| AUX 1 Pressure / Flow rate | MPa / L/min | 24 MPa / 18 /10 L/min |
| AUX 2 Pressure / Flow rate | MPa / L/min | 21 MPa/ 36 L/min |
| Boom length | mm | 1828 |
| Arm length （standard/longer） | mm | 950 |
| Maximum Bulldozer Lift | mm | 245 |
| Steering head angle | (L)/(R) | 65°/ 55° |
