1.Wheel-side Motor Drive & Wheel-side AUTO-HOLD Technology
2.Integrated Chassis Structure
3.Compact Dimension & Excellent Trafficability
4.Intelligent Electronic Control, Comfortable Operation
5.Fast Charging Supported: 1-hour charge for 8–9 working hours
6.Low Failure Rate & Low Operating Cost
7.Compatible with Various Attachments for Broad Scenarios
Powerful Loading Capacity
Rated operating load reaches 910 kg. High-pressure hydraulic system delivers strong digging and breakout force for heavy tasks.
Long Endurance & Fast Charging
105 kWh LFP battery enables 9–10 hours continuous work. It charges from 30% to 80% within one hour.
Independent 4-Wheel Electric Drive
4-wheel independent electric drive with dual travel speeds. Compact dimensions and tight turning radius ensure flexible operation in narrow areas.

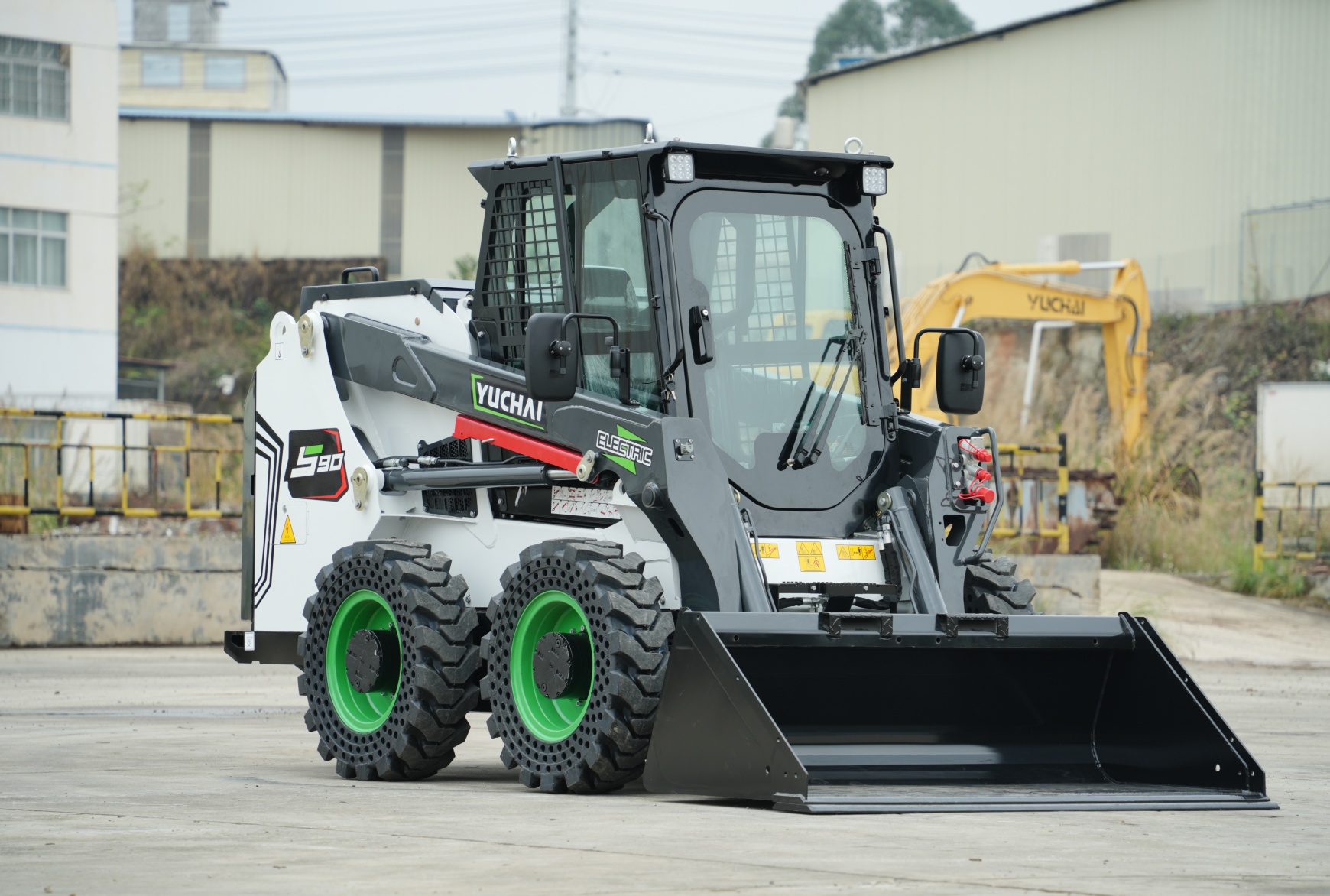

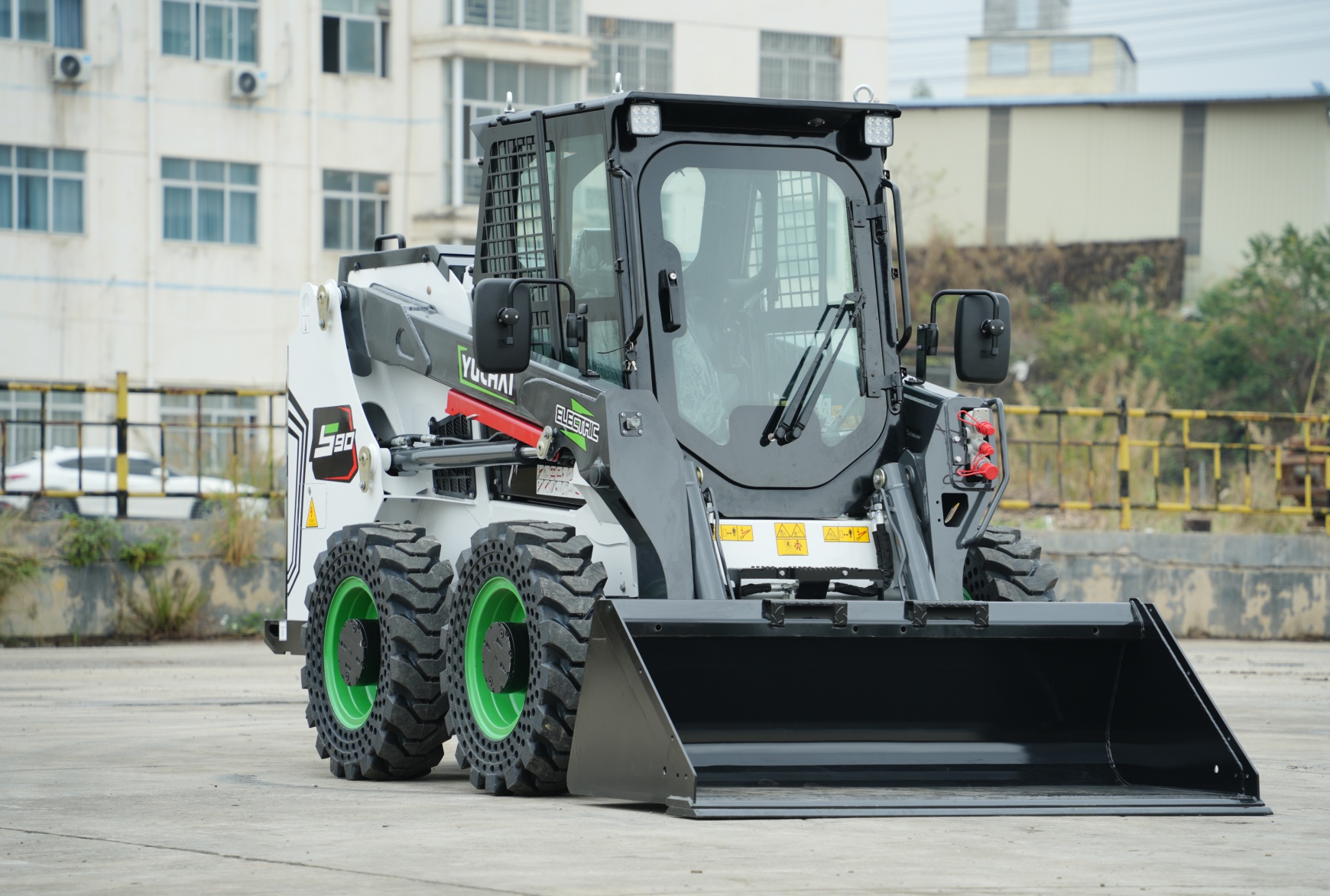

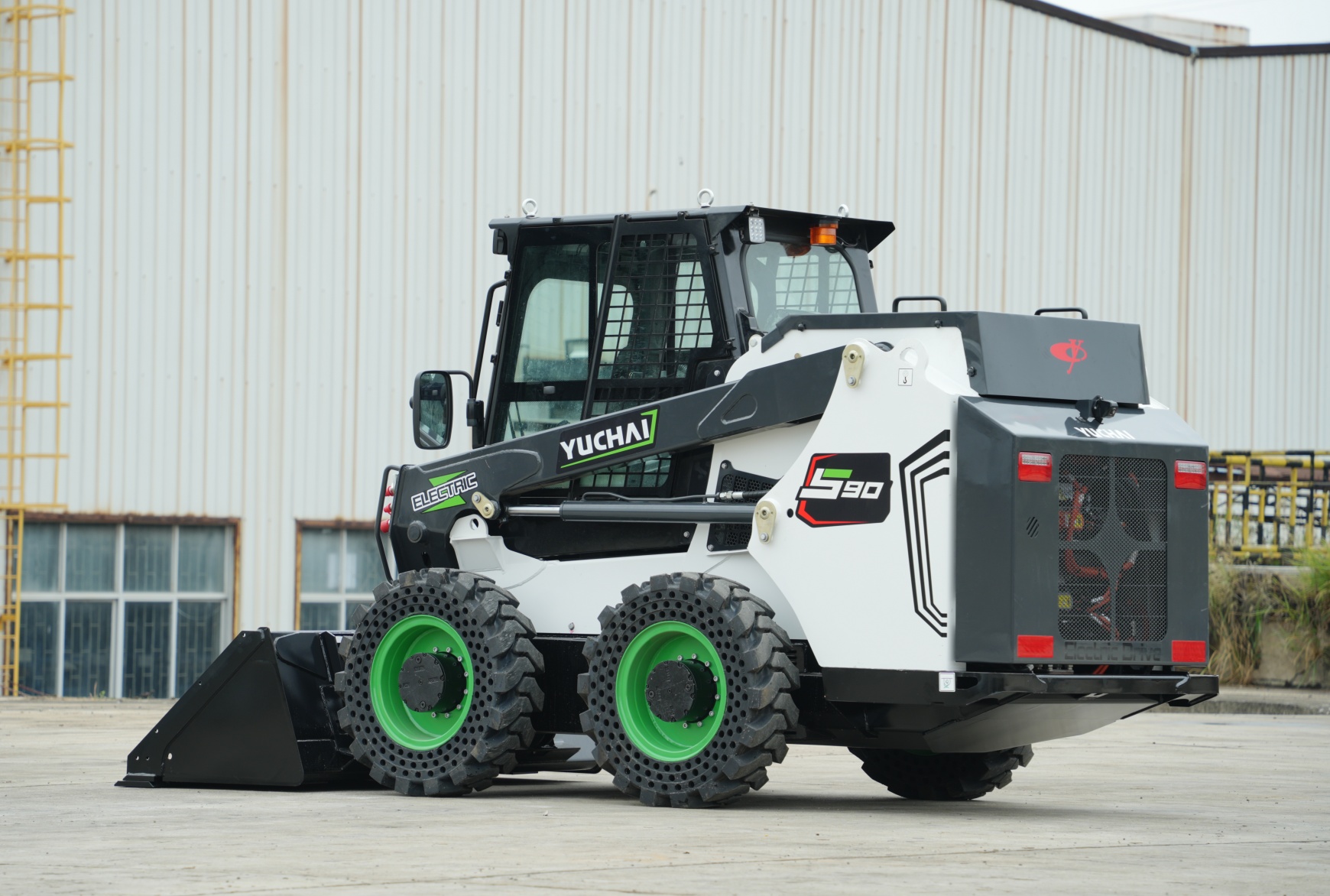

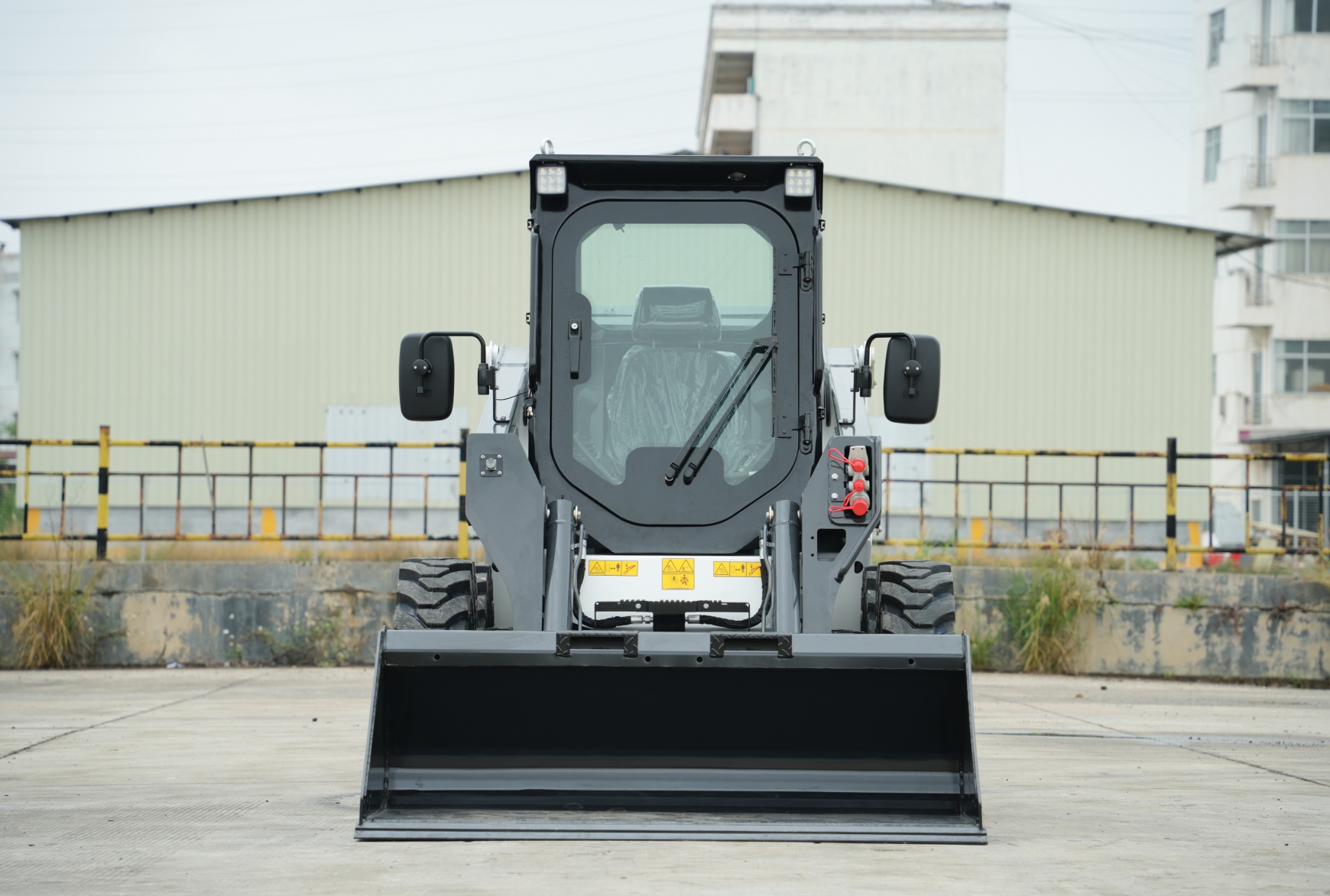

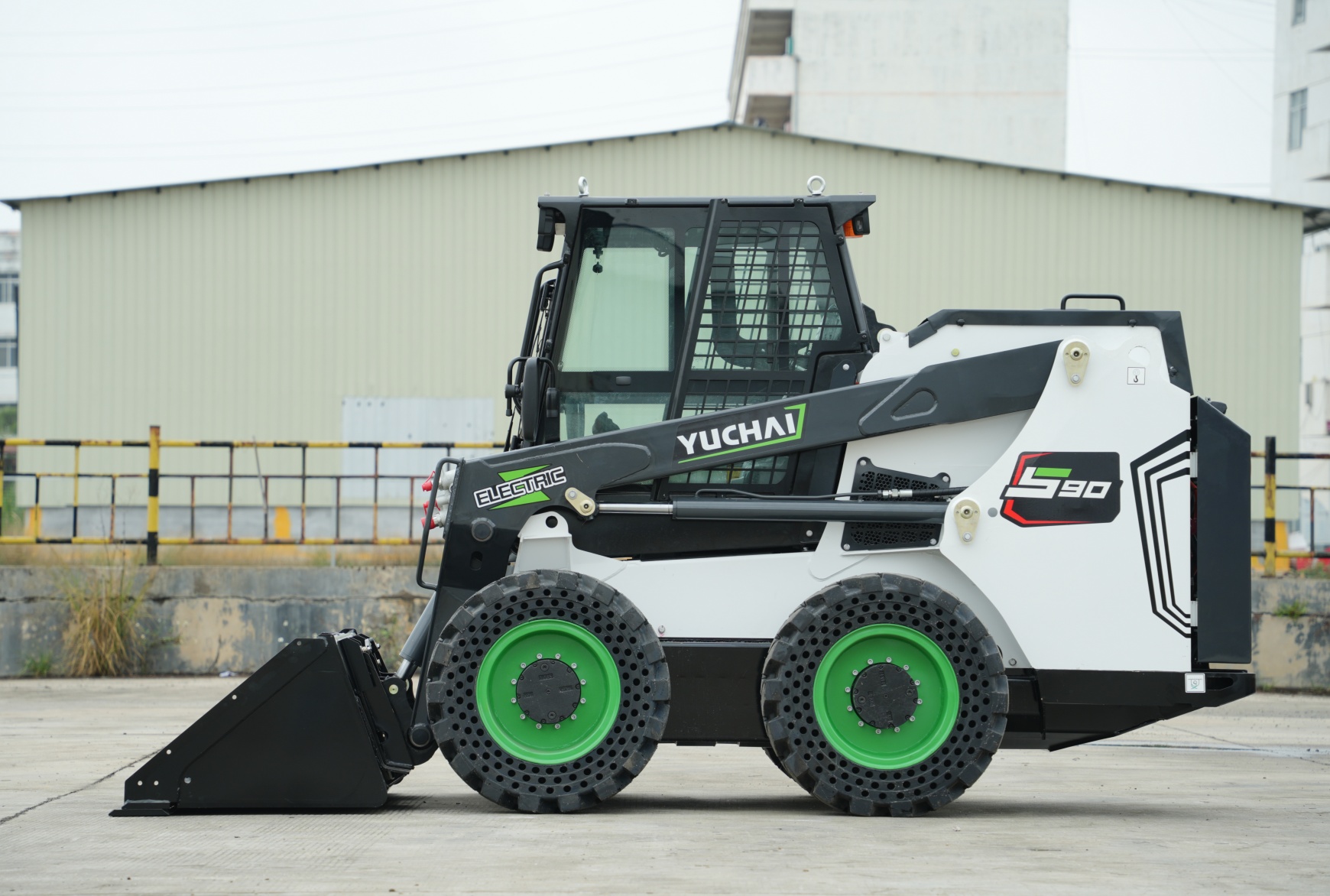

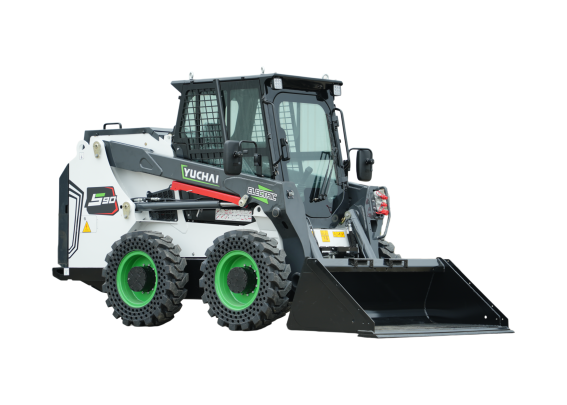

Yuchai S90 Electric Skid Steer Loader
More than 30 years of innovation and development, providing customers with high quality assurance!
Strong Electric Drive & Long Endurance
Four-wheel independent wheel-side motor direct drive. 1-hour fast charging (30%-80%) enables 9–10 hours continuous operation under standard test conditions.
Ultra-low Operating Costs
Greatly cut fuel expenses compared with diesel machines. Minimal maintenance is required within 2000 working hours with low failure rate.
Compact & Multi-scene Adaptability
Compact body with great trafficability. Supports a full range of attachments for construction sites, farms, factories and urban projects.
Outstanding Long-term Durability
Long-life structural design, targeted for 16-year service life and up to 30,000 reliable working hours.
Full Pilot Control
Full pilot control brings smooth, precise operation and reduces operator fatigue.
Quick Interchange System
Streamlined design allows fast switching between different working tools.

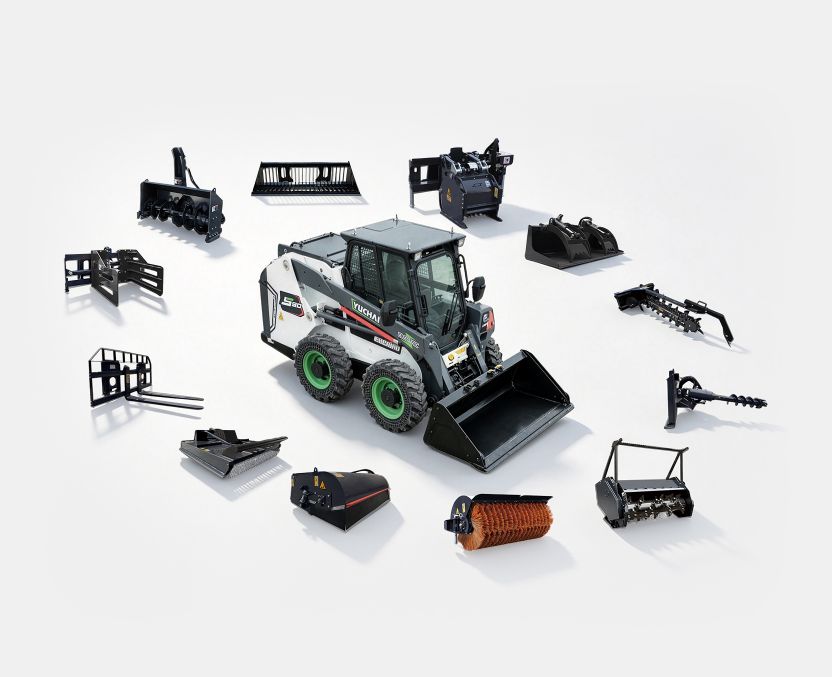

Diverse Attachments
Supports abundant attachments to tackle numerous construction tasks.
Specifications
| Basic parameter | S90-Metric units | S90-Imperial units |
| Machine Weight | 3900kg | 8598.0 lbs |
| Bucket capacity | 0.46m³ | 16.2 ft³ |
| Bucket width | 1727mm | 5'8.0"（ft. in） |
| Technical Specification | ||
| Battery Lithium lron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate |
| Rated power | 32/3180+4×8/3500kW/rpm | 32/3180+4×8/3500kW/rpm |
| Battery capacity | 105kW・h | 105kW・h |
| Rated Operating Load | 910kg | 2006.2 lbs |
| Tipping Load | 1820kg | 4012.4 lbs |
| System working pressure | 23（0~+0.5）Mpa | 23（0~+0.5）Mpa |
| Flow Rate | 87.1+51.1L/min | 87.1+51.1L/min |
| Increase maximum digging force | 19kN | 19kN |
| Tipping | 18.5kN | 18.5kN |
| Max. travel speed(low gear/ high gear ) | 10/17.3km/h | 10/17.3km/h |
| Fast charge 1 Hour Charging from 30% to 80% | ||
| Endurance* | 9~10h | 9~10h |
| Drive System | ||
| 4-Wheel independent direct driving by electric motor | ||
| Operating parameter | ||
| A Overall operating height | 3920mm | 12'10.3"（ft. in） |
| B Height to top of cab | 2030mm | 6'7.9"（ft. in） |
| C Dumping angle at maximum height | 21° | 21° |
| D Ground clearance | 203mm | 0'8.0"（ft. in） |
| E Wheelbase | 1082mm | 3'6.6"（ft. in） |
| F Overall length without standard bucket | 2810mm | 9'2.6"（ft. in） |
| G Overall length with standard bucket | 3590mm | 11'9.3"（ft. in） |
| H Maximum angle of flat ground | 30° | 30° |
| I Unloading height | 2170mm | 7'1.4"（ft. in） |
| J Height to bucket hinge pin | 2960mm | 9'8.5"（ft. in） |
| K Loading distance at Max. unloading height | 400mm | 1'3.7"（ft. in） |
| L Dumping angle at maximum height | 42° | 42° |
| M Rollback of bucket at full height | 98° | 98° |
| N Bucket width | 1727mm | 5'8.0"（ft. in） |
| O Radius of gyration | 2100mm | 6'10.7"（ft. in） |
| P Track width | 1455mm | 4'9.3"（ft. in） |
| Q Machine width | 1685mm | 5'6.3"（ft. in） |
Gallery
FAQ
How about charging time and continuous working endurance of S90?
It supports fast charging, reaching 30% to 80% power within 1 hour. The machine delivers 9–10 hours of working endurance under standard test conditions.
What cost advantages does S90 electric skid steer loader have compared with fuel models?
It can save up to 90% fuel costs. Zero maintenance is required within the first 2000 working hours with a low overall failure rate.
What drive system is equipped on the Yuchai S90?
It adopts 4-wheel independent wheel-side motor direct drive system, equipped with AUTO-HOLD technology and integrated chassis.
Where can the S90 be used?
With compact size and excellent trafficability, it fits farms, forest farms, urban infrastructure, construction sites and factories. It is also compatible with various attachments.
