All-New Dedicated Electric Platform
Wheel-Side Drive Technology
Zero Emissions, Low Noise
All-New Dedicated Electric Platform
Stable and Reliable Battery, Motor & Control System
Convenient and Rapid Charging
Ergonomically Engineered Canopy
Simplified Maintenance Design
Chassis & Safety Systems

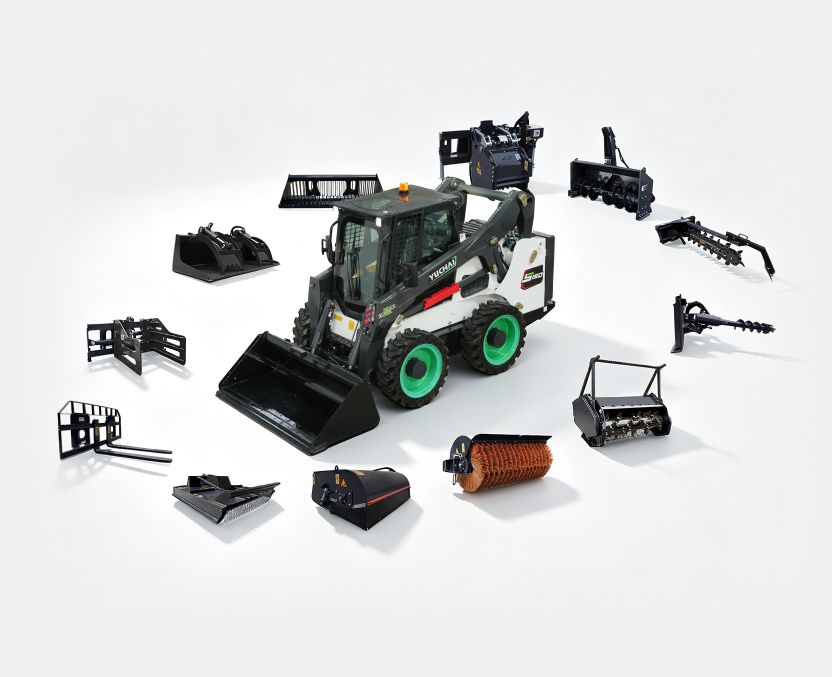

Compatible with Various Attachments
Download the product brochure below for full details.
Zero Emissions, Low Noise
The S150 features a pure electric drive design. During operation, it eliminates theroar of diesel engines and unpleasant odors, with significantly lower noise levels.For agricultural users, especially those in the livestock farming users,this machine creates a more comfortable environmentfor both operators and animals.
Convenient and Rapid Charging
S150 offers dual charging options: 220V/16A (standard) and 38oV/32A (rapid charging, optional),with charge ports configurable to European, American, or Chinese standards. In standard mode,replenishing power requires only connection to mains electricity. When using rapid chargingequipment, it achieves 30%-80% SOC recharge in just 1.3 hour.
Chassis & Safety Systems
The entire vehicle is made of high-strength structural steel, which has strong impactresistance and is more suitable for harsh working conditions.The battery pack features multiple safety protections: dust-proof, water-proof, short-circuit-proof, and impact-proof, meeting the IP67 standard.The automatic braking system and operation locking device enhance operational safety.
Wheel-Side Drive Technology
Finite-element-optimized wheel-side electric drive + H-type chassis structure deliversgreater stability and efficiency, boosting performance and enabling the machine to reach its full potential!
Concise User Interface
7-inch high-definition smart color touchscreen integrating display, settings, alarms,and control functions Shows sensor status and fault codes for easy troubleshooting,
More user-friendly interface with higher intelligence and operational convenience.
Maintenance Advantages
More than 40% reduced maintenance work.
No regular oil changes/filter replacements.
Reduced downtime, Significantly lower operating costs.
Safety Extensions
Electronic fence(optional):Effectively reminds of avoidance andensures construction safety.
Rear camera(optional):Enhances the driver's field ofvision and sense of security.
Intelligent diagnosis system:Fault information can be read throughthe display screen for precise andrapid maintenance.
Specifications

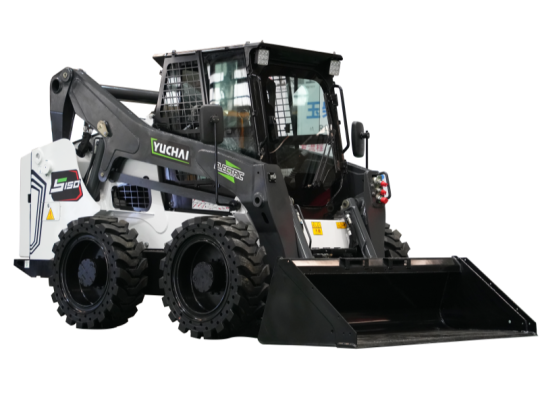

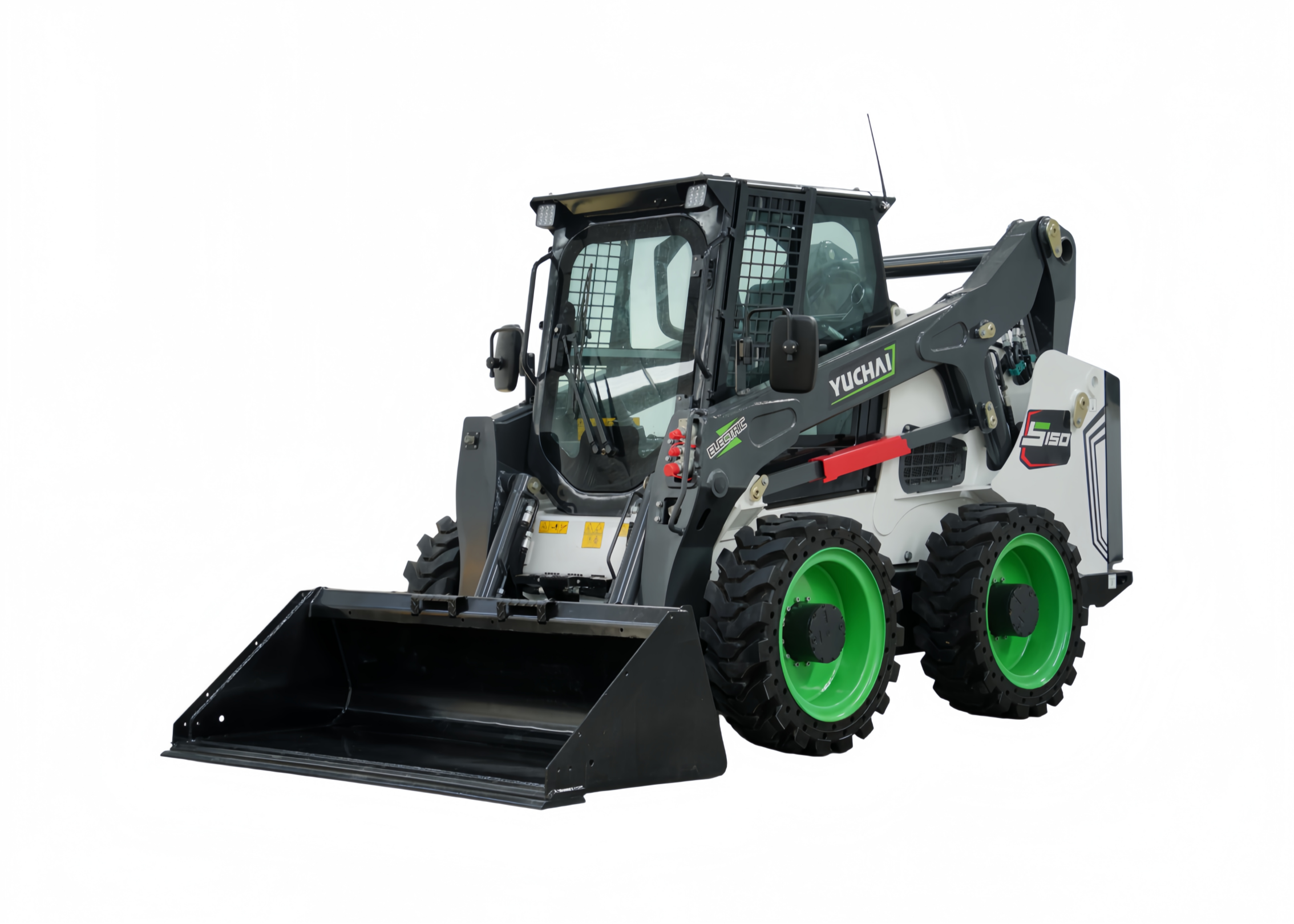

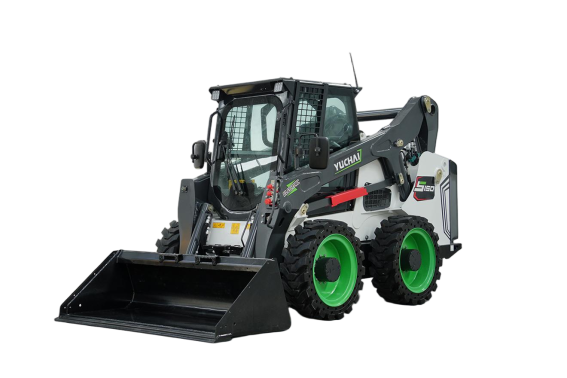

The Yuchai S150 electric skid steer loader adopts the global first wheel side motor driving，wheel side AUTO-HOLD technology and integrated chassis.It is together with features compact size,good trafficability, large operating range and comfortable driving experience, intelligent electronic control, green and environmentally friendly, low-failure rate and low-use cost.S150 supports fast charging function. By 1-hour fast charging, it can work for 8-9 hours. It can be used with a variety of attachments and widely used suitable for farms, forest farms, urban infrastructure, roads or construction sites, factories, and workshops, etc.
| Basic Parameter | S150 | |
| Machine Weight | 4850 | kg |
| Bucket capacity | 0.5 | m³ |
| Bucket width | 1880 | mm |
| Technical Specification | ||
| Battery | Lithium Iron Phosphate | - |
| Rated power | 32/3180+4×10/3410 | kW/rpm |
| Battery capacity | 105 | kW·h |
| Rated Operating Load | 1620 | kg |
| Tipping Load | 3250 | kg |
| System working pressure | 23 (0 ~+0.5) | Mpa |
| Flow Rate | 87.1+51.1 | L/min |
| Increase maximum digging force | 25 | kN |
| Tipping | 24.5 | kN |
| Max. travel speed(low gear/ high gear ) | 10/20 | km/h |
| Fast charge (Charging from 30% to 80%) | 1.3 hour charging from 30% to 80% | hour |
| Endurance* | 9~10 | h |
| Drive System | 4-Wheel independent direct driving by electric motor | - |
| A Overall operating height | 4280 | mm |
| B Height to top of cab | 2065 | mm |
| C Dumping angle at maximum height | 21.5 | ° |
| D Ground clearance | 207 | mm |
| E Wheelbase | 1227 | mm |
| F Overall length without standard bucket | 3066 | mm |
| G Overall length with standard bucket | 3830 | mm |
| H Maxium angle of flat ground | 31 | ° |
| I Unloading height | 2610 | mm |
| J Height to bucket hinge pin | 3335 | mm |
| K Loading distance at Max. unloading height | 845 | mm |
| L Dumping angle at maximum height | 41 | ° |
| M Rollback angle of bucket at full height | 98 | ° |
| N Bucket width | 1880 | mm |
| O Radius of gyration | 2179 | mm |
| P Track width | 1507 | mm |
| Q Machine width | 1832 | mm |
