Zero Emissions, Low Noise
All-New Dedicated Electric Platform LED
Wheel-Side Drive Technology
Battery capacity increased by 40%
Battery life increased by 32%
High-Capacity LFP Battery
Simplified Maintenance Design
Chassis & Safety Systems
Download the product brochure below for full details.
High-Capacity LFP Battery
Via its inverter, the machine transforms into a large power bank capable of 220V/10A outputto support various electric tools.
Zero Emissions, Low Noise
The S35 features a pure electric drive design. During operation, it eliminates the roar ofdiesel engines and unpleasant odors, with significantly lower noise levels.
Premium Canopy Where safety meets comfort
Safety protection, comfortable driving operation,wide field of vision. It can be equipped with safety glass. The fully enclosedcab has better dust-proof and soundproof effects.

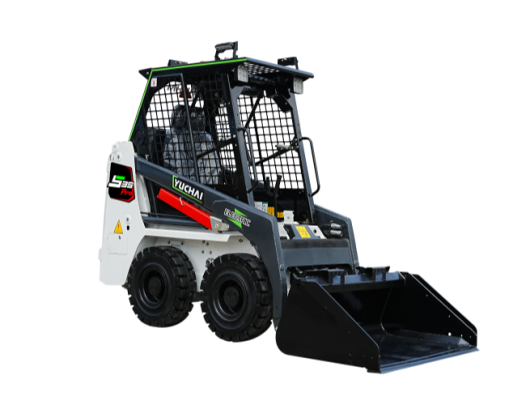

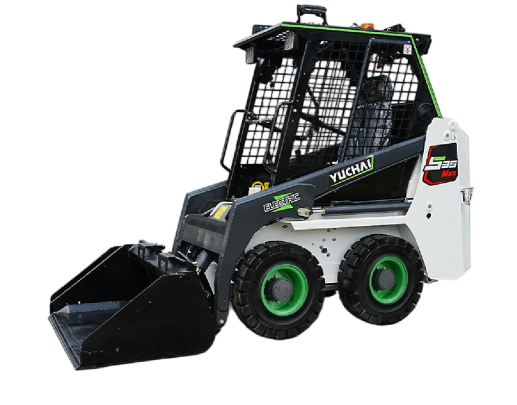

Yuchai S35 Max-Electric Skid Steer Loader
More than 30 years of innovation and development, providing customers with high quality assurance!
Premium Canopy
The TOPS/ROPS canopy ensures the driver's safety.
Humanized cab: Safety protection, comfortable driving operation,wide field of vision. It can be equipped with safety glass. The fully enclosedcab has better dust-proof and soundproof effects.
Wheel-Side Drive Technology
Yuchai pioneers wheel-side drive technology in compactconstruction machinery, featuring independent controllersand motors for each wheel. This enables separate controlof hydraulic and travel systems with non-interfering powerdistribution. Torque remains consistent regardless ofrotational speed, delivering robust power even at low speeds.
Stable and Reliable Battery
The S35 shares identical battery and electronic control systems with Yuchai's S35 skidsteer loader. Its supply chain leverages top-tier enterprises from China's EV industry.
Wheel-End Parking Technology
The S35 features integrated wheel-end parking functionality (AUTO HOLD).Combining mechanical brake discs with wheel-side motors, it provides dualparking modes with automatic hold capability.
Specifications

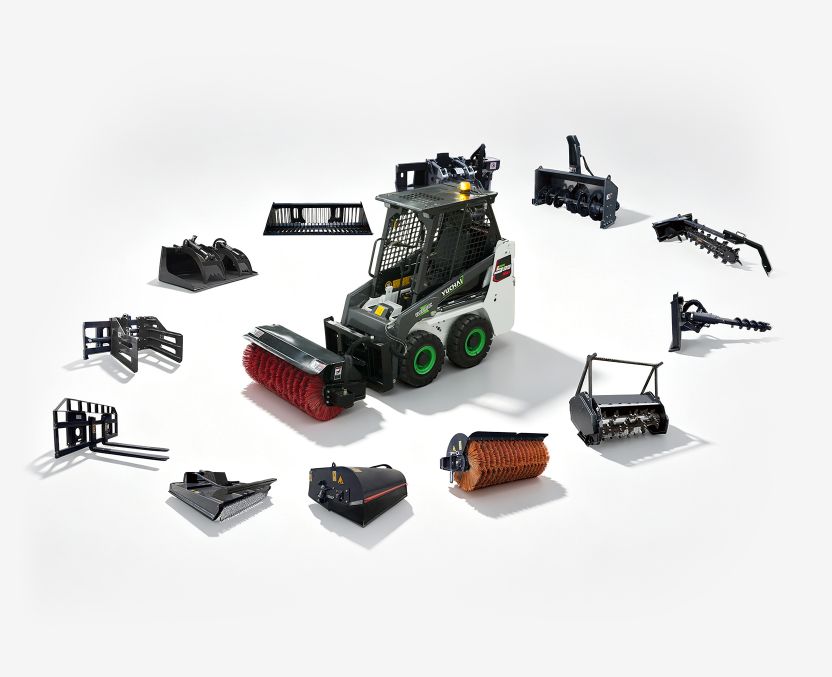

The Yuchai S35Max electric skid steer loader features with global firstwheel side motor driving and AUTo HOLD technology, ensuring stability, reliability,and safety. lts compact design and excellent maneuverability make it ideal forextremely narrow spaces, easily navigating corridors, aisles, alleys, and low-heightareas. lt can be equipped with various attachments for functions such as loading,sweeping, and crushing.The S35Max long-endurance version offers fast charging in just 1 hour, allowingfor 9-11 hours of continuous operation.
| Basic Parameter | Unit | |
| Machine Weight | S35Pro 1540 | S35Max 1620 | kg |
| Bucket capacity | 0.29 | m³ |
| Bucket width | 1126 | mm |
| Battery | Lithium Iron Phosphate | - |
| Rated power | 9/3150+4×2/3500 | kW/rpm |
| Max. torque/speed | 70N·m/1500+4x36.8N·m/995 | rpm |
| Battery capacity | S35Pro 21.29 | S35Max 29.1 | kW·h |
| Rated Operating Load | 350 | kg |
| Tipped Load | 690 | kg |
| Tipping Load | 690 | kg |
| System working pressure | 20.5 | Mpa |
| Flow Rate | 33.7 | L/min |
| Boom Breakout Force | 8 | kN |
| Bucket Breakout Force | 9 | kN |
| Max. travel speed(low gear ) | 0~10.5 | km/h |
| Fast charge (Charging from 10% to 90%) | 1.5 | hour |
| Endurance | S35Pro 6-8 | S35Max 9-11 | h |
| Drive System | Wheel side motor driving | - |
| Wheel side Auto Hold | - | |
| Operating parameters | ||
| A Overall operating height | 3245 | mm |
| B Height to top of cab | 1815 | mm |
| C Dumping angle at maximum height | 25/22 | ° |
| D Ground clearance | 141 | mm |
| E Wheelbase | 722 | mm |
| F Overall length without standard bucket | 1952 | mm |
| G Overall length with standard bucket | 2682 | mm |
| H Maxium angle of flat ground | 22 | ° |
| I Unloading height | 1850 | mm |
| J Height to bucket hinge pin | 2410 | mm |
| K Loading distance at Max. unloading height | 545 | mm |
| L Dumping angle at maximum height | 34 | ° |
| M Rollback of bucket at full height | 97 | ° |
| N Bucket width | 1126 | mm |
| O Radius of gyration | 1650 | mm |
| P Track width | 756 | mm |
| Q Machine width | 959 | mm |
