Zero Emissions, Low Noise
All-New Dedicated Electric Platform LED
Wheel-Side Drive Technology
Battery capacity increased by 40%
Battery life increased by 32%
High-Capacity LFP Battery
Simplified Maintenance Design
Chassis & Safety Systems
Download the product brochure below for full details.
Zero Emissions, Low Noise
The S35 features a pure electric drive design. During operation, it eliminates the roar ofdiesel engines and unpleasant odors, with significantly lower noise levels.
High-Capacity LFP Battery
Via its inverter, the machine transforms into a large power bank capable of 220V/10A outputto support various electric tools.
Premium Canopy Where safety meets comfort
Safety protection, comfortable driving operation,wide field of vision. It can be equipped with safety glass. The fully enclosedcab has better dust-proof and soundproof effects.

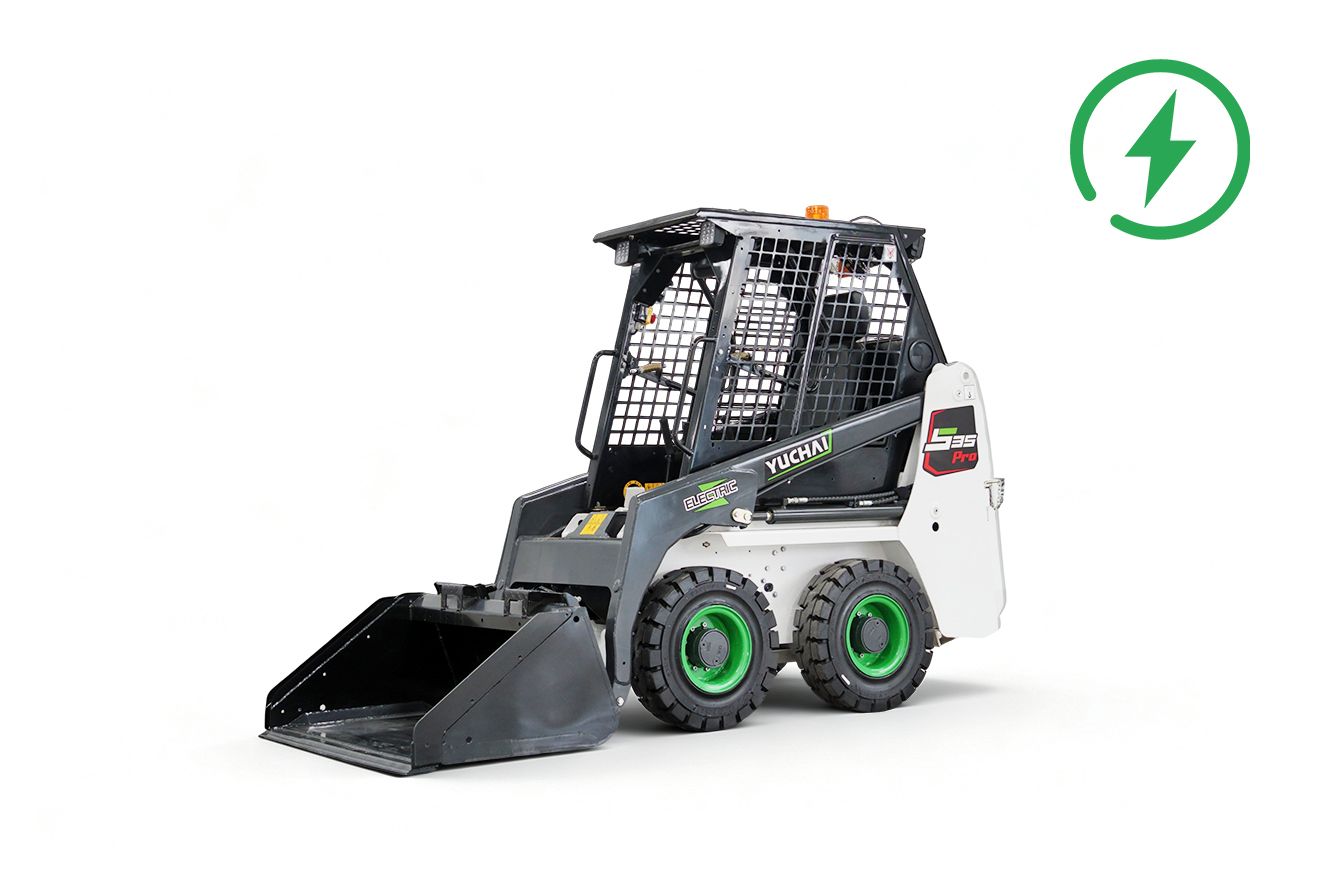

Yuchai S35 Pro-Electric Skid Steer Loader
More than 30 years of innovation and development, providing customers with high quality assurance!
Wheel-Side Drive Technology
Yuchai pioneers wheel-side drive technology in compactconstruction machinery, featuring independent controllersand motors for each wheel. This enables separate controlof hydraulic and travel systems with non-interfering powerdistribution. Torque remains consistent regardless ofrotational speed, delivering robust power even at low speeds.
Wheel-End Parking Technology
The S35 features integrated wheel-end parking functionality (AUTO HOLD).Combining mechanical brake discs with wheel-side motors, it provides dualparking modes with automatic hold capability.
Stable and Reliable Battery
The S35 shares identical battery and electronic control systems with Yuchai's S35 skidsteer loader. Its supply chain leverages top-tier enterprises from China's EV industry.
Premium Canopy
The TOPS/ROPS canopy ensures the driver's safety.
Humanized cab: Safety protection, comfortable driving operation,wide field of vision. It can be equipped with safety glass. The fully enclosedcab has better dust-proof and soundproof effects.
Specifications

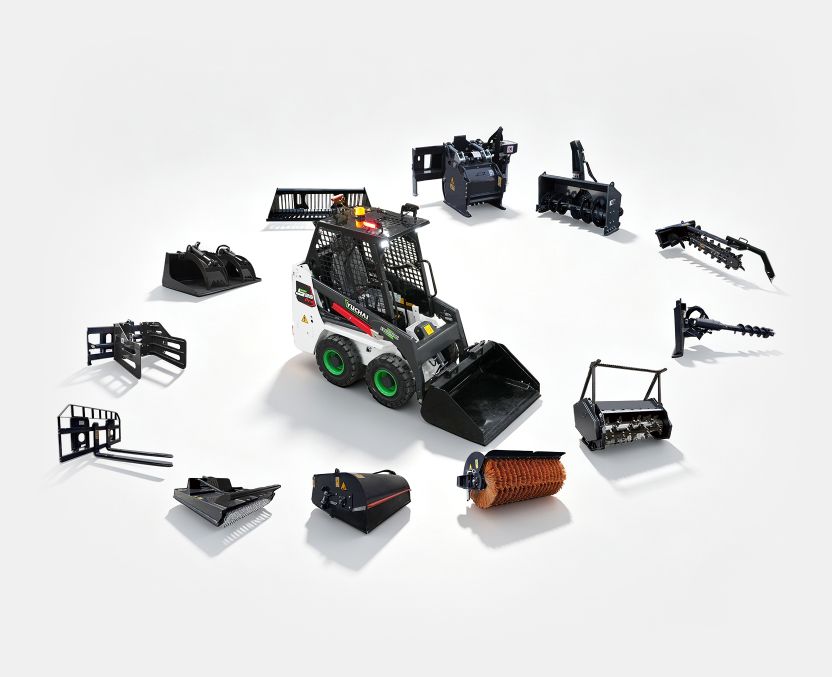

The Yuchai S35Pro electric skid steer loader features with global firstwheel side motor driving and AUTo HOLD technology, ensuring stability, reliability,and safety. lts compact design and excellent maneuverability make it ideal forextremely narrow spaces, easily navigating corridors, aisles, alleys, and low-heightareas. lt can be equipped with various attachments for functions such as loading,sweeping, and crushing.
Zero emission & ultra-quiet: The hub motor electric skid steer loader operates silently for 24-hour indoor work without noise restrictions — ideal for indoor warehouse electric skid steer loader projects.
Advanced lithium battery & energy recovery: 21.3kWh battery from China’s top manufacturer offers 6-8h endurance with energy recovery, cutting operator energy cost by 90% and maintenance by 95%.
Powerful simultaneous operation: Drive and tilt functions work together without lag, providing higher power than diesel models. Independent hydraulic flow control minimizes energy use.
OEM customization: As an ODM lithium battery skid steer manufacturer China, we offer full customized electric skid steer loader services including attachments, battery upgrades and color options. Buy factory direct battery powered skid steer loader for sale.
The S35 electric mini skid steer loader combines compact dimensions with robust performance. Key parameters include:
| Basic Parameter | Unit | |
| Machine Weight | 1540 | kg |
| Bucket capacity | 0.29 | m³ |
| Bucket width | 1126 | mm |
| Battery | Lithium Iron Phosphate | - |
| Rated power | 9/3150+4×2/3500 | kW/rpm |
| Max. torque/speed | 70N·m/1500+4x36.8N·m/995 | rpm |
| Battery capacity | S35Pro 21.29 | S35Max 29.1 | kW·h |
| Rated Operating Load | 350 | kg |
| Tipped Load | 690 | kg |
| Tipping Load | 690 | kg |
| System working pressure | 20.5 | Mpa |
| Flow Rate | 33.7 | L/min |
| Boom Breakout Force | 8 | kN |
| Bucket Breakout Force | 9 | kN |
| Max. travel speed(low gear ) | 0~10.5 | km/h |
| Fast charge (Charging from 10% to 90%) | 1.5 | hour |
| Endurance | S35Pro 6-8 | S35Max 9-11 | h |
| Drive System | Wheel side motor driving | - |
| Wheel side Auto Hold | - | |
| Operating parameters | ||
| A Overall operating height | 3245 | mm |
| B Height to top of cab | 1815 | mm |
| C Dumping angle at maximum height | 25/22 | ° |
| D Ground clearance | 141 | mm |
| E Wheelbase | 722 | mm |
| F Overall length without standard bucket | 1952 | mm |
| G Overall length with standard bucket | 2682 | mm |
| H Maxium angle of flat ground | 22 | ° |
| I Unloading height | 1850 | mm |
| J Height to bucket hinge pin | 2410 | mm |
| K Loading distance at Max. unloading height | 545 | mm |
| L Dumping angle at maximum height | 34 | ° |
| M Rollback of bucket at full height | 97 | ° |
| N Bucket width | 1126 | mm |
| O Radius of gyration | 1650 | mm |
| P Track width | 756 | mm |
| Q Machine width | 959 | mm |
The Yuchai S35 Pro electric skid steer loader for sale is designed for a variety of industries and working conditions:
Warehousing & Logistics: Efficient loading, unloading, and transport of goods in narrow aisles and indoor yards.
Factories & Industrial Plants: Clean, quiet material handling in production workshops and assembly lines.
Landscaping & Gardening: Grading, leveling, and moving soil, gravel, and plants in parks, gardens, and residential communities.

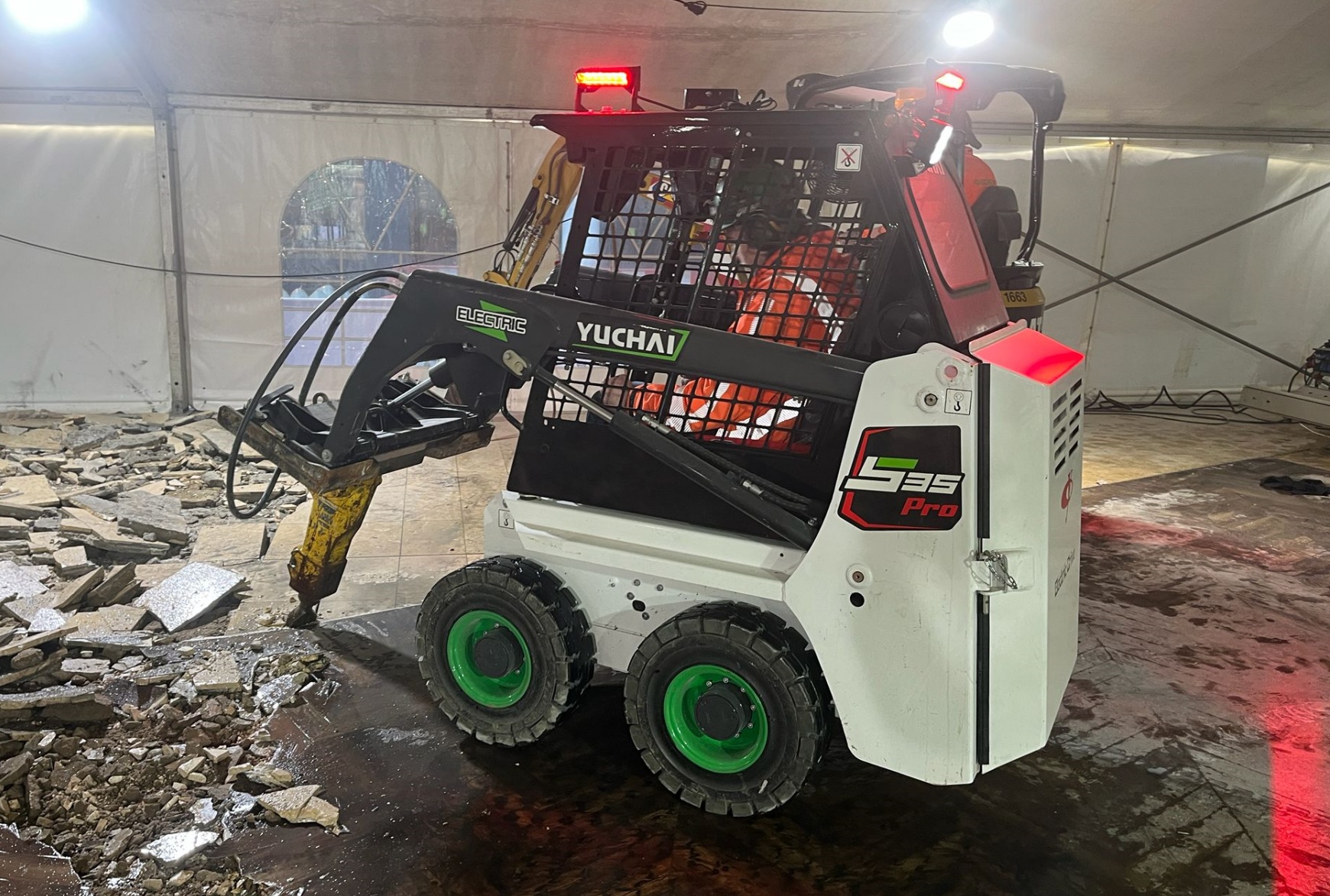

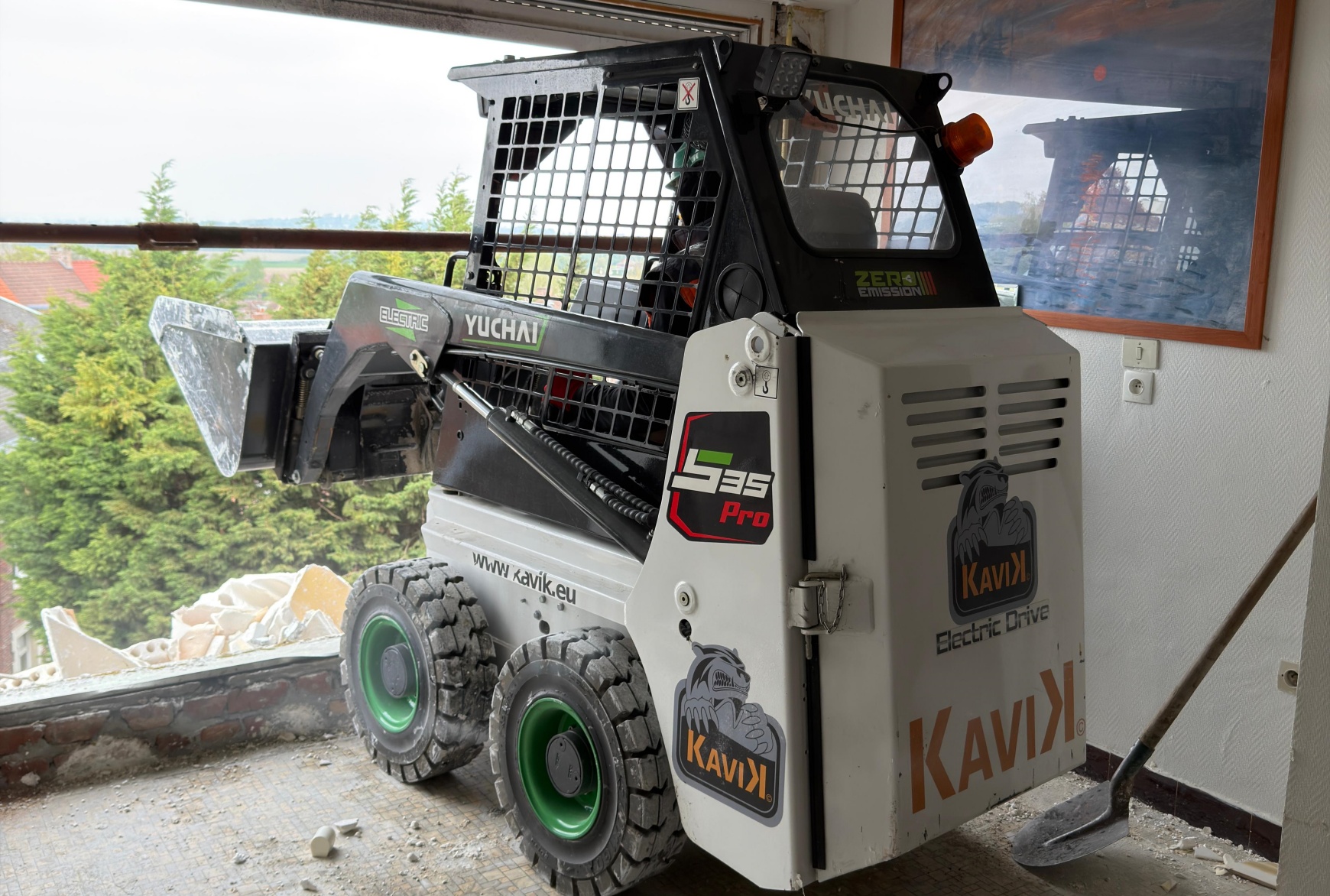

Construction Sites: Concrete removal, debris clearing, and material transport in urban construction projects with limited space.
Municipal Engineering: Street cleaning, maintenance of underground utilities, and other public works in city centers.
If you are looking for an electric skid steer loader manufacturer that can customize configurations for your specific application, Yuchai offers tailored solutions to meet your project requirements.Contact Us.
Q:What is an electric skid steer loader?
A:An electric skid steer loader is a type of compact construction equipment powered by an electric motor and battery pack instead of a diesel engine. It is designed for applications where emissions, noise, and maintenance must be minimized, such as indoor construction, warehousing, and landscaping.
Q:What does zero emissions mean?
A:The S35 electric skid steer loader produces zero exhaust emissions during operation. This means it can be safely used indoors and in areas with strict environmental regulations, helping you reduce your carbon footprint and improve air quality on the jobsite.
Q:How does an electric skid steer loader work?
A:The S35 uses a high-efficiency lithium battery to power electric motors that drive the wheels and hydraulic system. The machine is controlled by joysticks and pedals, similar to a conventional skid steer, but with smoother acceleration and lower noise.
Q: What are the benefits of using an electric skid steer loader?
A:Key benefits include lower operating costs, reduced maintenance, quiet operation, and zero emissions. The S35 is particularly suitable for indoor and urban jobsites where diesel machines may be restricted.
Q:How do I charge the S35 electric skid steer loader?
A:The S35 uses a lithium iron phosphate battery and supports both slow and fast charging. With 380V fast charging, the battery can be charged from 30% to 80% in about one hour, ensuring the machine is quickly ready for the next shift.
Q: What is the warranty and after-sales support?
A:Yuchai provides a comprehensive warranty and after-sales service package for the S35 electric mini skid steer loader, including technical support, spare parts supply, and training for operators and maintenance staff.
If you are looking for a reliable electric skid steer loader price and delivery time, contact Yuchai today. Our team will help you select the right configuration for your project and provide a detailed quotation.
