360°rotation Function in Place
Wheel-Side Drive Technology
Wheel-End Parking
Convenient and Rapid Charging
Motor & Control System
FOPS/TOPS Canopy
Simple Maintenance, Full Control
Download the product brochure below for full details.
Download Brochure
All-New Dedicated Electric Platform
Developed from the ground up on an electric platform, it features an integrated layout for the battery pack, motor, and electronic control system.
Zero Emissions, Low Noise
The A1800E adopts pure electric drive, eliminating diesel engine roar and exhaust fumes with significantly lower operating noise. For agricultural and livestock farming scenarios, it creates a more comfortable environment for both operators and animals.
Stable and Reliable Battery
The A1800E shares the same battery and electronic control systems as Yuchai's S35 skid steer loader. All electrical systems have passed rigorous long-term testing under harsh working conditions, delivering proven stability and reliability.

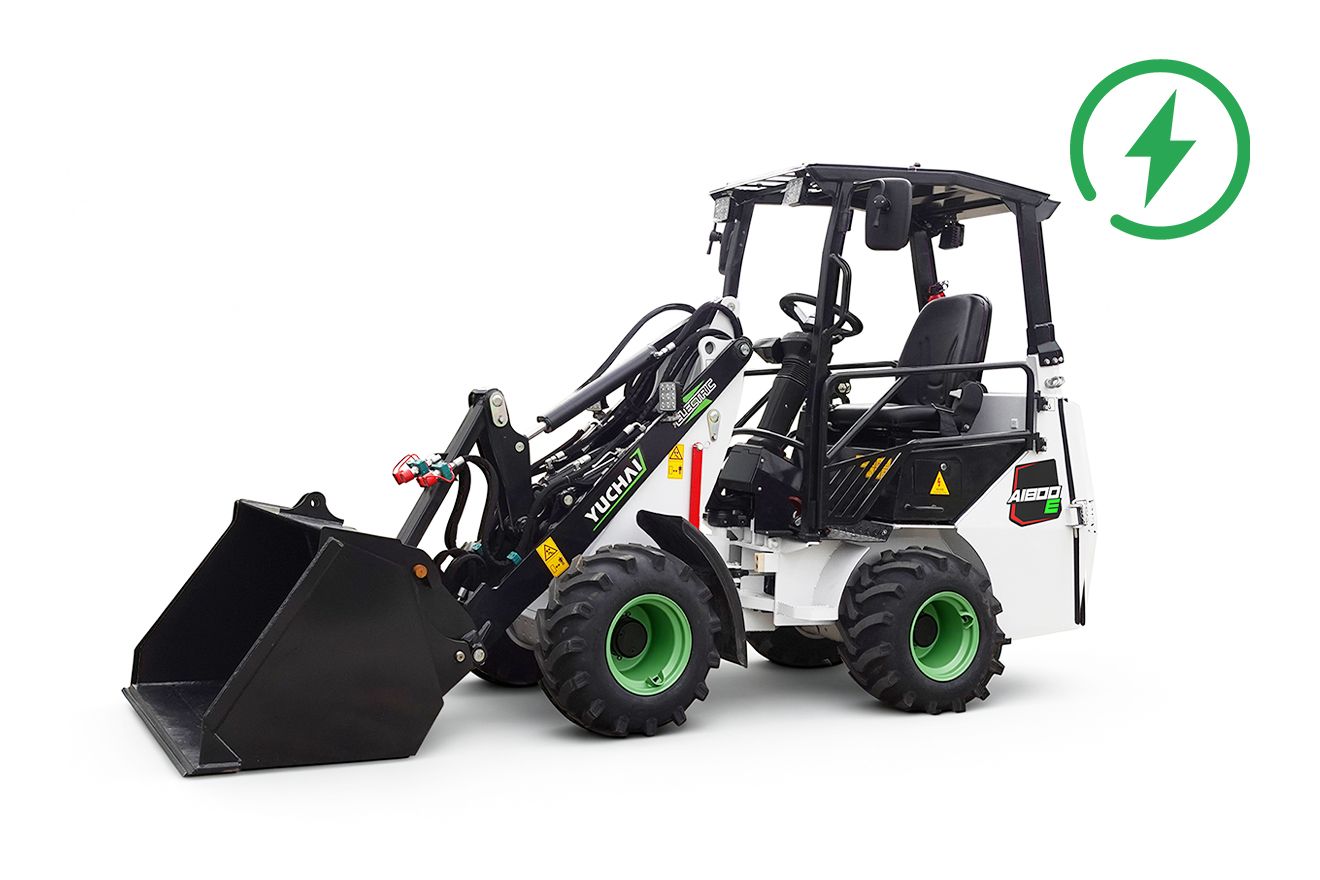

Yuchai A1800E（Z25） Electric Wheel Loader
More than 30 years of innovation and development, providing customers with high quality assurance!
90% Lower Operating Costs
With in 2,000 operating hours, its combined operating andmaintenance costs are 90% lower than diesel equivalents.
Convenient and Rapid Charging
The A1800E offers dual charging options: 220V/16A (standard) and 380V/32A . When using rapid charging equipment, it achieves 10%-90% SOC recharge in just 1.5 hour.
Wheel motor driving
This enables separate controlof hydraulic and travel systems with non-interfering power distribution. Torque remains consistent regardless of rotational speed, delivering robust power even at low speeds.
Comfort and Performance
The FOPS/TOPS canopy ensures the driver's safety. The A1800E model is equipped with an electric proportional joystick, which controls
the adjustment movements of the lifting arm and the working implement.

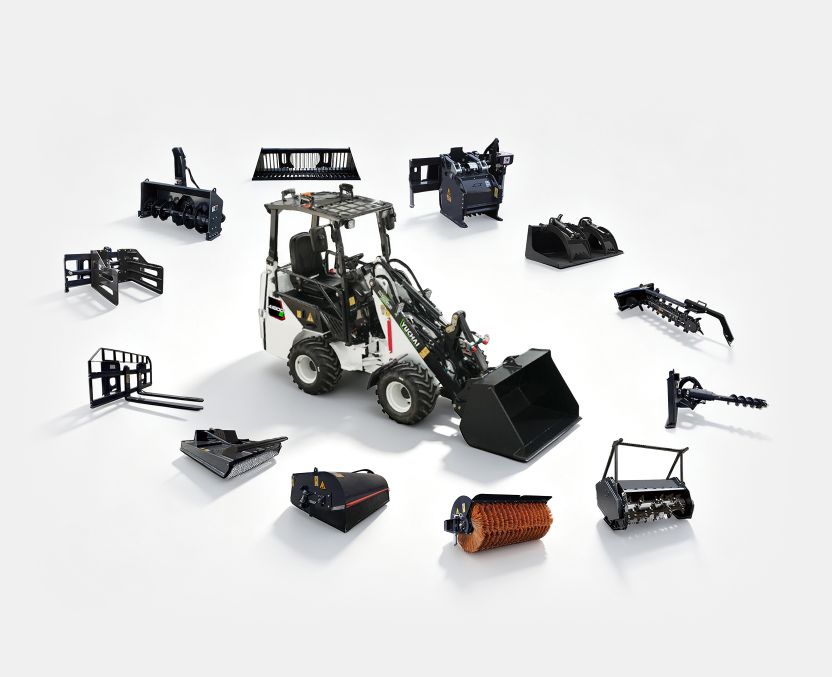

Various Attachments
Yuchai A1800E is compatible with a wide range of skid steer attachments, enabling easy adaptation to diverse working conditions.
Specifications
| Basic parameters | A1800E-Metric units | A1800E-Imperial unit parameters |
| Machine Weight | 1880 kg | 4144.7 lbs |
| Tipping load with bucket-straight machine | 800 kg | 1763.7 lbs |
| Tipping load with bucket-pivoted machine | 500 kg | 1102.3 lbs |
| Tipping load with pallet fork-straight machine | 520 kg | 1146.4 lbs |
| Tipping load with pallet fork pivoted machine | 320 kg | 705.5 lbs |
| Max.traveling speed | 0-15 km/h | 0-15 km/h |
| Hydraulic System | ||
| Pure electric control | ||
| Working pressure | 18 Mpa | 18 Mpa |
| Battery system | ||
| Battery Lithium Iron | 21.3 kWh | 21.3 kWh |
| Standard endurance | ≥ 7 h | ≥ 7 h |
| Drive System | ||
| Wheel side motor driving | ||
| Wheel side Auto Hold | ||
| Operating parameters | ||
| A Overall Length | 3850 mm | 12'7.6"（ft. in） |
| B Overall Length(Without bucket) | 3000 mm | 9'10.1"（ft. in） |
| C Axle middle to Bucket Pin | 461 mm | 1'6.1"（ft. in） |
| D Wheelbase | 1345 mm | 4'5.0"（ft. in） |
| E Rear Overhang | 904 mm | 2'11.6"（ft. in） |
| F Overall Height | 2138 mm | 7'0.2"（ft. in） |
| H Seat Height | 1178 mm | 3'10.4"（ft. in） |
| J Overall Operating Height | 3547 mm | 11'7.6"（ft. in） |
| K Height of Bucket Pivot (Max.) | 2781 mm | 9'1.5"（ft. in） |
| L Loading-Over Height | 2518 mm | 8'3.1"（ft. in） |
| M Dumping Height | 2007 mm | 6'7.0"（ft. in） |
| N Bucket to Front Wheel Distance (Dumping) | 447 mm | 1'5.6"（ft. in） |
| O Digging Depth | 55 mm | 0'2.2"（ft. in） |
| P Overall Width (Wide Tire/Narrow Tire) | 1106/930 mm | 3'7.54"/3'0.6"（ft. in） |
| Q Track Width (Wide Tire/Narrow Tire) | 801/740 mm | 2'7.54"/2'5.1"（ft. in） |
| S Ground Clearance | 198 mm | 0'7.8"（ft. in） |
| T Min. Radius External | 2268 mm | 7'5.3"（ft. in） |
| U Radius at the Outer edge | 1796 mm | 5'10.7"（ft. in） |
| V Inside Turning Radius | 653 mm | 2'1.7"（ft. in） |
| W Inclination Angle | 58 ° | 58 ° |
| X Rollback Angle at Max.Lifting Height | 57 ° | 57 ° |
| Y Dumping Angle (Max.) | 35 ° | 35 ° |
| Z Rollback Angle (on the ground) | 38 ° | 38 ° |
Gallery
FAQ
How long does the A1800E run on a full charge, and what charging options are available?
Powered by a 21.3 kWh LFP battery, the A1800E delivers a standard runtime of 7+ hours under normal working conditions. It supports dual charging modes: standard 220V/16A charging via regular mains power, and optional 380V/32A fast charging that replenishes the battery from 10% to 90% SOC in just 1.5 hours. Charging ports can be configured to European, American, or Chinese standards.
How much can I save on running costs compared to a diesel wheel loader?
Thanks to its pure electric direct-drive design (no traditional engine or gearbox), the A1800E cuts total operating and maintenance costs by 90% versus equivalent diesel models over 2,000 working hours. Routine maintenance workload is reduced by over 40% — no regular oil or filter replacements are required, and machine downtime is significantly lowered.
What is the battery lifespan, and what warranty and safety protections does it have?
Yuchai A1800E uses a lithium iron phosphate (LFP) battery rated for 5,000 charge cycles, equal to approximately 16 years of service, with ≤6% performance degradation after 8 years of use. Yuchai provides a 5-year warranty for the battery pack. The battery pack also meets IP67 standards with full protection against dust, water, short circuits and impact, plus intelligent overload protection for the battery and motor system.he A1800E uses a lithium iron phosphate (LFP) battery rated for 5,000 charge cycles, equal to approximately 16 years of service, with ≤6% performance degradation after 8 years of use. Yuchai provides a 5-year warranty for the battery pack. The battery pack also meets IP67 standards with full protection against dust, water, short circuits and impact, plus intelligent overload protection for the battery and motor system.
What key safety and convenience features does the A1800E offer?
The machine is built with high-strength impact-resistant structural steel for harsh working conditions. It is equipped with wheel-end AUTO HOLD automatic braking, an operation locking device and an electronic fence system for enhanced jobsite safety, plus a FOPS/TOPS certified canopy for operator protection. The ergonomic station is calibrated based on European user feedback, with proportional joystick controls, wide foot space and large windows for all-round visibility. Core components are also easily accessible for simplified servicing.
