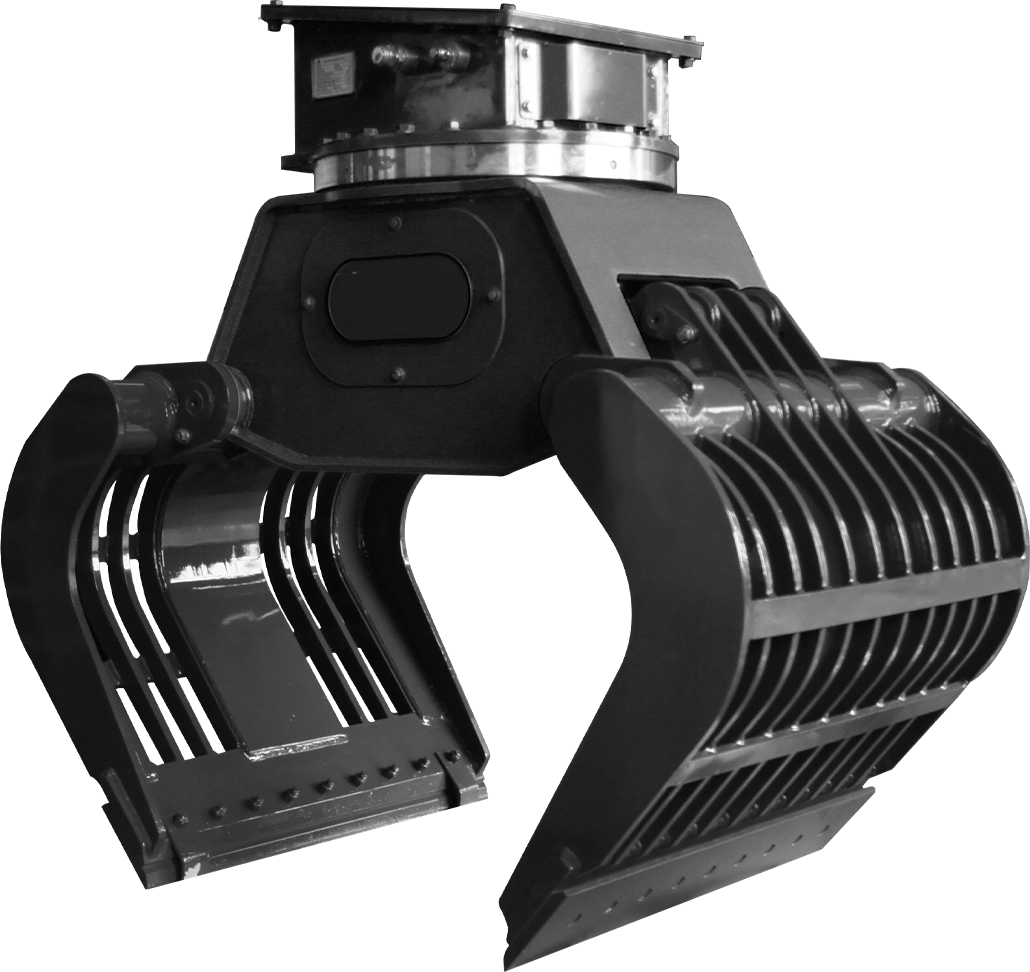

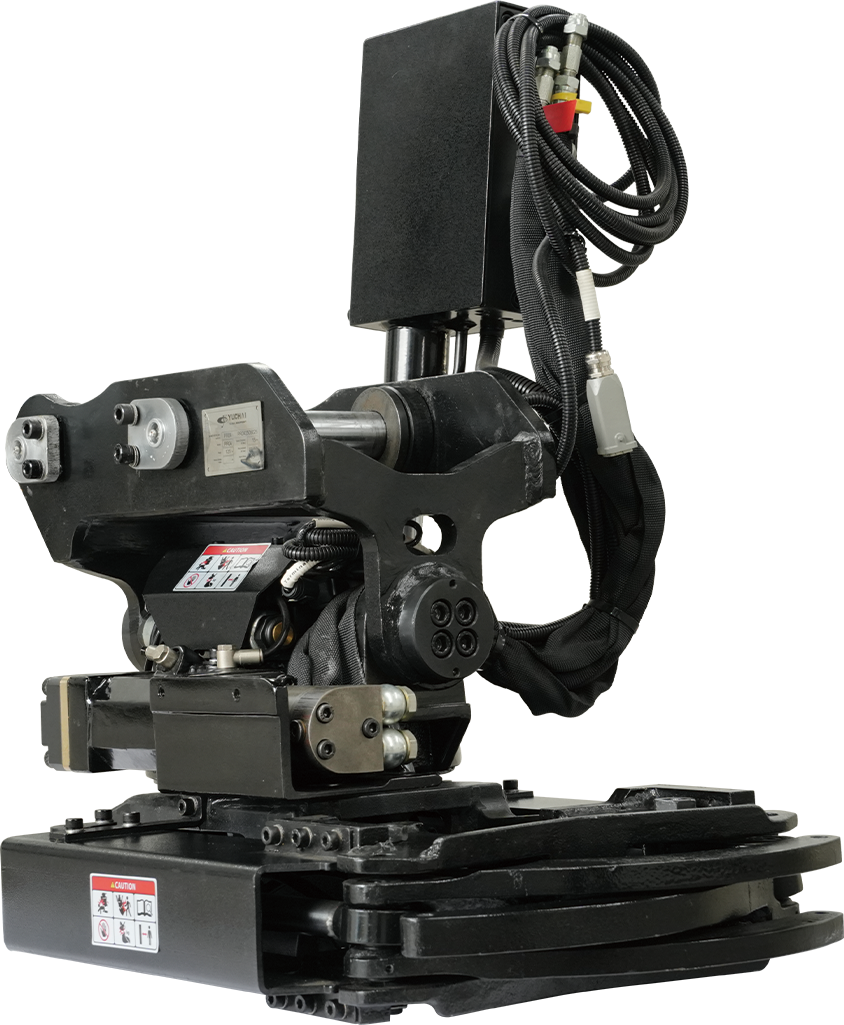

Compatible Models: Designed specifically for 2.5-7 ton excavators. Compact and agile, with high strength and lightweight construction. Supports 360° continuous rotation and ±45° tilt. Suitable for farms, landscaping, municipal works, and other scenarios. Central Lubrication System: The hydraulic wrist features centralized lubrication. A single filling point allows for unified management of all lubrication points, reducing maintenance and enhancing durability. Control System: Fully proportional hydraulic control for precise response and smooth operation. Safe, reliable, and featuring an intuitive, user-friendly interface. Optional Attachments: Compatible with multi-purpose grapples to enhance material handling flexibility, expand application scope, and tackle diverse tasks.
Specifications
| Parameter | Unit | TR04 | TR06 | TR09 |
| Suitable Excavator | ton / kip | 2-4.5 / 4.4-9.9 | 4-7 / 8.8-15.4 | 8-11 / 17.6-24.3 |
| Operating Weight | kg / lb | 130 / 286.6 | 228 / 502.6 | 518 / 1142.0 |
| Height (A) | mm / ft,in | 330 / 1'1.0" | 460 / 1'6.1" | 997 / 3'3.3" |
| Length (B) | mm / ft,in | 480 / 1'6.9" | 570 / 1'10.4" | 1088 /3'6.8" |
| Max Swing Angle | ° | ±45 | ±45 | ±45 |
| Max Digging Force | kN / kip | 32 / 7.2 | 45 / 10.1 | 60 / 13.5 |
| Rotation Angle | ° | 360 | 360 | 360 |
| Max Upper Frame Mounting Width (C) | mm / ft,in | 200 / 0'7.9" | 200 / 0'7.9" | 200 / 0'7.9" |
| Pin Diameter (D) | mm / ft,in | 30 / 0'1.2" | 40 / 0'1.6" | 50 / 0'2.0" |
| Center Distance (E) | mm / ft,in | 230 (or 80-230) / 0'9.1" (or 0'3.1"-0'9.1") | 180-300 / 0'7.1"-0'11.8" | 320 / 1'0.6" |
| Hydraulic Clamp | - | None | Optional | Optional |
| Required Oil Flow | l/min / gpm | 20 / 5.3 | 40 / 10.6 | 60 / 15.9 |
| Setting Pressure | bar / psi | 16 / 232.1 | 20 / 290.1 | 22 / 319.1 |
| Rotation Torque | kN·m / lbf·ft | 1.5 / 1106.3 | 5 / 3687.8 | 74 / 54579.6 |
| Voltage | V | 12 | 12 | 12 |
| Operating System | - | Proportional | Proportional | Proportional |
