Square Stone Clamp

Square Stone Clamp, also known as a stone holder, is an excellent tool for dismantling brick-and-wood structure buildings. It is very convenient for separating, recycling, sorting and loading materials. The inner protection is made of wear-resistant steel, which has good welding performance, high wear resistance and is not easy to wear.

Inquire Now Next Product

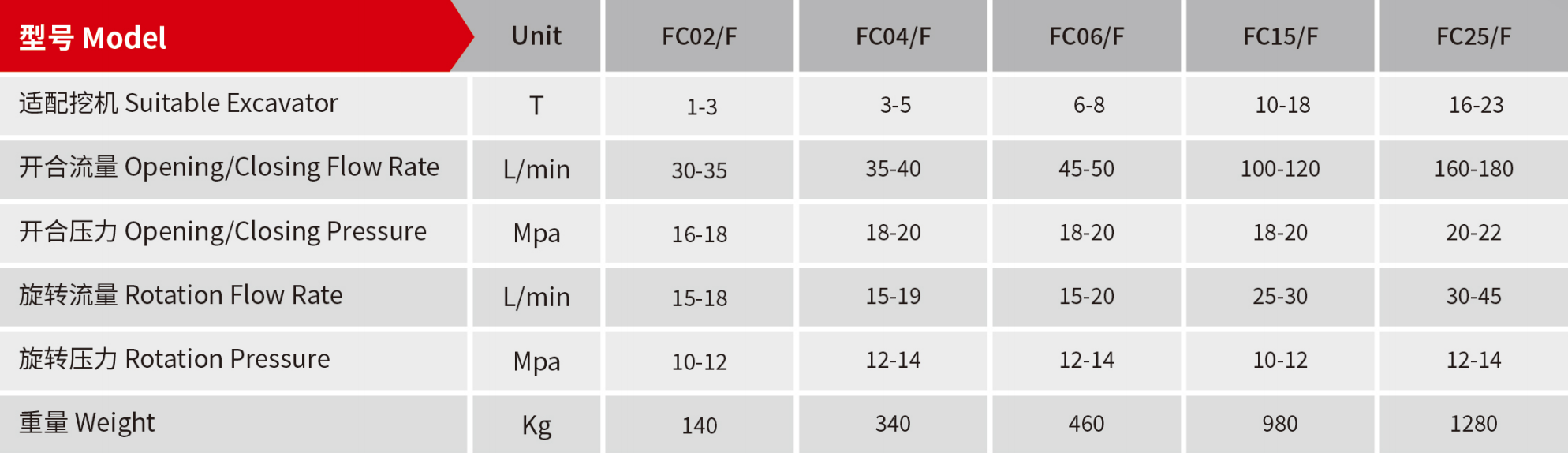

Specifications

Parameter	FC02/F (Metric)	FC02/F (Imperial)	FC04/F (Metric)	FC04/F (Imperial)	FC06/F (Metric)	FC06/F (Imperial)	FC15/F (Metric)	FC15/F (Imperial)	FC25/F (Metric)	FC25/F (Imperial)
Suitable Excavator	1–3 T	1.1–3.3 short ton	3–5 T	3.3–5.5 short ton	6–8 T	6.6–8.8 short ton	10–18 T	11.0–19.8 short ton	16–23 T	17.6–25.4 short ton
Opening/Closing Flow Rate	30–35 L/min	6.6–7.7 gal/min	35–40 L/min	7.7–8.8 gal/min	45–50 L/min	9.9–11.0 gal/min	100–120 L/min	22.0–26.4 gal/min	160–180 L/min	35.2–39.6 gal/min
Opening/Closing Pressure	16–18 MPa	2320.6–2610.7 psi	18–20 MPa	2610.7–2900.8 psi	18–20 MPa	2610.7–2900.8 psi	18–20 MPa	2610.7–2900.8 psi	20–22 MPa	2900.8–3190.8 psi
Rotation Flow Rate	15–18 L/min	3.3–4.0 gal/min	15–19 L/min	3.3–4.2 gal/min	15–20 L/min	3.3–4.4 gal/min	25–30 L/min	5.5–6.6 gal/min	30–45 L/min	6.6–9.9 gal/min
Rotation Pressure	10–12 MPa	1450.4–1740.5 psi	12–14 MPa	1740.5–2030.5 psi	12–14 MPa	1740.5–2030.5 psi	10–12 MPa	1450.4–1740.5 psi	12–14 MPa	1740.5–2030.5 psi
Weight	140 kg	308.6 lb	340 kg	749.6 lb	460 kg	1014.1 lb	980 kg	2160.5 lb	1280 kg	2821.9 lb
