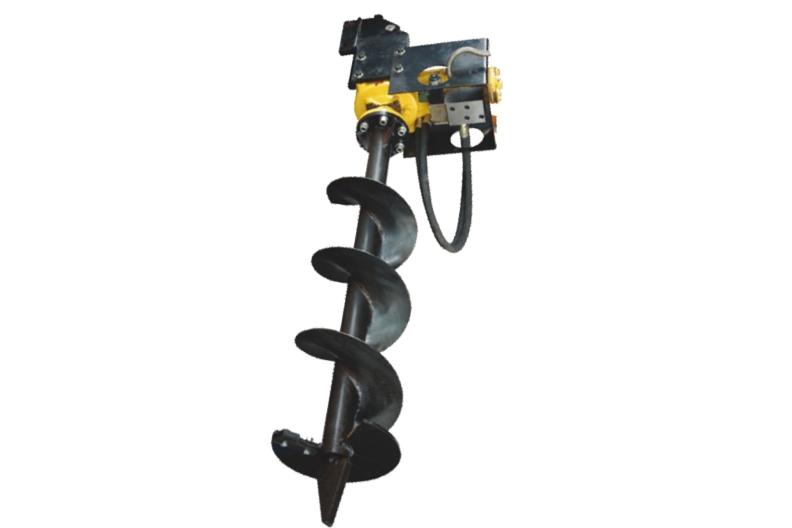

Auger

Clean holes with no residue left in the hole Diameter depth support customization Famous brand hydraulic motor with overpressure protection device is strong and durable with long life. Drills with alloy teeth can hit hard layers without any obstruction. Simple installation：Simply remove the bucket pins and replace the power head.

Inquire Now

Specifications

Model	Unit	AG150	AG200	AG200S	AG300	AG300S	AG450	AG450S	AG500
Suitable Excavator	ton	1.0～1.2	1.7～2.0	1.7～2.0	2.7	2.7	3.5～6	3.5～6	6～8
Unit Weight	kg / lb	46 / 101.4	47 / 103.6	48 / 105.8	48 / 105.8	71 / 156.5	71 / 156.5	108 / 238.1	108 / 238.1
Drilling Diameter	mm / ft'in"	100-400 / 0'3.9"-1'3.7"	100-450 / 0'3.9"-1'5.7"	100-500 / 0'3.9"-1'7.7"	100-900 / 0'3.9"-2'11.4"	100-900 / 0'3.9"-2'11.4"	150-800 / 0'5.9"-2'7.5"	150-800 / 0'5.9"-2'7.5"	150-800 / 0'5.9"-2'7.5"
Length of Drill Pipe	mm / ft'in"	1000-2000 / 3'3.4"-6'6.7"	1000-2200 / 3'3.4"-7'2.6"	1300-2500 / 4'3.2"-8'2.4"	1400-2500 / 4'7.1"-8'2.4"	1400-2500 / 4'7.1"-8'2.4"	2100-4000 / 6'10.7"-13'1.5"	2100-4000 / 6'10.7"-13'1.5"	2100-4000 / 6'10.7"-13'1.5"
Rotation torque	Nm / lb-ft	1496 / 1103.4	2190 / 1615.3	2847 / 2099.8	2877 / 2122.0	2877 / 2122.0	5477 / 4040.6	5477 / 4040.6	5477 / 4040.6
Required Oil Flow	L/min / gpm	20-45 / 5.3-11.9	25-57/ 6.6-15.1	27-65/ 7.1-17.2	25-75 / 6.6-19.8	25-75 / 6.6-19.8	15-50 / 4.0-13.2	15-50 / 4.0-13.2	15-50 / 4.0-13.2
Setting Pressure	Mpa / psi	7-20.5 / 1015.3-2973.3	7-24 / 1015.3-3480.9	7-24 / 1015.3-3480.9	8-24 / 1160.3-3480.9	8-24 / 1160.3-3480.9	8-26 / 1160.3-3771.0	8-26 / 1160.3-3771.0	8-26 / 1160.3-3771.0
