FAQ for YUCHAI U60 Zero-Tail Mini Excavator

In narrow construction scenarios, conventional excavators often struggle due to bulky size and limited swing. The YUCHAI U60 zero-tail mini excavator, with its 100% zero-tail swing design, has become a widely used equipment option for confined-space operations such as urban construction, road maintenance, and landscaping. To help you fully understand this model and resolve doubts in selection and operation, we have compiled FAQs based on official specifications and practical applications to answer your questions one by one.

1. Basic Model & Core Features

Q1: What type of excavator is the YUCHAI U60? What is its core positioning?

A1: The YUCHAI U60 is a zero-tail mini excavator designed for narrow construction spaces, solving the problem that conventional excavators cannot operate flexibly in confined areas. It features “compactness + flexibility + high efficiency & practicality”. It easily handles urban small-scale renovation, wall-side operation, road maintenance, and landscaping. It is especially suitable for working close to walls, fences, and obstacles without risk of tail swing damage.

Q2: What exactly is “zero-tail swing” for the U60? How is it different from standard excavators?

A2: Zero-tail swing means the upper structure tail does not extend beyond the track width during rotation—a true zero-tail design. Unlike standard mini excavators, it requires no tail swing clearance and can work directly against walls and fences. It completely solves the problem of “no swing space & collision risk” in narrow areas, greatly improving flexibility and safety.

Q3: What are the highlights of the U60’s structure? Does it balance compactness and comfort?

A3: The U60 effectively balances compactness and comfort:

- Compact body with small footprint; minimum swing radius 2550 mm for tight-space turning.

- Spacious operator cab with user-friendly controls to reduce fatigue, suitable for long hours.

2. Key Specifications & Performance

Q4: What are the key working parameters? What construction needs can it meet?

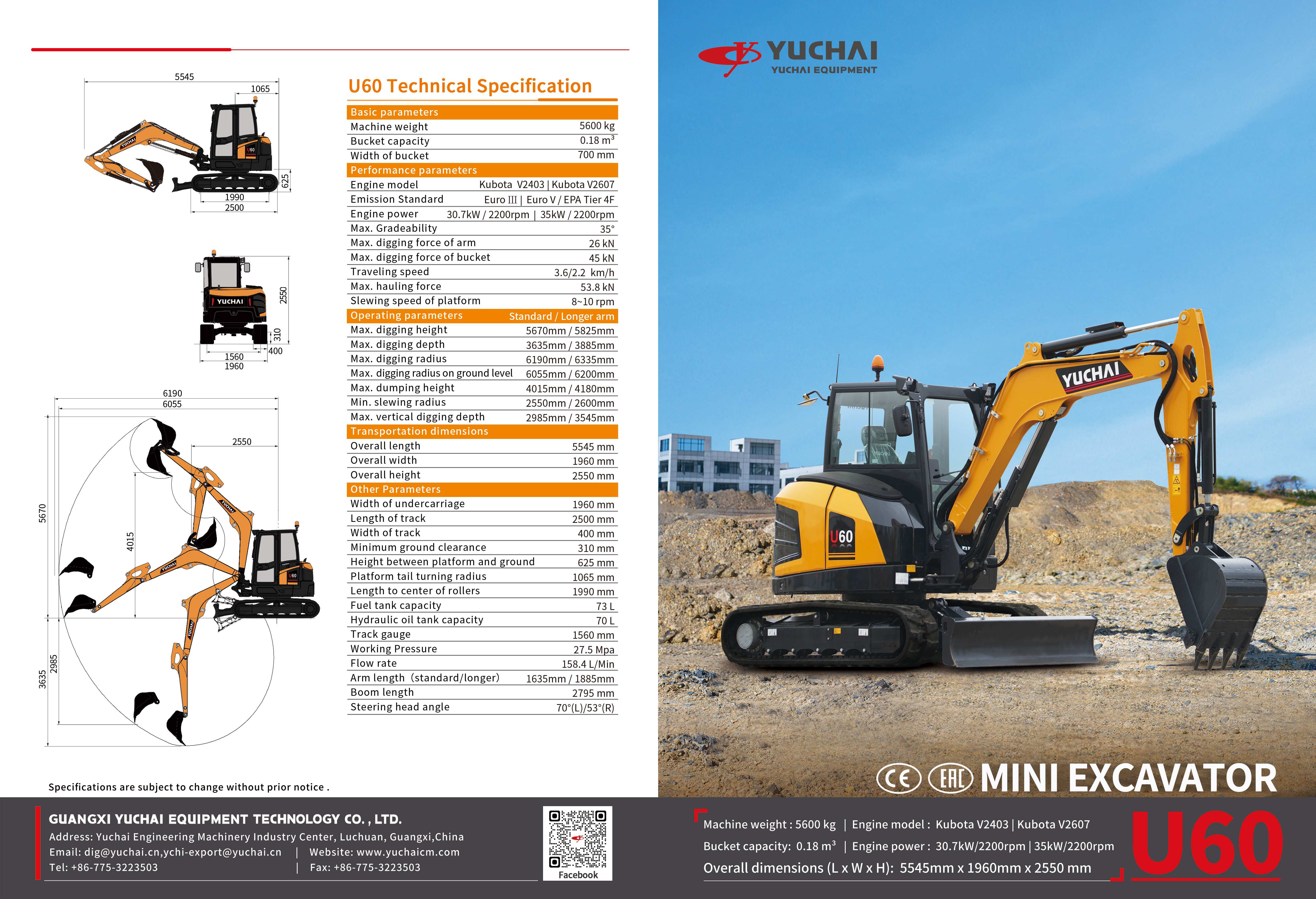

A4: Core specifications cover multiple small-to-medium applications:

- Max. digging height: 5670 mm – vertical digging, overhead work, wall repair, material stacking.

- Max. digging depth: 3635 mm – trenching, footing, small foundation excavation for road maintenance & small construction.

- Max. digging radius: 6190 mm – wide working range, reduces repositioning.

- Max. dumping height: 4015 mm – easy loading into trucks & high containers.

- Max. vertical digging depth: 2985 mm – trenching near walls/buildings with minimal clearance.

Q5: With its compact size, can power and efficiency be guaranteed?

A5: Yes. The U60 delivers “small body, strong power” with high-efficiency powertrain and optimized hydraulic system. It provides strong digging force for soil, sand, gravel, and light rock breaking. Zero-tail design cuts unnecessary movement; efficiency in narrow spaces exceeds some conventional medium excavators.

Q6: What is the minimum swing radius? What ultra-narrow applications are suitable?

A6: Minimum swing radius: 2550 mm, competitive in its class. Suitable for: residential pipe repair, sidewalk renovation, gap between wall and building, greenhouse work, utility tunnel auxiliary construction, etc. It swings freely as long as space ≥ body width.

3. Applications & Adaptability

Q7: What construction scenarios is the U60 mainly for? Any examples?

A7: Wide applications focused on narrow spaces:

- Urban construction: road maintenance, sidewalk upgrade, community pipeline laying/repair, urban village renovation.

- Landscaping: park renovation, tree planting, flower bed excavation, green zone trimming.

- Small projects: rural house footing, small water conservancy, courtyard renovation, farm expansion.

-  Auxiliary work: large job site edge work, utility tunnel backfilling, port small material cleanup.

Q8: Can it work indoors or in enclosed spaces? What precautions?

A8: Yes. Compact zero-tail body and moderate height allow indoor, underground garage, and closed factory work. Notes:

- Ensure ventilation to avoid exhaust accumulation.

- Protect floors from track scratching.

- Confirm height compatibility with enclosed space.

Q9: Is it friendly for novice operators?

A9: Very friendly. Compact, agile, light controls, easy to learn. Cab layout is ergonomic; zero-tail reduces collision risk. Novices can master quickly with basic training. Spacious cab reduces fatigue.

4. Selection & Core Advantages

Q10: What are the U60’s key advantages vs. similar zero-tail mini excavators?

A10: Four core strengths:

- True zero-tail swing: wall-touch operation, more flexible than pseudo-zero-tail models.

- Balanced practical specs: digging height/depth/radius fit multi-scenario use, high cost performance.

- Comfort & safety: spacious cab + stable chassis, low fatigue, high safety.

- Reliable brand: YUCHAI is a well-established brand; global reputation, easy maintenance & after-sales.

Q11: When to choose the U60? When not suitable?

A11: Recommended for: narrow-space work, small-to-medium digging/loading, high flexibility/efficiency/comfort needed—urban small construction, landscaping, community maintenance.Not suitable for: large foundation excavation, heavy breaking, mass earthmoving—better served by medium/large excavators. The U60 excels at precise, small-scale jobs.

Q12: Is export available? Can overseas customers purchase?

A12: Yes. YUCHAI mini excavators have strong global reputation. The U60 is certified for export with full compliance documents. Overseas buyers are welcome with professional foreign trade & after-sales support.

 5. Summary

The YUCHAI U60 zero-tail mini excavator core value: “break through narrow-space limits”. With zero-tail swing, balanced performance, and comfortable operation, it is ideal for small-to-medium confined construction. For new operators, small teams, or large sites needing compact equipment, the U60 delivers high efficiency and flexibility. For narrow-space projects prioritizing cost-effectiveness and reliability, the U60 is a practical choice.
