Mini Excavator Productivity Assessment & Operational Output Estimation

Jul. 02, 2026

Equipment buyers prioritize operational productivity and return on investment when purchasing compact machinery. This document uses the 1.7-ton zero-tail mini excavator Yuchai U17 as the research benchmark, delivering field-verified daily output ranges, universal productivity calculation formulas, and core efficiency influencing factors. The quantitative data enables contractors, rental operators and equipment purchasers to accurately assess construction output and calculate ROI for urban, narrow and confined-space projects.

I. Yuchai U17 Core Machine Specifications

Parameter	Technical Index
Operating Weight	1,720 kg
Standard Bucket Capacity	0.05 m³
Adjustable Undercarriage Width	990 mm – 1,240 mm
Swing Design	Zero tail swing; full rotation within track width, allowing wall-adjacent operation
Working Arm	Dual-side offset boom for parallel trenching without machine repositioning
Power Unit	Kubota D902 engine, rated power 11.8 kW

II. Field-Measured 8-Hour Shift Output Data

All performance figures are collected from real construction sites under standard working conditions, classified by construction type and material hardness.

1. Earth Excavation Productivity

Soil Type	Daily Output (8h Shift)	Hourly Output
Loose soil (farmland, residential backfill, loose filling)	280–400 m³	30–50 m³/h
Mixed ordinary soil (mixed with bricks and small rubble)	200–280 m³	30 m³/h (estimated)
Hard compacted soil (old foundation compaction)	150–200 m³	20 m³/h (estimated)

2. Utility Trenching (Water Pipe, Cable & Drainage Ditch)

Standard trench size: 300–500 mm width, 1.5–2 m depth

Index	Production Rate
Daily Trench Length	90–140 m
Hourly Trench Length	12–18 m

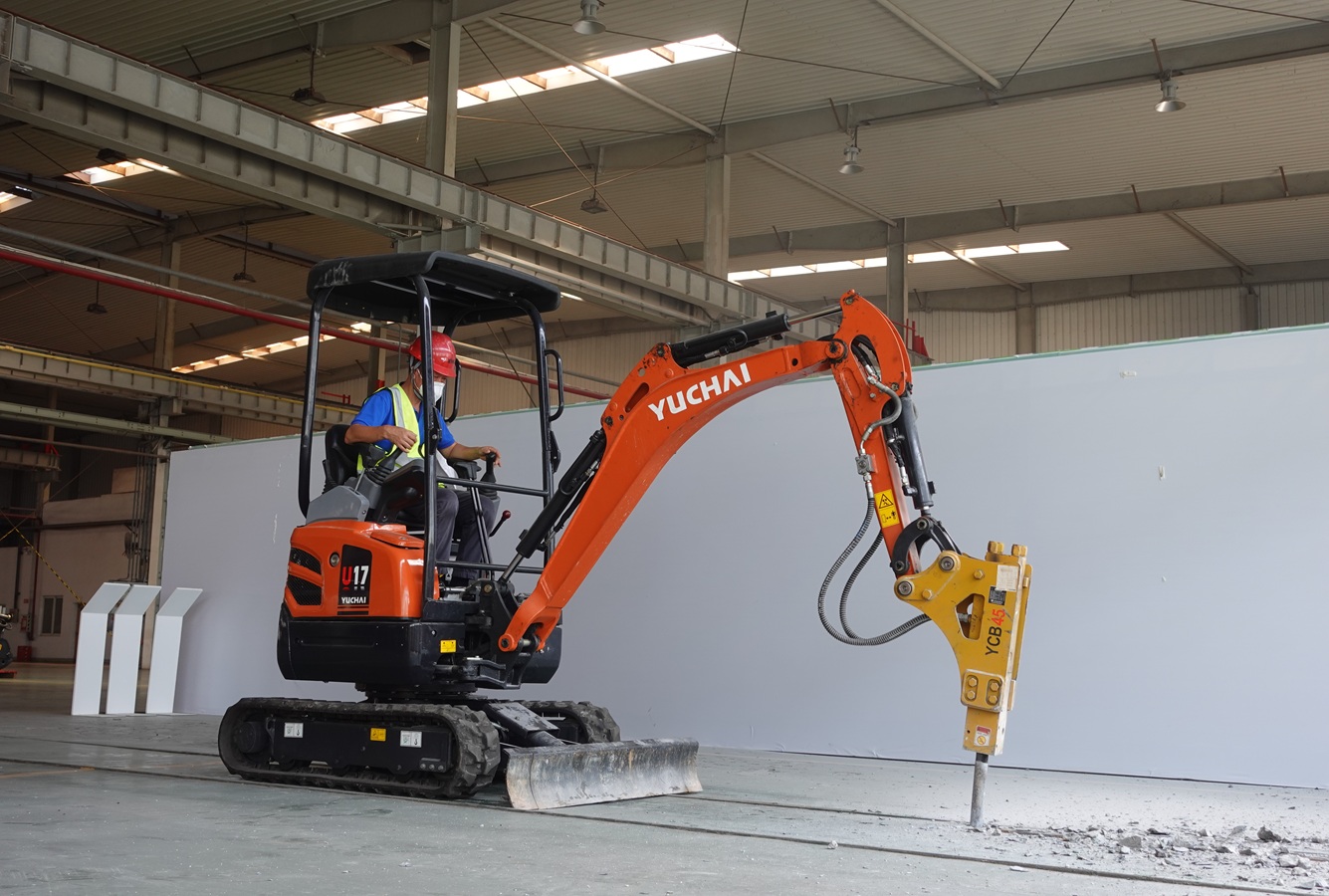

3. Hydraulic Breaker Demolition Output

Data matched with standard hydraulic breaker attachment

Demolition Medium	Daily Output	Hourly Output
10–20 cm thick plain concrete slab	40–60 m²	4–7 m²/h
Old pavement / reinforced concrete structure	30–45 m²	4–6 m²/h (estimated)

4. Backfilling & Site Leveling

Construction Task	Daily Output	Remarks
Backfill + Ground Leveling	300–450 m³	Higher efficiency than excavation due to low soil resistance

III. On-Site Quick Productivity Estimation Formulas

All formulas adopt effective working hours (exclude setup, rest, logistics and site obstruction time). A standard 8-hour shift generally delivers 6–7 effective working hours.

Work Type	Calculation Formula	Practical Example
Earthwork Volume	Daily Output = Hourly Output × Effective Working Hours	Loose soil: 40 m³/h × 6 h = 240 m³/day
Trench Construction Length	Daily Trench Length = Hourly Trench Rate × Effective Working Hours	15 m/h × 7 h = 105 m/day
Breaking Demolition Area	Daily Breaking Area = Hourly Breaking Area × Effective Working Hours	5 m²/h × 6 h = 30 m²/day

IV. Four Core Factors That Impact U17 Working Productivity

Influencing Factor	Efficiency Loss Range	Site Operation Guidance
Narrow Site Access (Basement / Narrow Alley)	20%–35% lower output vs open yards	Reserve a 25%–30% efficiency discount for confined-space project scheduling
Hard / Compacted Soil Material	10%–20% lower output vs loose soil	Complete soil condition survey before formulating construction schedules
Concurrent Excavation & Truck Loading	25%–40% efficiency drop	Separate digging and loading procedures to lift overall progress if the timeline permits
Operator Skill Level	Novice operators produce 25%–35% less than experienced workers	Adjust project duration according to operator proficiency

V. U17 Suitable Scenarios & Application Limitations

Classification	Detailed Description
Recommended Working Scenarios	Narrow alleys, basement & indoor renovation; municipal pipeline trenching; courtyard landscaping; small-scale concrete demolition
Not Suitable For	Large-volume mass earthmoving; hard rock breaking; excavation pits deeper than 3 m

Supplementary Verification Notes

Engine model: Confirm the official commercial naming of Kubota D902 for global market materials; unify the English brand spelling of Kubota for overseas promotion.
Hourly output of mixed ordinary soil and compacted hard soil is proportionally estimated based on field test data; cross-check with official U17 datasheets for accurate rated values.
No specific hydraulic breaker model is specified in the original file; supplement matched Yuchai breaker model information if available.
The hourly output range of reinforced concrete demolition is calculated by proportional estimation; verify with on-site test records.
All output data are measured field ranges; official rated parameters from Yuchai’s formal datasheets shall prevail if there is a discrepancy.
