What Applications Is the Yuchai U35 Zero-Tail-Swing Mini Excavator Suitable For?

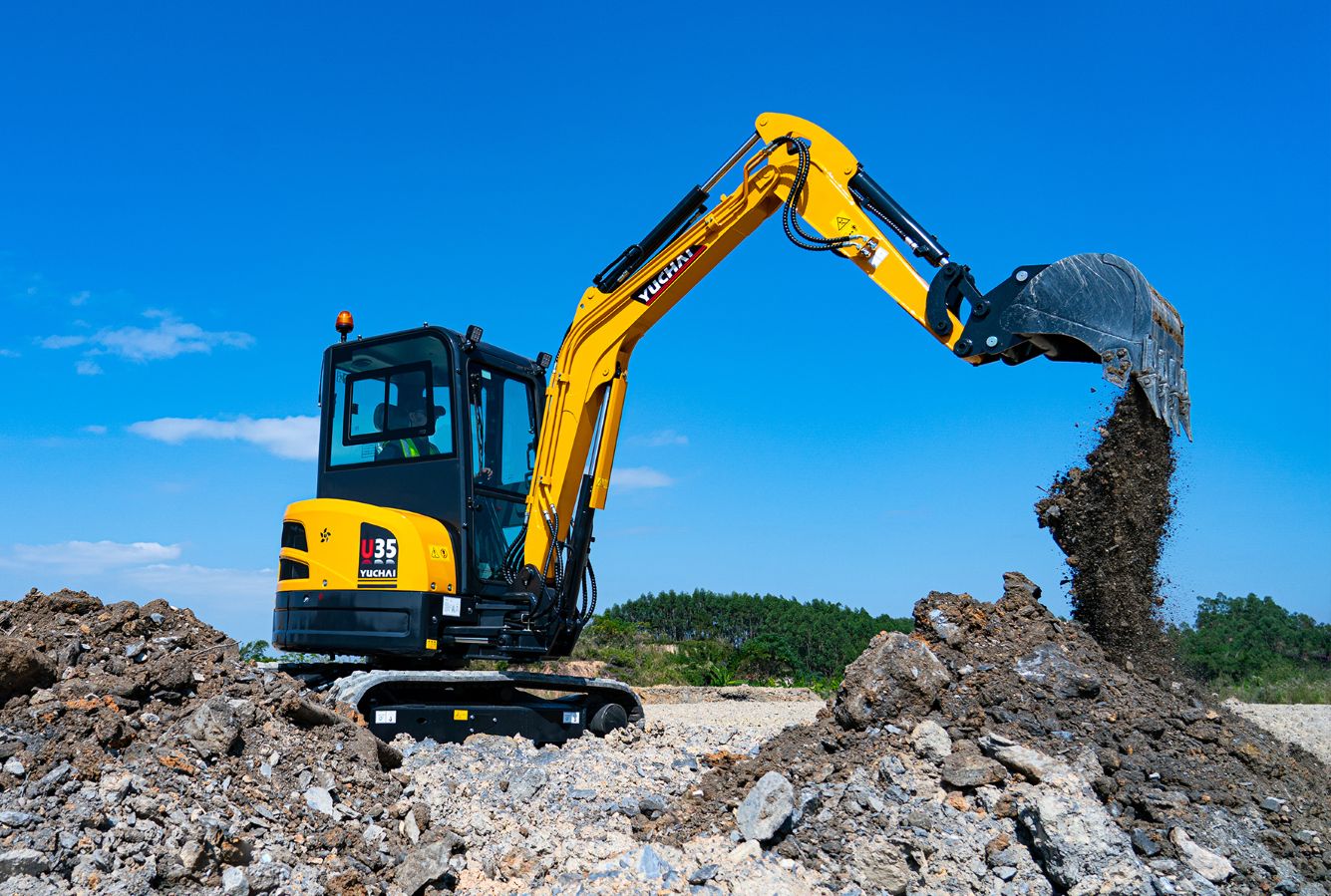

The Yuchai U35 is a purpose-built zero-tail-swing compact excavator powered by a Yanmar 3TNV88F diesel engine that meets Stage V (EU) emission standards, delivering a rated output of 20.4 kW at 2,200 rpm. With an operating weight of 3,860 kg, a maximum gradeability of 35°, and an offset boom capable of swinging 65.5° left and 53.7° right, the U35 is engineered to deliver the productivity of approximately 20 manual labourers across confined and demanding job sites — all without swinging beyond its own track width.

Compatible with over 30 attachment types, the U35 transforms from a dig-and-dump machine into a multi-purpose platform suited to construction, municipal works, agriculture, forestry, and emergency response. - is a full breakdown of its primary application categories.

1. Urban Municipal Works — Maximum Output in Minimum Space

The U35’s zero-tail-swing design means the upperstructure never protrudes beyond the track footprint during slew — making it the machine of choice wherever space is tight and safety margins are non-negotiable. The offset boom eliminates the need to reposition the machine for parallel-wall trenching, dramatically cutting cycle times on congested city streets.

Typical applications include:

-Road maintenance and pavement rehabilitation — utility trench excavation and reinstatement in live traffic corridors, with no need for additional swing clearance

-Underground utilities installation — water mains, gas lines, telecommunications conduits, and stormwater drains in densely built-up areas

-Residential and commercial building renovation — interior demolition, basement foundation excavation, and works between existing structures where conventional machines cannot safely operate

-Urban landscaping and green-space construction — planting-pit excavation, turf preparation, and streetscape improvement

-Surface protection — rubber track ground pressure of just 33 kPa minimises surface damage on finished pavements, kerbs, and planted areas

2. Building & Civil Construction — Residential, Commercial, and Infrastructure

Where larger machines are either impractical or prohibited on site, the U35 steps in without compromising on digging performance. A 0.12 m³ (550 mm-wide) bucket and a maximum bucket breakout force of 32.67 kN ensure it handles demanding earthworks with precision.

Typical applications include:

-Residential construction — foundation excavation, trench digging, courtyard landscaping, and site levelling for houses and villas

-Commercial development — ancillary earthworks around retail and mixed-use developments, backfill compaction, and site clearance in access-restricted zones

-Civil infrastructure — small bridge abutments, rural community facilities, tunnel auxiliary works, and slope trimming and grading

-Grade performance — the 35° gradeability handles ramp and sloped terrain that would stall lesser machines

3. Agriculture & Forestry — Field-Ready, Root-Friendly, Terrain-Tough

Designed with ground clearance at the forefront, the U35’s 347 mm undercarriage clearance and compact track width allow it to navigate between crop rows, orchard aisles, and irregular terrain without damaging root systems or surface drainage.

Agricultural applications:

-Orchard and plantation management — planting-pit excavation, fertiliser trenching, and soil aeration in orchards, vineyards, and tea gardens; the compact body threads between tree rows without disturbing roots

-Irrigation and water management — drainage ditch clearing, small weir and dam maintenance, and farm track repair; the 347 mm ground clearance ensures reliable passage over uneven field terrain

-Greenhouse construction and land preparation — structure modification, ground levelling, and attachment-assisted earthworks that increase overall on-farm productivity

Forestry applications:

-Site preparation for reforestation — undergrowth clearance, vegetation removal, and thinning operations ahead of planting campaigns

-Forest road construction and firebreak cutting — track building and fire-line excavation across challenging woodland topography, supporting both routine maintenance and emergency operations

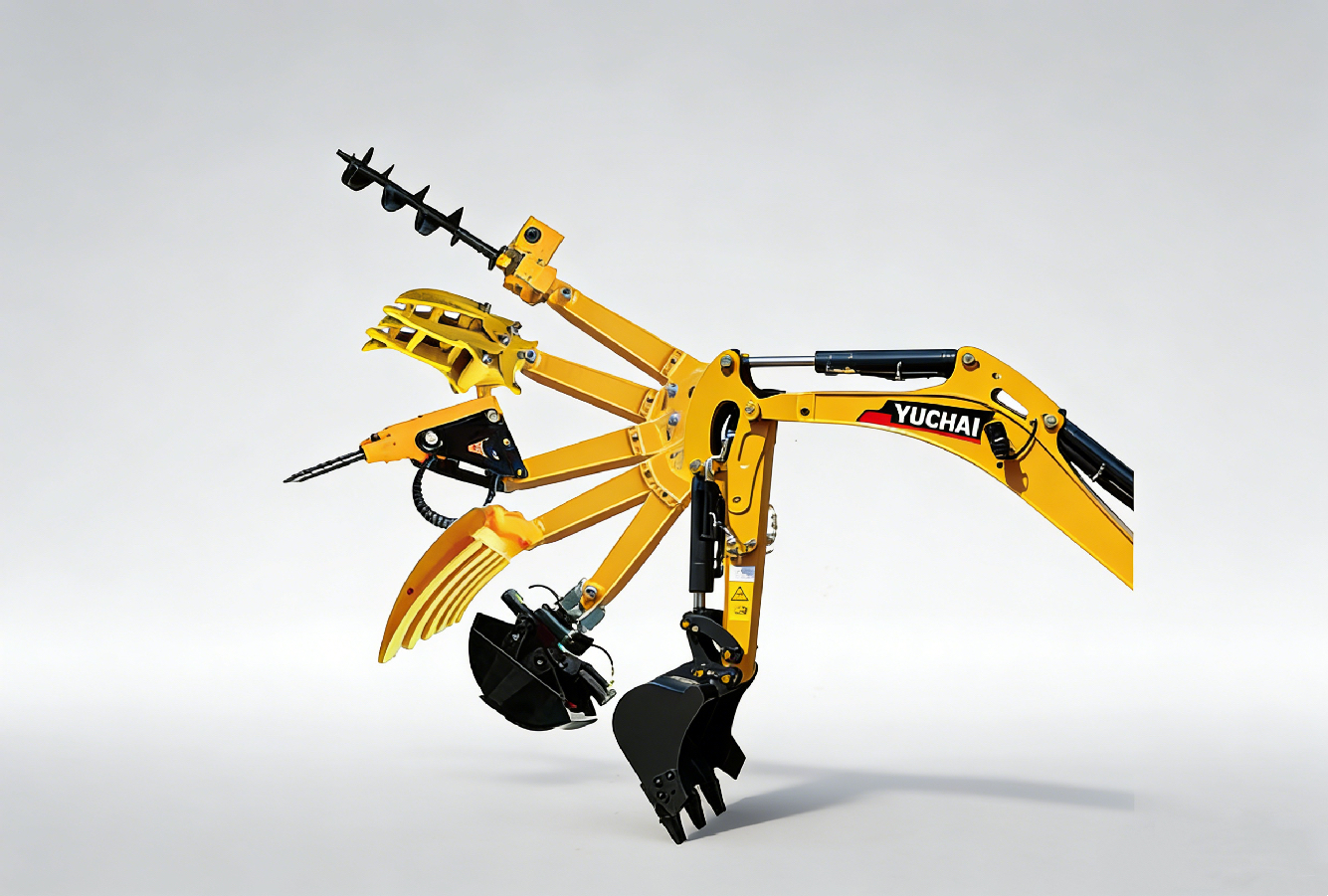

4. Multi-Purpose Operations — 30+ Attachments, One Machine

The U35’s hydraulic quick-coupler system allows rapid attachment changes on site, converting the base machine into a specialist tool in minutes rather than hours. This dramatically improves fleet utilisation and reduces the need for multiple pieces of equipment on the same project.

Key attachment configurations and their applications:

-Hydraulic breaker: light demolition of small structures, concrete breaking, and pavement removal

-Auger (earth drill): tree-planting holes in orchards and parks, street lighting pole foundations, and small-diameter pile boring on building sites

-Hydraulic grapple: crop residue and straw handling, bulk material transfer in quarries and yards, and municipal waste collection and sorting

-Ripper: deep soil loosening and subsoil breaking in agricultural fields and woodlands

5. Emergency Response — Rapid Deployment Where It Matters Most

Emergencies don’t wait for ideal working conditions. The U35’s compact footprint and strong gradeability make it a reliable first-response asset when speed and manoeuvrability are critical.

Typical applications include:

-Urban flood response — silt and debris removal from drainage channels and flood-affected streets in narrow residential neighbourhoods where full-sized machines cannot safely access

-Landslide and collapse clearance — debris removal and road reinstatement on unstable or steep terrain; the 35° gradeability keeps the machine moving where others stall

-Post-disaster structure demolition and site clearance — controlled removal of damaged buildings and rapid site preparation for temporary infrastructure

Backed by 35+ Years of Compact Excavator Expertise

Yuchai has been designing and manufacturing compact excavators since 1989 — the first Chinese manufacturer to both produce and export mini excavators at scale. With over three decades of R&D investment and real-world validation across more than 100 countries and regions, the U35 carries CE, CU-TR, and ISO 9001/14001/45001 certifications — delivering a proven, internationally compliant solution for contractors, municipalities, and agricultural operators worldwide.

Want to Know More?

For full technical specifications, available attachment configurations, and customised application proposals for the Yuchai U35, visit our official website or contact our international sales team directly. We’re ready to help you find the right machine for your job.
