When selecting compact excavators, buyers always balance site accessibility and working efficiency. Yuchai U-series mini excavators feature three core designs—zero tail swing, offset boom and retractable undercarriage—covering operating weights from 1.7 to 5.6 tonnes. This guide thoroughly compares flagship U17, U35 and U60 from specs, application matching and cost perspectives, helping buyers make data-driven equipment decisions.
I. Core Design Advantages of Yuchai U-Series
Three patented structures solve typical construction bottlenecks in urban and suburban job sites:
Zero Tail Swing: No rear structure extends beyond tracks during full rotation, eliminating extra safety clearance needed for conventional excavators. It works flawlessly in residential areas under 4m wide, 2.5–3m row orchards, and indoor spaces narrower than 2m.
Offset Boom: The arm shifts horizontally left/right without repositioning the machine, ideal for trenching alongside walls and breaking near building columns. U17 supports 60° left & 55° right offset to cut redundant moving cycles in basement and municipal jobs.
Retractable Undercarriage: Adjustable track width for easy passage through narrow doorways, and widened layout for stable digging. U17’s 990–1240mm adjustable chassis is critical for accessing basements and greenhouse aisles.
Combined, these three designs let U-series handle far more working scenarios than standard excavators of the same weight class.

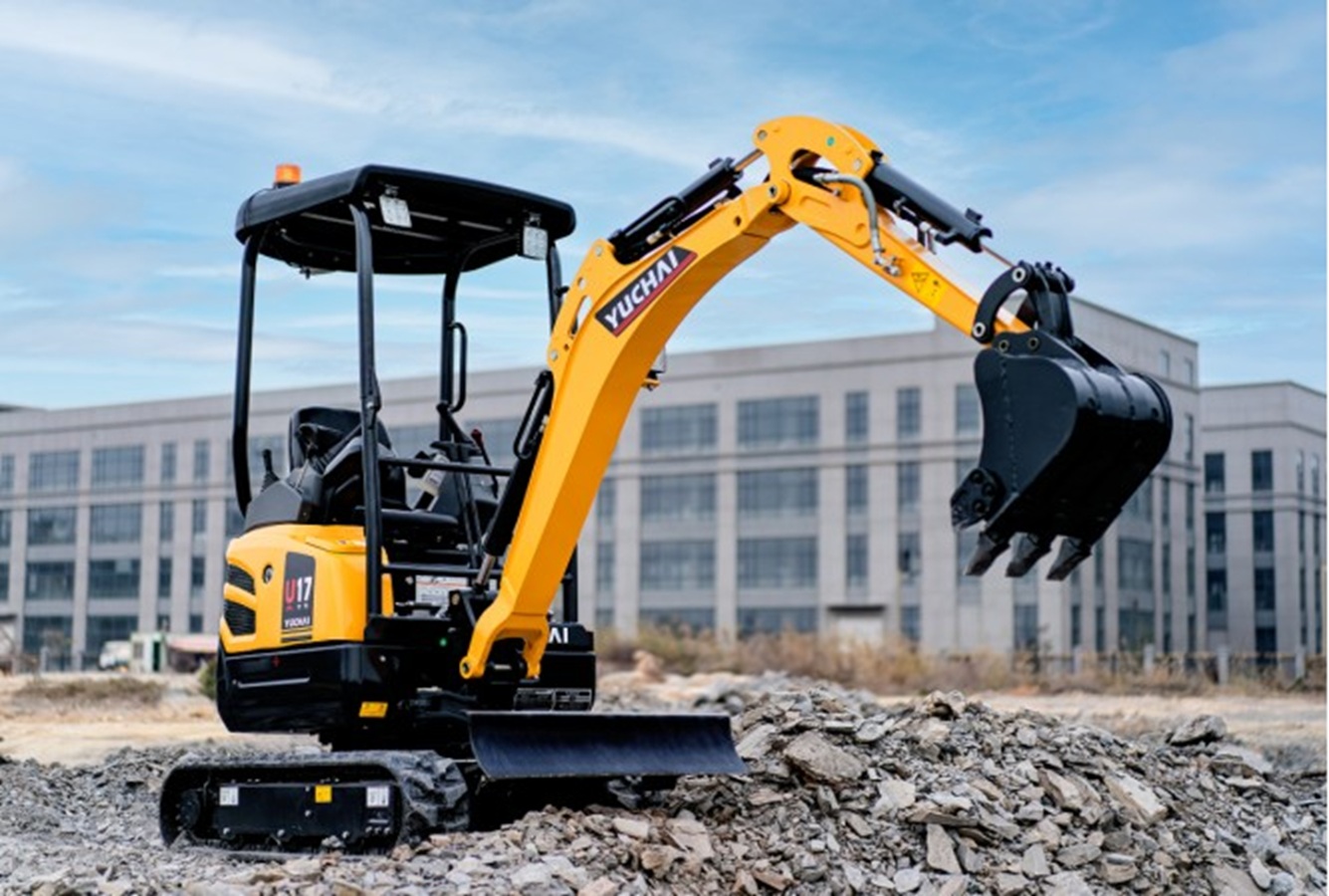

II. U17 (1.7 Tonnes): Compact Digger for Ultra-Tight Spaces
Core Specs
1,720kg operating weight, 990mm minimum retracted width, 620mm tail swing radius, genuine Kubota engine, load-sensing hydraulic system, standard TOPS safety cab and centralized grease points for easy maintenance.
Application Scenarios
Its ultra-narrow body navigates basements with less than 2m ramps and 2.2–2.5m low ceilings; the split cab can be partially disassembled to lower overall height. The electric variant Y20E delivers zero emissions and ultra-low noise, meeting enclosed jobsite zero-carbon rules without extra ventilation.
For orchards with 2.5m narrow rows, its tiny swing radius avoids tree bark damage while digging fertilization trenches in hours instead of manual multi-day work. On municipal roadside tasks, the fully contained tail never invades traffic lanes, removing temporary road closure permits.
Target Buyers
Specialized confined-space contractors, indoor demolition crews, and rental companies focused on frequent light-duty short-term hires. Not recommended for projects requiring massive daily earthmoving volume.

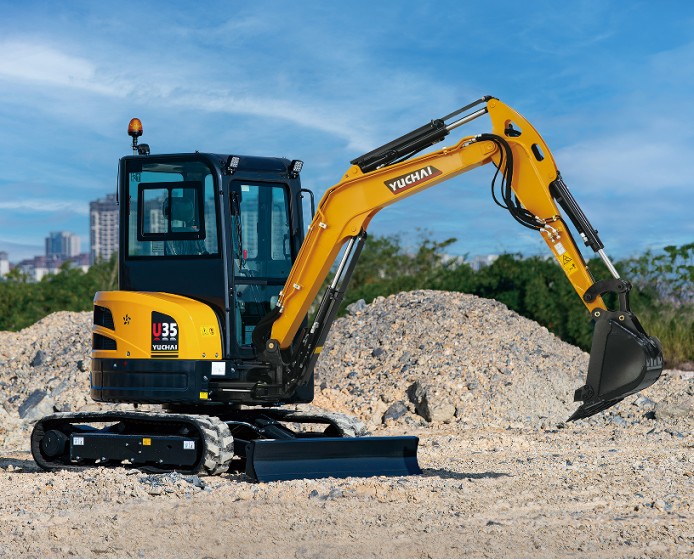

III. U35 (3.8 Tonnes): All-Round Flagship for Rental Fleets
Core Specs
3,800kg operating weight, digging force over 23kN, genuine Yanmar engine, load-sensing hydraulics, standard ROPS cab, compatible with breakers, augers and quick-hitch buckets.
Application Scenarios
As the most versatile mid-size model, it can be transported via standard trailers without special permits in most regions to cut delivery logistics costs.
It balances open-site productivity and narrow-space flexibility, covering road repair, landscaping and small foundation works. Thanks to wide task adaptability, U35 boasts the highest rental utilization rate among all compact excavators globally.
For rental operators, it strikes the perfect balance of purchase cost, daily rental rate and customer coverage, with a fast investment payback cycle serving both professional contractors and amateur operators.
Target Buyers
Contract teams expanding equipment capacity and rental firms building core fleets. If you can only pick one model for your rental lineup, U35 is the lowest-risk option.

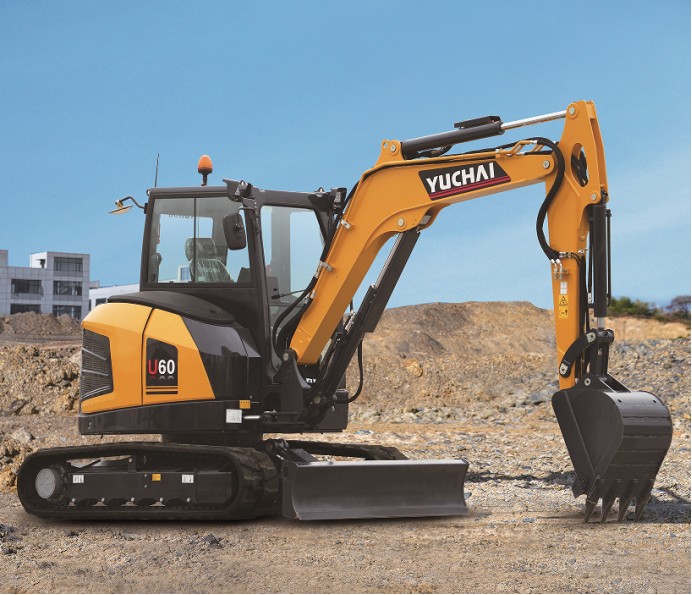

IV. U60 (5.6 Tonnes): High-Productivity Zero-Tail Excavator for Heavy-Duty Jobs
Core Specs
5,600kg operating weight, 15% higher working hydraulic pressure and 25% larger auxiliary flow vs previous generations, Stage V/Tier 3 certified Kubota engine, compatible with over 30 attachments, dual ROPS/FOPS certified cab, factory rear-view camera and emergency stop button.
Application Scenarios
It delivers powerful digging performance while retaining zero-tail design for crowded suburban sites. Longer tracks deliver superior stability on slopes and soft ground, perfect for heavy earthworks, farm irrigation systems, large landscaping and industrial ground construction. Wide-open engine covers speed up on-site maintenance and reduce downtime losses during continuous heavy operation.
Target Buyers
Specialized contractors with heavy-duty workloads and premium rental operators offering high-value differentiated equipment. Not suitable for extremely narrow confined working spaces.
V. Model Parameter Comparison Table
Specifications | Yuchai U17 | Yuchai U35 | Yuchai U60 |
Operating Weight | 1.7 t | 3.8 t | 5.6 t |
Tail Swing Radius | 620 mm | 1,014 mm | 1,065 mm |
Minimum Chassis Width | 990 mm | Adjustable | Adjustable |
Engine Brand | Genuine Kubota | Genuine Yanmar | Kubota (Stage V / Tier 3) |
Attachment Compatibility | Standard Attachments | Multi-Tool Support | 30+ Types of Attachments |
Safety Certification | TOPS | ROPS | ROPS + FOPS Dual Certification |
Core Working Scenarios | Indoor Demolition, Orchards, Ultra-Narrow Spaces | Municipal Engineering, Landscaping, General Construction | Heavy Earthworks, Long-Term High-Intensity Projects |
Daily Rental Rate Range | Low–Medium | Medium | Medium–High |
Transport Convenience | ★★★★★ | ★★★★☆ | ★★★☆☆ |
Suggested Fleet Proportion | 25–35% | 50–60% | 10–15% |
Frequently Asked Questions for Overseas Buyers
Q1: What certifications are required for EU & North American exports?
A: EU markets demand CE certification complying with Machinery Directive 2006/42/EC and Outdoor Noise Directive 2000/14/EC. North America does not require CE, but ROPS/FOPS safety certificates are mandatory to meet OSHA standards. Australia follows AS/NZS standards, with CE widely accepted as a quality benchmark.
All Yuchai U-series export units carry CE and ISO 9001 certifications. Buyers should request full certification documents, local authorized dealer contact information and written spare parts delivery timelines before purchase.
Q2: How does Yuchai U-series compare with Japanese imported excavators in long-term total cost of ownership?
A: Yuchai holds three major cost advantages:
Purchase cost is only 50–60% of equivalent Japanese mini excavators, lowering initial capital expenditure and shortening payback periods;
Spare parts cost 30–50% less, and the expanding global parts network greatly shortens delivery lead times;
Equipped with mainstream Kubota/Yanmar original powertrains, core components can be serviced via global public channels instead of exclusive brand dealers.
As China’s pioneer mini excavator manufacturer and exporter, Yuchai U-series is rapidly replacing Japanese brands in cost-sensitive global markets.
Q3: Is electric mini excavator Y20E profitable for rental fleets?
A: Electric diggers create clear premium profit in specific niche scenarios: indoor demolition, zero-emission residential construction, basement clearance and greenhouse projects with strict noise & emission limits. Y20E runs emission-free and nearly silent, eliminating ventilation needs for enclosed construction to meet strict urban environmental regulations.
Rental businesses can deploy 1–2 Y20E as differentiated premium equipment to charge higher daily rates for special jobs. Two key management points: prepare dedicated charging infrastructure and tailor rental contracts to match battery runtime limits.
