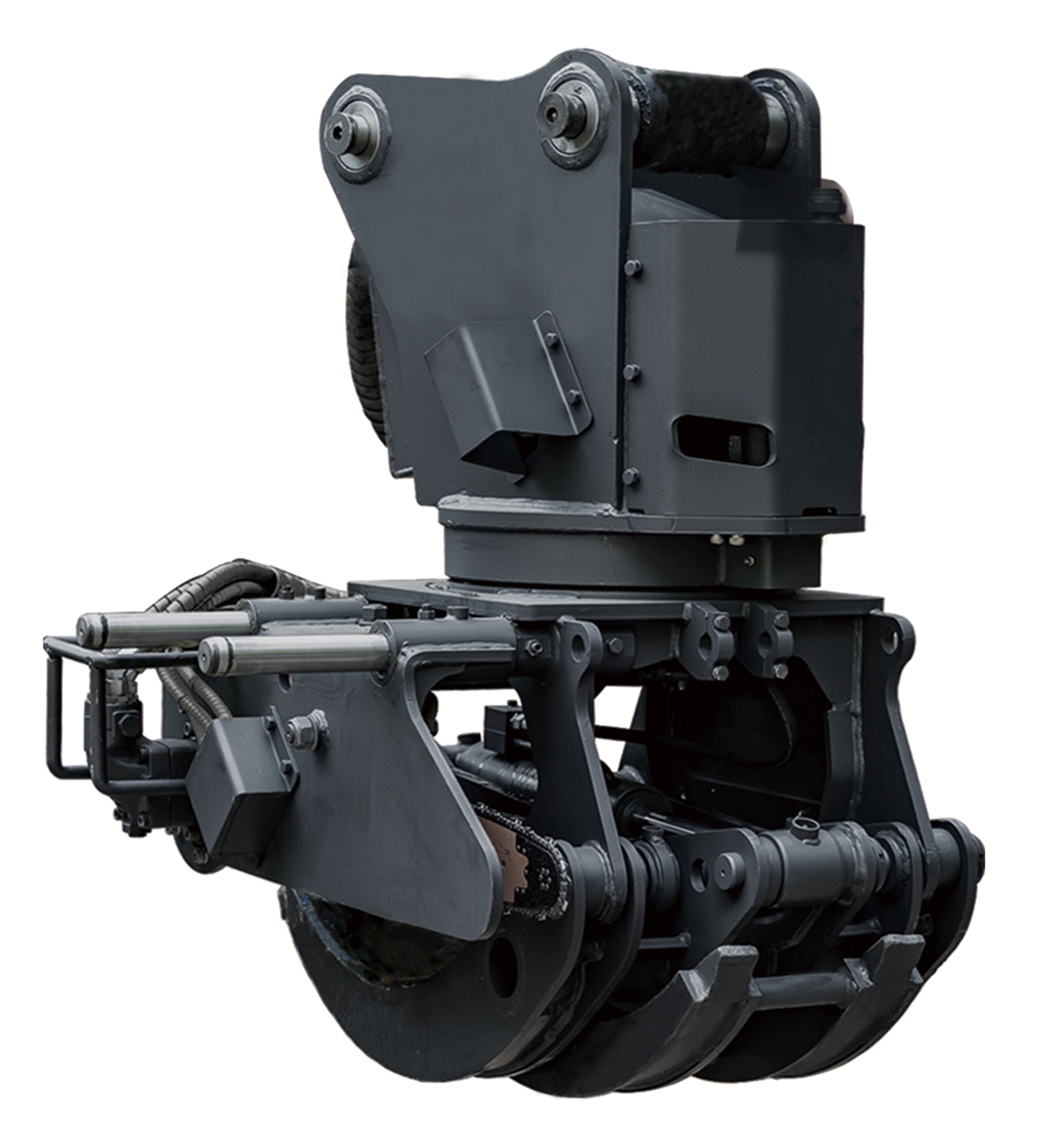

Yuchai FJ35 Grapple Saw

FJ35 Grapple Saw

The Yuchai Grapple Saw is a forestry equipment product that integrates both gripping and cutting functions. Built with Yuchai's advanced design and manufacturing technology, it is constructed from high-strength steel plates. Known for its easy installation, simple operation, high efficiency, reliability, and versatility, it is widely used in various operations such as timber yards, board mills, wharves, and landscaping sites.
Inquire Now Next Product

Specifications

型号 Model单位 UnitFJ35
重量 Weightkg514
使用压力 Operating hydraulicMpa21–26
最大抱圆 The largest arms roundmm550
最小抱圆 Minimum arms roundmm60
最大张口 maximum mouth openingmm1450
夹取及砍伐范围 Clamping and cutting rangemm500
总长 (运输尺寸) Lengthmm940
总宽 (运输尺寸) Widthmm927
总高 (运输尺寸) Heightmm965
机油箱容量 Oil tank capacityL2.7
适配机型 ExcavatorT8–15


Related Products
F35 Tree Shear
F35 Tree Shear The FS35 Tree Shear features a dual-arm cutting design, providing a more robust and stable structure compared to single-arm shears prone to twisting and deformation—especially critical in demanding applications like hardwood cutting. Its twin-arm gripping mechanism securely clamps the tree before trimming/felling, ensuring enhanced safety and reliability. Equipped with replaceable, high-strength wear-resistant blades for higher efficiency and easier maintenance. A 60-degree hydraulic rotator allows the operator to quickly adjust the cutting position, significantly improving operational efficiency.
F40 Harvester Head
F40 Harvester Head Yuchai's range of harvesting heads integrate multiple functions, including felling, delimbing, length measuring, cutting to length, and stacking. They are characterized by intelligent operation, coordinated movements, and high precision, making them widely applicable for harvesting various fast-growing plantation timber such as eucalyptus, fir, and pine. Different rollers can be equipped depending on the tree species and specific felling requirements.

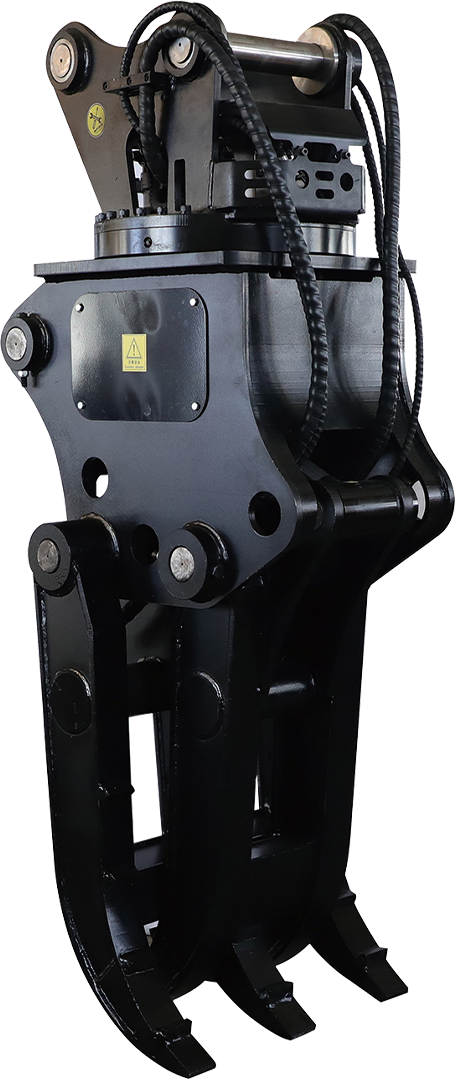

Log Clamp
