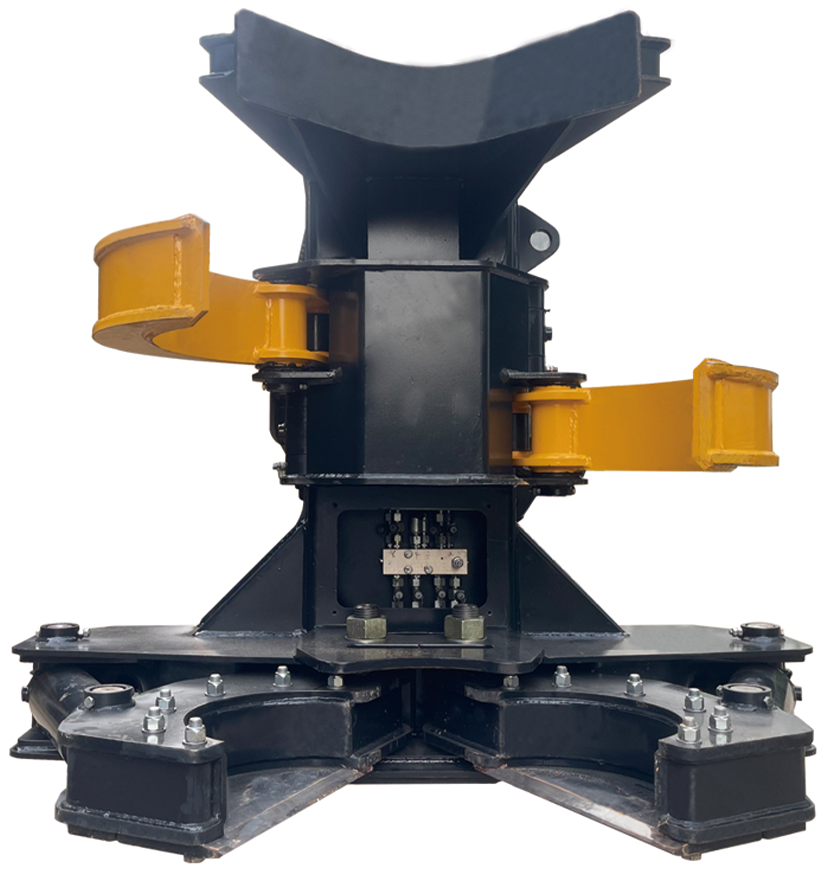

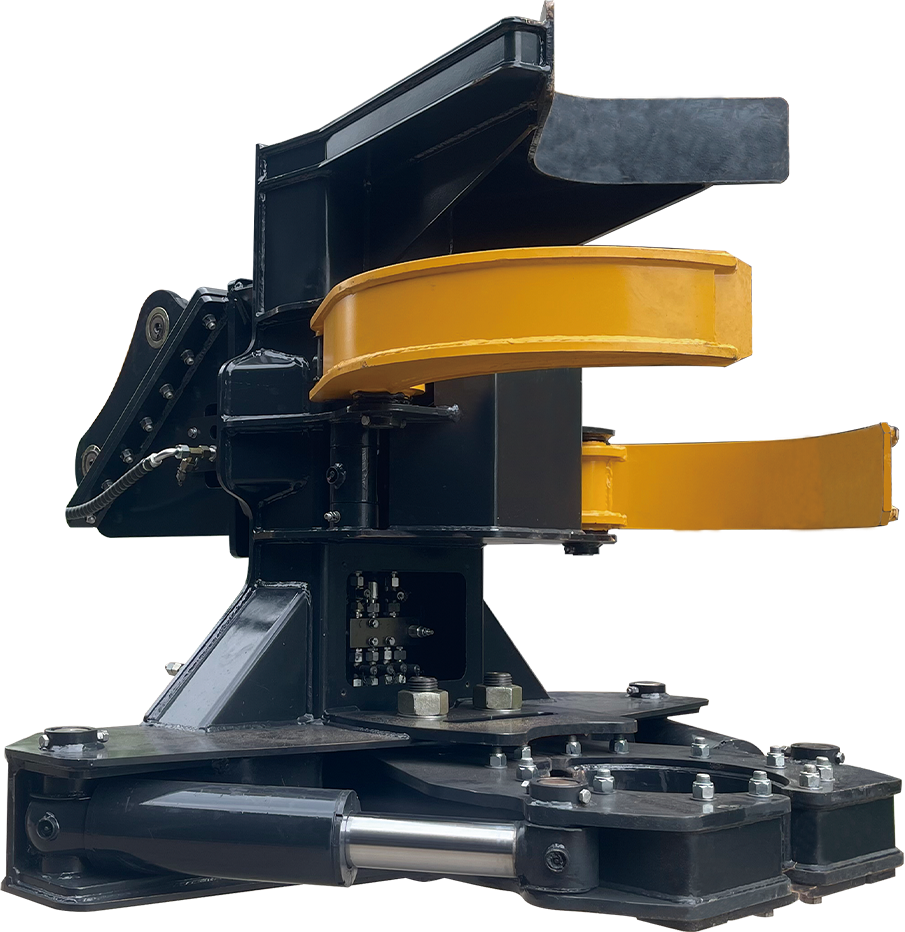

Yuchai F35 Tree Shear

F35 Tree Shear

The FS35 Tree Shear features a dual-arm cutting design, providing a more robust and stable structure compared to single-arm shears prone to twisting and deformation—especially critical in demanding applications like hardwood cutting. Its twin-arm gripping mechanism securely clamps the tree before trimming/felling, ensuring enhanced safety and reliability. Equipped with replaceable, high-strength wear-resistant blades for higher efficiency and easier maintenance. A 60-degree hydraulic rotator allows the operator to quickly adjust the cutting position, significantly improving operational efficiency.
Inquire Now Next Product

Specifications

FS35UnitImperial unit parametersUnitMetric units parameters
Max. Cutting Diameterft'in"1'1.8"mm350
Cutter Max. Openingft'in"2'2.0"mm660
Grapple Max. Openingft'in"2'4.3"mm720
Working Pressurepsi4974.8MPa34.3
Operating VoltageV24V24
Flow Requirementgpm37.0~47.6L/min140~180
Power Requirementhp107.3~134.1kw80~100
Widthft'in"5'7.3"mm1710
Lengthft'in"5'11.1"mm1805
Heightft'in"4'7.7"mm1415
Weightlb3351kg1520
Compatible ExcavatorsST13.2~22.0T12~20


Related Products
F40 Harvester Head
F40 Harvester Head Yuchai's range of harvesting heads integrate multiple functions, including felling, delimbing, length measuring, cutting to length, and stacking. They are characterized by intelligent operation, coordinated movements, and high precision, making them widely applicable for harvesting various fast-growing plantation timber such as eucalyptus, fir, and pine. Different rollers can be equipped depending on the tree species and specific felling requirements.
Log Grapple
Log Grapple The FS35 Tree Shear features a dual-arm cutting design, providing a more robust and stable structure compared to single-arm shears prone to twisting and deformation—especially critical in demanding applications like hardwood cutting. Its twin-arm gripping mechanism securely clamps the tree before trimming/felling, ensuring enhanced safety and reliability. Equipped with replaceable, high-strength wear-resistant blades for higher efficiency and easier maintenance. A 60-degree hydraulic rotator allows the operator to quickly adjust the cutting position, significantly improving operational efficiency.

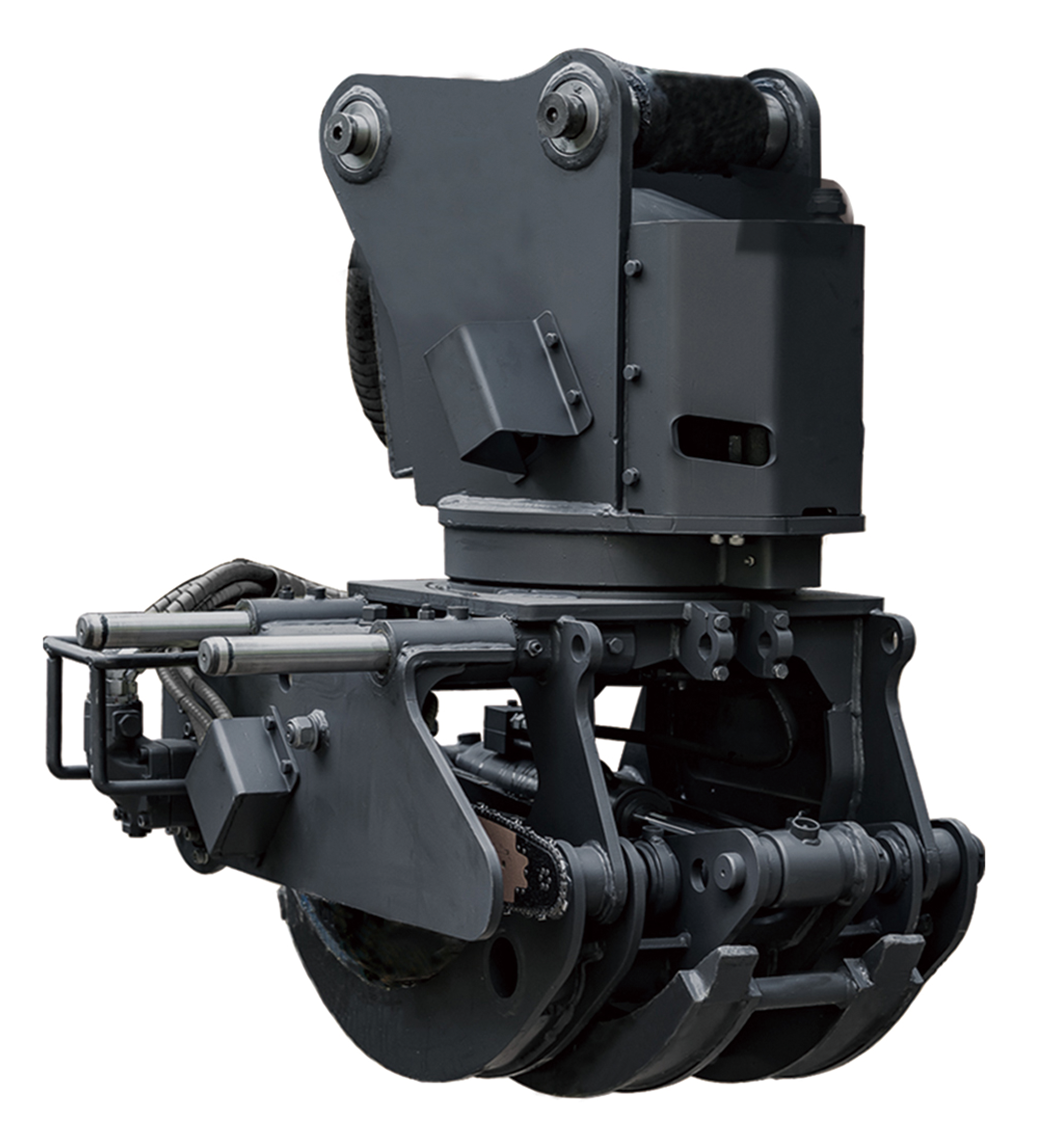

FJ35 Grapple Saw
FJ35 Grapple Saw The Yuchai Grapple Saw is a forestry equipment product that integrates both gripping and cutting functions. Built with Yuchai's advanced design and manufacturing technology, it is constructed from high-strength steel plates. Known for its easy installation, simple operation, high efficiency, reliability, and versatility, it is widely used in various operations such as timber yards, board mills, wharves, and landscaping sites.
F60 Harvester Head
F60 Harvester Head Yuchai's range of harvesting heads integrate multiple functions, including felling, delimbing, length measuring, cutting to length, and stacking. They are characterized by intelligent operation, coordinated movements, and high precision, making them widely applicable for harvesting various fast-growing plantation timber such as eucalyptus, fir, and pine. Different rollers can be equipped depending on the tree species and specific felling requirements.
Log Clamp
Log Clamp It is durable, easy to operate and efficient in operation; it supports 360° rotation with adjustable speed, and is equipped with a balance valve for anti-fall buffering, ensuring higher safety.

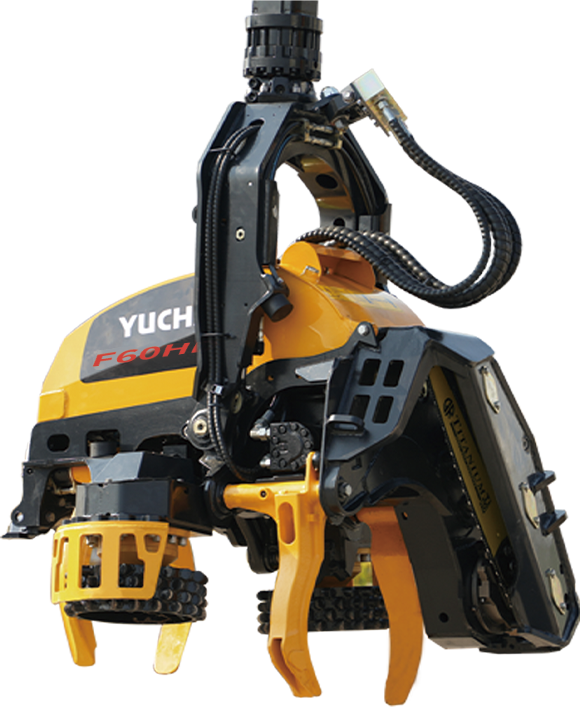

F60H Harvester Head
