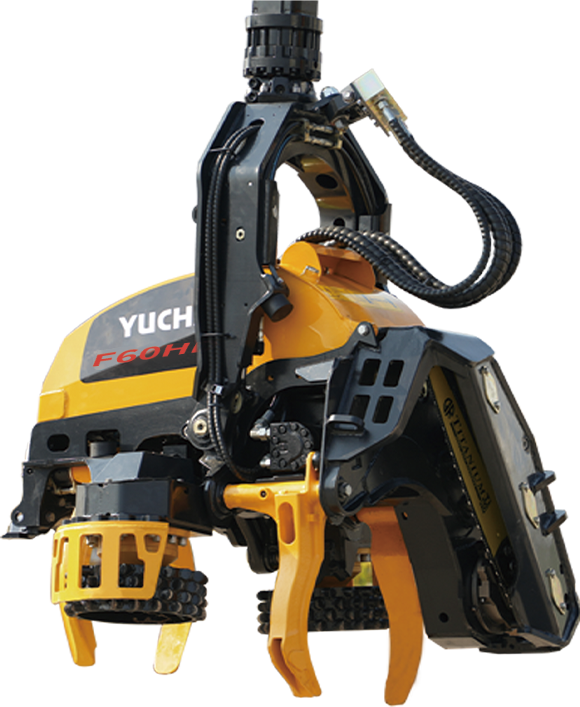

F60H Harvester Head

Yuchai's range of harvesting heads integrate multiple functions, including felling, delimbing, length measuring, cutting to length, and stacking. They are characterized by intelligent operation, coordinated movements, and high precision, making them widely applicable for harvesting various fast-growing plantation timber such as eucalyptus, fir, and pine. Different rollers can be equipped depending on the tree species and specific felling requirements.

Specifications

F60H Harvester HeadImperial UnitImperialMetric UnitMetric
Chain Pitchinch0.404inch0.404
Rollers Quantitypcs3pcs3
Rollers Diameterft'in"1'3.7"mm400
Max. Opening of Rollersft'in"1'11.6"mm600
Max. Feed Forcelbf8093.1kN36
Max. Feed Speedft/s0–16.4m/s0-5
Max. Delimbing Diameterft'in"1'7.7"mm500
Optimal Tree Diameter Less Thanft'in"≤1'7.7"mm≤500
Knives Quantity-2+2+1-2+2+1
Diameter Tip to Tipft'in"1'3.7"mm400
Front Knives Max. Openingft'in"2'1.2"mm640
Rear Knives Max. Openingft'in"2'3.2"mm690
Operating Hydraulic Pressurepsi4061.1MPa28
Required Hydraulic Flowgpm63.4–79.3L/min240-300
Required Powerhp120.7–174.3KW90~130
Operating VoltageV24V24
Suitable Excavator TonnageST22.0–30.9Ton20-28
Width (Head Closed / Head Open)ft'in"5'1.4"mm1560
Overall Lengthft'in"5'1.0"mm1550
Overall Heightft'in"5'1.6"mm1565
Equipment Weightlb2821.9kg1280
