Yuchai FJ35 Grapple Saw

FJ35 Grapple Saw

The Yuchai Grapple Saw is a forestry equipment product that integrates both gripping and cutting functions. Built with Yuchai's advanced design and manufacturing technology, it is constructed from high-strength steel plates. Known for its easy installation, simple operation, high efficiency, reliability, and versatility, it is widely used in various operations such as timber yards, board mills, wharves, and landscaping sites.
Inquire Now Next Product

Specifications

FS35 ModelImperial UnitImperialMetric UnitMetric
Max. cutting diameterft'in"1'1.8"mm350
Cutter max. openingft'in"2'2.0"mm660
Grapple max. openingft'in"2'4.3"mm720
Working pressurepsi4974.8MPa34.3
Operating voltageV24V24
Flow requirementgpm37.0~47.6L/min140~180
Power requirementhp107.3~134.1kW80~100
Widthft'in"5'7.3"mm1710
Lengthft'in"5'11.1"mm1805
Heightft'in"4'7.7"mm1415
Weightlb3351kg1520
ExcavatorST13.2~22.0T12~20


Related Products

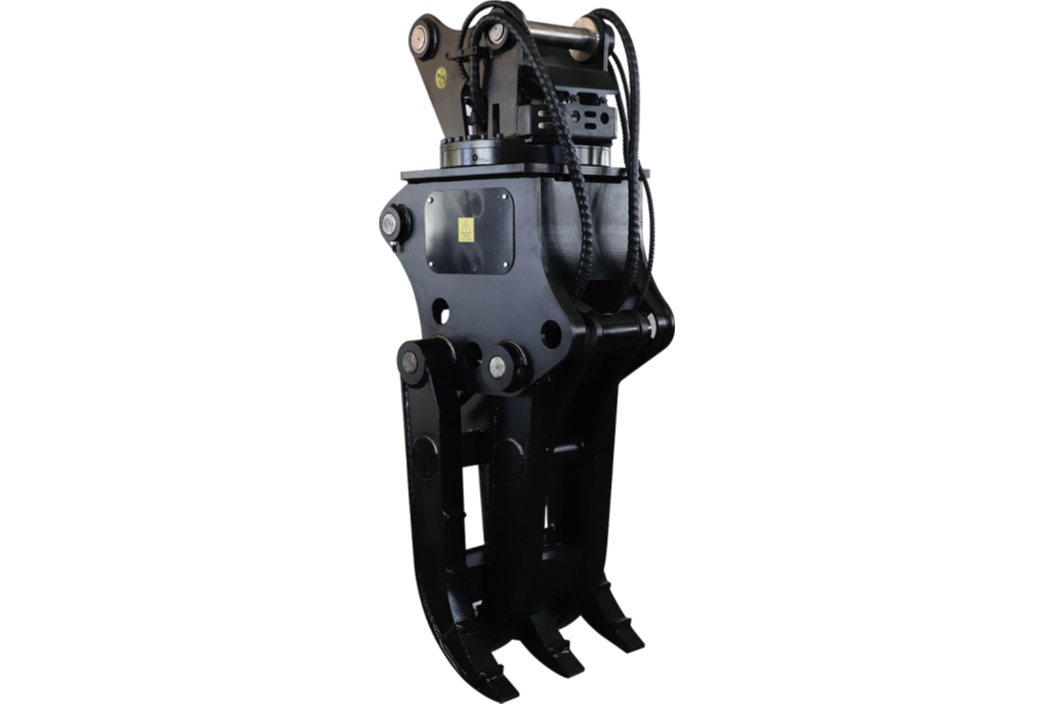

Log Clamp
