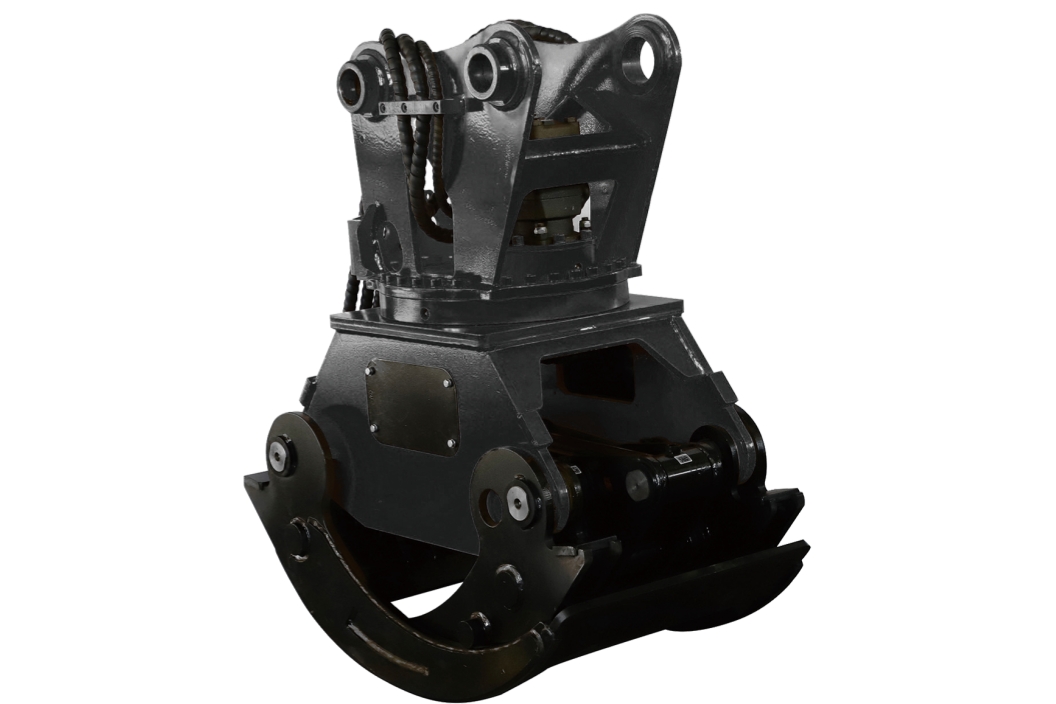

Yuchai Clamshell Grapple

Clamshell Grapple

Driven by M+S motor with brake valve; cylinder with USA safety valve(USA SUN brand).Pressure reducing valve, relief valve(all the valves areUSA SUN brand)are in electrical and hydraulic control system, making it safer and much more stable and durable in use. Custom service is available.
Inquire Now Next Product

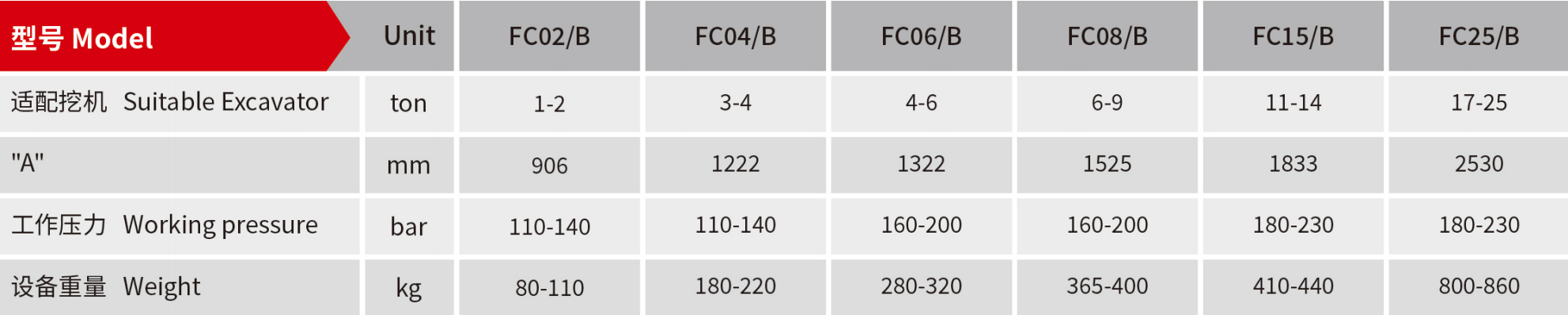

Specifications

Parameter UnitFC02/BFC02/BFC04/BFC04/BFC06/BFC06/BFC08/BFC08/BFC15/BFC15/BFC25/BFC25/B
MetricImperialMetricImperialMetricImperialMetricImperialMetricImperialMetricImperial
Suitable Excavatorton / short ton1-2 t1.1-2.2 st3-4 t3.3-4.4 st4-6 t4.4-6.6 st6-9 t6.6-9.9 st11-14 t12.1-15.4 st17-25 t18.7-27.6 st
“A”mm / inch906 mm35.7 in1222 mm48.1 in1322 mm52.0 in1525 mm60.0 in1833 mm72.2 in2530 mm99.6 in
Working pressurebar / psi110-140 bar1595.4-2030.5 psi110-140 bar1595.4-2030.5 psi160-200 bar2320.6-2900.8 psi160-200 bar2320.6-2900.8 psi180-230 bar2610.7-3335.9 psi180-230 bar2610.7-3335.9 psi
Weightkg / lb80-110 kg176.4-242.5 lb180-220 kg396.8-485.0 lb280-320 kg617.3-705.5 lb365-400 kg804.7-881.8 lb410-440 kg903.9-970.0 lb800-860 kg1763.7-1896.0 lb


Related Products

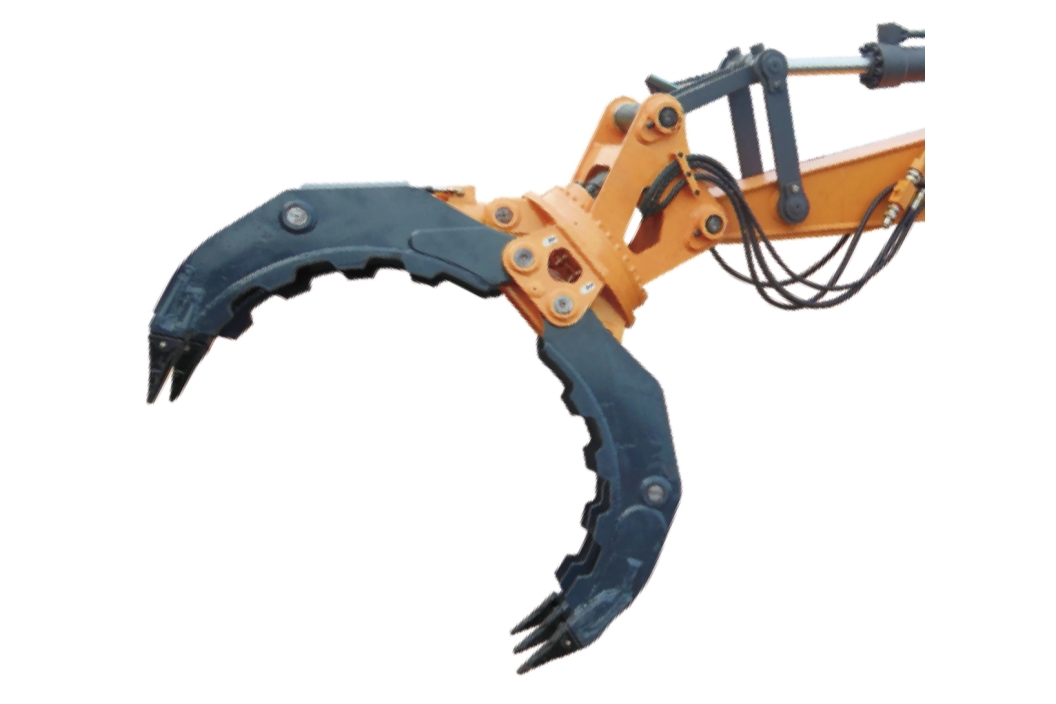

Rock Grapple
Rock Grapple Driven by M+S motor with brake valve, cyl-inder with USA safety valve(USA SUN brand). Custom service is available.(3+2, 4+3, 5+4fingers for your option). Throttle, pressure reducing valve, reliefvalve (all the valves are USA SUN brand) are inelectrical and hydraulic control system, makingit safer and much more stable and durable in use.

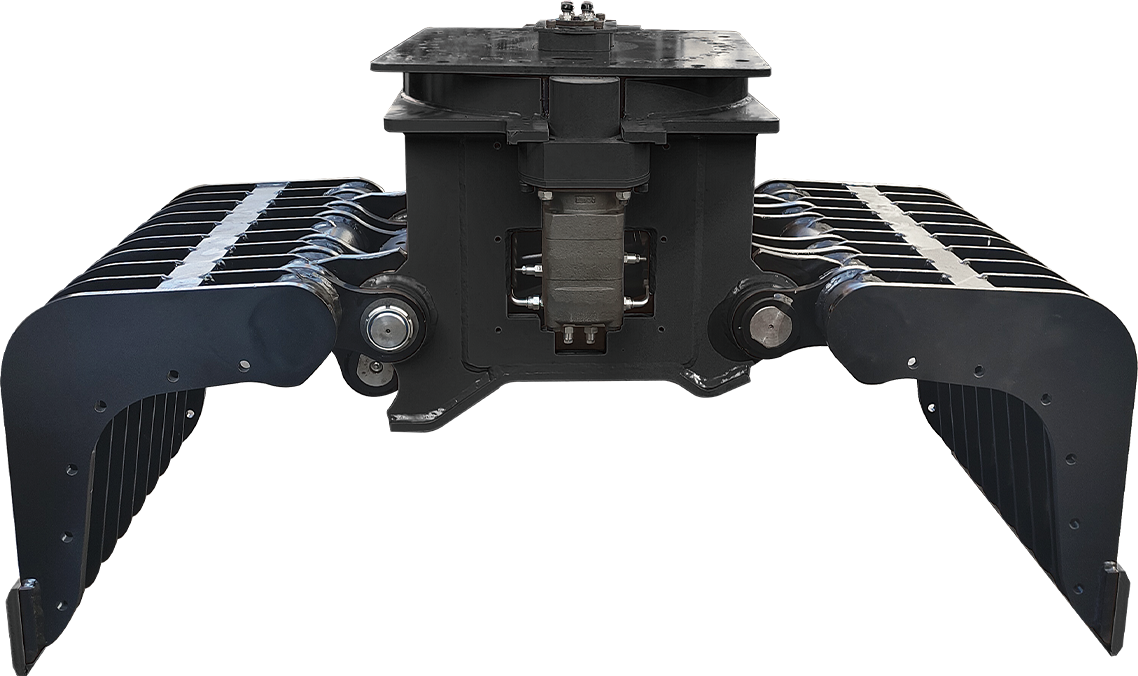

Reinforced Grapple
Reinforced Grapple Shorter height and lighter, saving energy consumption. Fence-type claw shape and optimized linkage device,large grabbing volume. Improved the accuracy of rotation control, extended theservice life. High-pressure resistant motor with large torque. Protection device added to the connecting rod pin,avoid collision. JT06 and above models, the torque increases by 1.5--3 times.

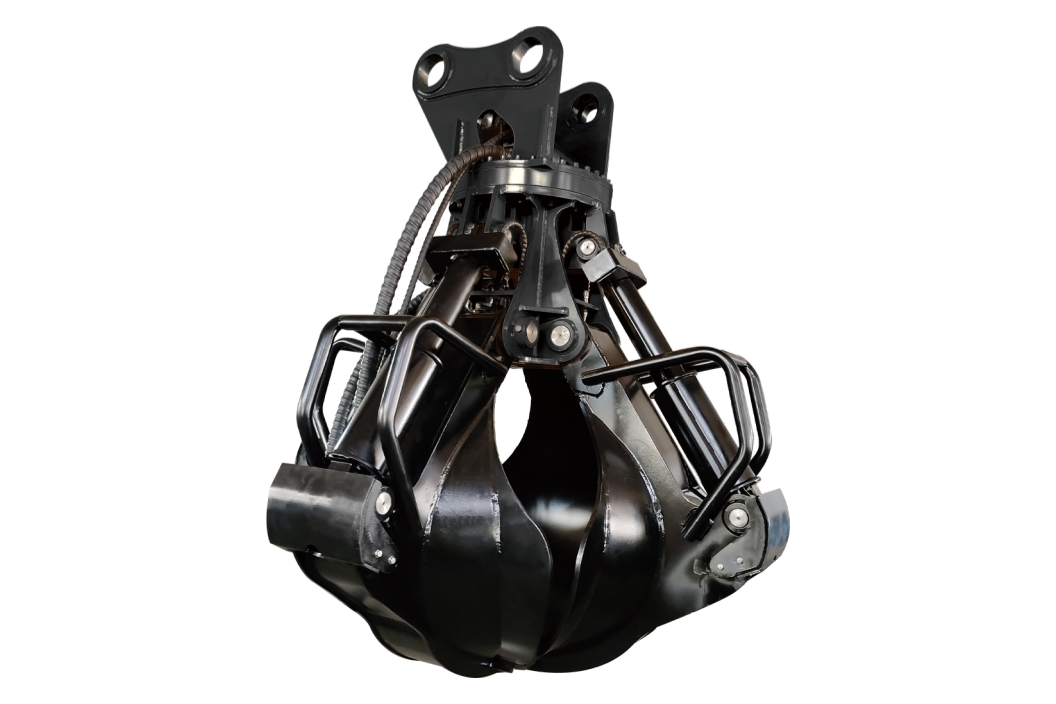

Orange Peel Grab
Orange Peel Grab Structurally robust with a reinforced single-tooth design, the quenched tooth en-sures wear resistance, durability, and pre-cise operation. It offers high load resistanceflexibility, significantly improving and crushing and loosening efficiency in hard strata.
