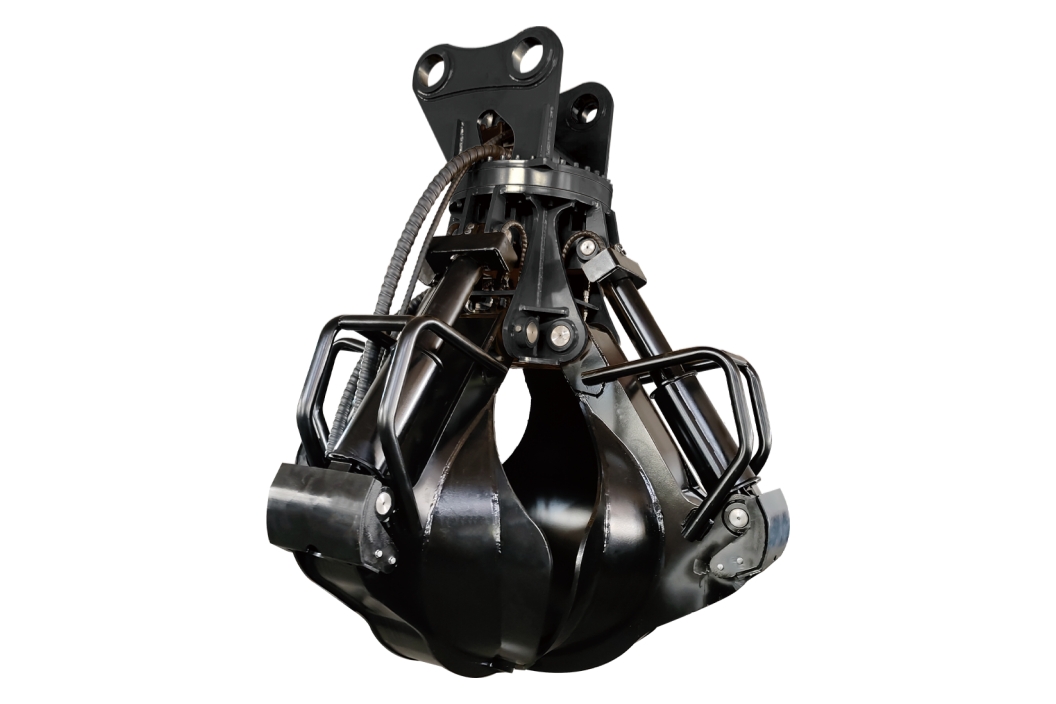

Orange Peel Grab

Structurally robust with a reinforced single-tooth design, the quenched tooth en-sures wear resistance, durability, and pre-cise operation. It offers high load resistanceflexibility, significantly improving and crushing and loosening efficiency in hard strata.

Inquire Now Next Product

Specifications

Parameter	Unit	FC04/L	FC06/L	FC15/L	FC25/L
(A) Open width	mm / ft,in	3-4 / 0'0.1"-0'0.2"	4-9 / 0'0.2"-0'0.4"	12-16 / 0'0.5"-0'0.6"	17-25 / 0'0.7"-0'1.0"
(B) Close width	mm / ft,in	1100 / 3'7.3"	1275 / 4'2.2"	1623 / 5'3.9"	1998 / 6'6.7"
(C) Hight	mm / ft,in	887 / 2'10.9"	1064 / 3'5.9"	1283 / 4'2.5"	1684 / 5'6.3"
(D) Hight	mm / ft,in	937 / 3'0.9"	990 / 3'3.0"	1083 / 3'6.6"	1335 / 4'4.6"
Cylinder Thrust	ton / kip	1065 / 2348.0	1117 / 2462.6	1255 / 2768.0	1537 / 3388.5
Oil pressure	bar / psi	160-200 / 2320.6-2900.8	160-200 / 2320.6-2900.8	180-230 / 2610.7-3335.9	180-230 / 2610.7-3335.9
Capacity (closed)	m³ / ft³	0.10 / 3.5	0.15 / 5.3	0.25 / 8.8	0.60 / 21.2
Capacity (open)	m³ / ft³	0.39 / 13.8	0.61 / 21.5	1.08 / 38.1	2.24 / 79.1
Weight	kg / lb	200-250 / 440.9-551.2	400-600 / 881.8-1322.8	900-1100 / 1984.2-2425.1	1200-1500 / 2645.5-3306.9
