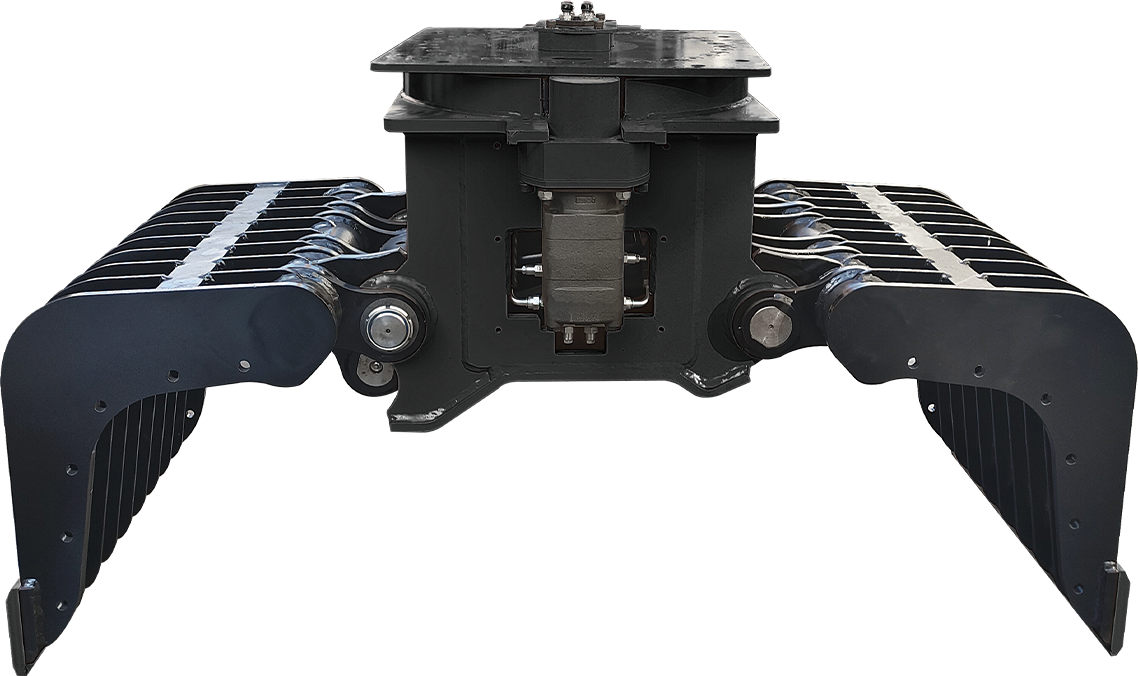

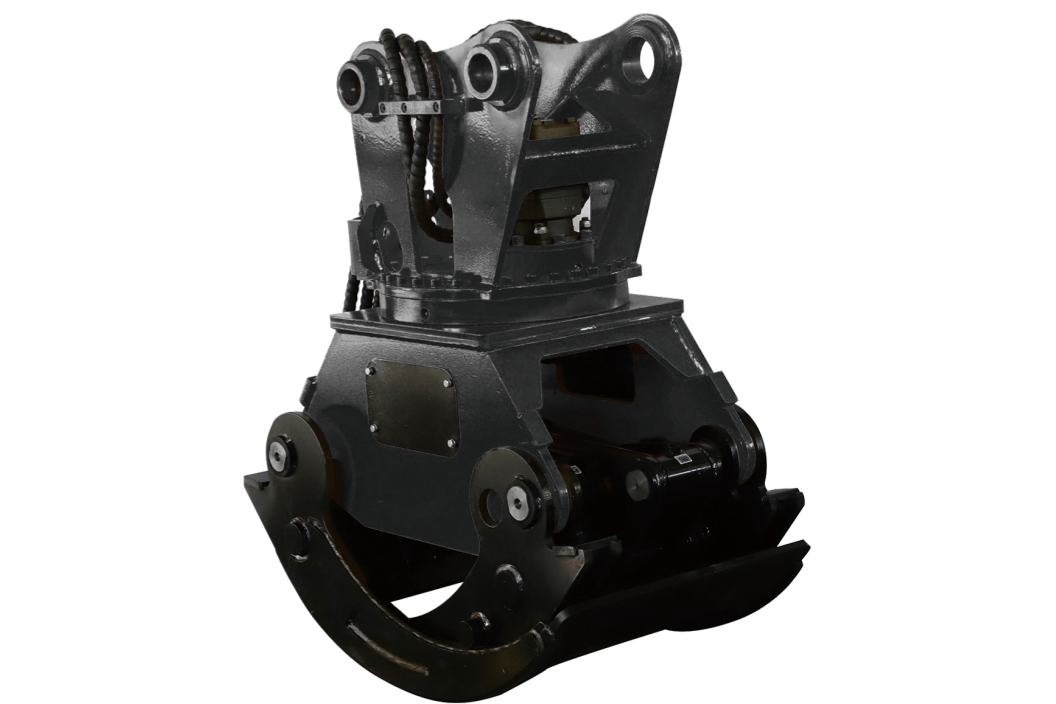

Reinforced Grapple

Shorter height and lighter, saving energy consumption. Fence-type claw shape and optimized linkage device,large grabbing volume. Improved the accuracy of rotation control, extended theservice life. High-pressure resistant motor with large torque. Protection device added to the connecting rod pin,avoid collision. JT06 and above models, the torque increases by 1.5--3 times.

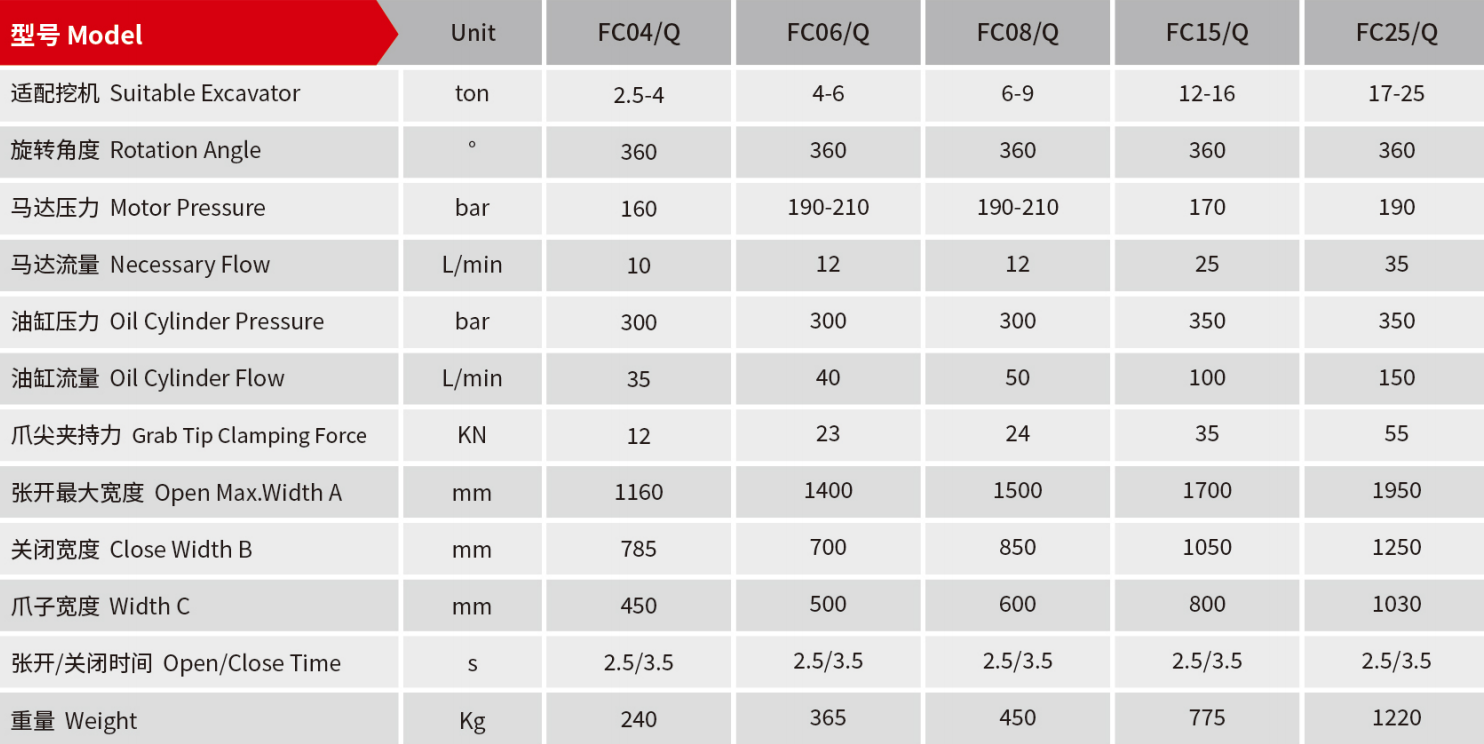

Specifications

ParameterUnitFC04/QFC06/QFC08/QFC15/QFC25/Q
Suitable Excavatorton / kip2.5-4 / 5.5-8.84-6 / 8.8-13.26-9 / 13.2-19.8

12-16 /

 26.5-35.3

17-25 /

 37.5-55.1

Rotation Angle°360360360360360
Motor Pressurebar / psi160 / 2320.6190-210 / 2755.7-3045.8190-210 / 2755.7-3045.8170 / 2465.6190 / 2755.7
Necessary FlowL/min / gpm10 / 2.612 / 3.212 / 3.225 / 6.635 / 9.2
Oil Cylinder Pressurebar / psi300 / 4351.1300 / 4351.1300 / 4351.1350 / 5076.3350 / 5076.3
Oil Cylinder FlowL/min / gpm35 / 9.240 / 10.650 / 13.2100 / 26.4150 / 39.6
Grab Tip Clamping ForcekN / kip12 / 2.723 / 5.224 / 5.435 / 7.955 / 12.4
Open Max. Width Amm / ft,in1160 / 3'9.7"1400 / 4'7.1"1500 / 4'11.1"1700 / 5'6.9"1950 / 6'4.8"
Close Width Bmm / ft,in785 / 2'6.9"700 / 2'3.6"850 / 2'9.5"1050 / 3'5.3"1250 / 4'1.2"
Width Cmm / ft,in450 / 1'5.7"500 / 1'7.7"600 / 1'11.6"800 / 2'7.5"1030 / 3'4.6"
Open/Close Times2.5/3.52.5/3.52.5/3.52.5/3.52.5/3.5
Weightkg / lb240 / 529.1365 / 804.7450 / 992.1775 / 1708.61220 / 2689.6
