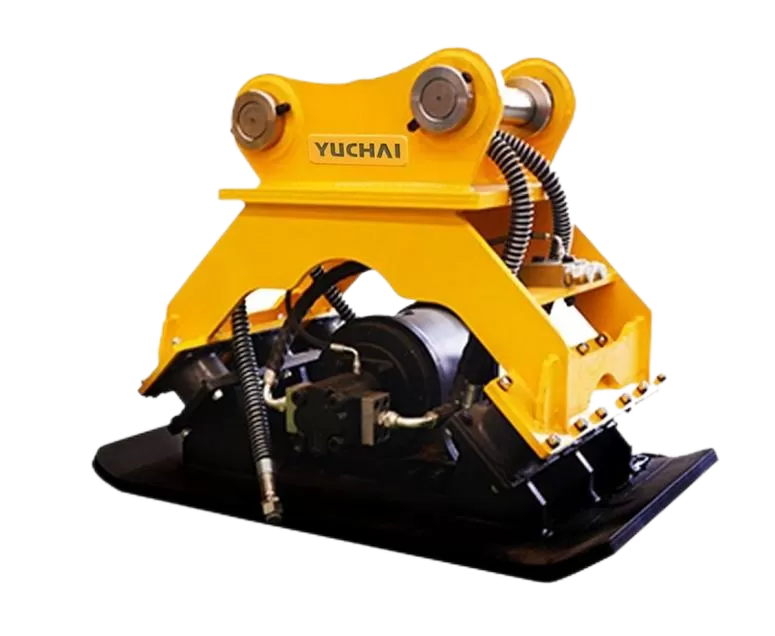

Hydraulic Plate Compactor

Applicable objects: ditches, slopes, steps and complex terrain show solid, driving and pulling piles, crushing and other operations

Longer lifetime of damperSpecially designed 45*inclined vibration-proof rubber minimizes shock powerNo pressure adjustment due to a high pressure generating motorHigh quality hydraulic motor drives the drum assembly to provide large amplitude with giant vibration.Applicable to any position, such as horizon compaction, step compaction, bridge abutment, the trench pitcompaction, sub grade compaction, the corner turning point, backfill compacted, concrete pavement patchingcompacted,tube side compaction etc. DLK hydraulic compactor can also be used for pulling piles and brokenwhen necessary.


Specifications

ModelUnitYCC02YCC04YCC06YCC08YCC10
Suitable Excavatorton2-34-910-1617-2324-30
Power of Impulseton35101515
Max Vibration Frequencyr/min / rpm1800 / 18001800 / 18001800 / 18001800 / 18001800 / 1800
Working Flowlpm / gpm25-40 / 6.6-10.645-75 / 11.9-19.885-105 / 22.5-27.7120-170 / 31.7-44.9120-170 / 31.7-44.9
Working Pressurebar / psi100-130 / 1450.4-1885.5100-130 / 1450.4-1885.5100-130 / 1450.4-1885.5120-180 / 1740.5-2610.7120-180 / 1740.5-2610.7
Weightkg / lb110 / 242.5300 / 661.4500 / 1102.3900 / 1984.2950 / 2094.4
