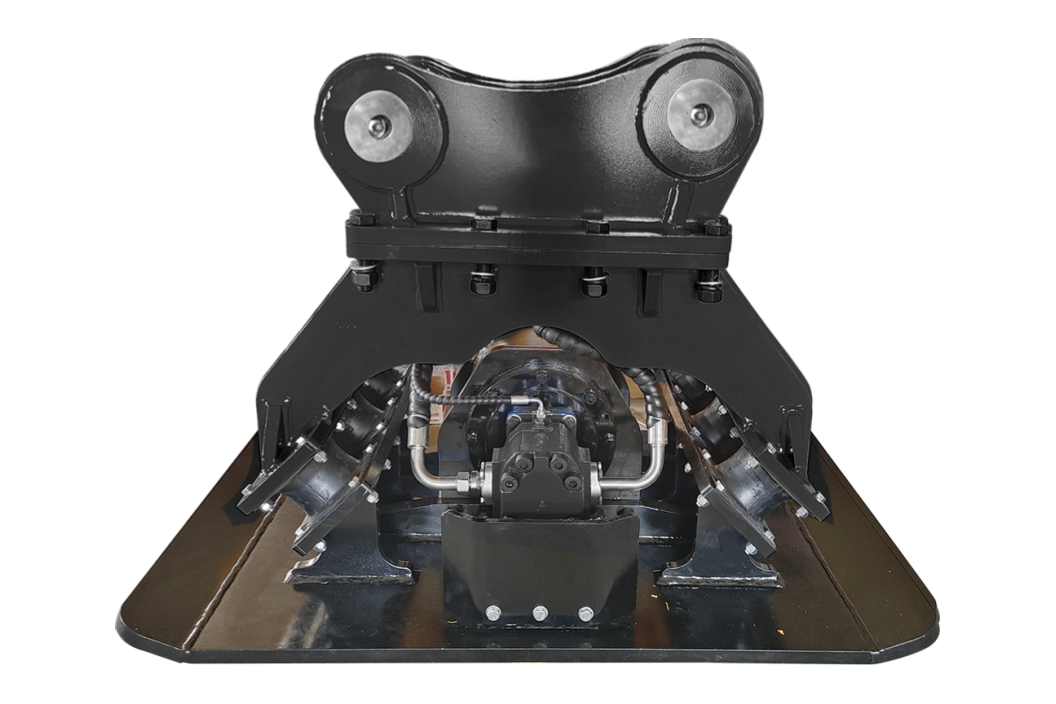

Hydraulic Rammer

Imported bearing (Japan) throttle (Italy) and safety valves(USA),stable and high efficient performance. With 360 degree rotation system, it can do job in any position. JIANGTU plate compactor performs 2-4 times better than normal compactors in compacting frequency and power.

Inquire Now Next Product

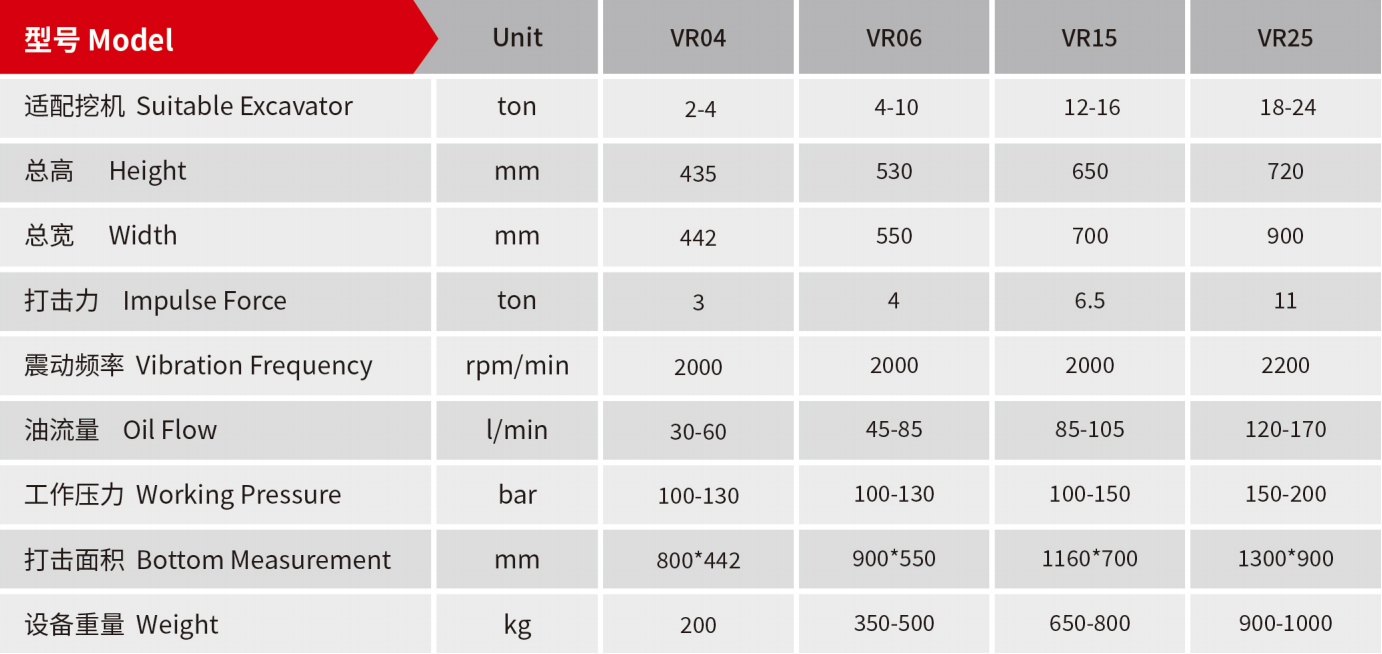

Specifications

Parameter	VR04 (Metric)	VR04 (Imperial)	VR06 (Metric)	VR06 (Imperial)	VR15 (Metric)	VR15 (Imperial)	VR25 (Metric)	VR25 (Imperial)
Suitable Excavator	2–4 ton	2.2–4.4 short ton	4–10 ton	4.4–11.0 short ton	12–16 ton	13.2–17.6 short ton	18–24 ton	19.8–26.5 short ton
Height	435 mm	1'5.1"/ft.in.	530 mm	1'8.9"/ft.in.	650 mm	2'1.6"/ft.in.	720 mm	2'4.3"/ft.in.
Width	442 mm	1'5.4"/ft.in.	550 mm	1'9.7"/ft.in.	700 mm	2'3.6"/ft.in.	900 mm	2'11.4"/ft.in.
Impulse Force	3 ton	6613.9 lb	4 ton	8818.5 lb	6.5 ton	14330.0 lb	11 ton	24250.8 lb
Vibration Frequency	2000 rpm/min	2000 rpm/min	2000 rpm/min	2000 rpm/min	2000 rpm/min	2000 rpm/min	2200 rpm/min	2200 rpm/min
Oil Flow	30–60 L/min	6.6–13.2 gal/min	45–85 L/min	9.9–18.7 gal/min	85–105 L/min	18.7–23.1 gal/min	120–170 L/min	26.4–37.4 gal/min
Working Pressure	100–130 bar	1450.4–1885.5 psi	100–130 bar	1450.4–1885.5 psi	100–150 bar	1450.4–2175.6 psi	150–200 bar	2175.6–2900.8 psi
Bottom Measurement	800×442 mm	2'7.5" × 1'5.4"/ft.in.	900×550 mm	2'11.4" × 1'9.7"/ft.in.	1160×700 mm	3'9.7" × 2'3.6"/ft.in.	1300×900 mm	4'3.2" × 2'11.4"/ft.in.
Weight	200 kg	440.9 lb	350–500 kg	771.6–1102.3 lb	650–800 kg	1433.0–1763.7 lb	900–1000 kg	1984.2–2204.6 lb
