Trenching Attachment

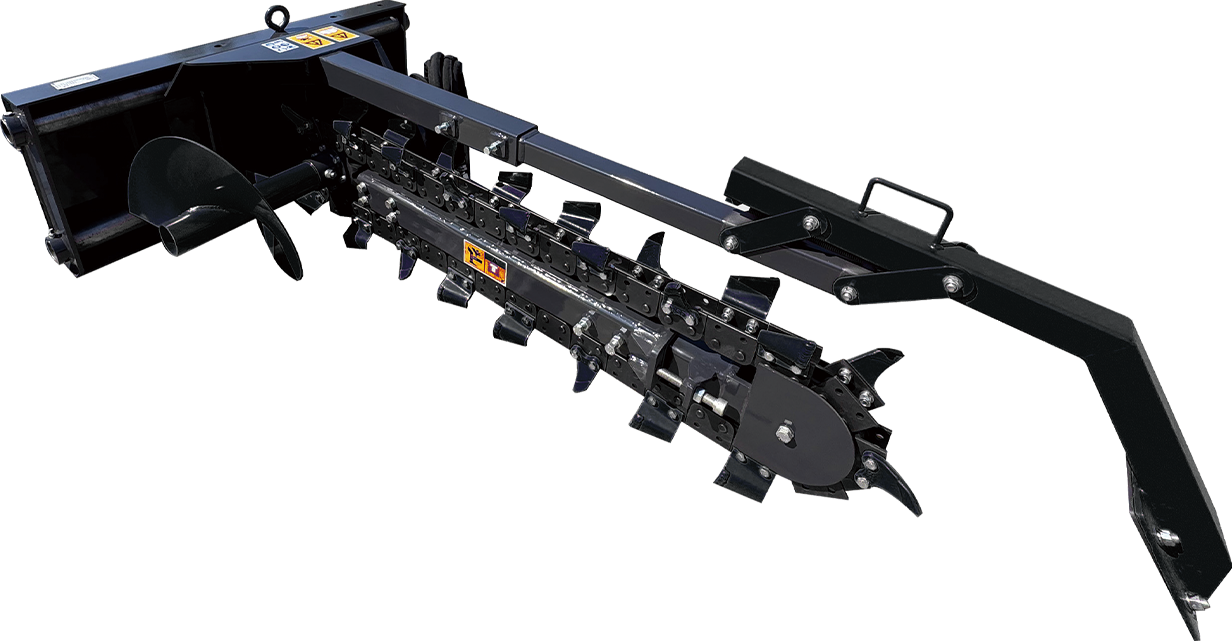

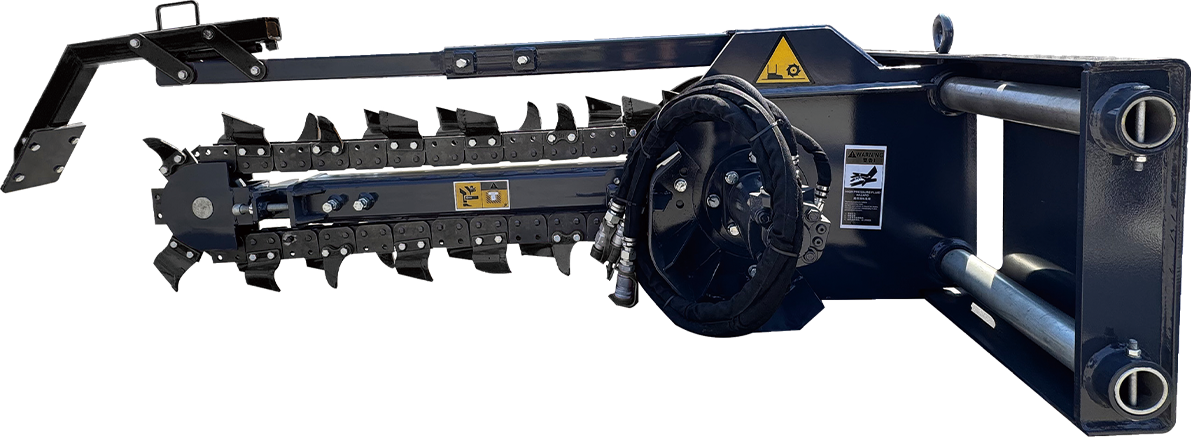

This product is a Continuous Trencher compatible with Skid-Steer Loaders and Excavators. It is primarily used for digging trenches and channels, and laying underground agricultural pipe- lines, as well as urban and rural optical cables and power lines. The trenching depth can be adjusted based on the boom and arm configuration of the host ma- chine.

Inquire Now Next Product

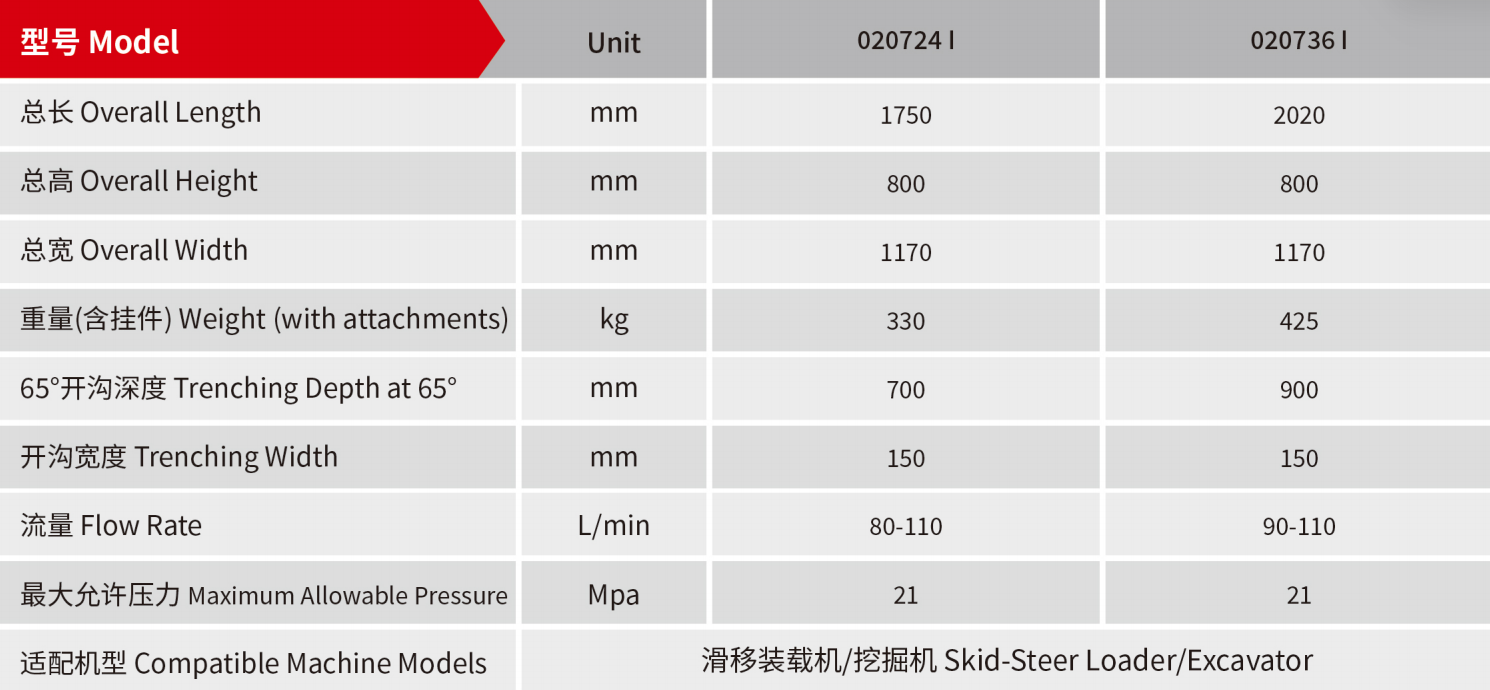

Specifications

Parameter	020724 l (Metric)	020724 I (Imperial)	020736 I (Metric)	020736 I (Imperial)
Overall Length	1750 mm	5'8.9"/ft.in.	2020 mm	6'7.5"/ft.in.
Overall Height	800 mm	2'7.5"/ft.in.	800 mm	2'7.5"/ft.in.
Overall Width	1170 mm	3'10.1"/ft.in.	1170 mm	3'10.1"/ft.in.
Weight (with attachments)	330 kg	727.5 lb	425 kg	937.0 lb
Trenching Depth at 65°	700 mm	2'3.6"/ft.in.	900 mm	2'11.4"/ft.in.
Trenching Width	150 mm	0'5.9"/ft.in.	150 mm	0'5.9"/ft.in.
Flow Rate	80–110 L/min	17.6–24.2 gal/min	90–110 L/min	19.8–24.2 gal/min
Maximum Allowable Pressure	21 MPa	3045.8 psi	21 MPa	3045.8 psi
Compatible Machine Models	Skid-Steer Loader / Excavator
