Land Clearing Machine

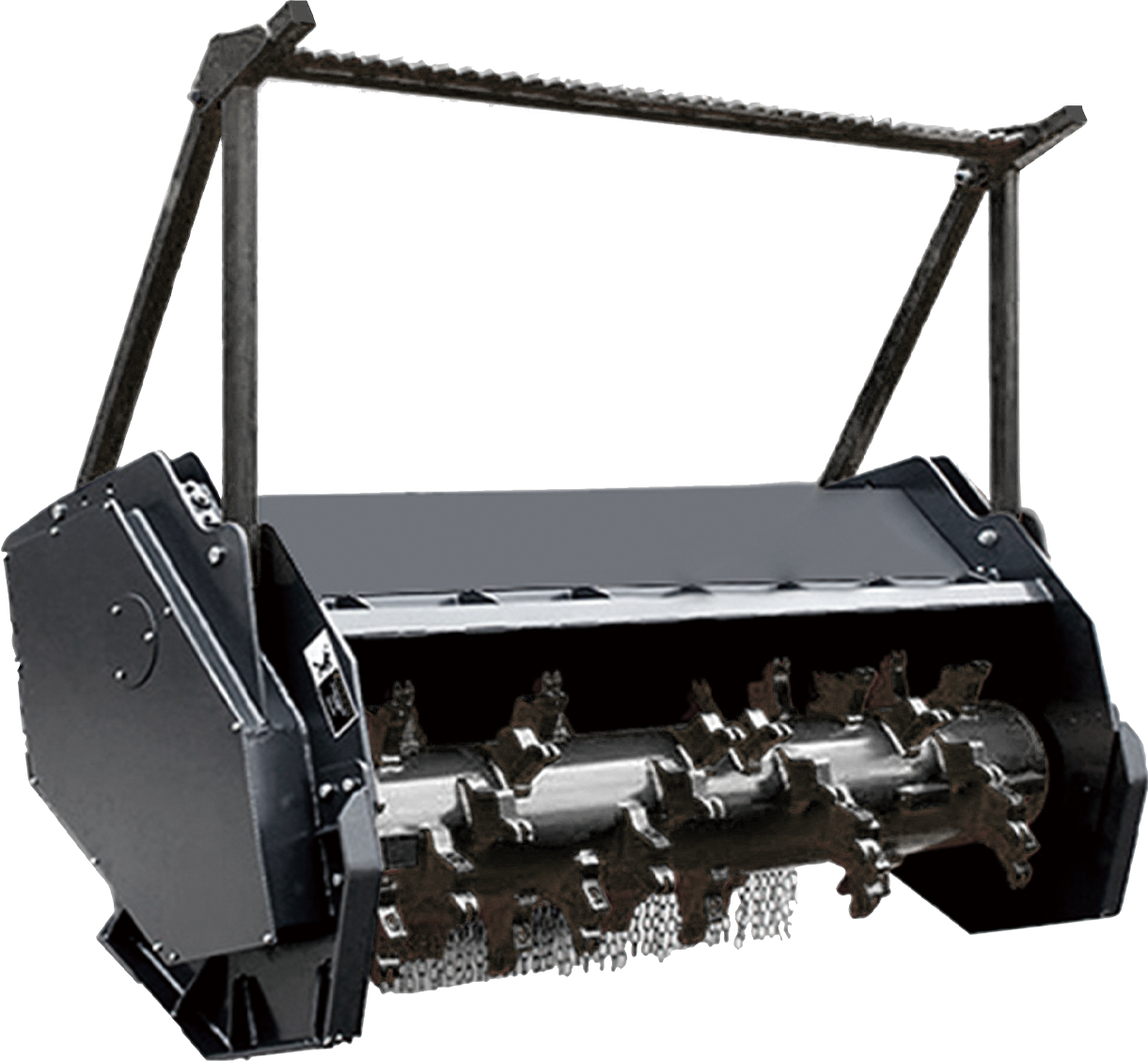

Yuchai Land Clearing Machine

This product is a highly efficient and multi-functional cutting attachment, featuring a replaceable cutter system that offers two blade options: four-sided sharp-edged blades for cutting brush and grinding stumps, and robust hoof shaped blades for groundtilling. It utilizes a variable-speed plunger motor that automatically adjusts rotation based on resistance and comes standardwith a pressure gauge for real-time monitoring ofoperating status.An adjustable front guard frame is mounted on the upper sec-tion to prevent vegetation from falling backward. Custom attachments are available to match specific host machines and working conditions, ensuring flexible and highly efficient operation.

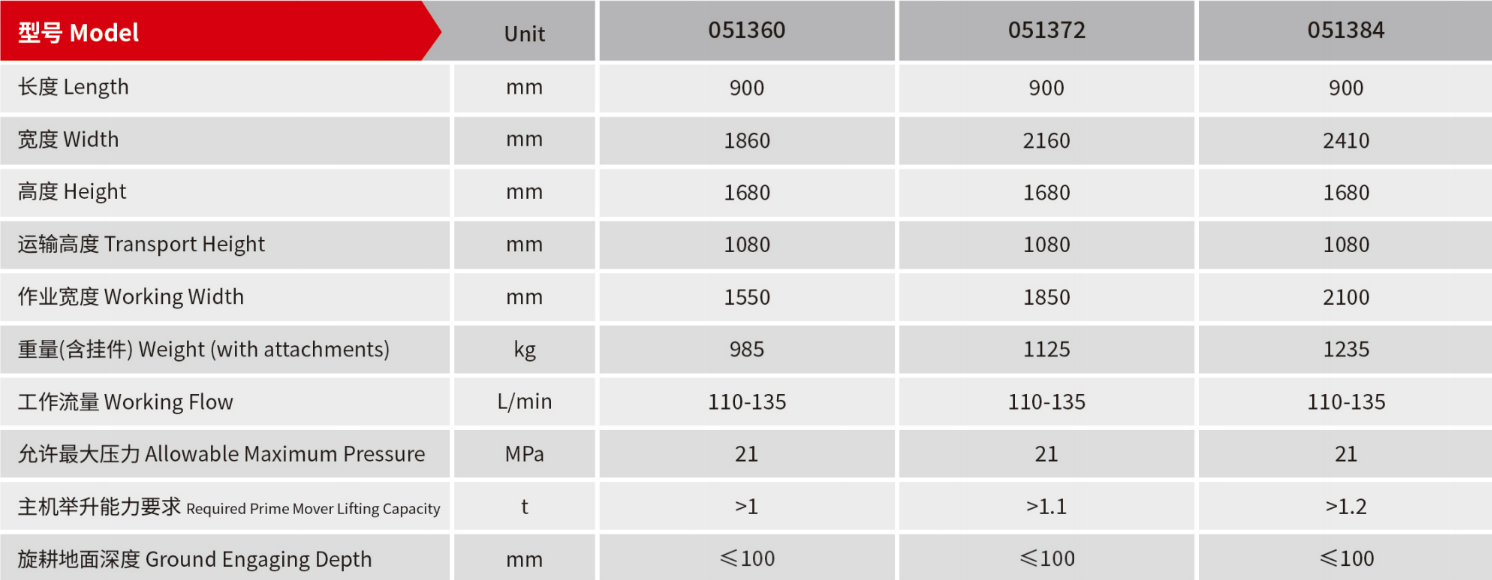

Specifications

ParameterImperial UnitMetric Unit051360 (Imperial)051360 (Metric)051372 (Imperial)051372 (Metric)051384 (Imperial)051384 (Metric)
Lengthft.in.mm2'11.4"9002'11.4"9002'11.4"900
Widthft.in.mm6'1.2"18607'1.0"21607'10.9"2410
Heightft.in.mm5'6.1"16805'6.1"16805'6.1"1680
Transport Heightft.in.mm3'6.5"10803'6.5"10803'6.5"1080
Working Widthft.in.mm5'1.0"15506'0.8"18506'10.7"2100
Weight (with fitting)lbkg2171.69852480.211252722.71235
Working FlowgpmL/min29.1110-13529.1110-13529.1110-135
Allowable Maximum PressurepsiMPa3045.8213045.8213045.821
Required Lifting Capacitytt1.0>11.1>1.11.2>1.2
Ground Engaging Depthft.in.mm≤0'3.9"≤100≤0'3.9"≤100≤0'3.9"≤100
