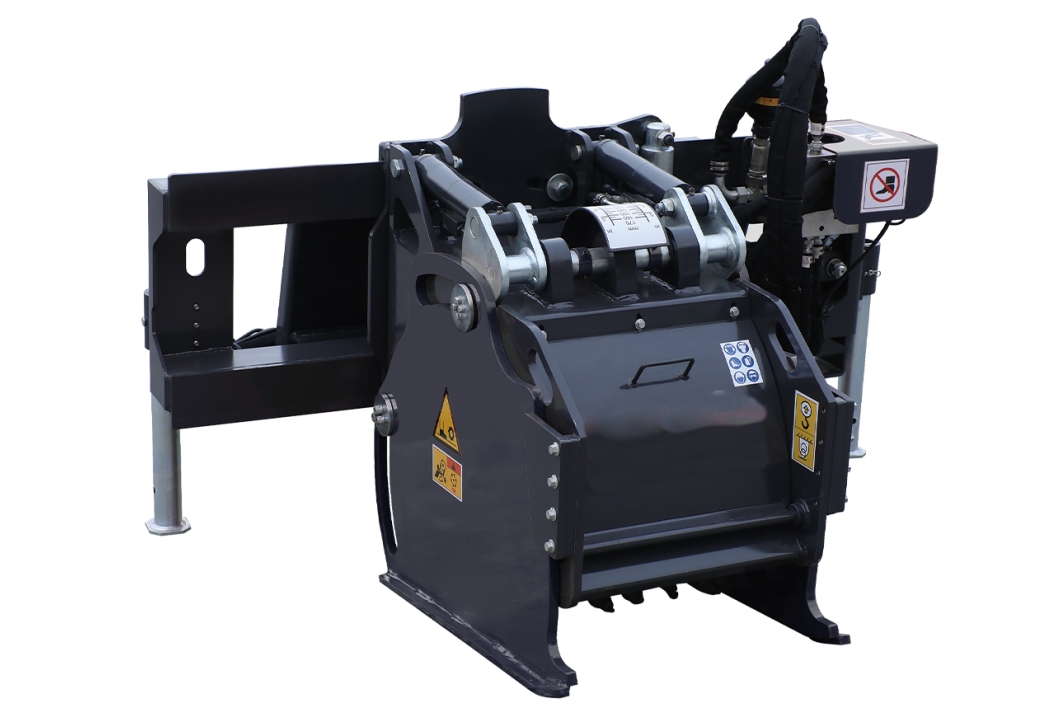

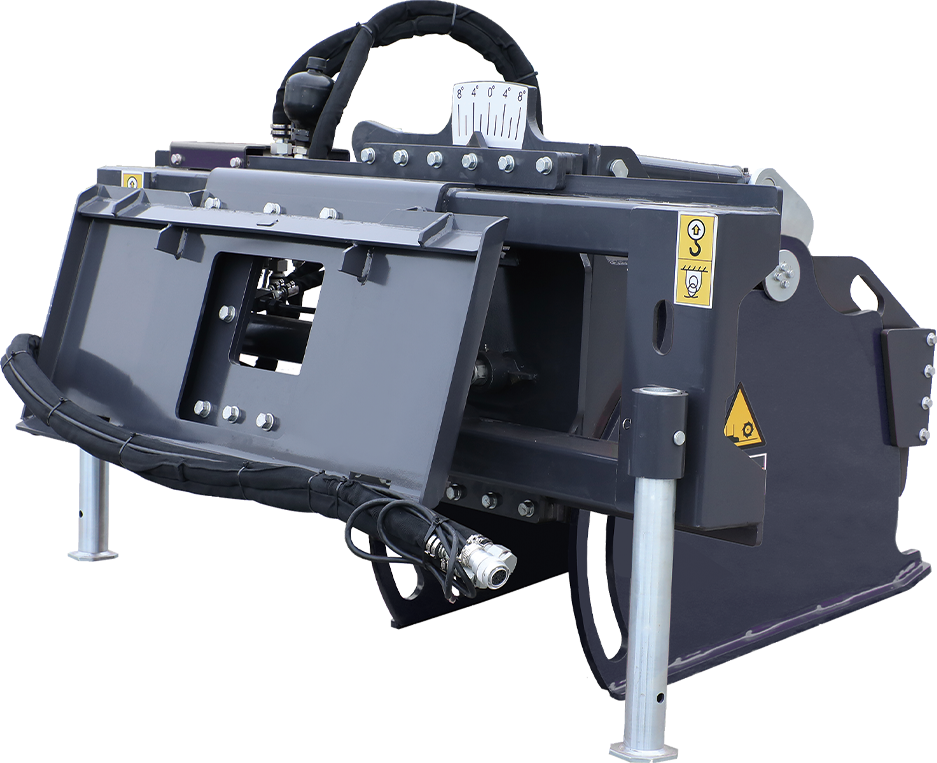

Yuchai Milling Attachment

Milling Attachment

This attachment is compatible with Skid -Steer Loaders equipped with a High-Flow Hydraulic System. It is designed for miling as phalt pavement, with multiple cutter drum sizes available. It can also perform simple scabbling on concrete surfaces. Suitable for removing road markings and crosswalks, as well as grinding concrete pavement to prevent skidding. Its side-shift capability allows for operation without straddling curbs or ditches, ensuring optimal milling results. ​
Inquire Now Next Product

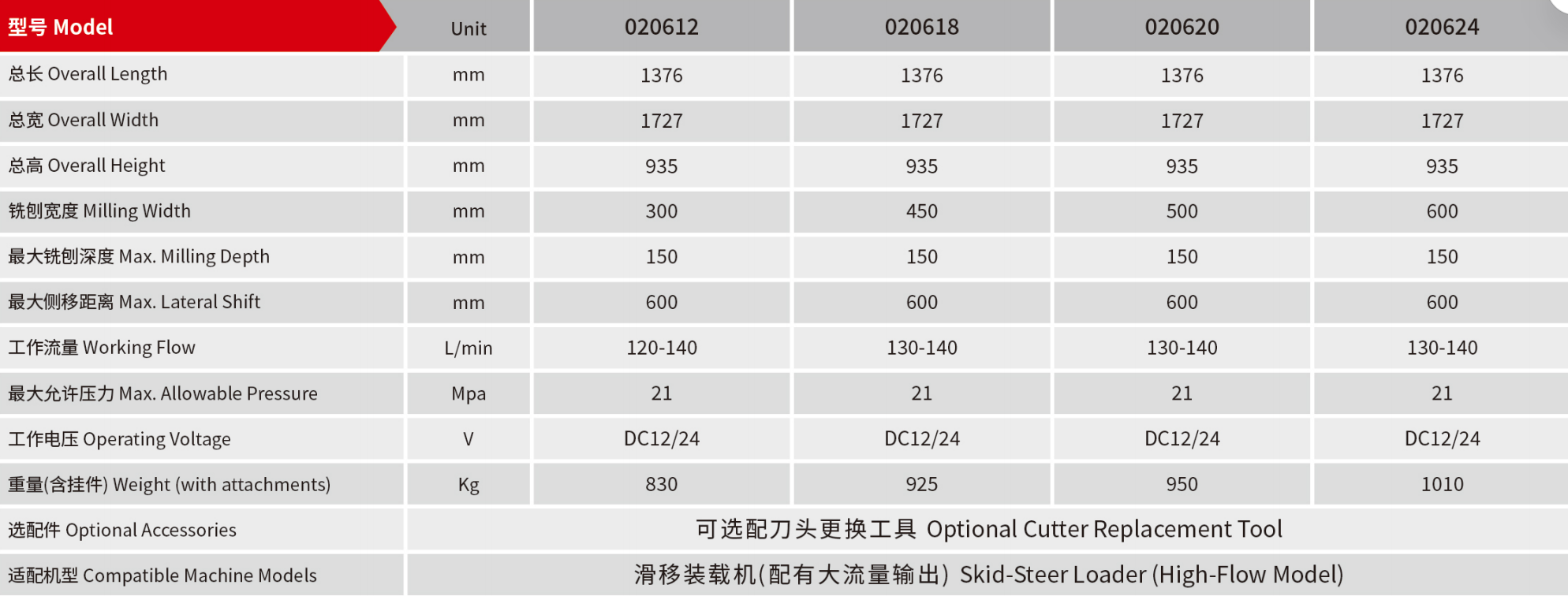

Specifications

ModelUnit020612 Imperial020612 Metric020618 Imperial020618 Metric020620 Imperial020620 Metric020624 Imperial020624 Metric
Overall Lengthft'in."mm4'6.2"13764'6.2"13764'6.2"13764'6.2"1376
Overall Widthft'in."mm5'8.0"17275'8.0"17275'8.0"17275'8.0"1727
Overall Heightft'in."mm3'0.8"9353'0.8"9353'0.8"9353'0.8"935
Milling Widthft'in."mm0'11.8"3001'5.7"4501'7.7"5001'11.6"600
Max. Milling Depthft'in."mm0'5.9"1500'5.9"1500'5.9"1500'5.9"150
Max. Side Shiftft'in."mm1'11.6"6001'11.6"6001'11.6"6001'11.6"600
Theoretical Weightlbkg1829.88301940.18802072.39402226.71010
Working Flowgal/minL/min5.3-7.920-305.3-7.920-305.3-7.920-305.3-7.920-30
Max. Allowable PressurepsiMpa3045.8213045.8213045.8213045.821
Operating VoltageVDCV12/24DC12/2412/24DC12/2412/24DC12/2412/24DC12/24
Optional AccessoryTool Holder for Changing Bits
Applicable MachineSkid-Steer Loader (High Flow)
