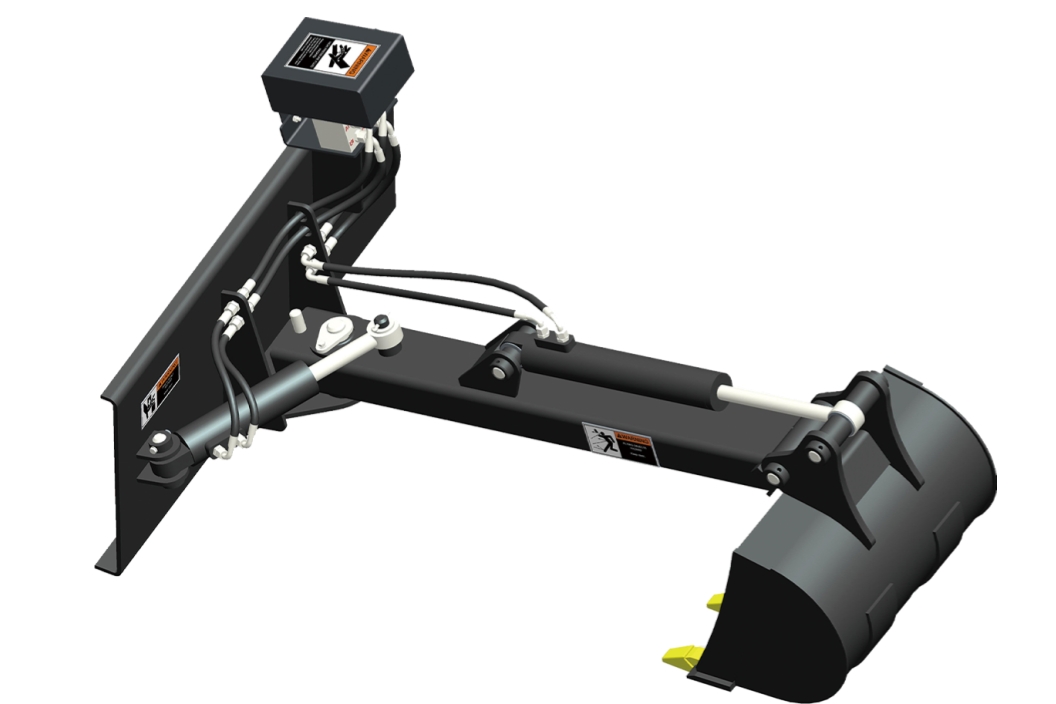

Swinging Excavator Boom

This attachment features a simple structure and canswing side-to-side, significantly increasing its working width. It is compatible with host machines such asskid-steer loaders and is suitable for excavating softsoil and ordinary soil. Designed for applications likedigging trenches and laying pipelines, it is widely usedin construction and operational tasks across trans-portation, municipal works, landscaping, agricultural,and water conservancy projects.

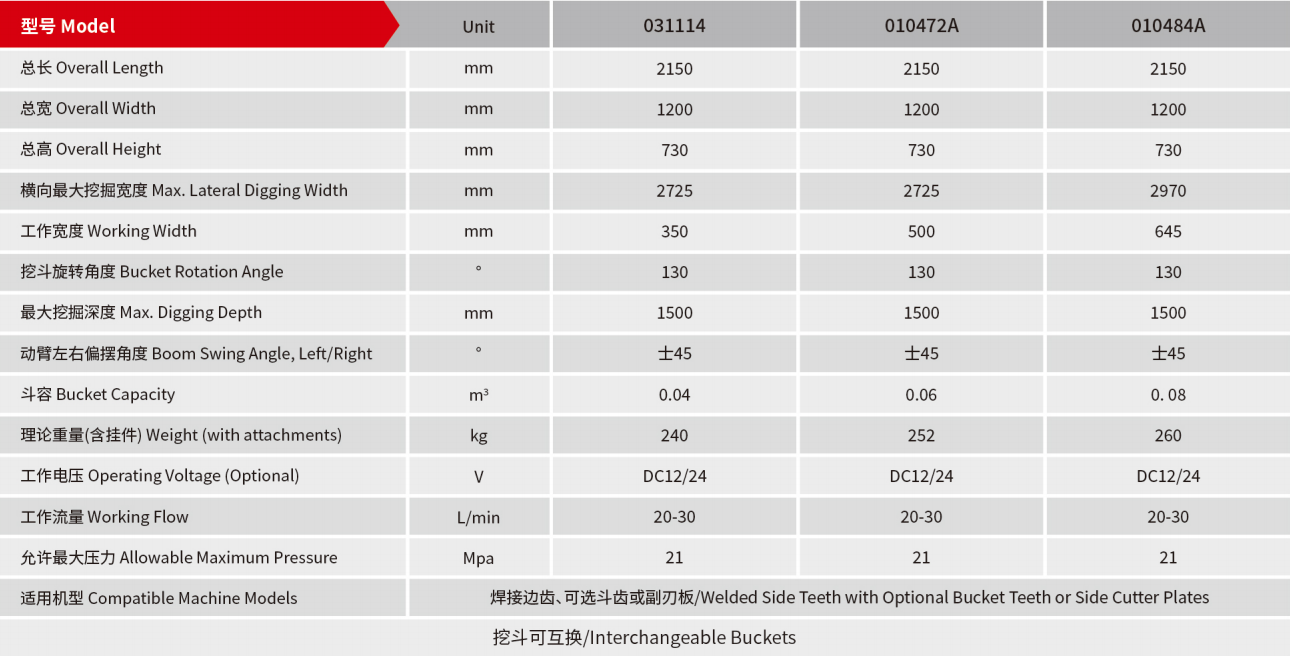

Specifications

ParameterUnit31114 Imperial31114 Metric010472A Imperial010472A Metric010484A Imperial010484A Metric
Overall Lengthft'in."mm7'0.6"21507'0.6"21507'0.6"2150
Overall Widthft'in."mm3'11.2"12003'11.2"12003'11.2"1200
Overall Heightft'in."mm2'4.7"7302'4.7"7302'4.7"730
Max. Digging Depthft'in."mm4'11.1"15004'11.1"15004'11.1"1500
Max. Digging Widthft'in."mm9'10.1"300011'5.8"350013'1.5"4000
Working Widthft'in."mm6'10.7"21007'6.6"23008'2.4"2500
Bucket Capacityft³2.10.062.80.083.50.1
Theoretical Weightlbkg837.8380925.94201014.1460
Boom Swing Angle°°±45±45±45±45±45±45
Bucket Rotation Angle°°130130130130130130
Operating VoltageVDCV12月24日DC12/2412月24日DC12/2412月24日DC12/24
Working Flowgal/minL/min5.3–7.920-305.3–7.920-305.3–7.920-30
Allowable Max. PressurepsiMpa3045.8213045.8213045.821
Applicable Machine:Skid-Steer Loader / Compact Loader
Interchangeable Buckets
