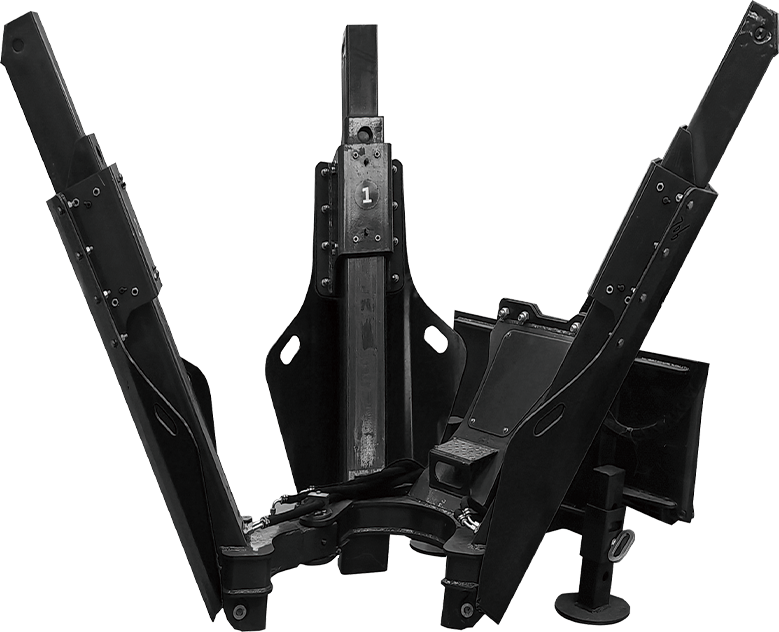

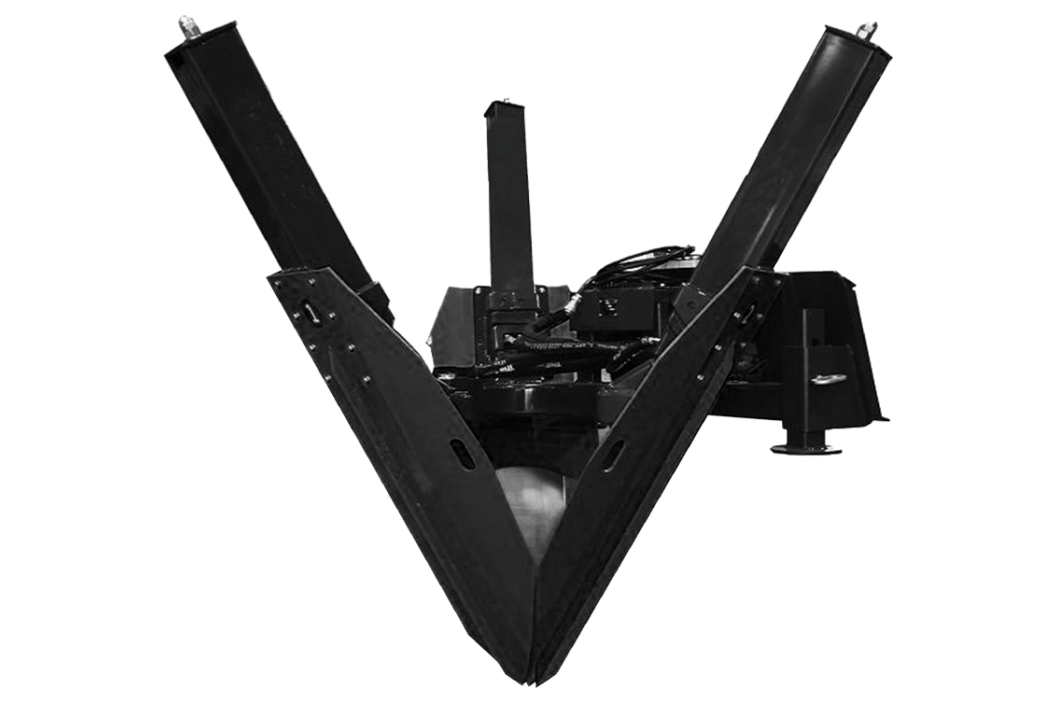

Yuchai Tree Spade

Tree Spade

Adjustable root ball diameter for greater ap-plication versatility. The operator can complete the entire pro-cess of digging, transporting, and planting treeswithout leaving the host machine. During excavation, the attachment pre-serves soil integrity around the tree and minimiz-es damage to the root system.

When paired with a compact loader, the customer is advised to install appropriate (bucket curl/dump) stop blocks based on the specific host machine configuration.



Inquire Now Next Product

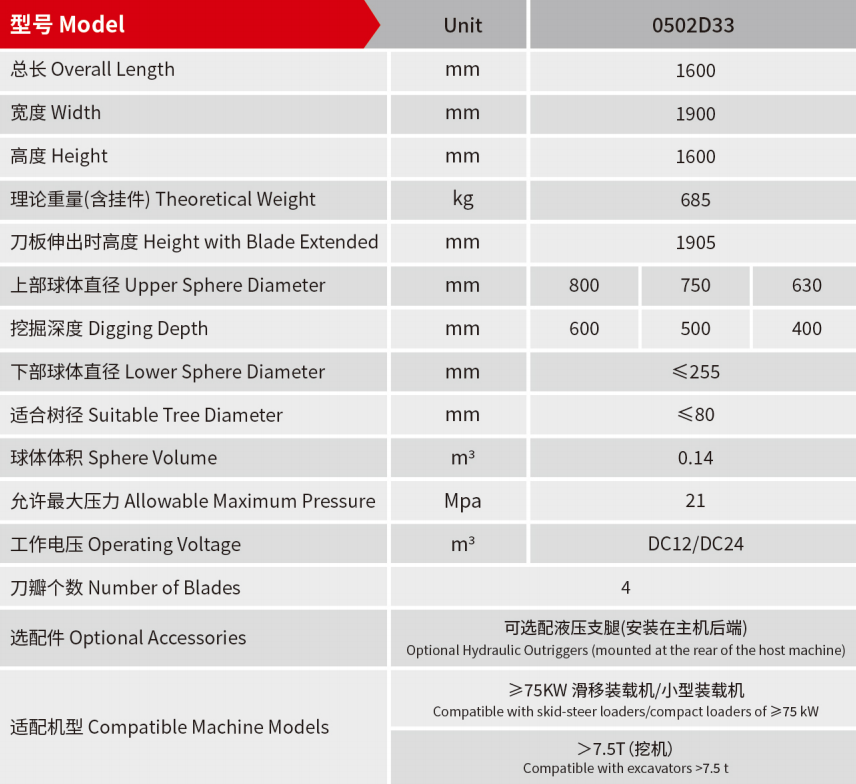

Specifications

ParameterImperial UnitImperialMetric UnitMetric
Overall Lengthft.in.5'3.0"mm1600
Widthft.in.6'2.8"mm1900
Heightft.in.5'3.0"mm1600
Theoretical Weight（with fittings）lb1510.2 lbkg685
Height with Blade Extendedft.in.6'3.0"mm1905
Upper Sphere Diameterft.in.2'7.5" / 2'5.5" / 2'0.8"mm800 / 750 / 630
Digging Depthft.in.1'11.6" / 1'7.7" / 1'3.7"mm600 / 500 / 400
Lower Sphere Diameterft.in.≤0'10.0"mm≤255
Suitable Tree Diameterft.in.≤0'3.1"mm≤80
Sphere Volumeft³4.9 ft³m³0.14
Allowable Maximum Pressurepsi3045.8 psiMpa21
Operating VoltagevDC12/DC24vDC12/DC24
Number of Blades4
Optional AccessoriesOptional Hydraulic Outriggers (mounted at the rear of the host machine)
Compatible Machine Models

Skid-steer loaders / compact loaders of ≥75 k

WCompatible with skid-steer loaders/compact loaders of ≥75 kW


Excavators >7.5 t

Compatible with excavators >7.5 t



Related Products

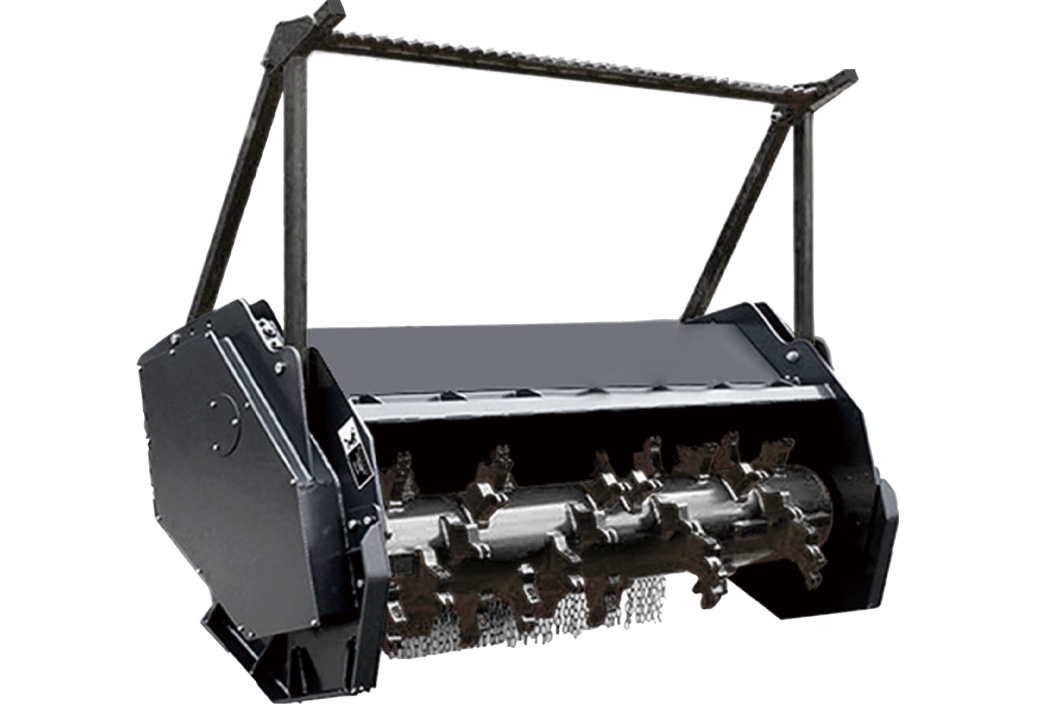

Land Clearing Machine
Land Clearing Machine Yuchai Land Clearing Machine
Industrial Grapple
Industrial Grapple

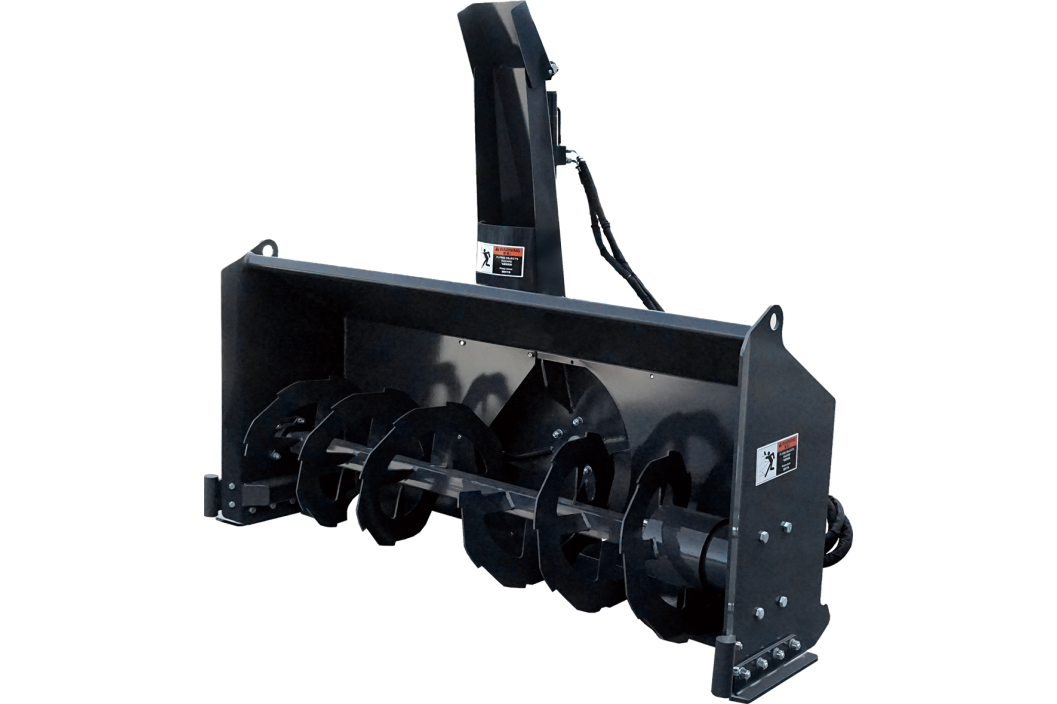

Skid Steer Snow Thrower
Skid Steer Snow Thrower
Large Shear Grab
Large Shear Grab

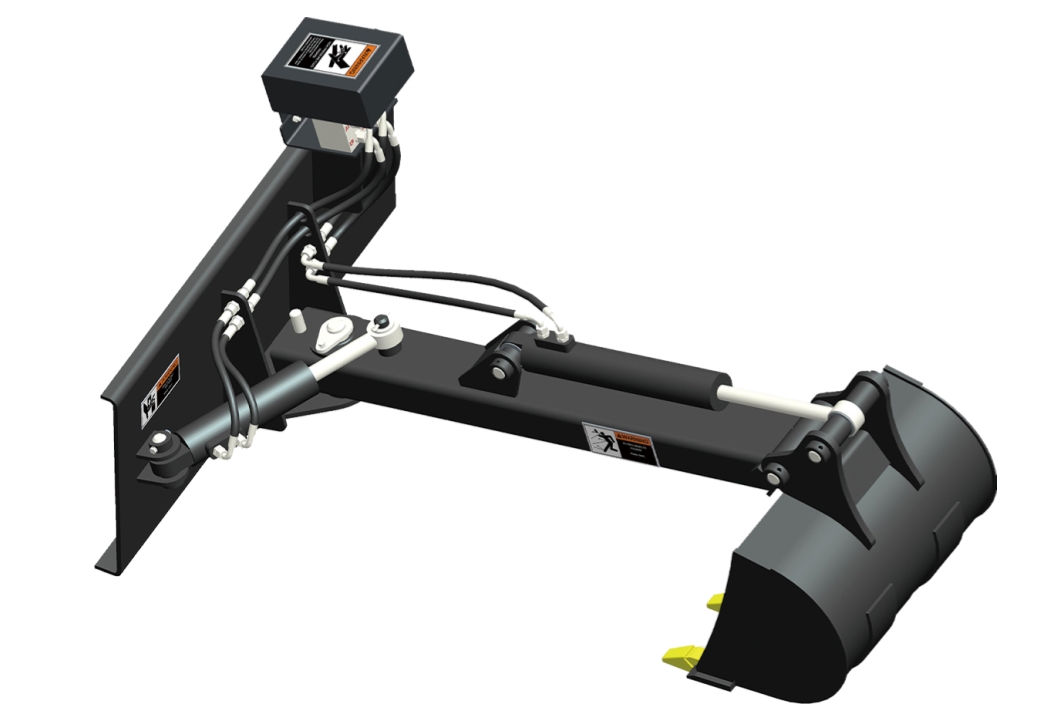

Swinging Excavator Boom
Swinging Excavator Boom This attachment features a simple structure and canswing side-to-side, significantly increasing its working width. It is compatible with host machines such asskid-steer loaders and is suitable for excavating softsoil and ordinary soil. Designed for applications likedigging trenches and laying pipelines, it is widely usedin construction and operational tasks across trans-portation, municipal works, landscaping, agricultural,and water conservancy projects.

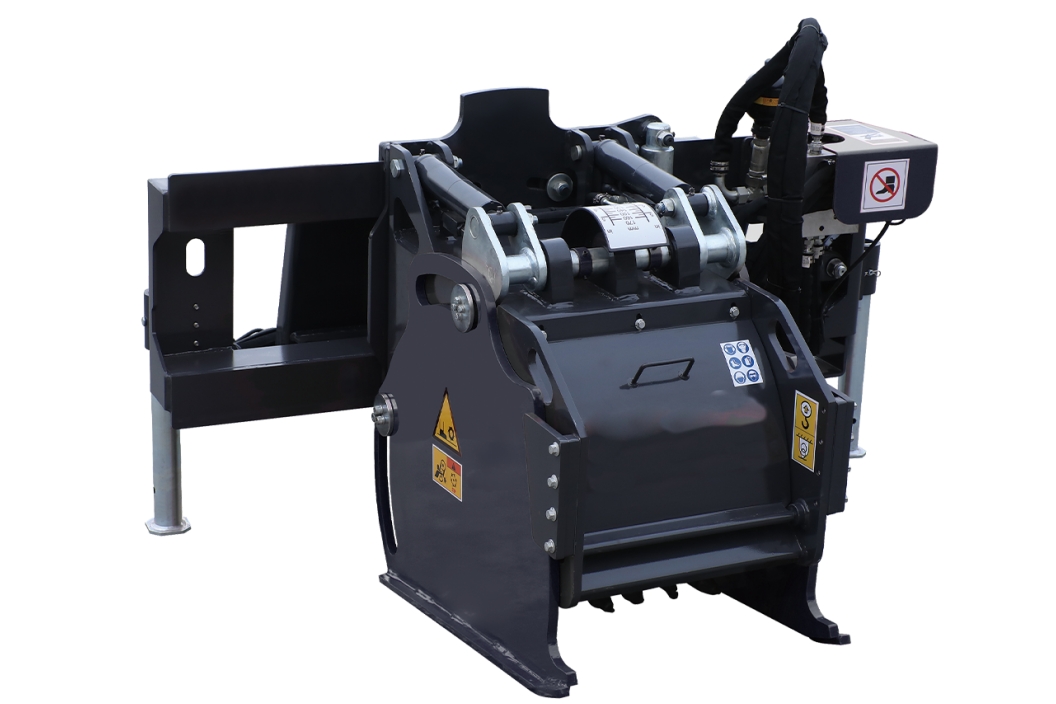

Milling Attachment
Milling Attachment This attachment is compatible with Skid -Steer Loaders equipped with a High-Flow Hydraulic System. It is designed for miling as phalt pavement, with multiple cutter drum sizes available. It can also perform simple scabbling on concrete surfaces. Suitable for removing road markings and crosswalks, as well as grinding concrete pavement to prevent skidding. Its side-shift capability allows for operation without straddling curbs or ditches, ensuring optimal milling results. ​

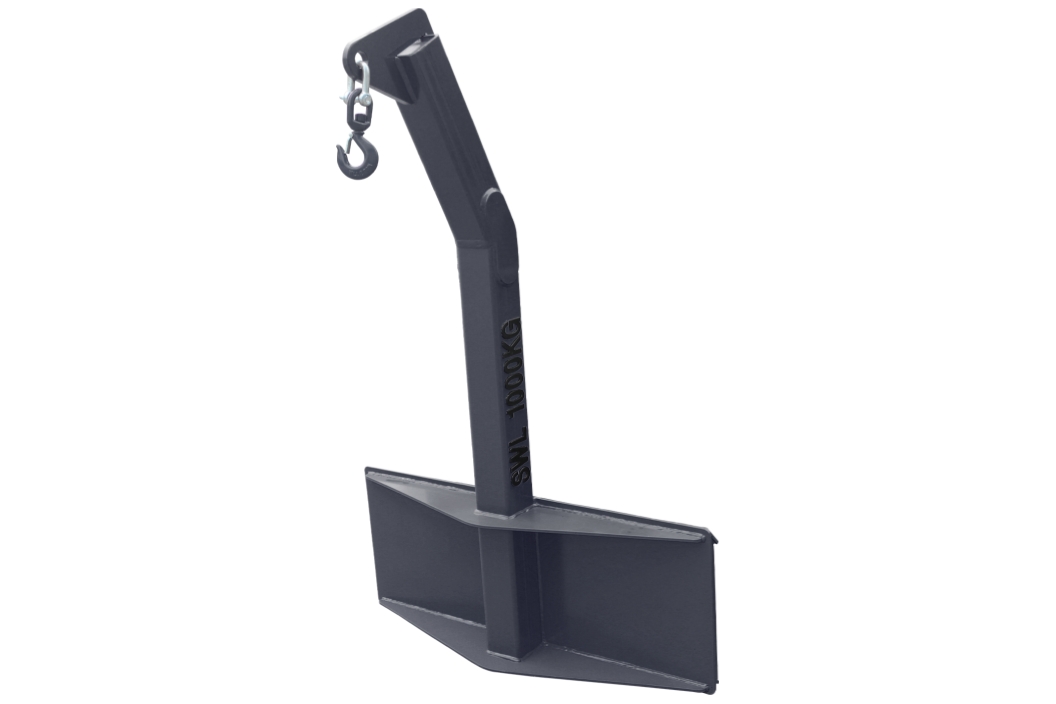

Lifting Hook
Lifting Hook This versatile Lifting Hook is designed forhoisting a wide range of goods and is suitablefor material-handling operations in ware-houses, wharves, and similar sites. Whenpaired with a compact loader, the customeris advised to install appropriate (bucketcurl/dump) stop blocks based on the specifichost machine configuration.

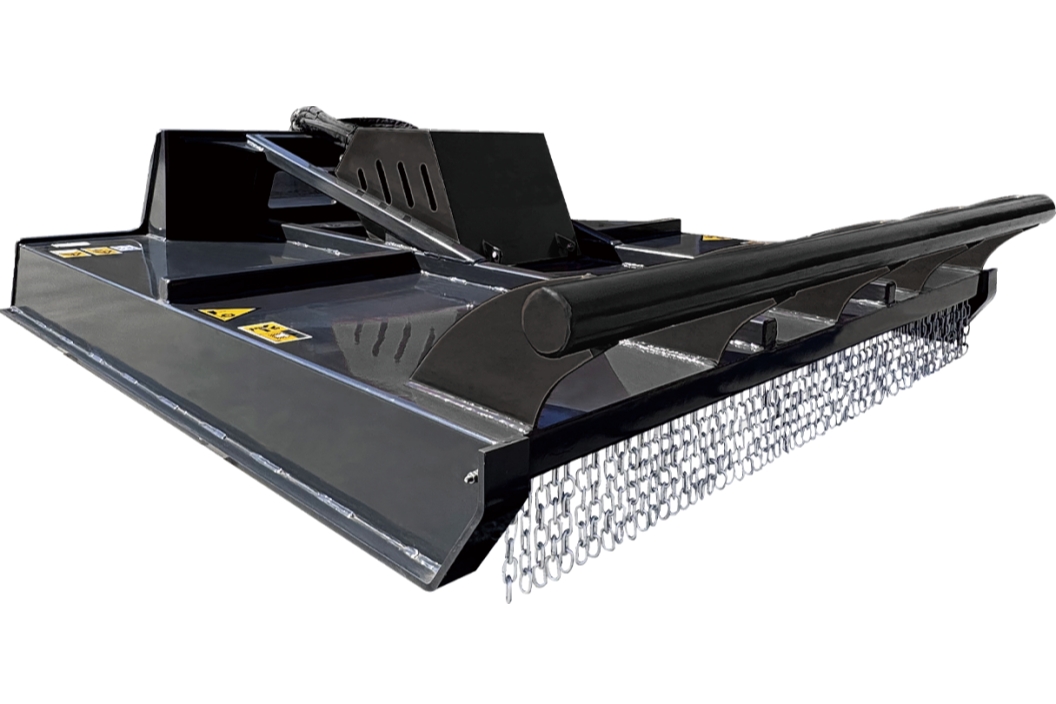

Mowing Attachment
