Structural Features:
The structure is designed to be compact, lightweight, easy to operate, efficient in operation, easy to maintain, and reliable and durable.
Usage Scenarios:

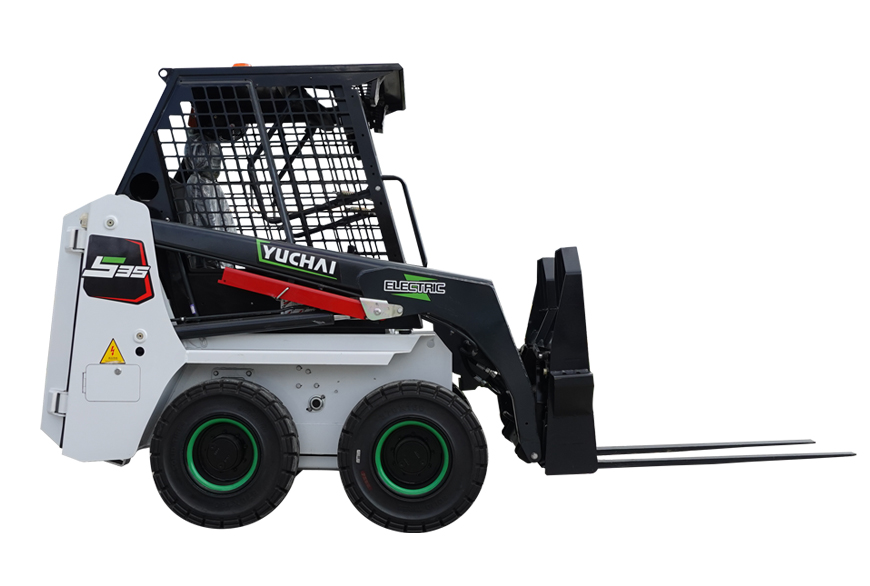

It is mounted on S35 skid steer loaders and products of equivalent tonnage. With this attachment, goods can be efficiently transported, making it convenient and widely applicable in scenarios such as logistics, warehouses, and factories.
Specifications
| Parameter | Imperial Unit | Metric Unit | Imperial S35EA1-1801000 | Metric S35EA1-1801000 |
| Overall Length (A) | ft'in" | mm | 3'7.7" | 1109 |
| Overall Width (B) | ft'in" | mm | 4'7.1" | 1400 |
| Overall Height (C) | ft'in" | mm | 2'1.2" | 639 |
| Product Weight | lb | kg | 451.9 | 205 |
| Working Width | ft'in" | mm | 2'11.4" | 900 |
| Brush Blade Diameter | ft'in" | mm | 1'10.0" | 560 |
| Rotation Speed | rpm | rpm | 200-300 | 200-300 |
| Hydraulic Pressure | psi | MPa | 1450.4-2030.5 | 10～14 |
| Flow Rate | gpm | L/min | 7.9-13.2 | 30～50 |
