1.Powerful Kubota Engine
2.Exceptional Performance
3.High Efficiency and Low Fuel Consumption

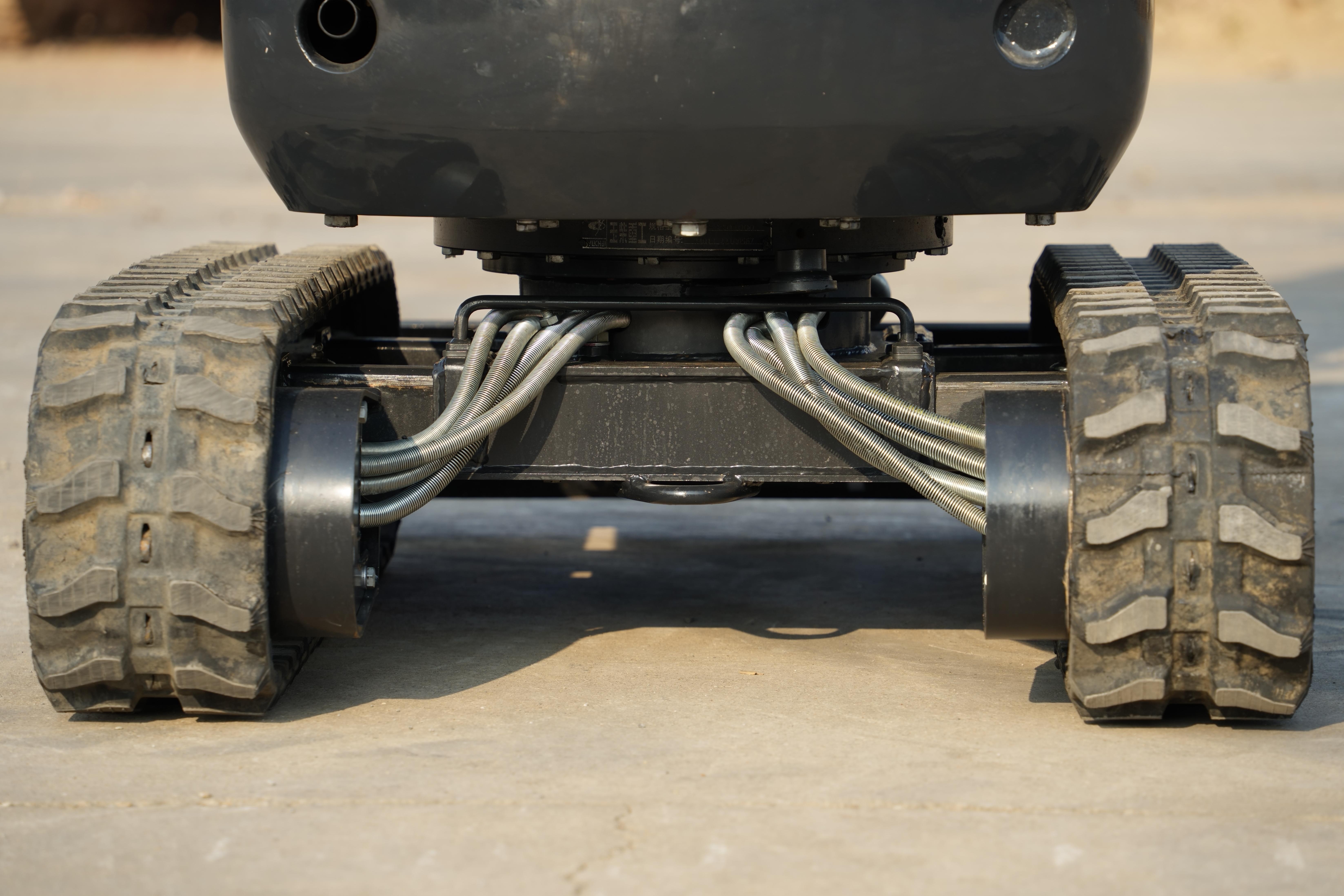

4.Telescopic Chassis

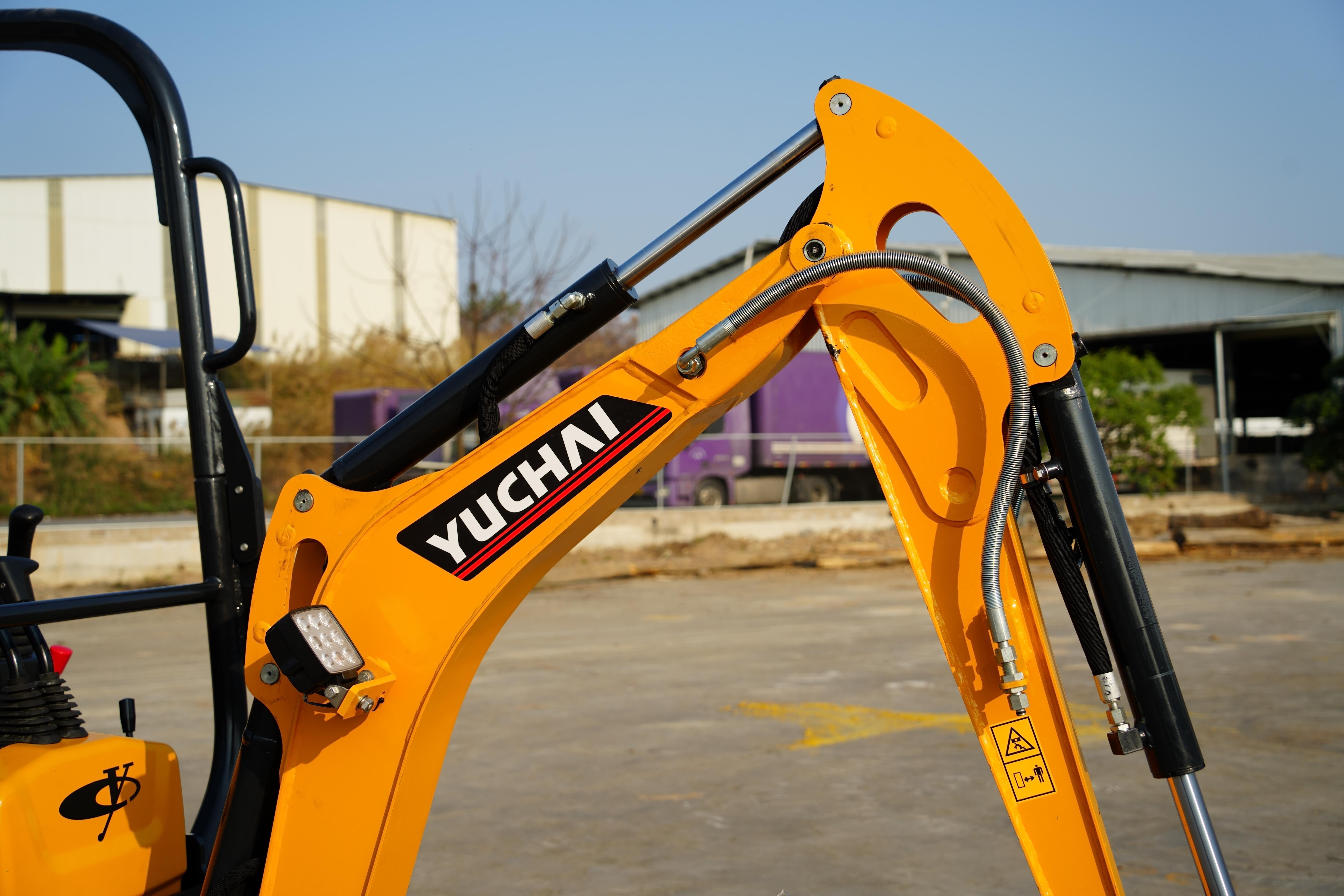

5.Standard Arm's Digging Force: 5.4 kN

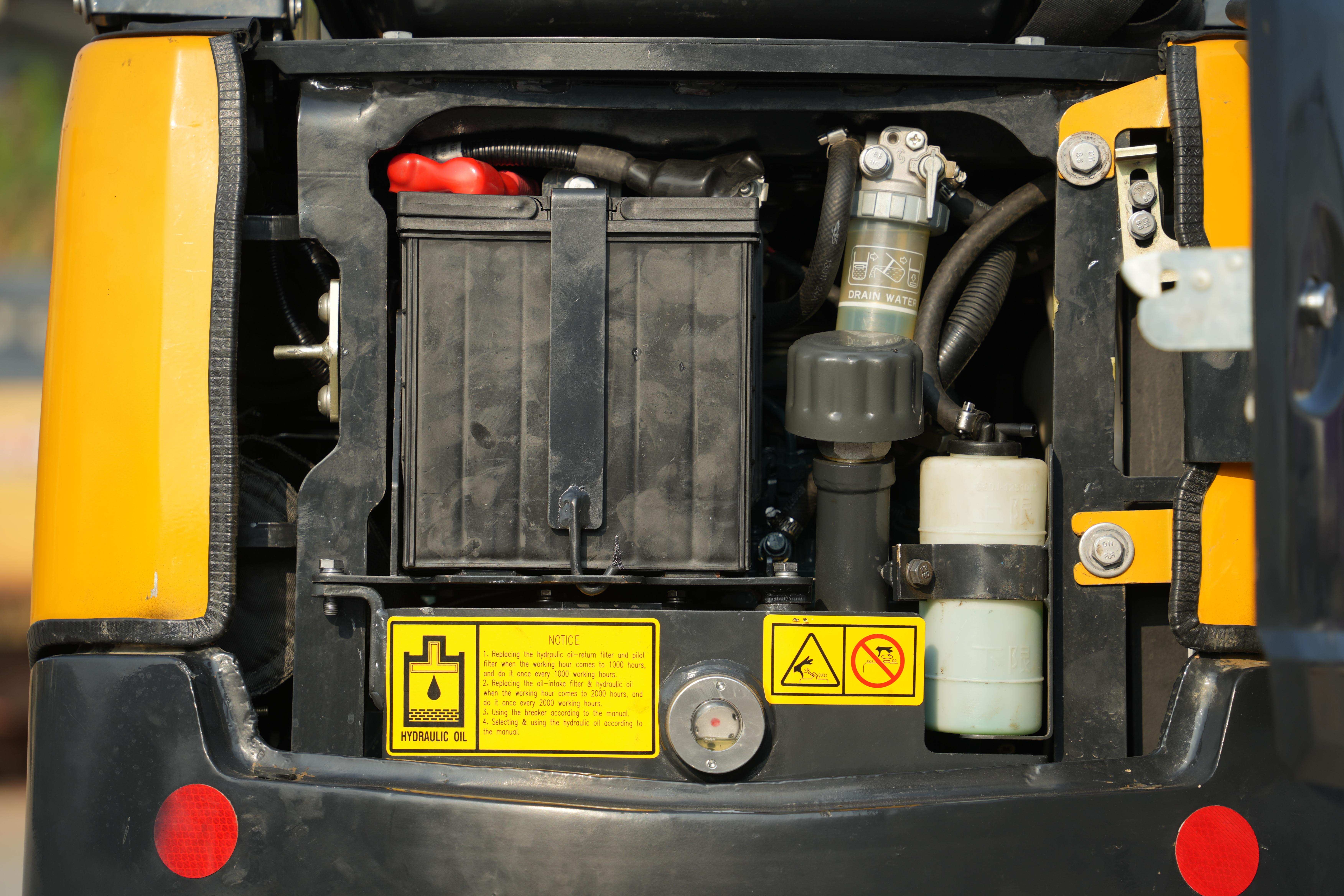

6.Easy Maintenance

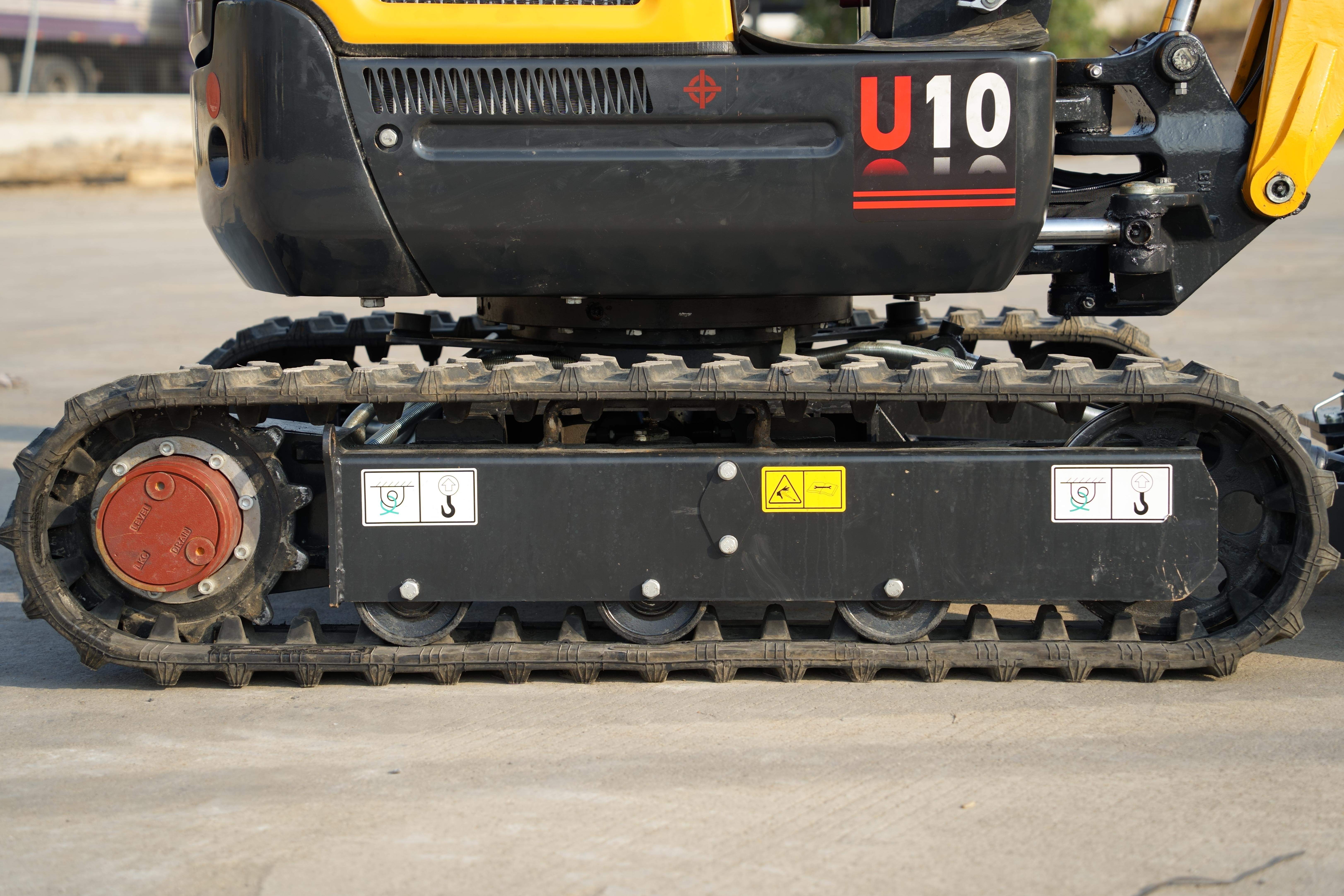

7.Equipped with Standard Rubber Tracks
1.Standard Arm's Digging Force: 5.4 kN (market-leading performance) 2.Dual-arm versatility: Standard/extended arm can meet the needs of different working conditions 3.Key specs: 0.026m³ bucket |7.5~8.5 rpm swing|10.4kN bucket digging force. 4.Robust construction: The heavy-duty machine structure, engineered for China's demandingapplications, handles North American and European iob sites with ease.
Specifications
| Basic parameters | ||
| Machine weight | kg | 1050 |
| Bucket capacity | m³ | 0.02~0.026 |
| Width of bucket | mm | 356 |
| Performance parameters | ||
| Engine model | Kubota D722 | Kubota D722 |
| Emission Standard | （Euro V /EPA Tier 4F/CN IV） | 欧五 / T4 / 国四（Euro V /EPA Tier 4F/CN IV） |
| Engine power | kW/rpm | 10.2/2500 |
| Max. Gradeability | ° | 30 |
| Max. digging force of arm | kN | 5.4 |
| Max. digging force of bucket | kN | 10.4 |
| Traveling speed | km/h | 3.0/1.5 |
| Max. hauling force | kN | 22.5 |
| Slewing speed of platform | rpm | 7.5~8.5 |
| Operating parameters | ||
| Max. digging height | mm | 3110 |
| Max. digging depth | mm | 2000 |
| Max. digging radius | mm | 3465 |
| Max. digging radius on ground level | mm | 3420 |
| Max. dumping height | mm | 2130 |
| Min. slewing radius | mm | 1365 |
| Max. vertical digging depth | mm | 2000 |
| Transportation dimensions | ||
| Overall length | mm | 2985 |
| Overall width | mm | 750 |
| Overall height | mm | 2290 |
| Other Parameters | ||
| Width of undercarriage | mm | 750/990 |
| Length of track | mm | 1365 |
| Width of track | mm | 180 |
| Minimum ground clearance | mm | 155 |
| Height between platform and ground | mm | 400 |
| Platform tail turning radius | mm | 565 |
| Length to center of rollers | mm | 1040 |
| Fuel tank capacity | L | 11 |
| Hydraulic oil tank capacity | L | 12 |
| Track gauge | mm | 570/810 |
| Working Pressure | P1=P2=17.2MPa | P1=P2=17.2MPa |
| Flow rate | P1=P2=10.5 L/Min | P1=P2=10.5 L/Min |
| AUX 1 Ｐressure/ Flow rate | 17.2 MPa/21 L/Min | 17.2 MPa/21 L/Min |
| Arm length | mm | 900 |
| Boom length | mm | 1450 |

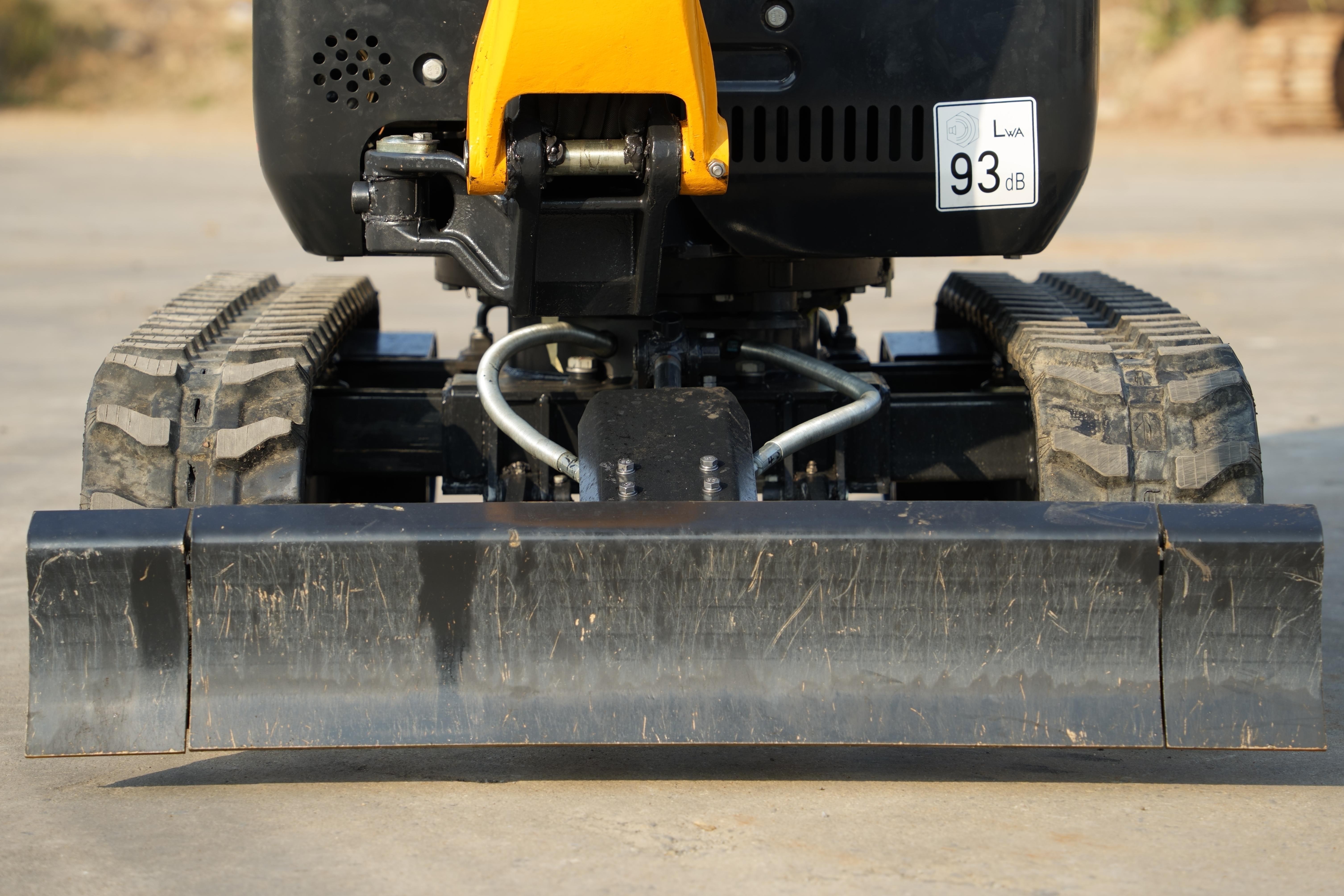

| Max. lifting height of the dozer blade | mm | 215 |
| Steering head angle | 55°(L)/55°（R） | 55°(L)/55°（R） |

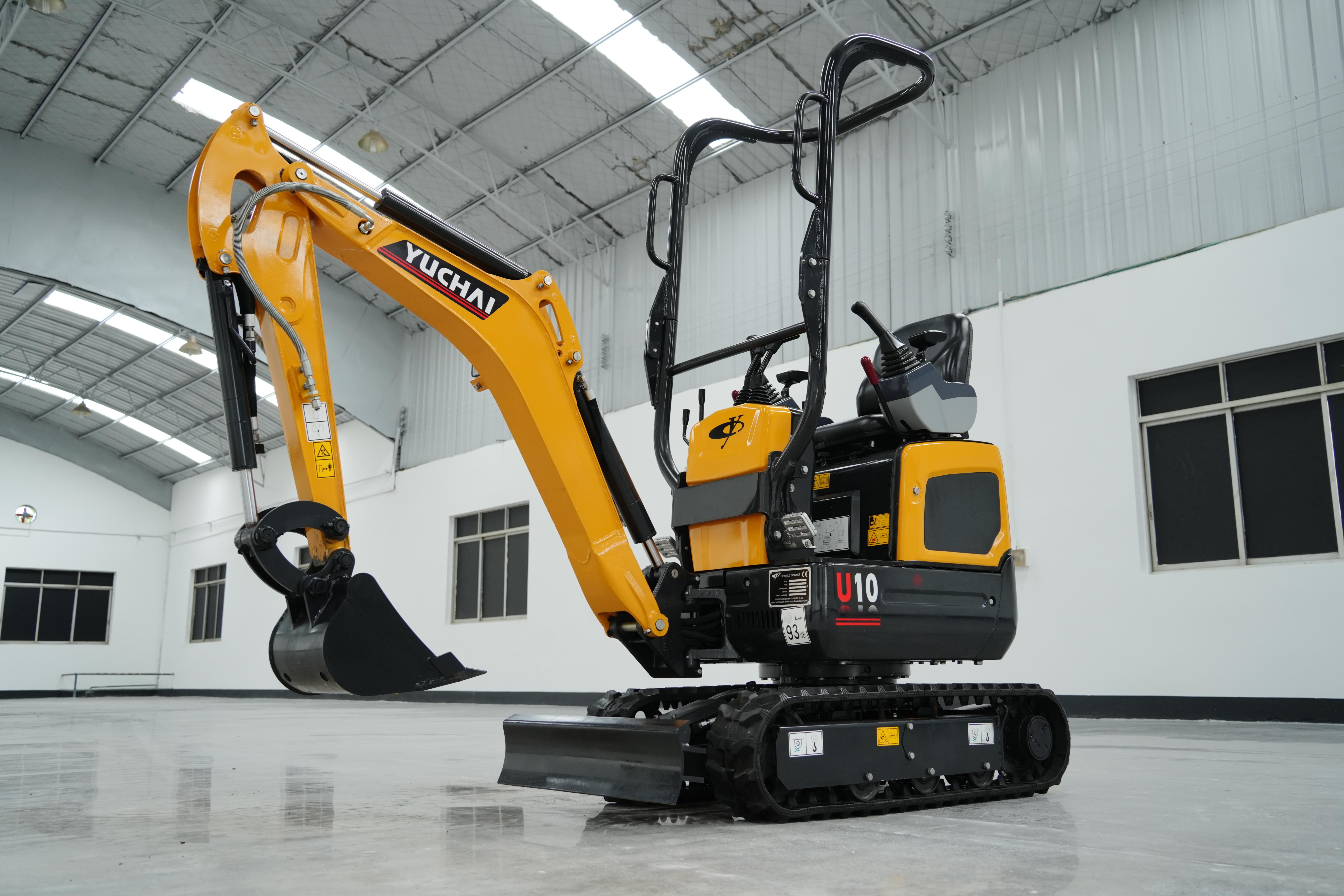

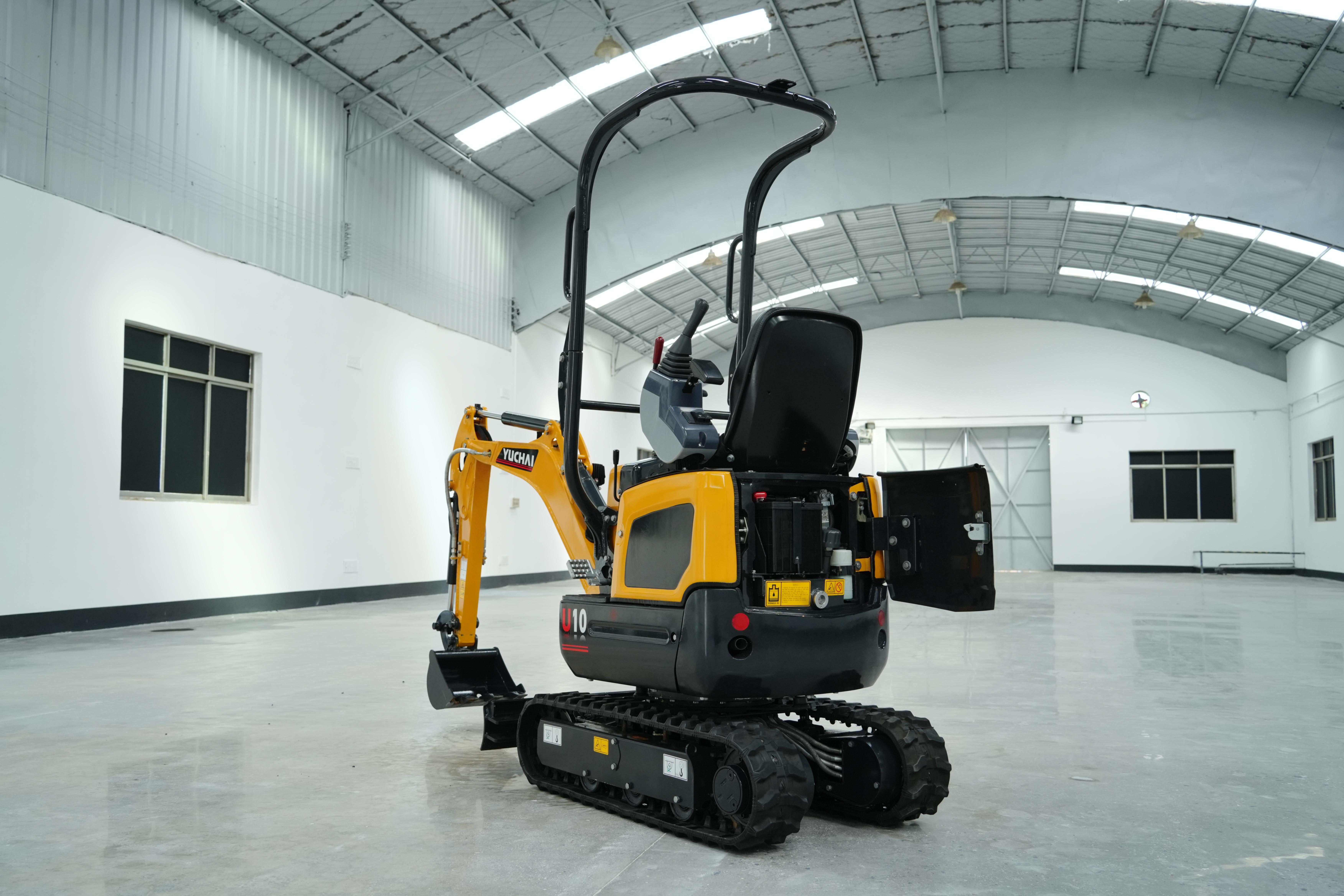

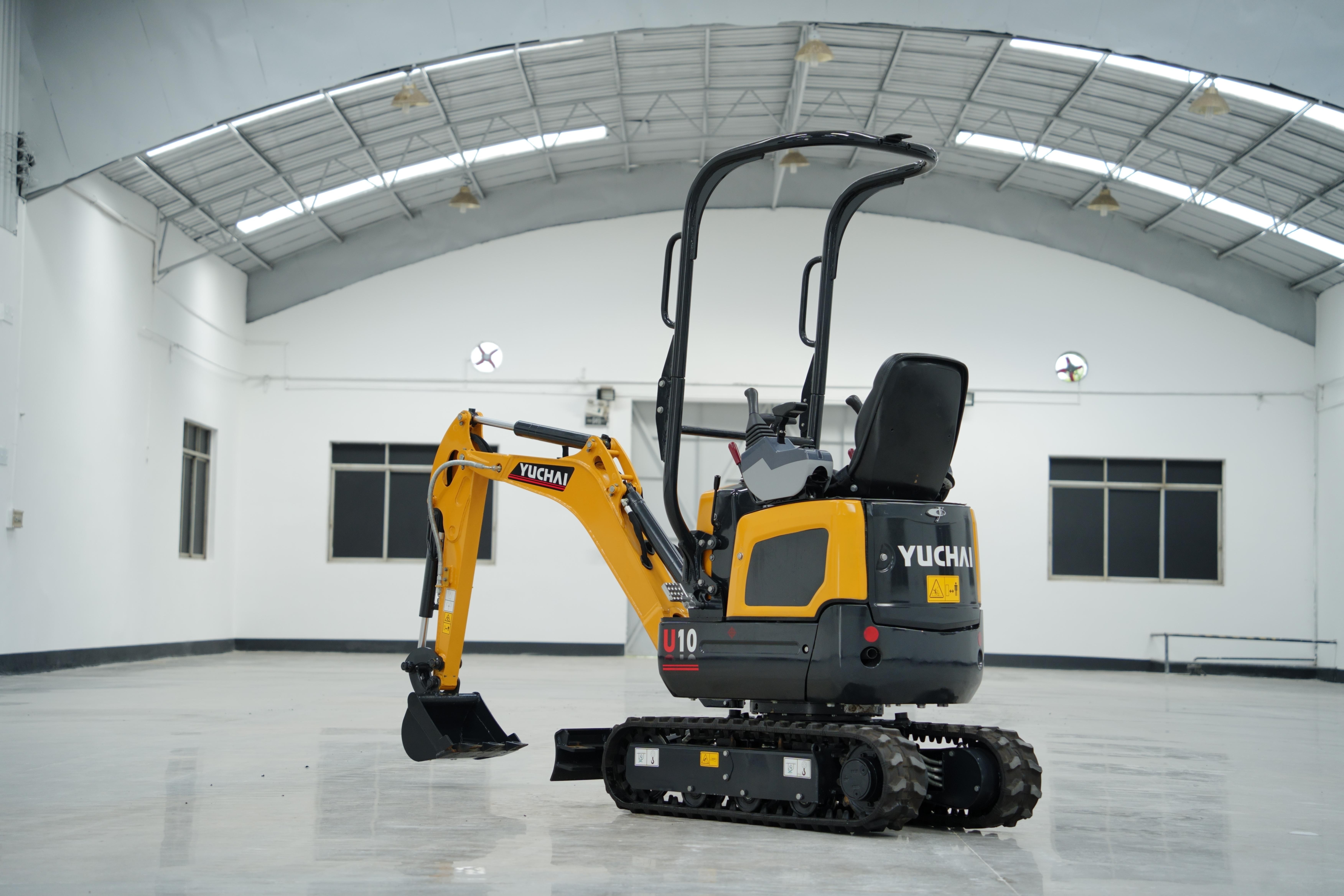

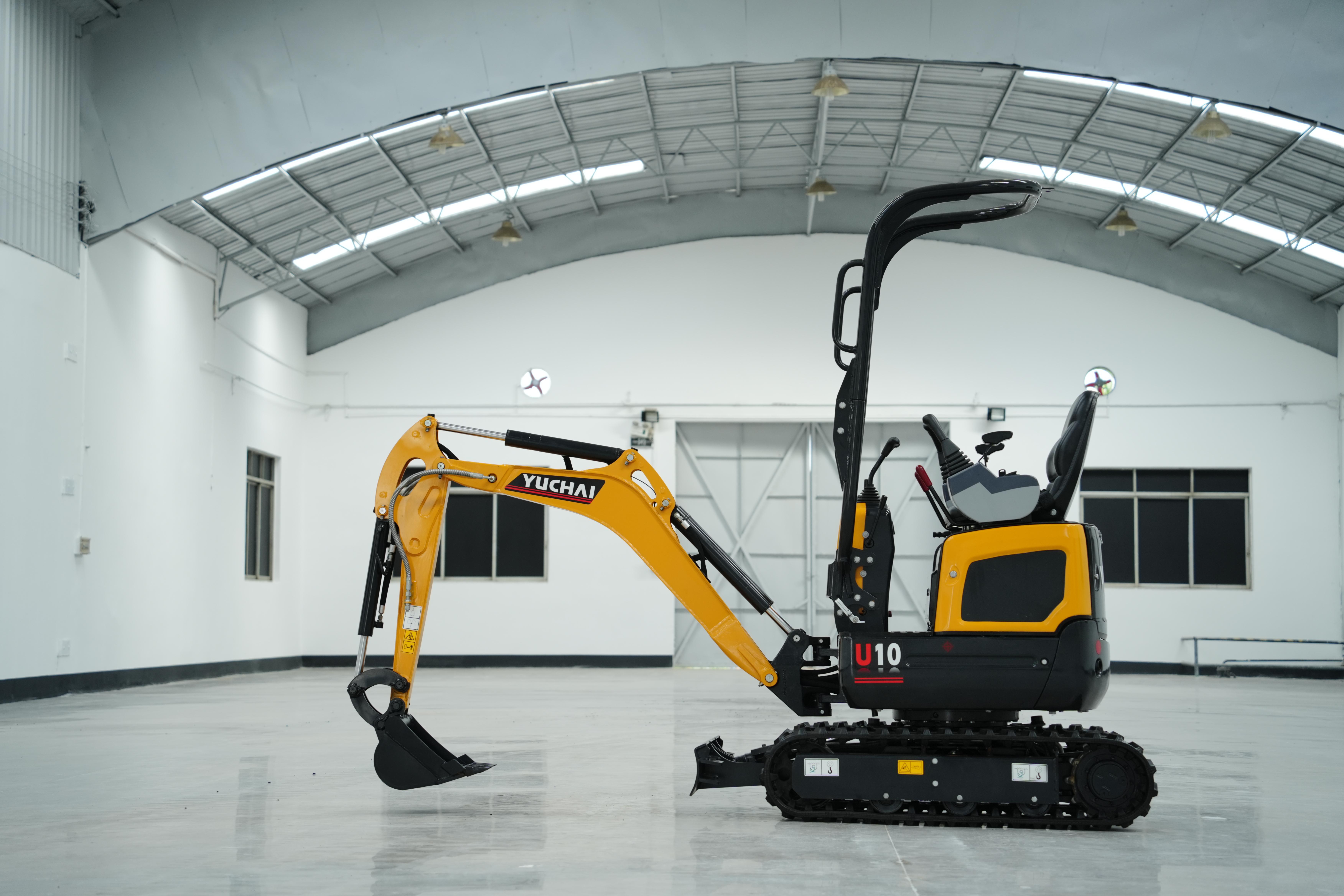

Gallery
