Machine weight: 3860 kg
Bucket capacity: 0.12 m³
Width of bucket: 617 mm
Performance parameter
Max. Gradeability: 35°

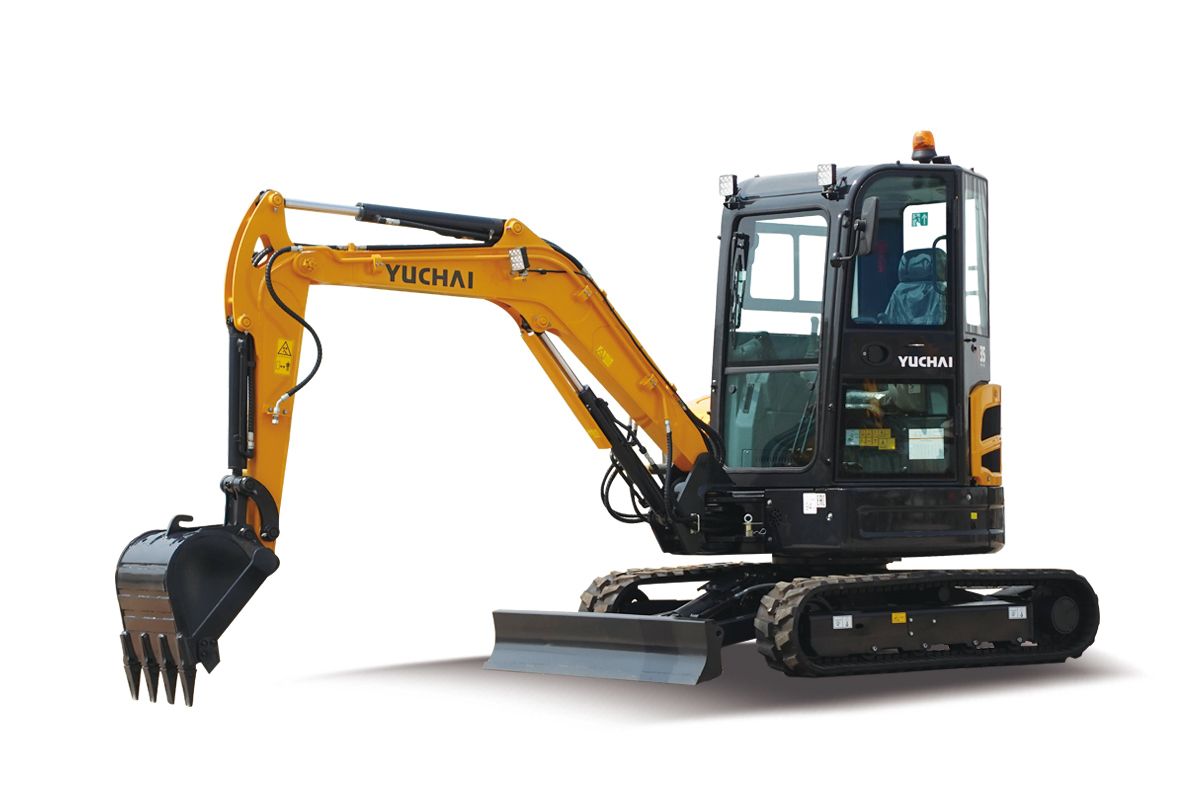

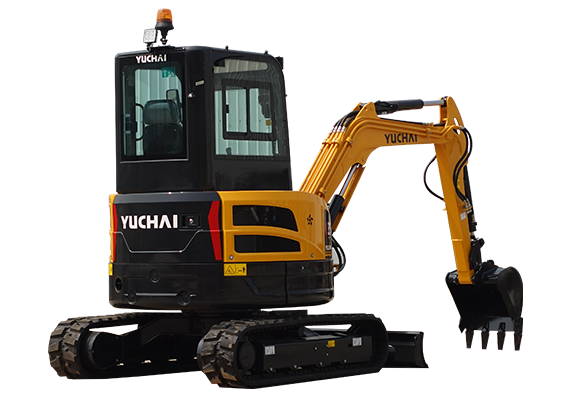

Tailless Excavator
U35 has unique tailless rotation. Compared with other large excavators, it is smaller, faster and more flexible in transportation. We were the trailblazers in introducing zero tail swing technology for mini excavators, and we didn't stop there; we elevated it to perfection. The U35 stands as a robust illustration of this efficiency in compact workspaces. With zero tail swing, operators can confidently navigate tight spaces, as no part of the cab or canopy extends beyond the track width. This feature empowers you to take on a broader range of tasks in confined areas.
Practical and Elegant
U35 is equivalent to the productivity of 20 workers and is compatible with more than 30 types of attachments. Additionally, its left and right deflection device has garnered favor from consumers worldwide.
Comfortable Driving Experience
The beautiful appearance and humanized design of the cabin lead to comfortable driving experiences; With high-strength steel of all parts, it is safe and reliable.
YUCHAI Mini Excavator
Founded in 1989, Yuchai Heavy Industry is the earliest excavator company in China to produce mini excavators and sell them to the world. It is the largest production and export base of small excavators in China and a national high-tech enterprise.
More than 30 years of innovation and development, providing customers with high quality assurance!

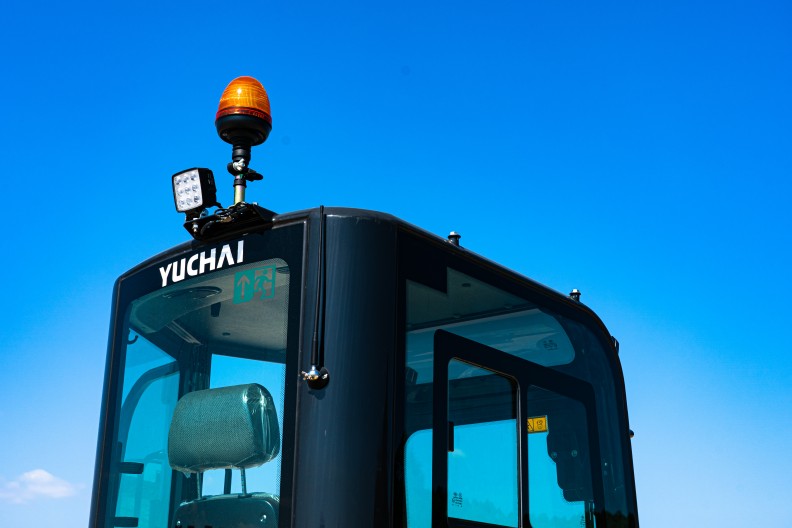

Upgraded Cabin
The cabin is reversible, and enclosure covers are detachable, making maintenance more convenient. The hydraulic components and maintenance points on the platform are easily visible at a glance.
Reasonable Layout

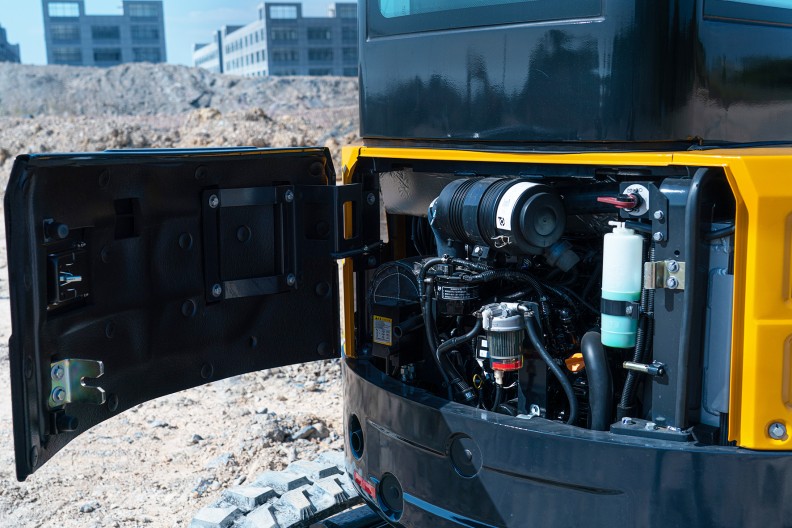

Be equipped with YANMAR engine. Power/speed: 14.5/2400(kW/rpm). Maximum torque/speed: 62.7 ~ 68.4/1800 (nm/rpm);
Three filters are arranged centralized. Load sensitive system, complete intelligent control, and matching accuratly in the whole process lead to higher working efficiency.
The Yuchai U35 Zero Tail Mini Excavator is widely used by construction companies, contractors, mining enterprises, and municipal departments for tasks requiring precision and power in tight spaces. Ideal for projects such as public infrastructure development, mining operations, and forestry management, this excavator offers reliability and versatility for manufacturers and suppliers in the construction and mining industries.
Perfect for a range of industries, the Yuchai U35 excels in applications including:
Construction: Ideal for digging, trenching, and foundation work in residential, commercial, and public infrastructure projects.
Mining: Provides powerful performance for excavation and material handling in mining operations.
Forestry: Useful for land clearing and vegetation removal, making it perfect for forestry projects.
Designed for optimal performance in tight working environments, the Yuchai U35 Zero Tail Mini Excavator features a zero-tail swing, which allows construction contractors and mining companies to operate in narrow spaces without compromising power. Its precision and compact design make it an essential tool for public infrastructure projects and wholesale suppliers in the construction and mining industries.
If you are a manufacturer, supplier, or wholesaler looking to add the Yuchai U35 Zero Tail Mini Excavator to your fleet, contact us today. We offer competitive pricing and tailored solutions for construction, mining, and forestry applications. Request a quote for bulk purchases or wholesale orders now!

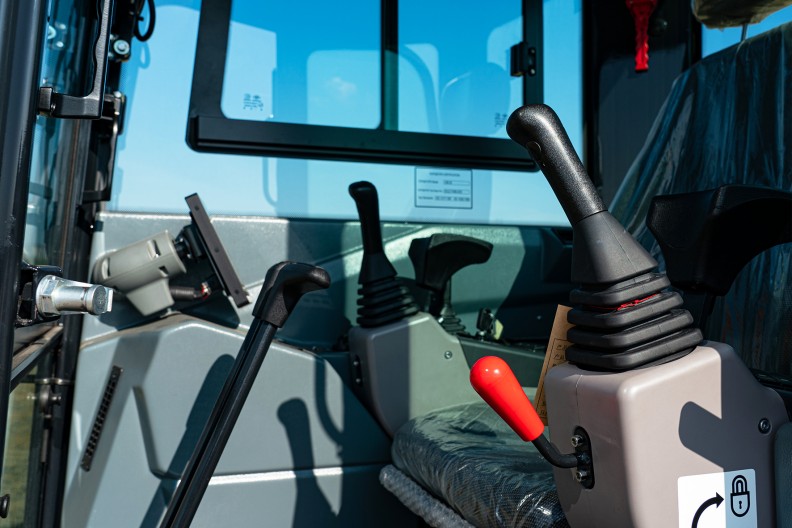

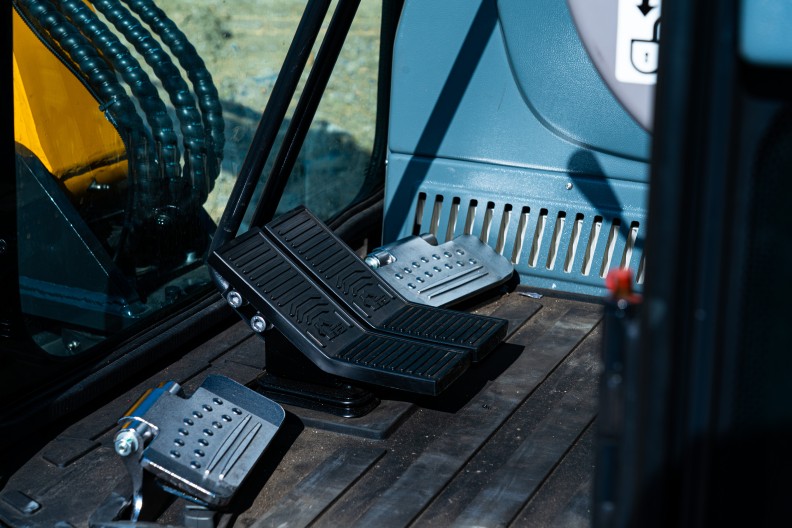

Full Pilot Control
Zero tail
U35 can be operated on a narrow field. When parallel to the wall, it can works with the left and right deflection device while keeping the body stationary.

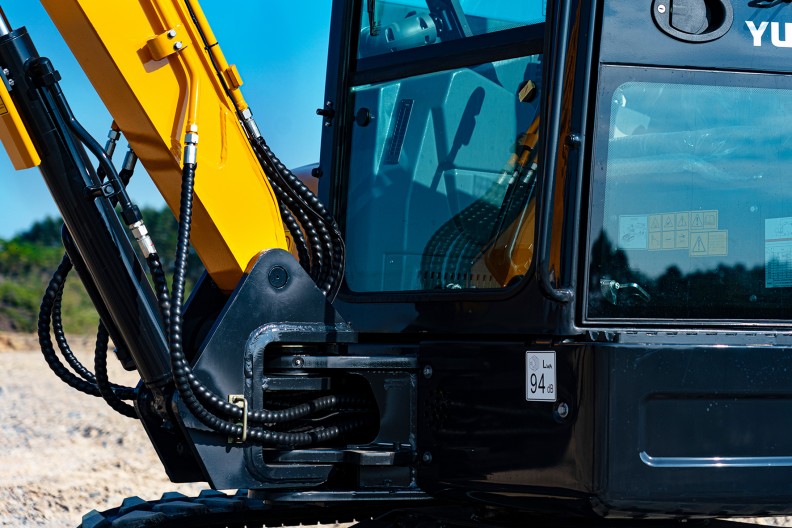

Offset boom
Maximum left deflection angle of boom is 66.7°.
Maximum right deflection angle of boom is 53.7°.

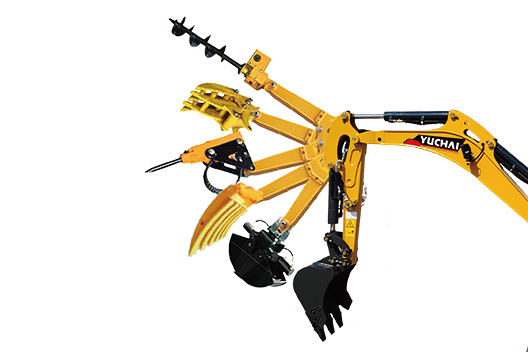

Ready For a Variety of Applications
A wide range of attachements can be easily fitted to answer a variety of applications.
Specifications
| Excavator Model | U35 | |
| Basic parameter | ||
| Machine weight | kg | 3860 |
| Bucket capacity | m³ | 0.12 |
| Width of bucket | mm | 617 |
| Performance parameter | ||
| Engine model | Yanmar 3TNV88 / 3TNV88F | |
| Engine power | kW/rpm | 18.2/2200 / 20.4/2200 |
| Max. Gradeability | 35° | |
| Max. digging force of arm | kN | 25.8 |
| Max. digging force of bucket | kN | 32.7 |
| Traveling speed | km/h | 4.80/3.10 |
| Max. hauling force | kN | 29 |
| Slewing speed of platform | rpm | 11～13 |
| Operating parameter | ||
| Max. digging height | mm | 5156 |
| Max. digging depth | mm | 3170 |
| Max. digging radius | mm | 5557 |
| Max. digging radius on ground level | mm | 5438 |
| Max. dumping height | mm | 3588 |
| Min. slewing radius | mm | 2260 |
| Max. vertical digging depth | mm | 2620 |
| Max. dozer balde heigh | mm | 373 |
| Mzx. dozer blade depth | mm | 425 |
| Transportation dimension | ||
| Overall length | mm | 4853 |
| Overall width | mm | 1800 |
| Overall height | mm | 2575 |
| Other Parameter | ||
| Width of undercarriage | mm | 1800 |
| Length of track | mm | 2093 |
| Width of track | mm | 300 |
| Height between undercarriage and ground | mm | 347 |
| Height between platform and ground | mm | 572 |
| Platform tail turning radius | mm | 1014 |
| Length to center of rollers | mm | 1500 |
| Fuel tank capacity | L | 52 |
| Hydraulic oil tank capacity | L | 40 |
| Track gauge | 1620 | |
| Working Pressure | Mpa | 24 |
| Ground Contact Pressure | kPa | 33 |
| Arm length | mm | 1400 |
| Boom length | mm | 2500 |
| Steering head angle | 67.7° (L) / 53.7° ® | |
| Flow rate | L/Min | 90 |
