1.Structural Reliability
2.Excellent Performance
3.Fuel saving and high efficiency
4.Brand new large cabin
5.Comfortable driving experience
6.Convenient maintenance
Download Brochure
Specifications
| Technical Specification | YC330 | |
| Basic parameter | ||
| Specification | T | 32.1 |
| Total Weight | m³ | 1.4 |
| Bucket capacity | Cummins 6C8.3 | |
| Engine model | Kw/r/min | 198/2000 |
| Rated power | L/min | 265*2 |
| Max displacement | Mpa | 34.3 |
| Working pressure | K3V140DT | |
| Hydraulic pump mode | L | 310 |
| Hydraulic tank volume | km/h | 5.2/3.3 |
| Walking speed (high/low) | r/min | 10.6 |
| Swing speed | ° | 35 |
| Climbing ability | KPa | 65.3 |
| Overall size | ||
| A-Total length | mm | 11080 |
| B-Overall width | mm | 3190 |
| C-Total heigh(boom top) | mm | 3180 |
| D-Overall height(top ofcab) | mm | 3280 |
| E-counterweight ground clearance | mm | 1210 |
| F-Minimum ground clearanc | mm | 498 |
| G-Tail turning radius | mm | 3420 |
| H -Track grounding length | mm | 3700 |
| J-Track length | mm | 4622 |
| K-Rail guage | mm | 2590 |
| L-Track width | mm | 3190 |
| M - Track shoe width | mm | 600 |
| N-Turntable width | mm | 2995 |
| Arm length | mm | 3185 |
| Boom length | mm | 6470 |
| Scope of work | ||
| 0-Maximum excavation height | mm | 10200 |
| P-Maximum unloading heigh | mm | 7135 |
| Q- Maximum excavation depth | mm | 7370 |
| R-Maximum vertical arm mining depth | mm | 6380 |
| S-The distance when digging 2.5horizontal plane | mm | 7190 |
| T-Maximum excavation distance | mm | 11100 |
| U- Maximum excavation distance onthe ground | mm | 10910 |
| V-Minimum turning radius | mm | 4265 |
| W-Maximum height at minimumturning radius | mm | 8500 |
| X-Distance from the center ofrotationto the rear end | mm | 3420 |
| Z-Counterweight height | mm | 2265 |
| A1-Grounding length(during transportation) | mm | 5720 |
Container loading and delivery

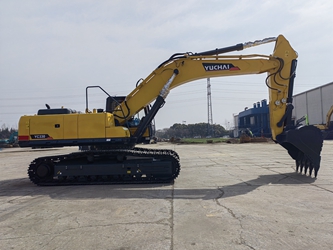

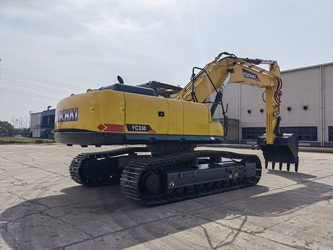

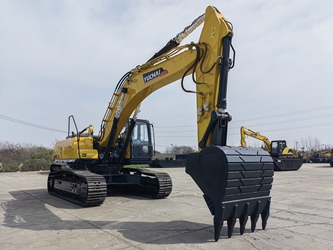

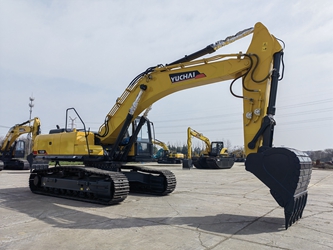

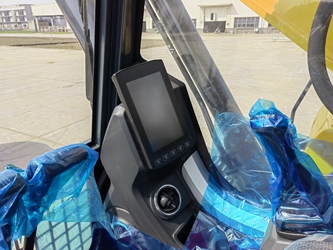

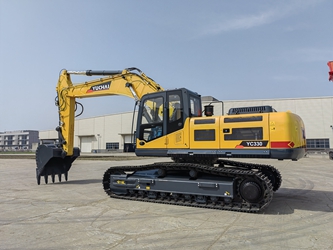

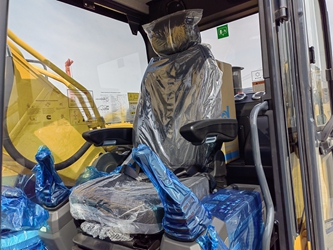

Gallery
