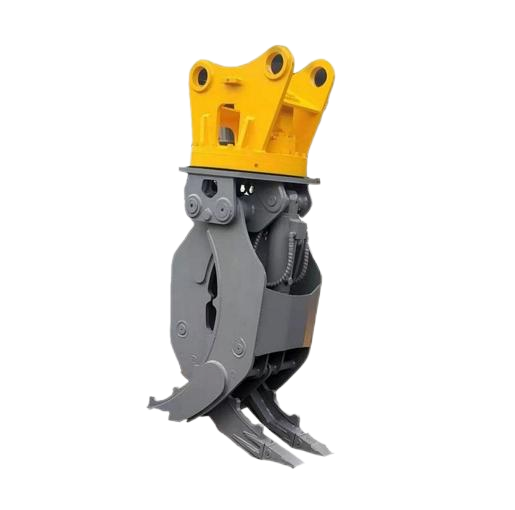

Grab hidráulico de aço/rocha

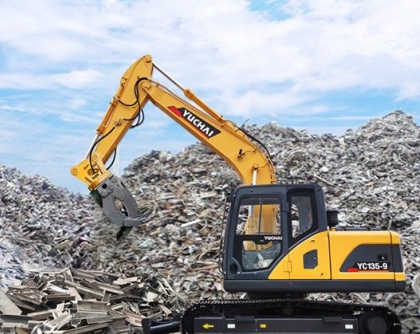

Objetos aplicáveis: afrouxamento simples do solo, detritos de limpeza, carregamento e descarregamento.

Main features: NM400 steel, light weight and wear-resistant:The pin is made of 42CrMo alloy steel, with built-in oil passage, high strength and good toughness,Rotary motor imported from Switzerland;Use vertical car motor rotation system, 3600 rotation, with car brake function;The oil cylinder adopts honing tube, imported HALLITE oil seal, short working cycle and long life;The teeth are made of manganese molybdenum alloy material, que é durável.


Especificações

LTEM/Modelo Unidade YCSR02CA YCSR04CA YCER06CA YCSR08CA YCSR10CA YCSR08CB
Escavadeira adequada tonelada 1.5-3.5 7-11 12-16 17-23 24-30 24-30
Peso kg 185 240 530 960 1220 815
Abertura da mandíbula máxima mm 1200 1300 1850 2170 2540 2000
Altura mm 1095 850 1765 2160 2440 1635
Duas larguras de dentes mm 286 210 354 460 550 430
Largura de três dentes mm 476 350 618 760 930 750
