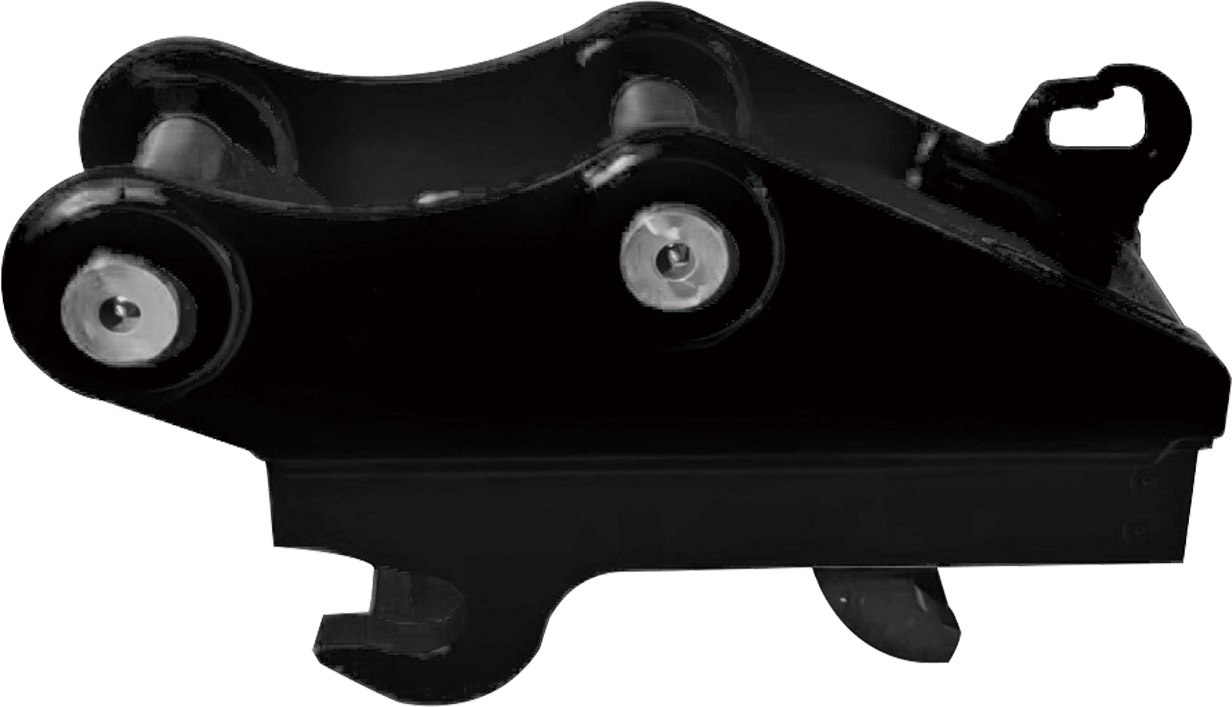

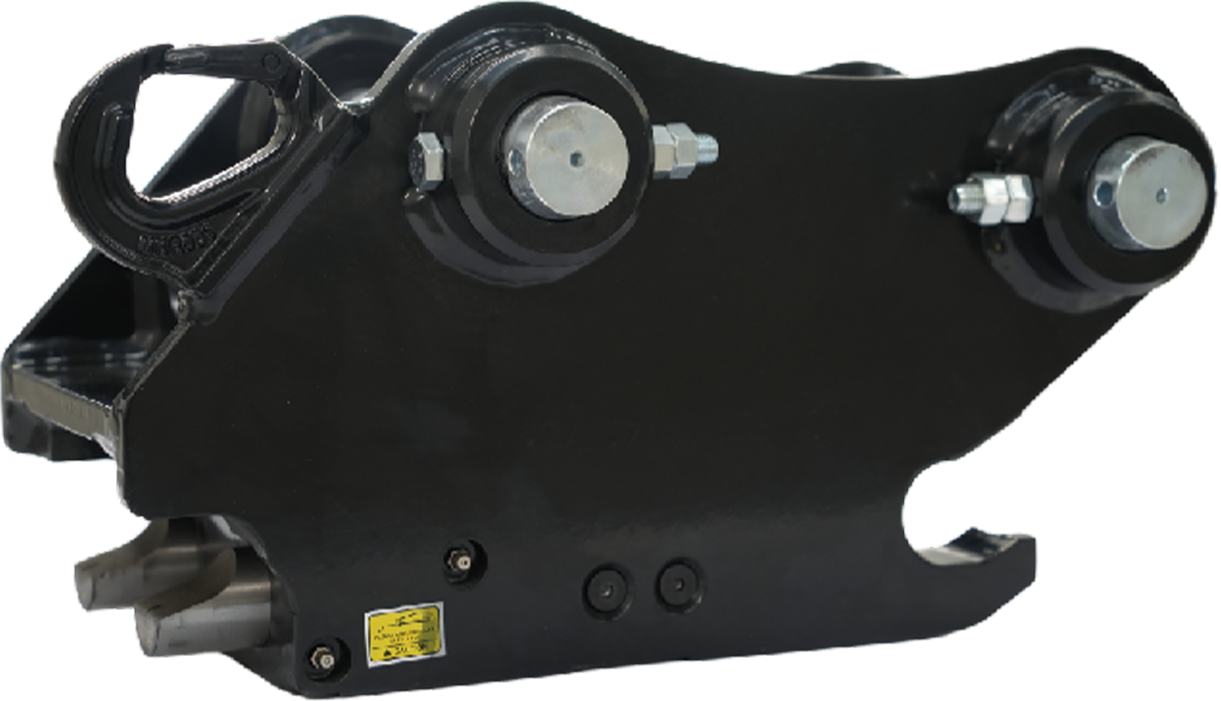

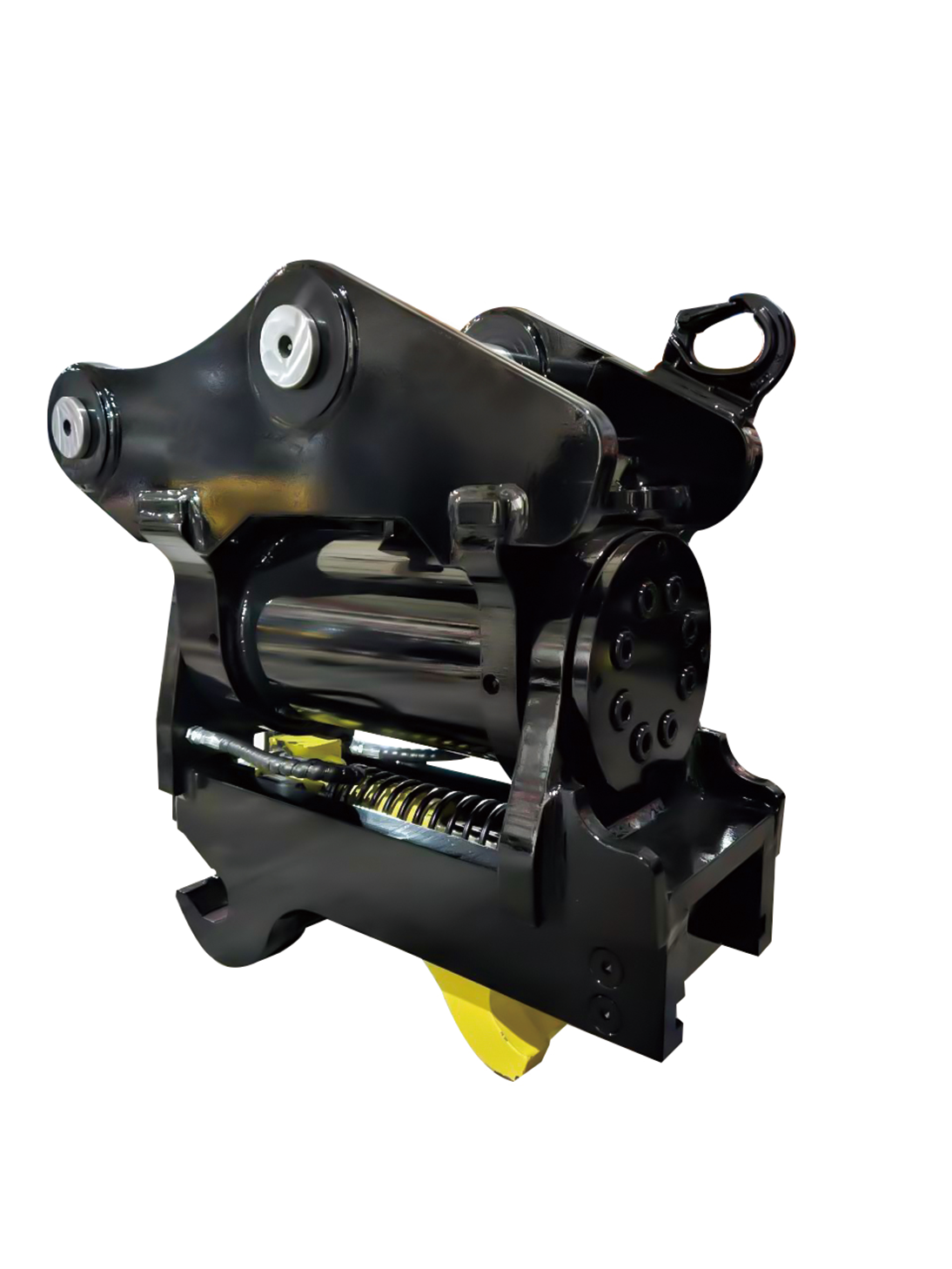

Tilt Quick Coupler

Tilt +70°to 90°. There are no exposed cylinders, It is very safe and stable. Double-locking safety design. The powerful spring safety lock can work in very tough working environments. Easy maintenance. Using high strength steel to increase durability and to reduce weight. Variable pin center design allows you to easily pick up attachments with different pin center distances.

Inquire Now Next Product

Specifications

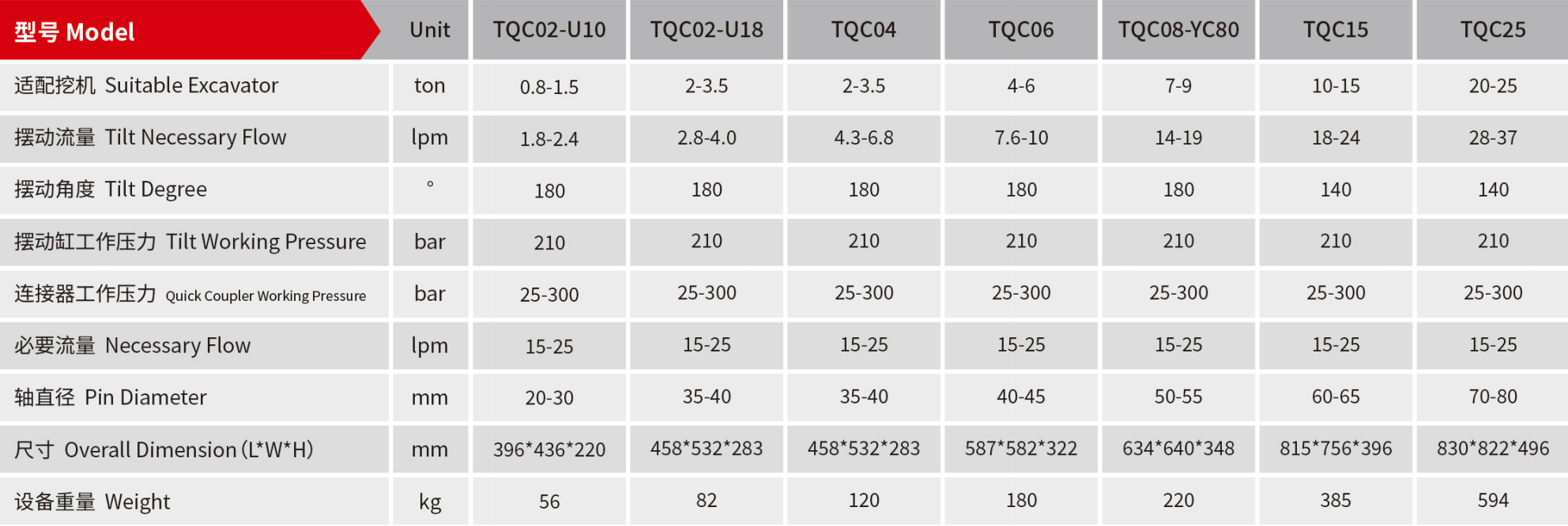

Parameter	Unit	TQC02-U10	TQC02-U18	TQC04	TQC06	TQC08-YC80	TQC15	TQC25
Suitable Excavator	ton / kip	0.8-1.5 / 1.8-3.3	2-3.5 / 4.4-7.7	2-3.5 / 4.4-7.7	4-6 / 8.8-13.2	7-9 / 15.4-19.8	10-15 / 22.0-33.1	20-25 / 44.1-55.1
Tilt Necessary Flow	lpm / gpm	1.8-2.4 / 0.5-0.6	2.8-4.0 / 0.7-1.1	4.3-6.8 / 1.1-1.8	7.6-10 / 2.0-2.6	14-19 / 3.7-5.0	18-24 / 4.8-6.3	28-37 / 7.4-9.8
Tilt Degree	°	180	180	180	180	180	140	140
Tilt Working Pressure	bar / psi	210 / 3045.8	210 / 3045.8	210 / 3045.8	210 / 3045.8	210 / 3045.8	140 / 2030.5	140 / 2030.5
Quick Coupler Working Pressure	bar / psi	25-300 / 362.6-4351.1	25-300 / 362.6-4351.1	25-300 / 362.6-4351.1	25-300 / 362.6-4351.1	25-300 / 362.6-4351.1	25-300 / 362.6-4351.1	25-300 / 362.6-4351.1
Necessary Flow	lpm / gpm	15-25 / 4.0-6.6	15-25 / 4.0-6.6	15-25 / 4.0-6.6	15-25 / 4.0-6.6	15-25 / 4.0-6.6	15-25 / 4.0-6.6	15-25 / 4.0-6.6
Pin Diameter	mm / ft,in	20-30 / 0'0.8"-0'1.2"	35-40 / 0'1.4"-0'1.6"	35-40 / 0'1.4"-0'1.6"	40-45 / 0'1.6"-0'1.8"	50-55 / 0'2.0"-0'2.2"	60-65 / 0'2.4"-0'2.6"	70-80 / 0'2.8"-0'3.1"
Overall Dimension (LWH)	mm / ft,in	396436220 / 1'3.6"1'5.2"0'8.7"	458532283 / 1'6.0"1'8.9"0'11.1"	458532283 / 1'6.0"1'8.9"0'11.1"	587582322 / 1'11.1"1'10.9"1'0.7"	634640348 / 2'1.0"2'1.2"1'1.7"	815756396 / 2'8.1"2'5.8"1'3.6"	830822496 / 2'8.7"2'8.4"1'7.5"
Weight	kg / lb	56 / 123.5	82 / 180.8	120 / 264.6	180 / 396.8	220 / 484.0	385 / 848.8	594 / 1309.5
