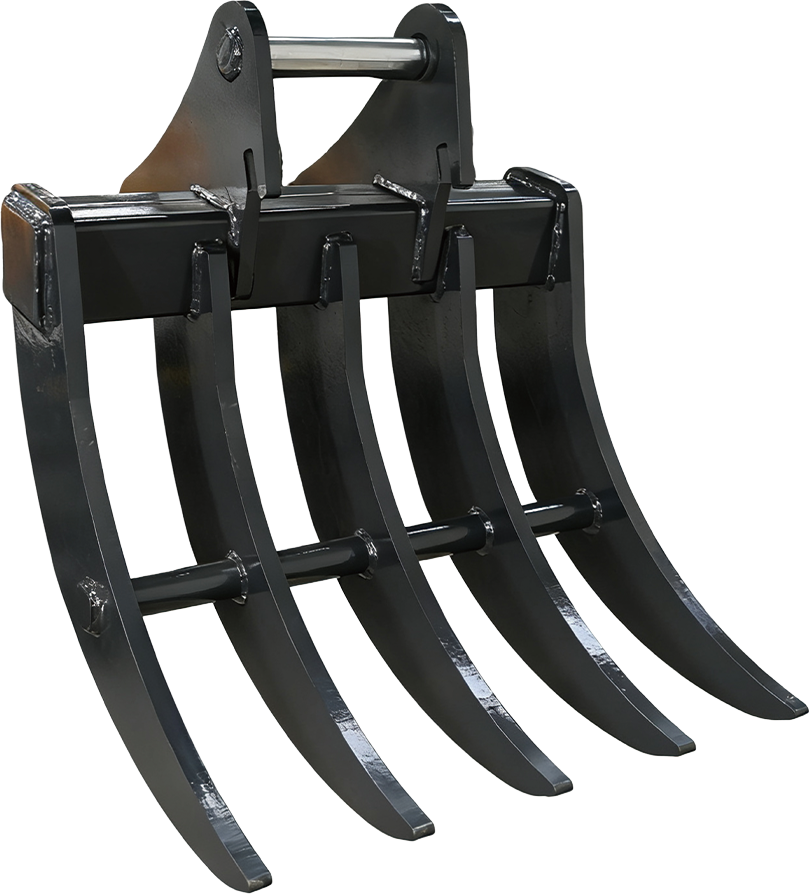

Multi-tooth design disperses pressure effectively, enabling easy raking and sorting of loose materials such as sand, gravel, deadbranches, and debris, while also efficiently loosening soil and leveling terrain.
Reinforced teeth provide wear resistance and durability, making it suitable for various scenarios including farmland preparation,garden maintenance, and construction site cleaning. It is a versatile and practical tool for multiple operations.

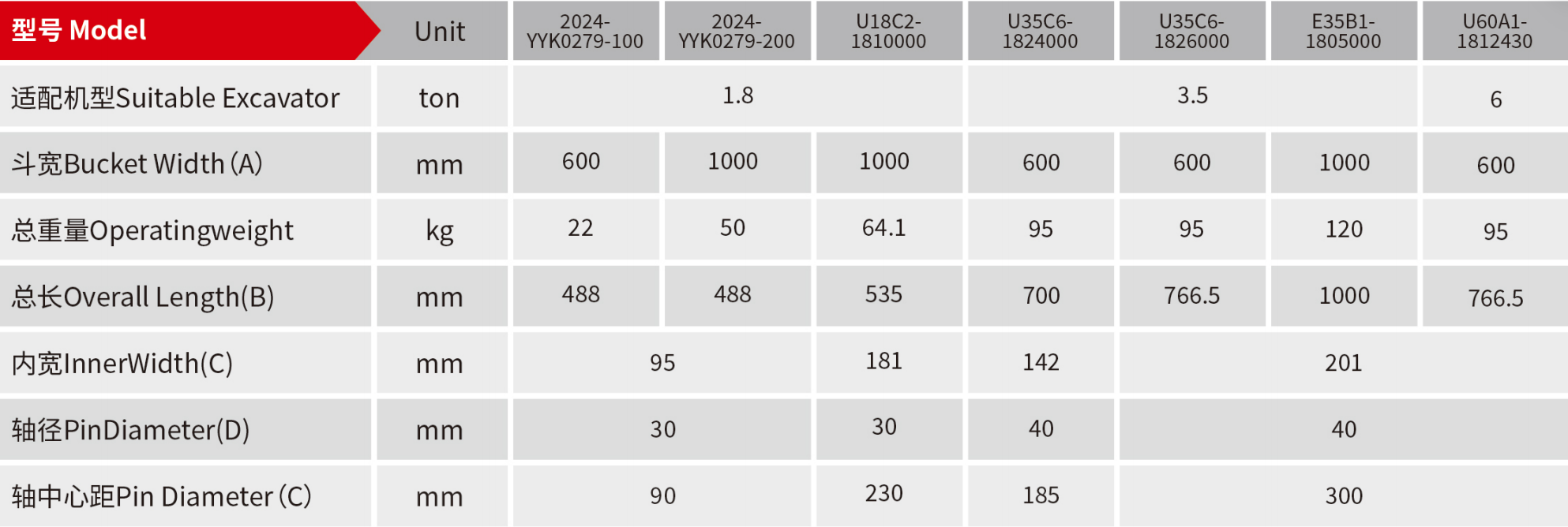

Specifications
| Model | Unit | 2024-YYK0279-100 | 2024-YYK0279-200 | U18C2-1810000 | U35C6-1824000 | U35C6-1826000 | E35B1-1805000 | U60A1-1812430 |
| Suitable Excavator | ton | 1.8 | 1.8 | 1.8 | 3.5 | 3.5 | 3.5 | 6 |
| Bucket Width (A) | mm / ft'in" | 600 / 1'11.6" | 1000 / 3'3.4" | 1000 / 3'3.4" | 600 / 1'11.6" | 600 / 1'11.6" | 1000 / 3'3.4" | 600 / 1'11.6" |
| Operating weight | kg / lb | 22 / 48.5 | 50 / 110.2 | 64.1 / 141.3 | 95 / 209.4 | 95 / 209.4 | 120 / 264.6 | 95 / 209.4 |
| Overall Length (B) | mm / ft'in" | 488 / 1'7.2" | 488 / 1'7.2" | 535 / 1'9.1" | 700 / 2'3.6" | 766.5 / 2'6.2" | 1000 / 3'3.4" | 766.5 / 2'6.2" |
| Inner Width (C) | mm / ft'in" | 95 / 0'3.7" | 95 / 0'3.7" | 181 / 0'7.1" | 142 / 0'5.6" | 201 / 0'7.9" | 201 / 0'7.9" | 201 / 0'7.9" |
| Pin Diameter (D) | mm / ft'in" | 30 / 0'1.2" | 30 / 0'1.2" | 30 / 0'1.2" | 40 / 0'1.6" | 40 / 0'1.6" | 40 / 0'1.6" | 40 / 0'1.6" |
| Pin Diameter (C) | mm / ft'in" | 90 / 0'3.5" | 90 / 0'3.5" | 230 / 0'9.1" | 185 / 0'7.3" | 300 / 0'11.8" | 300 / 0'11.8" | 300 / 0'11.8" |
