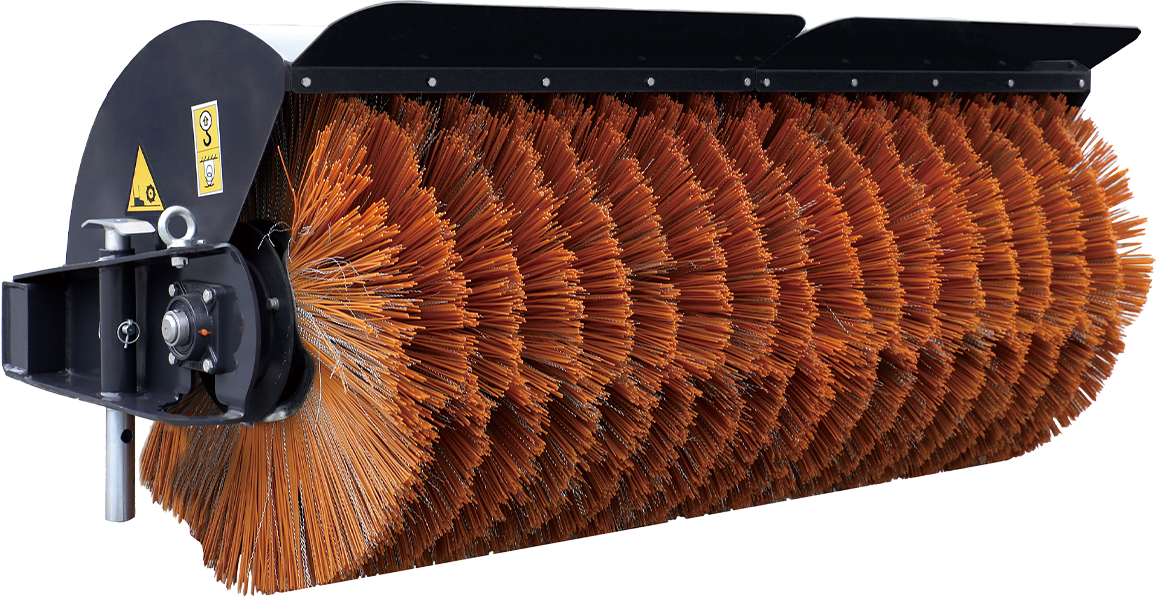

Adjustable Angle Sweeper

This high-performance snow removal broom is designed for efficient and reliable clearing of snow and debris from streets, squares, and highways without damaging road surfaces. It features a wear-resistant, flexible hybrid brush rolldriven hydraulically to enable side-to -sidesteering and floating ground -following sweeping, enhancing cleaning performance and extending brush life. Equipped with a cab-mounted control unit for easy operation. When paired with a compact loader, installation of corresponding stop blocks based on the host machine is recommended.

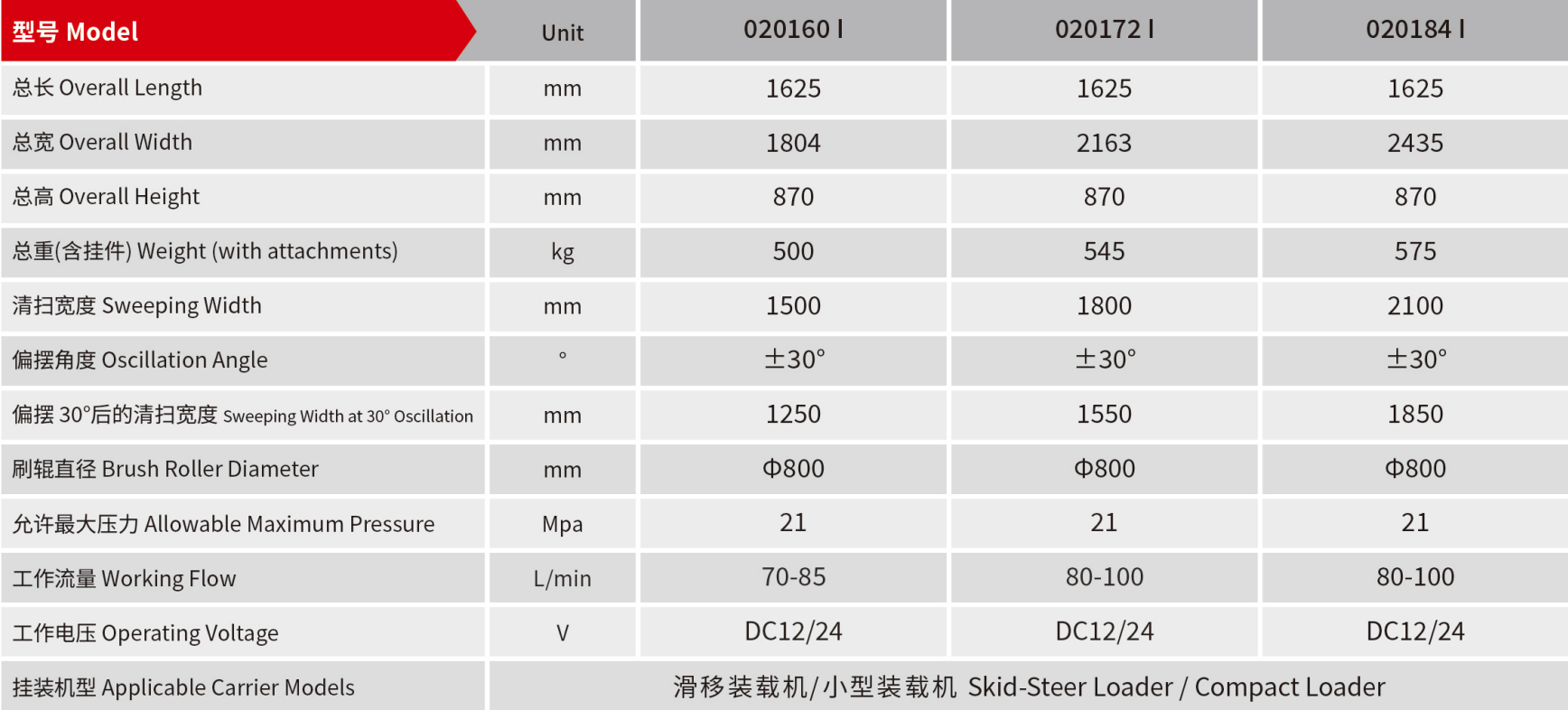

Specifications

ParameterImperial UnitMetric UnitImperial 020160ⅠMetric 020160ⅠImperial 020172ⅠMetric 020172ⅠImperial 020184ⅠMetric 020184Ⅰ
Overall Lengthft'in"mm5'4.0"16255'4.0"16255'4.0"1625
Overall Widthft'in"mm5'11.0"18047'1.2"21637'11.9"2435
Overall Heightft'in"mm2'10.3"8702'10.3"8702'10.3"870
Weight (with attachments)lbkg1102.35001201.55451267.7575
Sweeping Widthft'in"mm4'11.1"15005'10.9"18006'10.7"2100
Oscillation Angle°°±30°±30°±30°±30°±30°±30°
Sweeping Width at 30° Oscillationft'in"mm4'1.2"12505'1.0"15506'0.8"1850
Brush Roller Diameterft'in"mm2'7.5"Φ8002'7.5"Φ8002'7.5"Φ800
Allowable Maximum PressurepsiMpa3045.8213045.8213045.821
Working FlowgpmL/Min18.5-22.570-8521.1-26.480-10021.1-26.480-100
Operating VoltageVVDC12/24DC12/24DC12/24DC12/24DC12/24DC12/24
Applicable Carrier ModelsSkid-Steer Loader / Compact Loader
