Europe, North America and Australia are the three core international markets for mini excavators, with large, mature demand—yet each region differs significantly, making a single "global" product hard to achieve. The functional differentiation of European, North American and Australian mini excavator versions essentially stems from irreconcilable demand differences across the three markets. Yuchai Construction Equipment, with over three decades in mini excavator technology, has built a differentiated product matrix tailored to each region's characteristics, covering the tiered demand of all three markets. This article analyzes the topic across four dimensions—regulatory standards, application scenarios, usage habits and functional configuration—to guide model selection in different regions.

1. Regulatory Dimension: Market Access Barriers Across the Three Markets

Regulation is the first hurdle for mini excavators going overseas; each market has its own rigorous standard system.

Europe — Stage V Emissions + EN 474 Safety Standards

Europe's core market-access threshold is the CE mark. Compact excavators entering the market must pass machinery safety certification (CE-MD), electromagnetic compatibility certification (CE-EMC) and noise-compliance certification. From 2027, the new EU Machinery Regulation (Regulation (EU) 2023/1230) will add cybersecurity and software-update compliance requirements.

Stage V is currently the world's strictest emission standard for non-road mobile machinery, mandatory since 2019, setting very low limits for particulate matter (PM), particle number (PN), nitrogen oxides (NOx) and hydrocarbons (HC). For excavators with power ≤56 kW, the PM limit is further reduced from 0.025 g/kWh under Stage IV to 0.015 g/kWh, and the NOx limit is tightened to 0.4–0.6 g/kWh. Diesel particulate filters (DPF) have become virtually standard on all engines, and selective catalytic reduction (SCR) systems are also standard on most engines.

The EN 474 series sets unified safety requirements for earth-moving machinery, detailing requirements for stability, braking systems, visibility, control systems and protective devices, and explicitly specifies ROPS (Roll-Over Protective Structure) and FOPS (Falling-Object Protective Structure). EN 474-5 addresses hydraulic excavators, covering significant hazards under normal use and reasonably foreseeable misuse.

For noise, EU Outdoor Noise Directive 2000/14/EC requires outdoor equipment noise not to exceed 75 dB(A); equipment must display its noise value and provide a test report. ROPS and FOPS are the core of cab safety for earth-moving machinery: ROPS provides a survival space that resists impact and pressure in the event of rollover, while FOPS protects against impact from falling objects above.

North America — EPA Tier 4 Final + SAE Safety Standards

North America's core is US EPA certification. Non-road diesel engines must meet Tier 4 Final emission standards (40 CFR Part 1039), substantially cutting PM emissions. For machinery above 100 hp, PM drops to 0.02 g/kWh, driving manufacturers to widely upgrade high-pressure common-rail and DPF filtration systems. Certification involves submitting a technical application and emission data; upon approval a certificate is issued and the product must carry an EPA emission label.

For safety standards, North America follows the SAE and ANSI systems. SAE J1177 specifies the layout and direction of motion of controls for mobile hydraulic excavators, consistent with international standard ISO 10968.

Australia — ISO Safety System + Multi-Standard Emission Landscape

Australia has no mandatory exclusive emission regulation for non-road mobile machinery; imported equipment may accept US EPA and EU standards. But safety standards are stringent: ISO 12117-2, published in 2008, sets the baseline for ROPS on 6–50 tonne excavators, requiring full-scale destructive testing to verify structural performance; ROPS must deform in a controlled manner during rollover to absorb energy and protect the operator.

Australia also strictly requires FOPS; protective structures must resist impact from falling objects above. In high-risk environments such as mining, regulators require ROPS/FOPS certification; manufacturers must supply certified structures and contractors must follow specified welding and fabrication processes. AS 2294 is Australia's local earth-moving machinery protective-structure standard.

2. Application Scenario Dimension: From European Alleys to Australian Mines

Differences in application scenarios are the most direct driver of mini excavator functional design.

Europe — Urban Micro-Space Renovation and Indoor Work

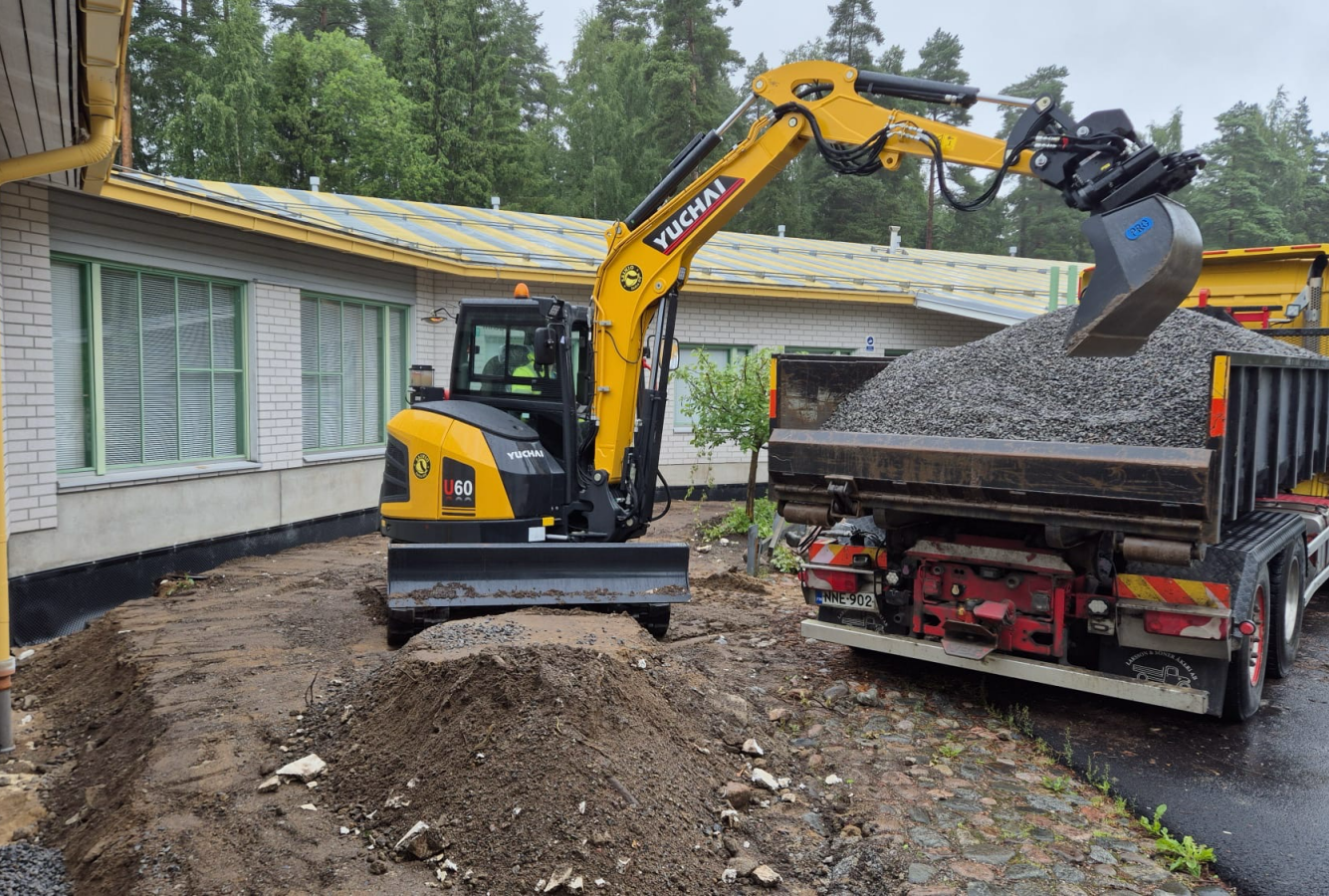

European mini excavators are mainly used in renovation of old narrow blocks, indoor refurbishment, garden landscaping and pipeline maintenance. Growth in urban renewal and greening projects continues to expand the mini excavator market; cities like London, Paris and Berlin use them extensively for underground pipeline laying, old-building renovation and landscape construction. This demands extreme narrow-space maneuverability—zero-tail or short-tail swing and boom swing have become standard features of European-version mini excavators.

North America — Rental-Driven High-Turnover Construction

The defining feature of the North American mini excavator market is rental-driven demand. The US construction equipment rental market exceeded $64.76 billion in 2024 and is projected to reach about $98.29 billion by 2034, with a CAGR of 4.26%. In mini excavator rentals, North America leads as the world's largest market with about 40% revenue share; contractors and landscaping firms increasingly rely on rentals for temporary projects, seasonal work and special scenarios.

In Europe, over half of mini excavators are distributed through rental channels; in the US the proportion is even higher. This means equipment design must suit a multi-user, high-frequency rental environment, pursuing durability, simplified controls and lower total cost of ownership.

Australia — Extreme Environments of Mining and Agricultural Infrastructure

Australian mini excavator core scenarios center on mining auxiliary work, large farm construction and remote infrastructure. In mining areas, summer ground temperatures can reach 50°C with extremely high dust concentration; farms are dispersed, potentially hundreds of kilometers from the nearest service point. These characteristics dictate that Australian-version mini excavators must have extreme-environment tolerance and low maintenance dependency, maintaining high reliability over the long term and minimizing service frequency.

3. Usage Habit Dimension: Divergent Demands of Users in the Three Markets

Application scenarios determine "where to use"; usage habits determine "how to use".

Europe — Attachment Dependence for "One Machine, Many Uses"

The most notable European habit is extremely high attachment dependence. The global small excavator attachment market was estimated at $956 million in 2024 and is expected to reach $1.458 billion by 2031, with a CAGR of 6.1%. European users habitually swap attachments frequently within a single day—from bucket to breaker to grapple—which demands quick couplers that are easy and safe to operate.

A quick coupler is the connecting device for rapidly changing excavator attachments; it can disconnect the attachment and hydraulic lines from inside the cab, significantly improving multi-task switching efficiency.

North America — "Efficient and Direct" Working Preference

North American users prefer a direct, efficient way of working, favoring equipment that is "ready to use" and easy to maintain. Because mini excavators are mostly rented and operator skill levels vary, rental companies require simple, intuitive controls, low failure rates and easy repair. Daily work intensity is high with long average daily hours, requiring mini excavators to deliver strong digging performance while keeping compact dimensions for maximum output.

Australia — "Rugged and Worry-Free" Maintenance Mentality

Australian users are widely distributed; large farm owners and mining contractors often have their own repair capability, but long parts-supply cycles mean a breakdown can cause weeks of downtime. Therefore Australian users adopt a "rugged and worry-free" selection mindset—preferring to invest more at purchase for a reinforced model rather than risk downtime losses during peak season. Remote monitoring and preventive maintenance weigh significantly more in Australian users' decisions than in other markets.

4. Product Functional Configuration Dimension: Differentiation Across the Three Markets

Under the triple influence of regulation, scenario and habits, product functional configuration shows distinct market characteristics.

European Version — Zero/Short-Tail Swing + Full-Hydraulic Quick Coupler + Electrification

Zero/short-tail swing design: engine, hydraulic pump and counterweight compactly arranged within the machine's swing radius so the upper structure's tail does not exceed or only slightly exceeds the tracks during swing, enabling safe, efficient work in narrow spaces.

Boom swing function: allows left/right deflection to enable "digging against walls" near obstacles, significantly improving efficiency when working close to obstructions; now a mini excavator standard. Europe generally prefers one-touch switching between boom swing and swing; Italy and elsewhere prefer independent foot control of boom swing, not tied to swing switching.

Quick coupler: some still use mechanical couplers, but most prefer full-hydraulic quick couplers, letting the operator change buckets, grapples, breakers etc. with one touch from the cab and simultaneously complete hydraulic connection.

Early electrification: Europe's zero-emission-zone policies accelerate electric mini excavator adoption, and rising Stage V diesel costs also push manufacturers toward electric and hybrid drivetrains. The Netherlands is a representative market for European electrification; Yuchai accordingly launched the Y20E and Y60E lithium-battery pure-electric mini excavators to meet European market demand.

North American Version — Dual-Circuit Hydraulics + Smart Safety + Rental Design

Main and auxiliary dual-circuit hydraulic system: meets flow and pressure demands of multiple attachments (digging, breaking, grabbing), supporting rapid switching between tasks and control modes. North America prefers adding a thumb attachment. A dual-circuit hydraulic system means the main and auxiliary circuits supply oil independently, simultaneously satisfying the differentiated flow/pressure needs of main digging work and auxiliary attachments like breakers and grapples, improving multi-task adaptability.

Smart safety system: 360-degree surround-view monitoring is becoming standard, with personnel and object detection that can auto-stop to reduce collision risk.

Rental-oriented design: reinforced structural parts, simplified interface, and anti-vandal guards to suit multi-user, high-frequency use. E.g., a brand's 2.5-tonne rental-specific model retains a Stage V engine and proportional hydraulics but simplifies complex functions to cut cost and improve durability.

Australian Version — ROPS/FOPS Standard + High-Temp Tolerance + Remote O&M

ROPS/FOPS standard configuration: ROPS certified to ISO 12117-2, verified by full-scale destructive testing, must deform in a controlled manner during rollover to absorb energy and protect the operator.

Multiple filtration and cooling: three-stage fuel filtration (one coarse + two fine) and a large-capacity hydraulic oil radiator ensure stable operation at 50°C and in dusty environments.

Sealed pressurized A/C cab: resists external dust ingress, ensuring operator comfort in extreme climates.

Control habit: prefers independent left-foot control of boom swing, not tied to swing switching.

Remote telematics system: monitors equipment health in real time via satellite, supports remote fault diagnosis, meeting low-maintenance-dependency needs in remote areas.

Central lubrication system: fills all grease points at once, reducing service frequency.

Mini Excavator Version Comparison Across Three Markets

FAQ

How do mini excavator emission standards differ across Europe, North America and Australia?

Europe enforces Stage V non-road emissions (for excavators with power ≤56 kW, the PM limit drops from 0.025 g/kWh under Stage IV to 0.015 g/kWh); North America enforces EPA Tier 4 Final (40 CFR Part 1039), with PM down to 0.02 g/kWh above 100 hp; Australia has no mandatory exclusive emission regulation and accepts US EPA and EU standards for imported equipment.

Why do European mini excavators commonly use zero-tail swing and boom swing?

European mini excavators are mostly used in narrow spaces such as renovation of old narrow blocks, indoor refurbishment, garden landscaping and pipeline maintenance. Zero-tail or short-tail swing prevents the upper structure's tail from exceeding the tracks during swing, and boom swing enables "digging against walls" near obstructions, making them standard features of European versions.

Why do North American mini excavators emphasize rental-oriented design?

The North American mini excavator market is rental-driven; North America accounts for about 40% of global mini excavator rental revenue share, the largest market. Equipment must suit a multi-user, high-frequency rental environment, so durability, simplified controls, lower total cost of ownership and anti-vandal design are emphasized.

Why do Australian versions prioritize ROPS/FOPS and remote O&M?

Australian mini excavator core scenarios are mining auxiliary work and large farm construction, where summer mining ground temperatures can reach 50°C with high dust, and farms may be hundreds of kilometers from the nearest service point. ROPS/FOPS ensure operator safety in extreme environments, and remote telematics can monitor equipment health via satellite and support remote diagnosis, reducing maintenance dependency in remote areas.

Why is electric mini excavator adoption faster in Europe?

Europe's zero-emission-zone policies accelerate electric mini excavator adoption, while rising Stage V diesel costs push manufacturers toward electric and hybrid drivetrains. The Netherlands is a representative market for European electrification; Yuchai accordingly launched the Y20E and Y60E lithium-battery pure-electric mini excavators.

Conclusion

In the "narrow space" niche, the stringent regulation and early electrification of the European version, the rental-driven efficiency and reliability of the North American version, and the extreme-weather tolerance and safety-first approach of the Australian version together outline the design map of mini excavator globalization. Ignoring regional functional differentiation leads to compliance risk and efficiency loss in target markets.

Yuchai Construction Equipment has built a full-range mini excavator product line covering Stage V (Europe) and North American T4F emission standards, backed by CE/EPA dual-certification qualifications and a global service network spanning 100+ countries across five continents, enabling it to provide functionally differentiated solutions suited to each regional market.
