CATL battery
Hepu Motor
Zero emission，Low noise
ISO/SAE control switch
Floating bulldozer blade
Stable and Reliable Battery, Motor & Control System
Simple and Convenience Maintenance
High Cost-Performance
Download the product brochure below for full details.
High-Capacity LFP Battery
Via its inverter, the machine transforms into a large power bank capable of 220V/10A outputto support various electric tools. With 5,000 charge cycles (equivalent to 16 years of service)and <6% performance degradation over 8 years, its intelligent overload protection safeguardsthe battery/motor system. Yuchai further backs the battery with a 5-year warranty,eliminating traditional engine reliability concerns.
High Cost-Performance
The Y60E electric excavator delivers exceptional cost-performance. With its heavy-duty structure,powerful engine, and versatile capabilities, the Y60E maximizes your investment return. Its efficientand reliable performance enables you to complete construction and excavation projects with thelowest operating costs and highest productivity. More than just a purchase, the U60 is a long-terminvestment in your operational efficiency and profitability.
Convenient and Rapid Charging
Equipped with a high-capacity 105 kWh lithium iron battery, the machine delivers 6-8 hours of continuousoperation ona single charge, ensuring stable performance throughout demanding working cycles.Featuring the largest battery capacity in the 6-ton class electric excavator segment, it minimizes chargingdowntime, enhances jobsite productivity, and provides operators with greater flexibility and reliability.

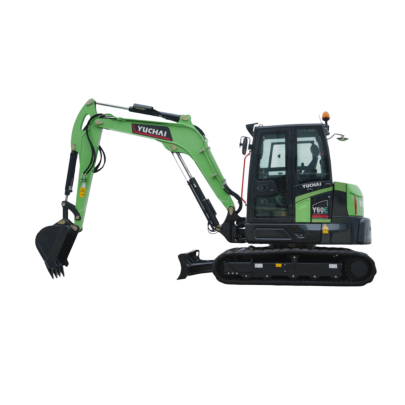

Yuchai Y60E Electric Excavator
Founded in 1989, Yuchai Equipment is the earliest excavator company in China to produce mini excavators and sell them to the world. It is the largest production and export base of small excavators in China and a national high-tech enterprise.
Dozer Blade Float Function
Float dozer simplifies leveling, compact design suits narrow job sites.
Stable and Reliable Battery, Motor & Control System
Y60E shares S150’s mature electric system from top EV suppliers, fully tested for stable reliability.
Premium Cab
Comfort suspension seat, CAN-BUS control, auto fault detection, wireless charging & rear safety camera.
Optimal Maintenance Points
Integrated RFCS & multi-functional OBC deliver real-time power management, fast fault diagnosis and higher energy efficiency.
Full Pilot Control
Full pilot joysticks ensure precise, smooth operation with adjustable control modes.
Interchangeable
Quick coupler allows fast switching of attachments and interchangeable arm options.

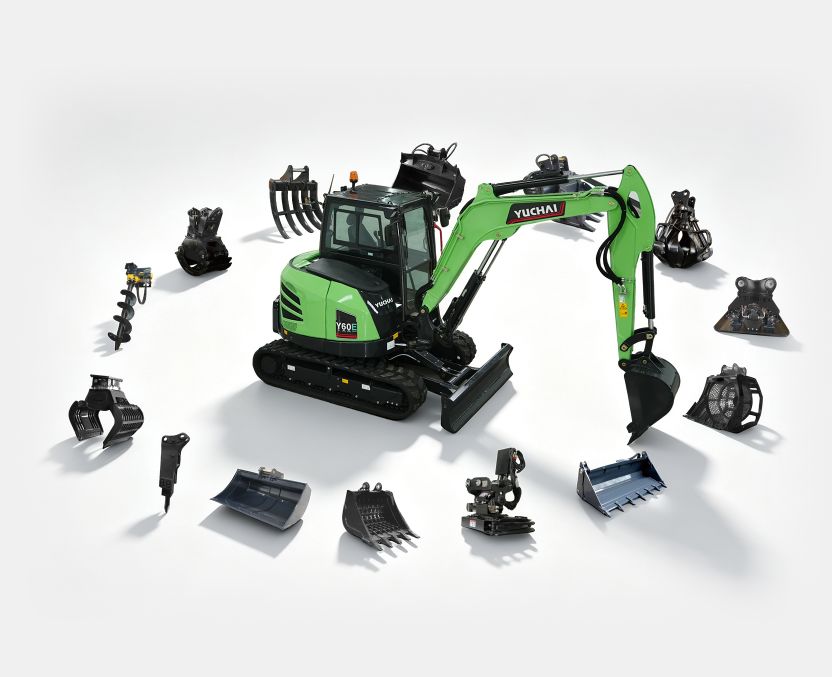

Various Attachments
Supports buckets, dozer blade, auger, thumb, breaker for multiple works.
Specifications
Yuchai Y60E Electric Excavator (CE ERD Certified) – Equipped with lithium iron battery for fast charging & long endurance, robust structure adapts to global job sites, FOPS/TOPS safety cabin, supports multiple attachments. Stable performance via advanced control systems.
| Basic parameters | ||
| Machine weight | kg | 5950 |
| Bucket capacity | m³ | 0.18 |
| Width of bucket | mm | 700 |
| Performance parameters | ||
| Battery Lithium Iron | kWh | 105 |
| Battery voltage | V | 347.76 |
| Motor power | kW | 32 |
| Standard endurance | h | 6~8 |
| Fast charging time | 1 hour | 20%→80% |
| Slow charging time | 9.5 hours | 20%→80% |
| Max. gradeability | ° | 35 |
| Max. digging force of bucket | kN | 45 |
| Max. digging force of arm | kN | 26 |
| Traveling speed | km/h | 3.6/2.2 |
| Max. hauling force | kN | 61.5 |
| Slewing speed of platform | rpm | 8~10 |
| Operating parameters | ||
| Max. digging height | mm | 5670 |
| Max. digging depth | mm | 3635 |
| Max. digging radius | mm | 6190 |
| Max. digging radius on ground level | mm | 6055 |
| Max. dumping height | mm | 4015 |
| Min. slewing radius | mm | 2550 |
| Max. vertical digging depth | mm | 2985 |
| Transportation dimension | ||
| Overall length | mm | 5545 |
| Overall width | mm | 1960 |
| Overall height | mm | 2550 |
| Other parameters | ||
| Width of undercarriage | mm | 1960 |
| Length of track | mm | 2500 |
| Width of track | mm | 400 |
| Minimum ground clearance | mm | 310 |
| Height between platform and ground | mm | 625 |
| Platform tail turning radius | mm | 1210 |
| Track gauge | mm | 1560 |
| Hydraulic oil tank capacity | L | 70 |
| working pressure | MPa | 27.5 |
| Flow rate | L/min | 158.4 |
| AUX 1 Pressure / Flow rate | MPa / L/min | 27.5 / 35 |
| AUX 2 Pressure / Flow rate | MPa / L/min | 27.5 / 110 |
| Boom length | mm | 2795 |
| Arm length （standard/longer） | mm | 1635 |
| Maximum Bulldozer Lift | mm | 440 |
| Steering head angle | 70°(L)/53°(R) | 70°(L)/53°(R) |
Gallery
